Week 8 - Challenge 4 - Bumper

• Aim: Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

• Report: I had exatract the surface from the Class A surface and then create a point on the surface and through that point create a line normal to surface.

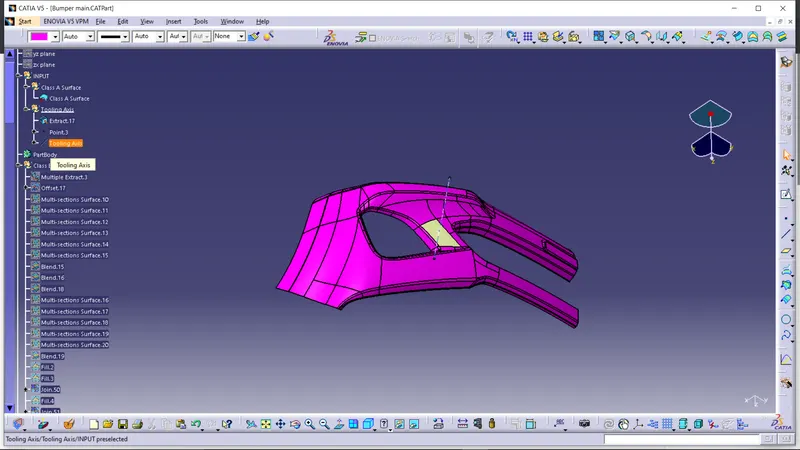

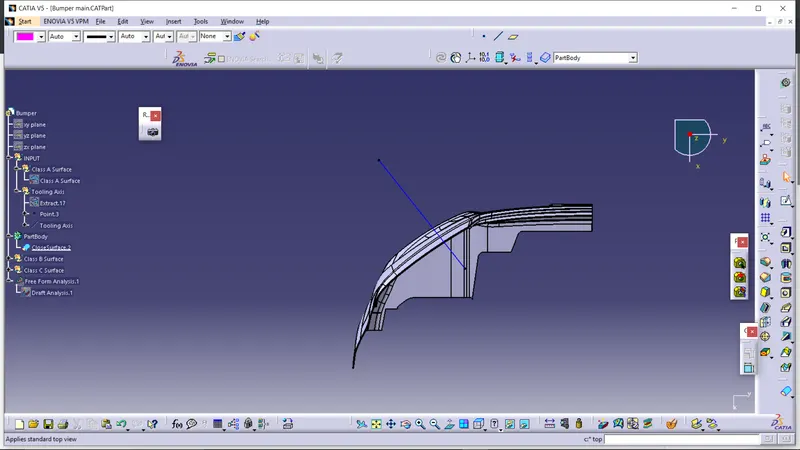

Tooling Axis is red colour line.

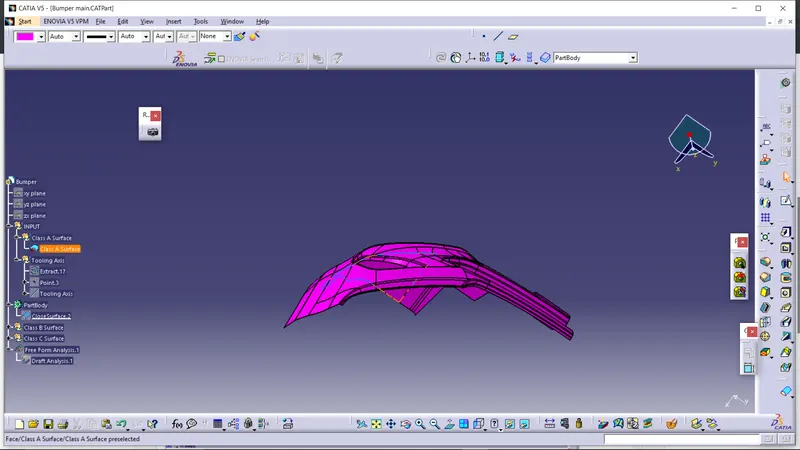

Class A Surface : class A surface is given as input.

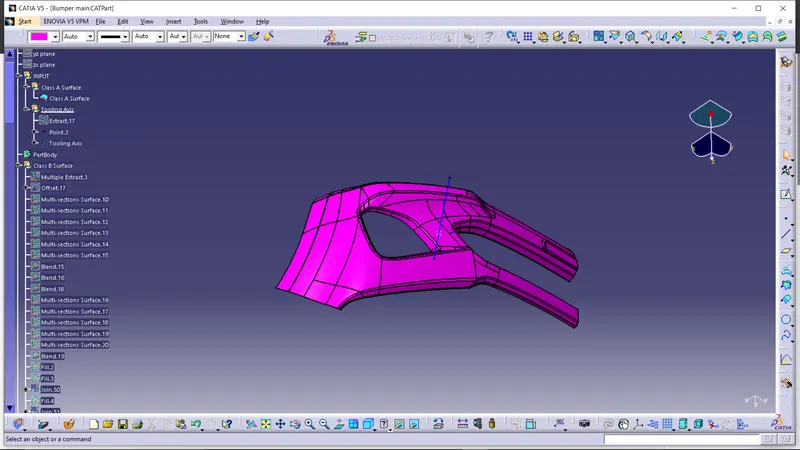

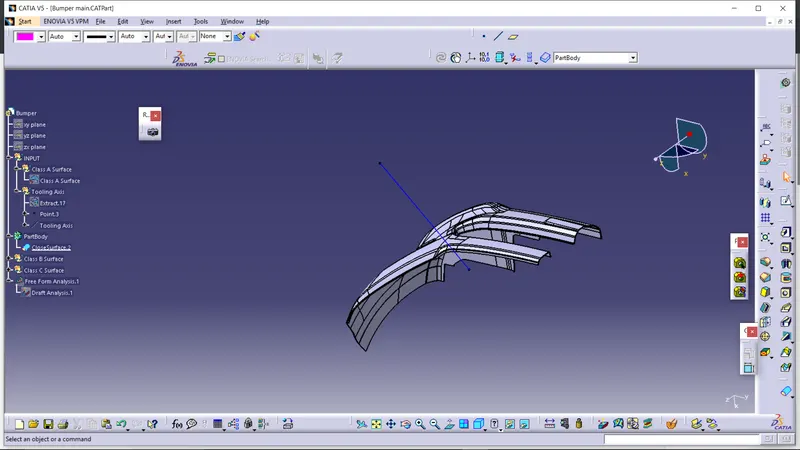

Class B Surface: I had created the class b Surface from the class A surface by extracting the surface then untrimming and extrapolation and trimed with other surfaces. the thickness of the final solid part is 3mm bacause that i had offseted the class B Surface from class A surface by 3mm.

Class B Surface is same as of class A surface but it offseted from class A . class B surface is alway behind the class A surface.

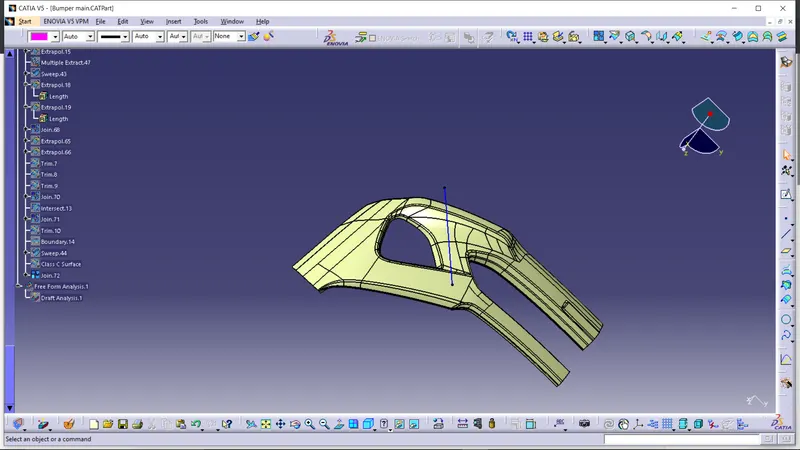

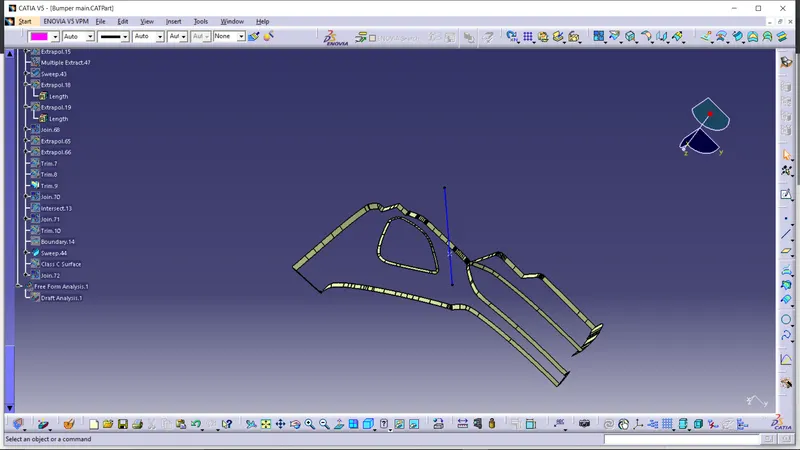

Class C surface join the Class A surface and the Class B surface size of the class C is thickness of the part.

Final Closed Surface of the coin holder is created by joining the Class A surface and Class C surface and that joined body trim with the Class B surface and created the final closed body.

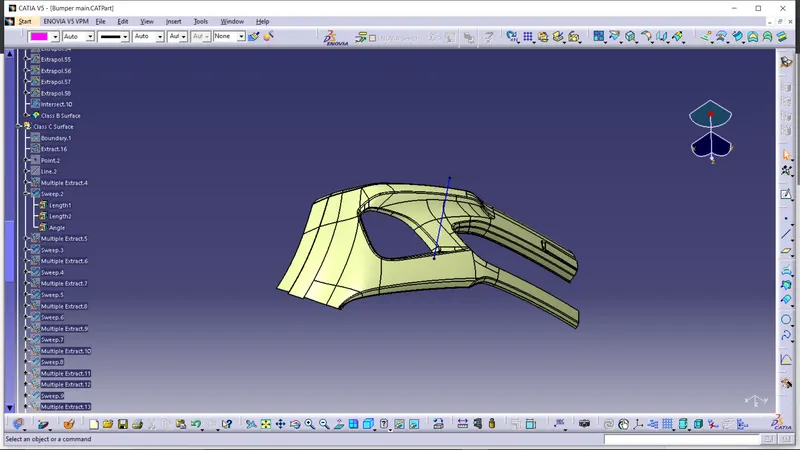

Solid part : I had created the solid body by using close surface command in part design from that closed body.

Draft Analysis :

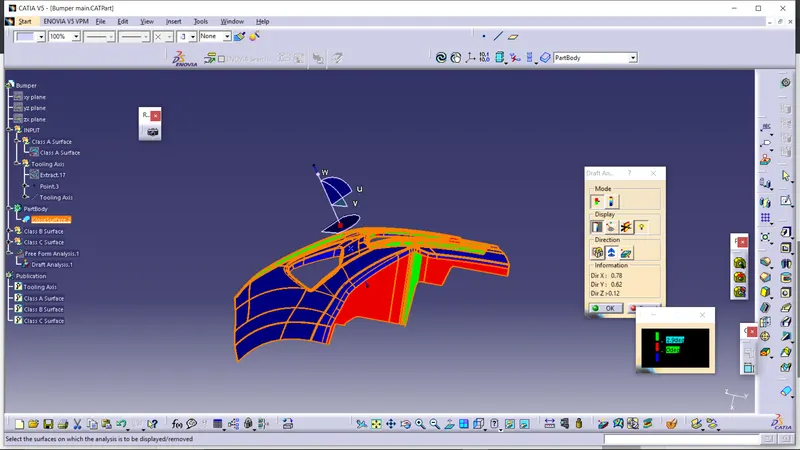

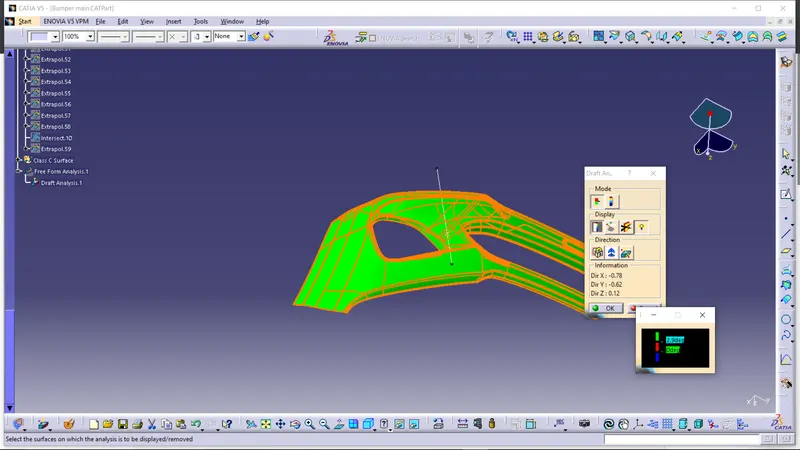

Draft Analysis of Class A surface:

I had done the draft analysis of the class A surface with draft angle of 2.9 degree.

In class A Surface draft analysis blue areas are there because of that class A surface have problem. we have send back that class A surface to class A designer to work on that. it can't ejected from the mould

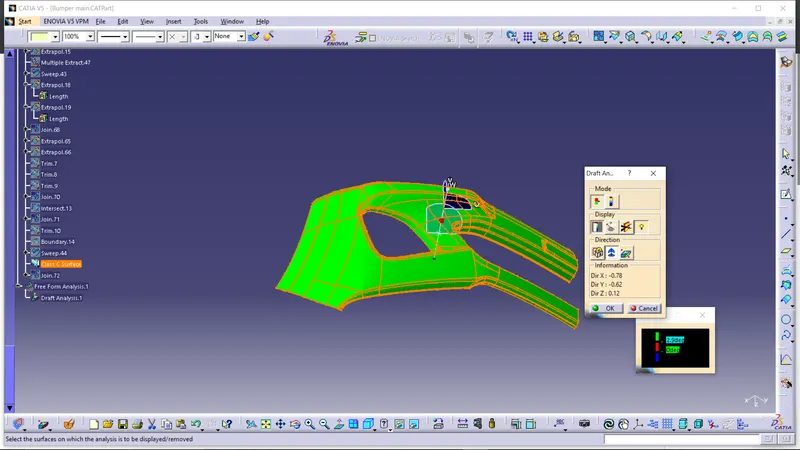

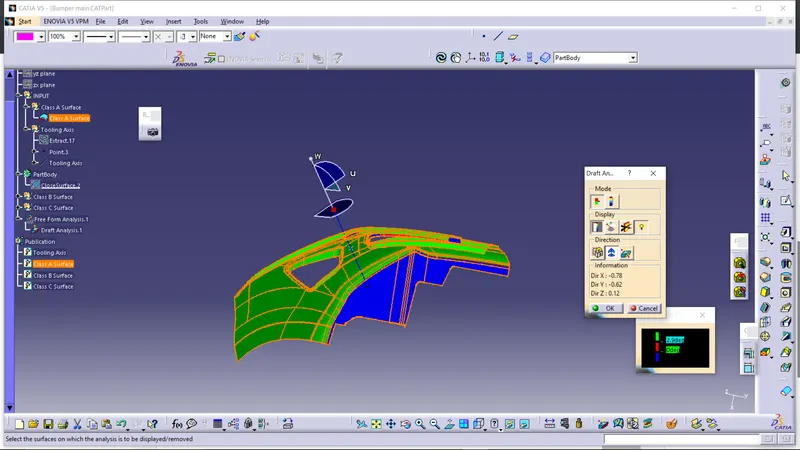

Draft Analysis of Solid Part:

I had done the draft analysis of the solid part with draft angle of 2.9 degree but their is red surface is due to zero degree draft angle it get eliminated when change draft angle to 2 degree and then part get easily ejected from the mould.

Their is problem in class A surface because of that red portion is appear in solid body draft analysis. this solid part is not ejected from the mould.

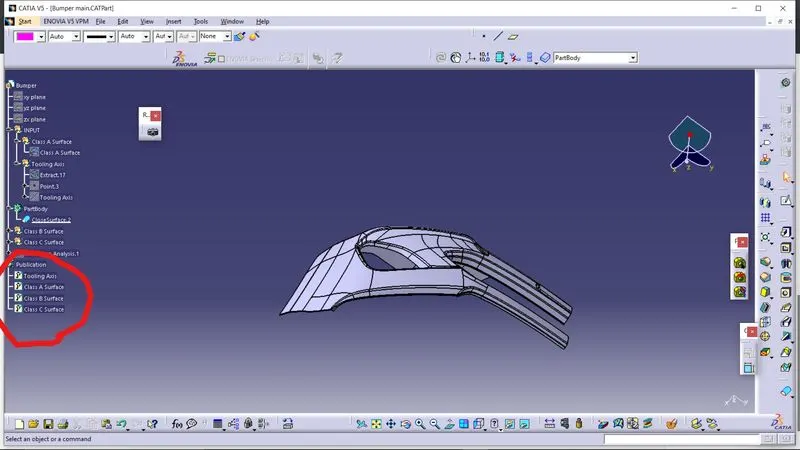

Publication:

Isometric View:

Top View:

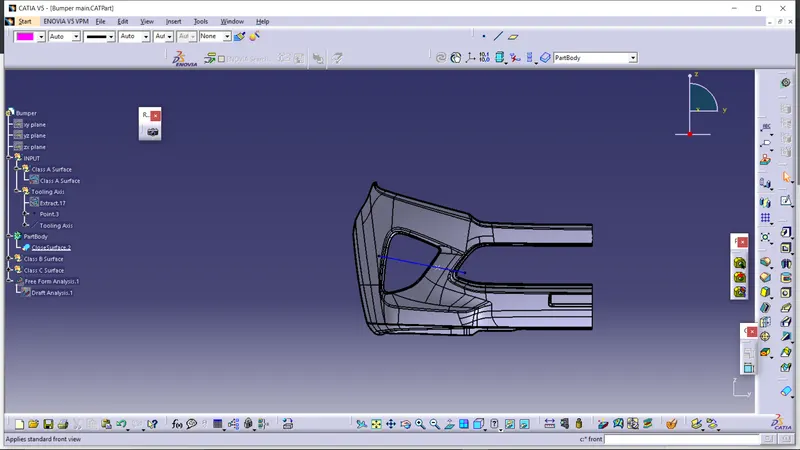

Front View:

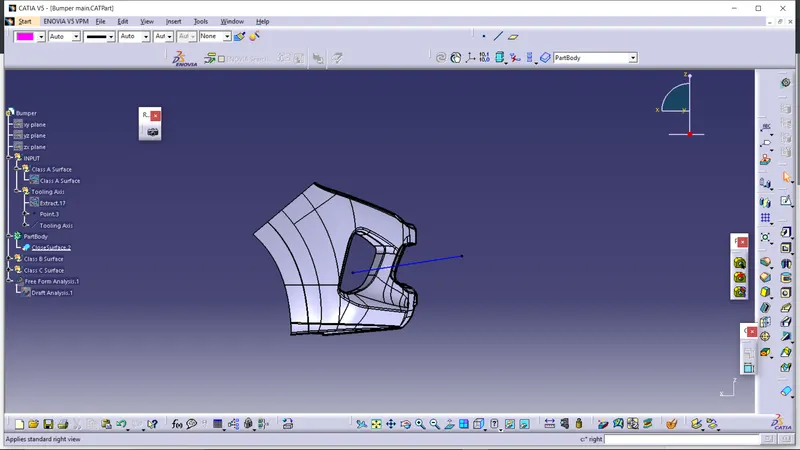

Right View:

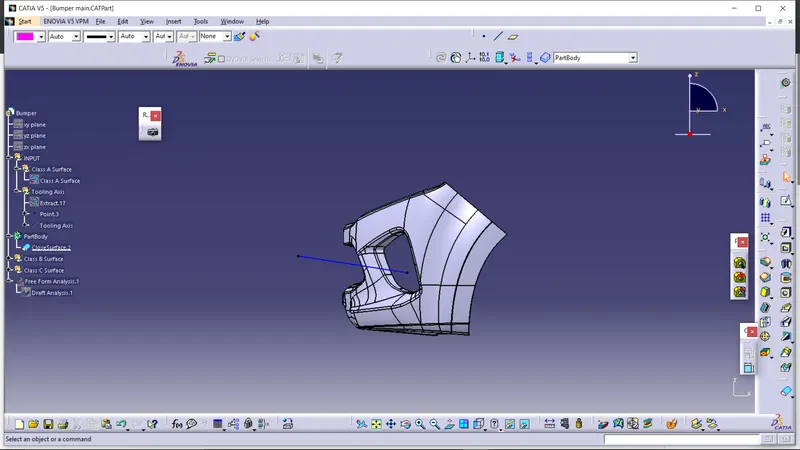

Left View:
