Week 8 - Challenge 3 - Switch Bezel Design

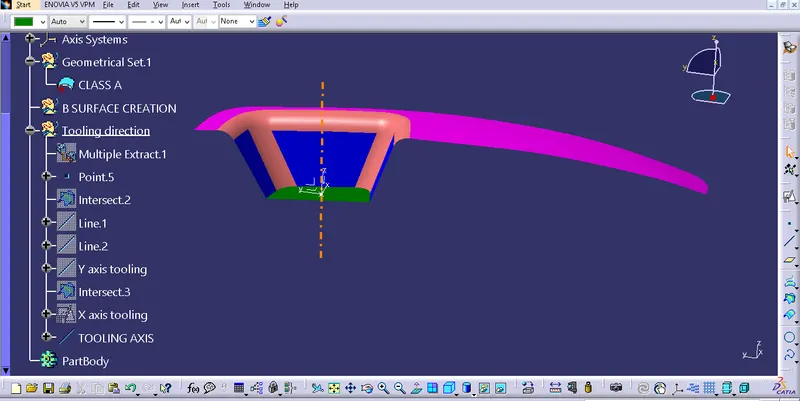

Tooling direction was created based of ZX and ZY plane as shown In Figure

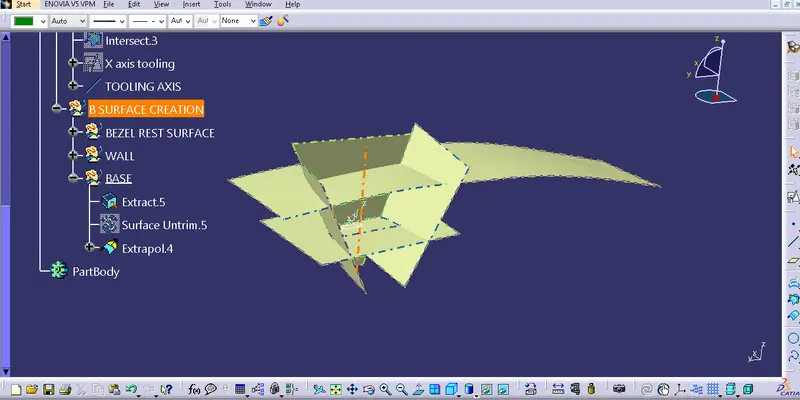

Untrim and Extrapolate the all the parts which don’t have fillets in class A surface as shown in Figure

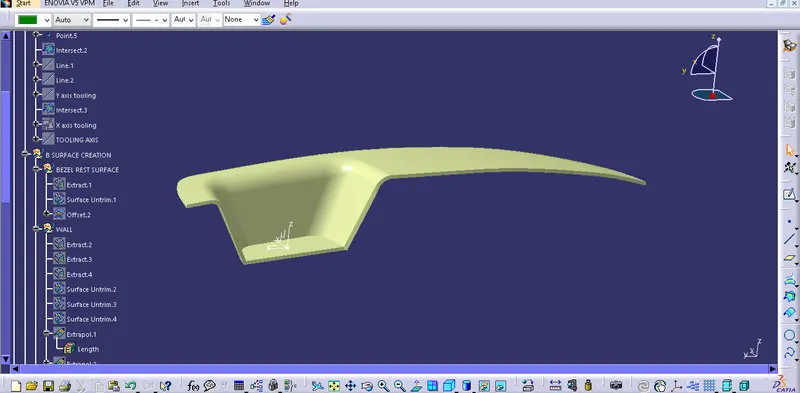

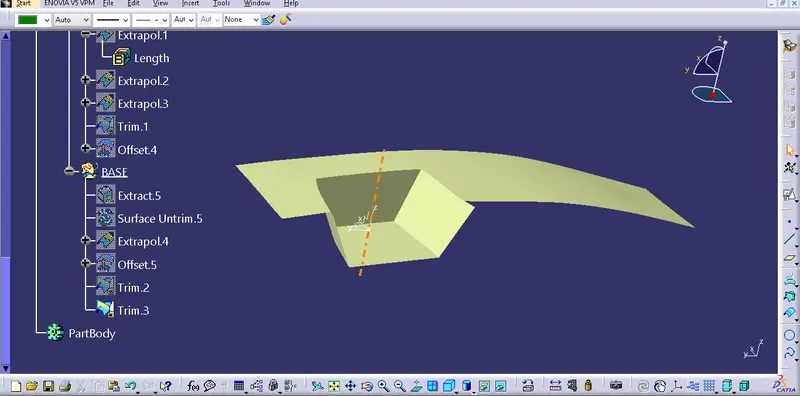

trimed surface are shown in Figure

Then the fillet is performed to form a class B

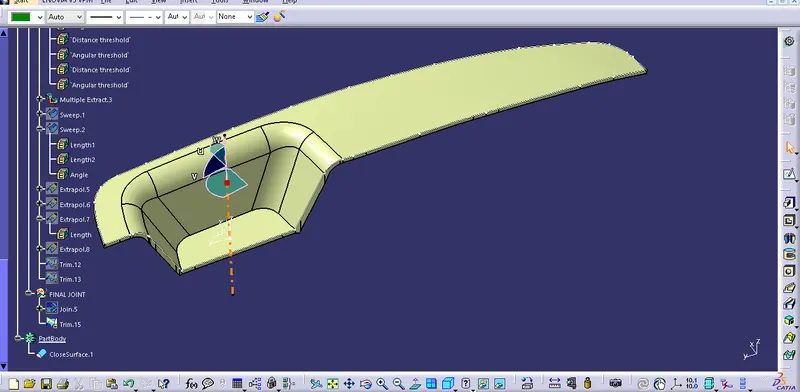

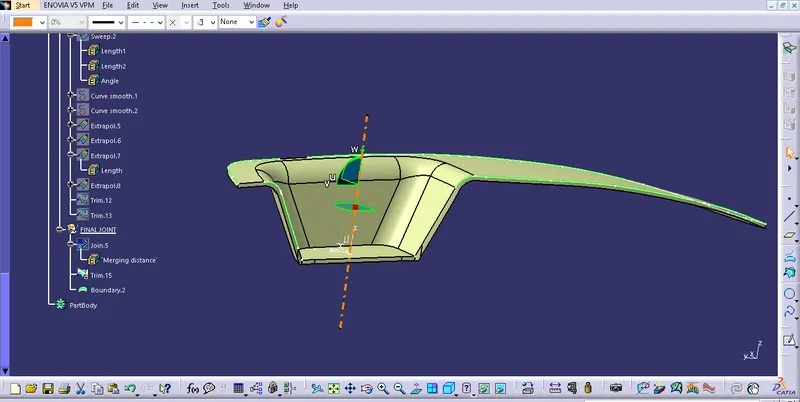

To make class C, a sweep command is used once the surface is trim from the sweep surface that is called as a class C.

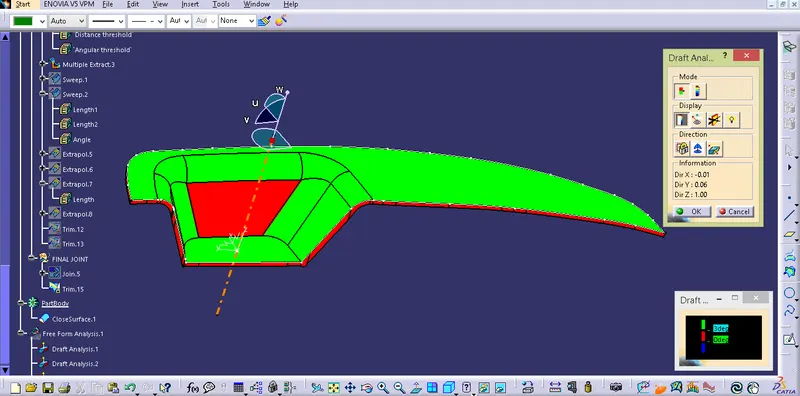

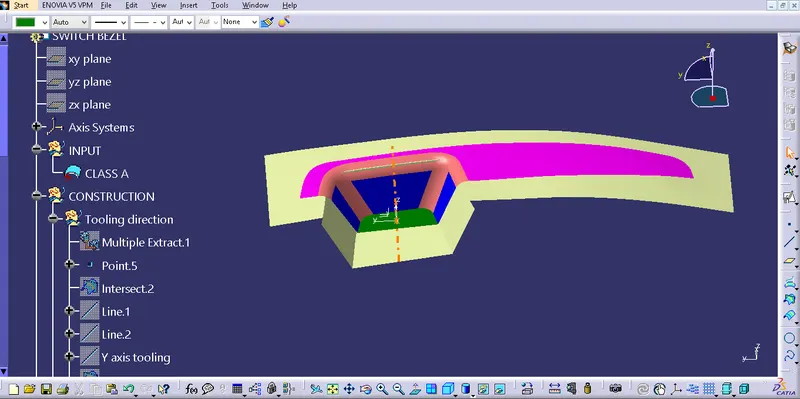

Check with closed body as shown in Figure and drafting was done
