Week 8 - Challenge 3 - Switch Bezel Design

Draft analysis is procedure to make sure that appropriate drafting angles are given to the faces which need clearance while tooling.It's such an important validation to carry upon since improper draft angles can create deformities like flash which creates failure,unwanted friction on the material thereby causing material wastages etc.

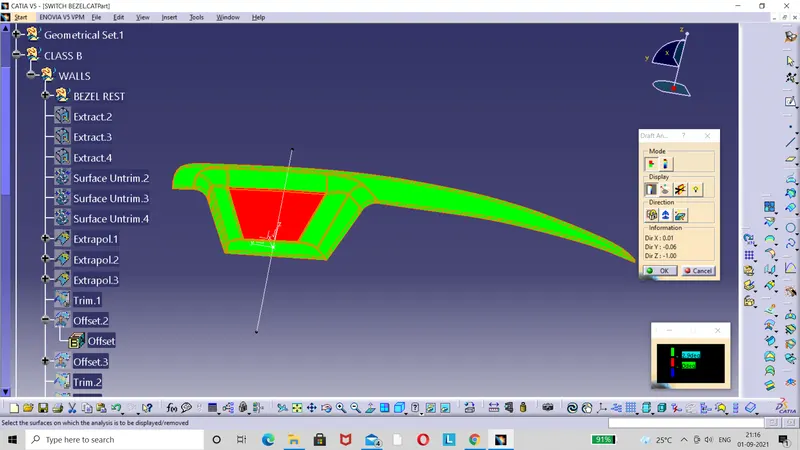

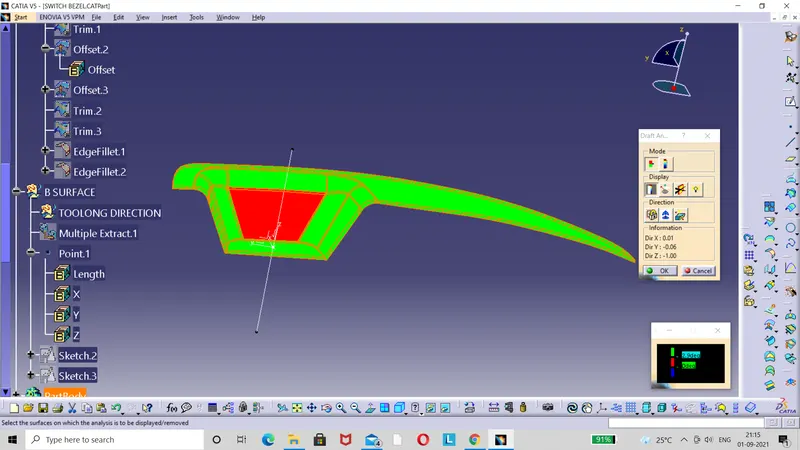

In Catia,draft analysis is performed using draft analysis command. It helps in validating the face angles.There are some default colour code that represents the draft angle range.

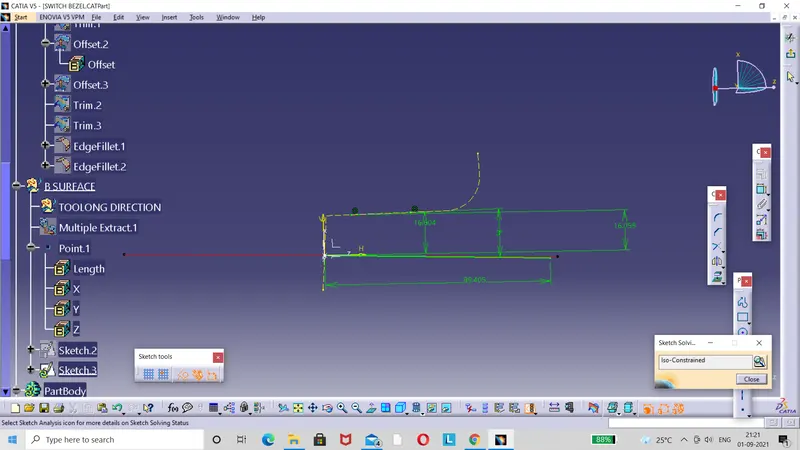

In this particular challenge,the tooling axis is created by developing a bisecting line of the faces.A common bisecting line is created initially for the opposite faces.That is used to create the the tooling axis by creating the a line that bisects the common faces and base face.

The final output is validated with close surface comman to check the continuity.
