Week 8 - Challenge 3 - Switch Bezel Design

1. Tooling Axis

creating the tooling axis by bisecting line with x axis and y axis respectiviely

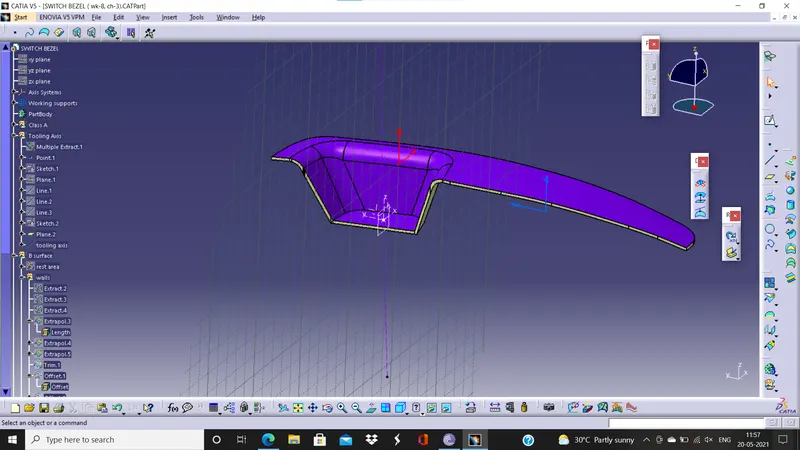

making the a class surface as thickkened component with use of b surface

creating the b surface with baisc commands like untirm, trim, offset, sweep etc.

making the c slass curface

trimming the A,B & C class surfaces
