Week 8 - Challenge 3 - Coin Holder Design

Class A surface:

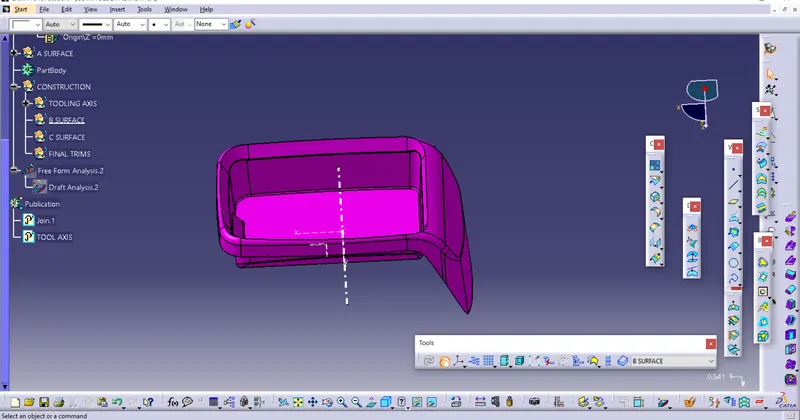

Screenshots of the Draft analysis report for both the given Class-A surface:

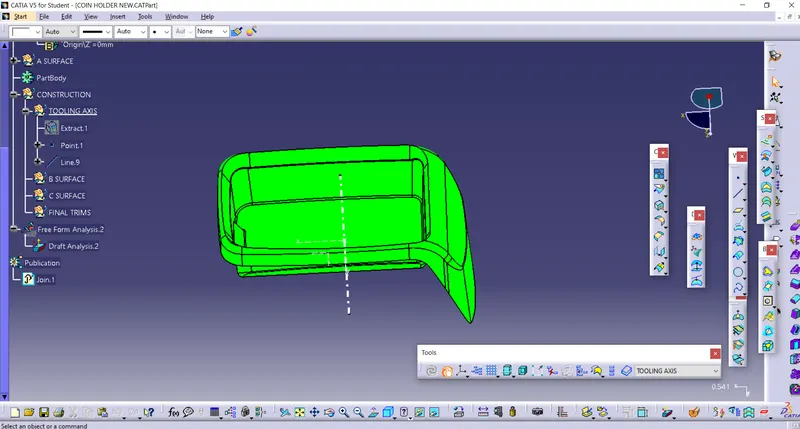

Tool axis taken normal to the base surface using point in line command because the part will be easily moulded in this tool axis.

other methods also tried for tool axis but the part is not suitable for moulding.

so better possible TOOL AXIS taken from this method.

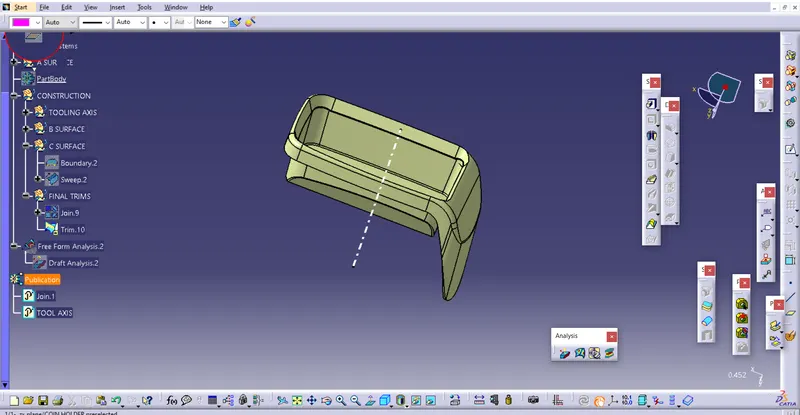

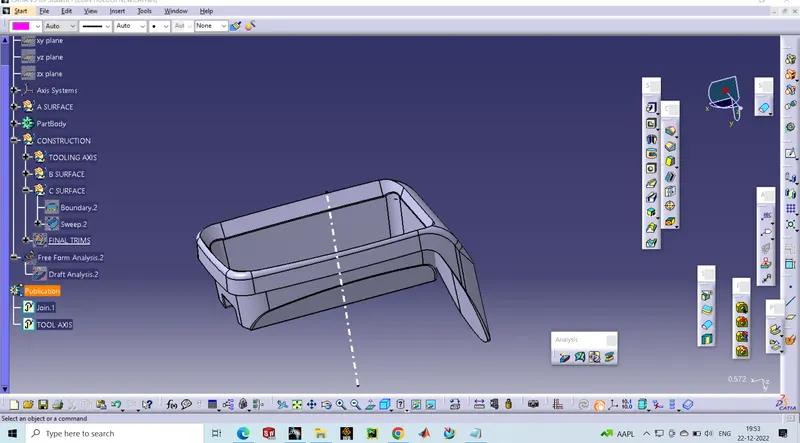

The Final joined A,B,C Surfaces arre given below:

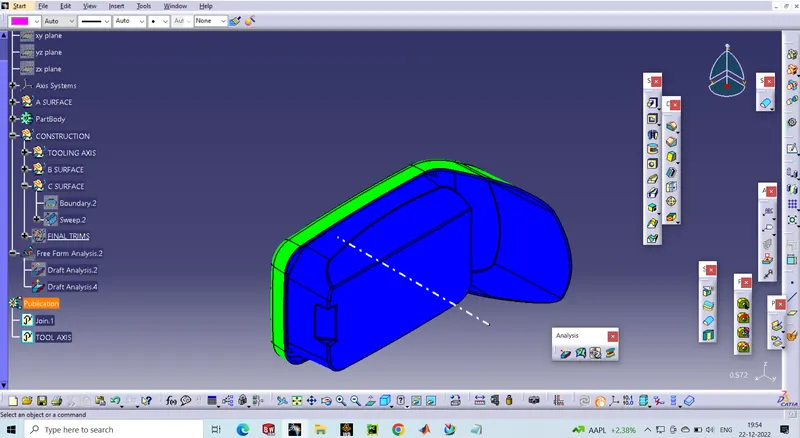

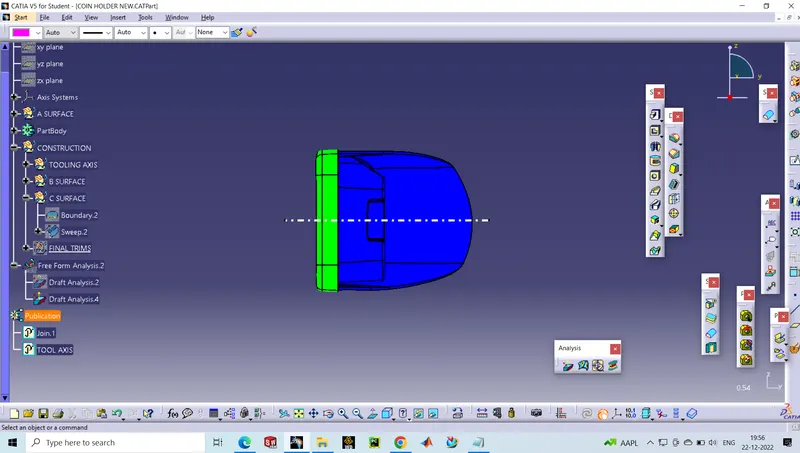

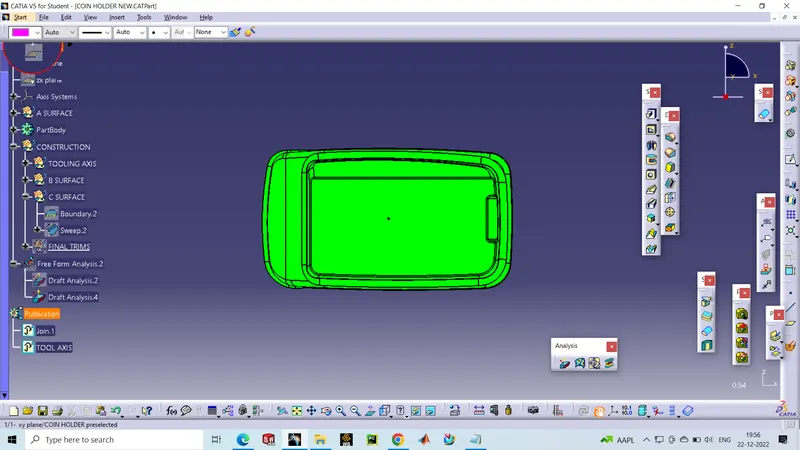

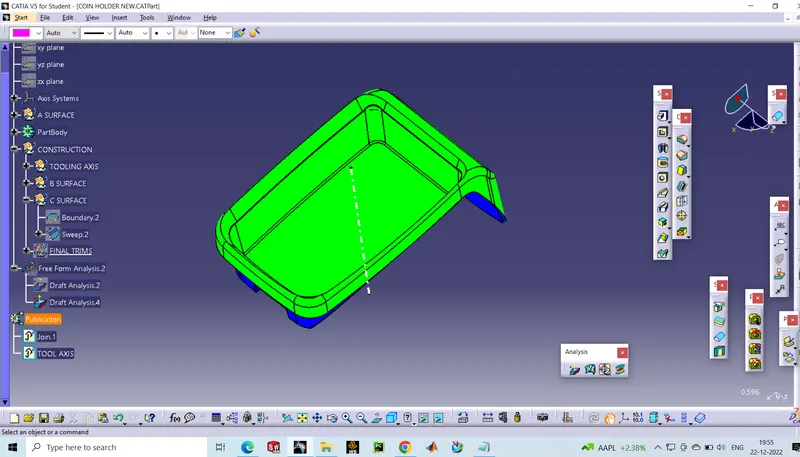

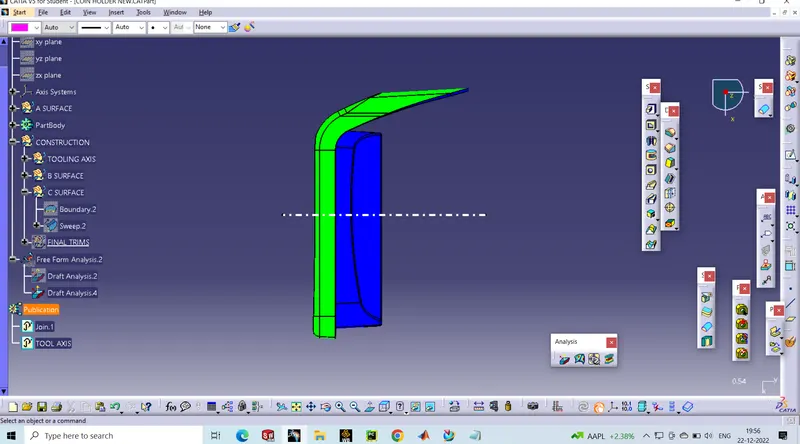

• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
