Week 8 - Challenge 3 - Coin Holder Design

Objective

To create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

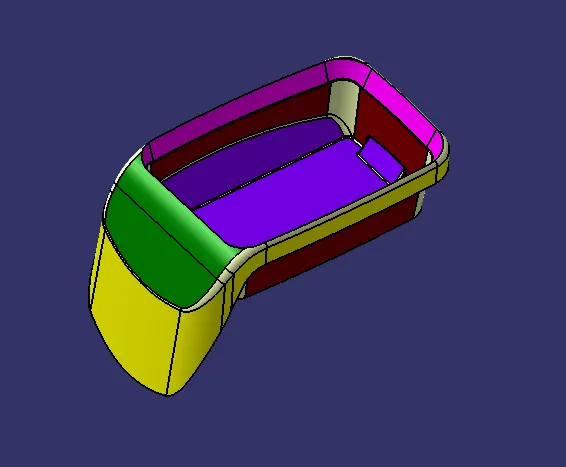

Given CLASS A SURFACE

The Way of Creating the Tooling Axis

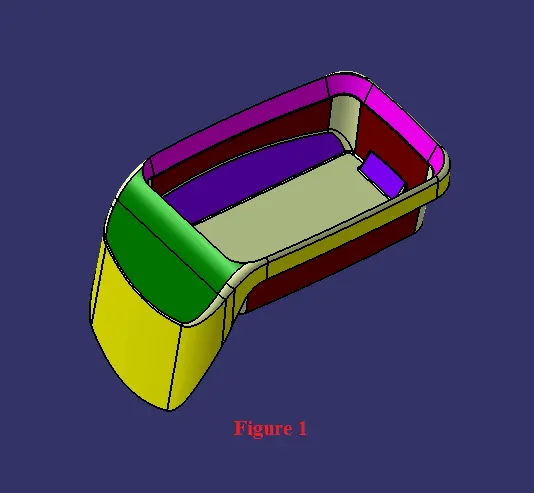

Need to take center of the surface for a Tooling axis. So, here i took the bottom face which is meet at all surface in a single point which is easy to create a tooling axis and i extracted that face by using extract command(extract definition = surface) as shown in figure 1.

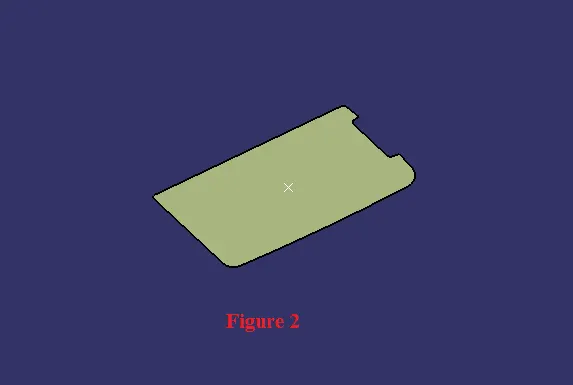

By the uses of that face i created center point with the help of point command(Point definition = on surface = distance + reference) as shown in figure 2.

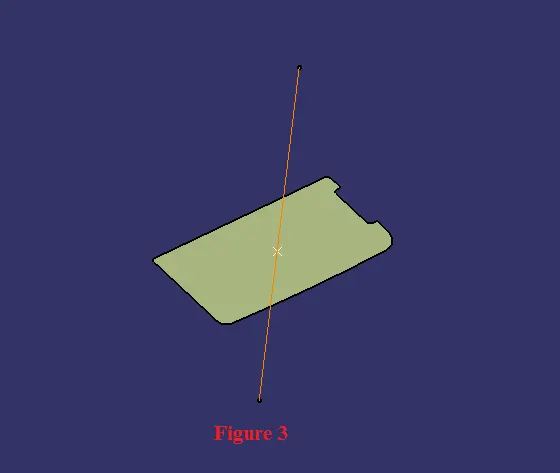

Then i created a line on the point with the help of line command(line definition = normal to surface = surface + point) as shown in firgure 3.

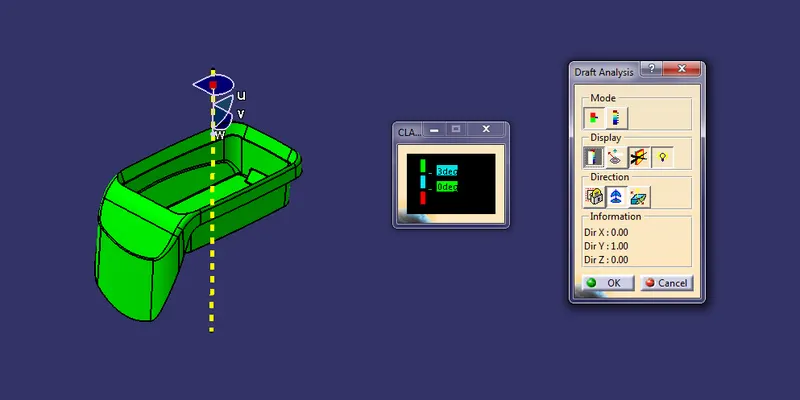

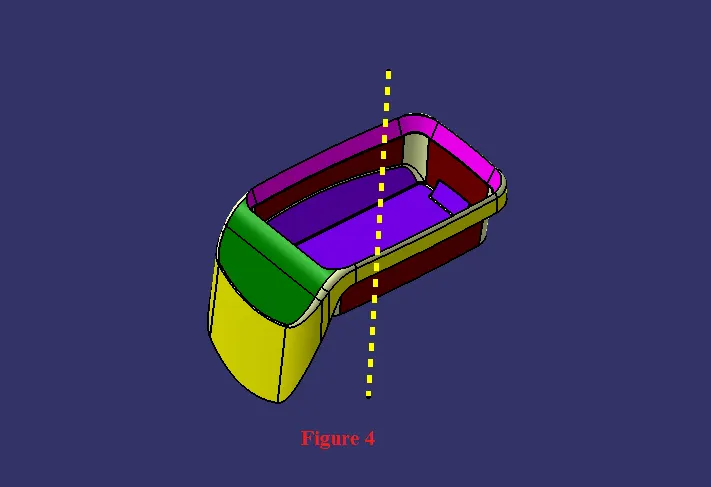

Thus the way i created Tooling Axis for draft analysis as shown in figure 4 which is showing in yellow color center line.

Tooling Axis

Draft Analysis

Draft Analysis is used to analyze whether our part model created in CAD is manufacturable based on the draft condition applied.

CLASS A SURFACE

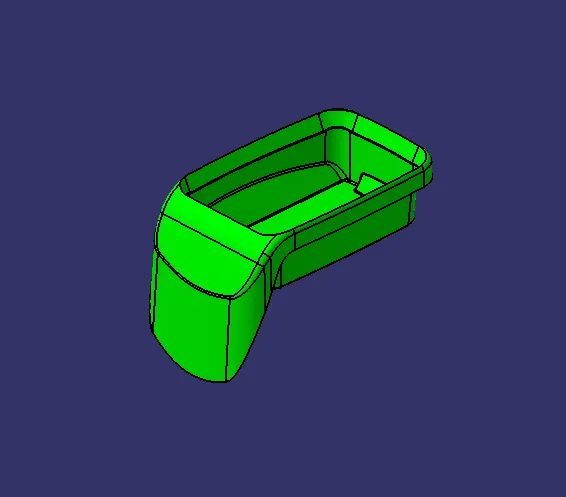

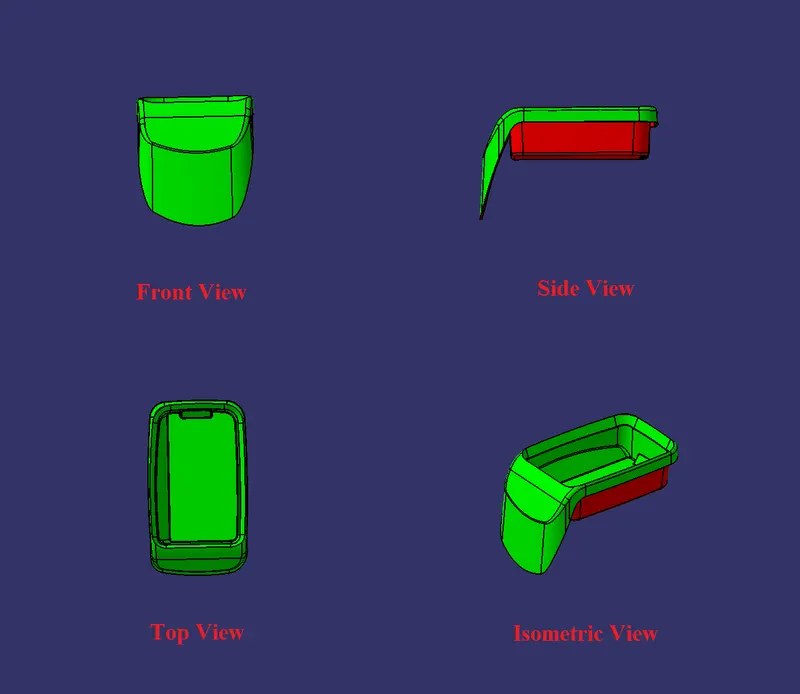

Solid model with the proper color code of the draft angle
