Week 8 - Challenge 3 - Coin Holder Design
Draft Analysis
Class A surface
Solid model
Solid model Views
Front View

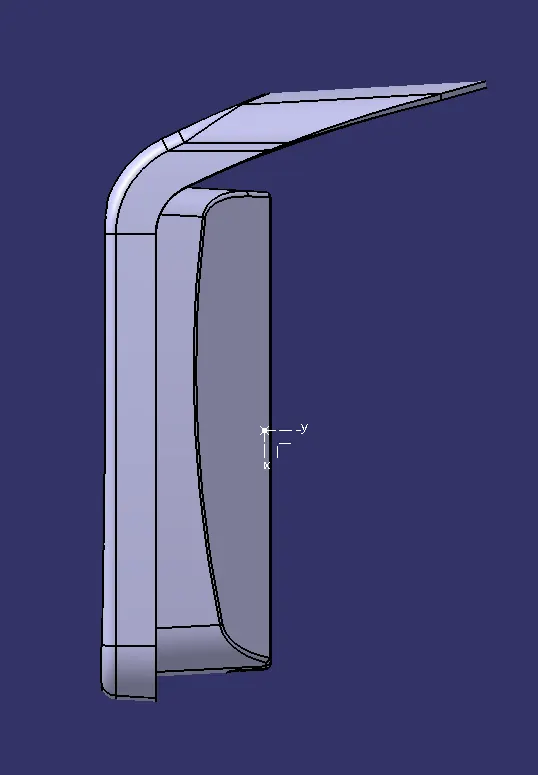

Side View

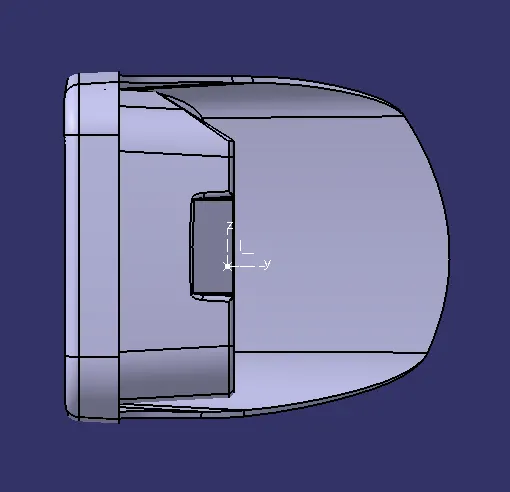

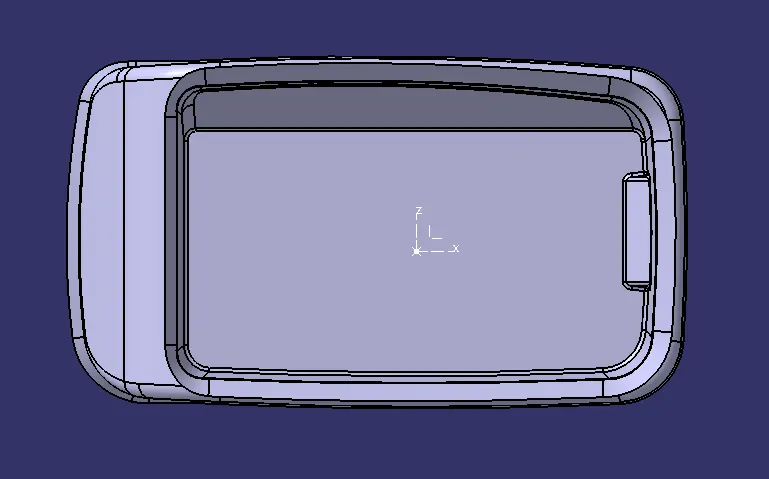

Top View

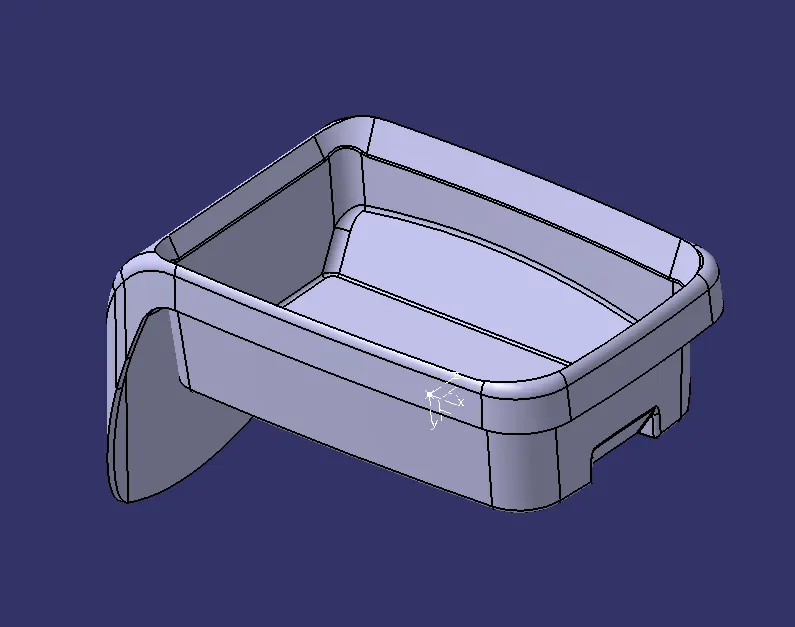

Isometric View

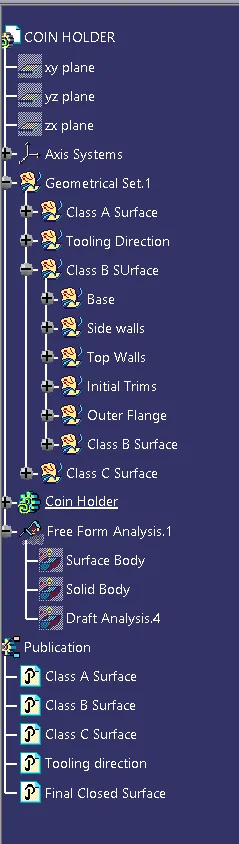

Structure Tree
Draft Analysis
What is Draft Analysis?
This analysis done on the CAD product to see whether the model is manufacturable or not. The plastic CAD model that are prepared in CAD software are manufactured in plastic mold, so it is necessary to check whether the part is manufacturable in mold or not. Because is part in not manufacturable in mold then CAD model fails.

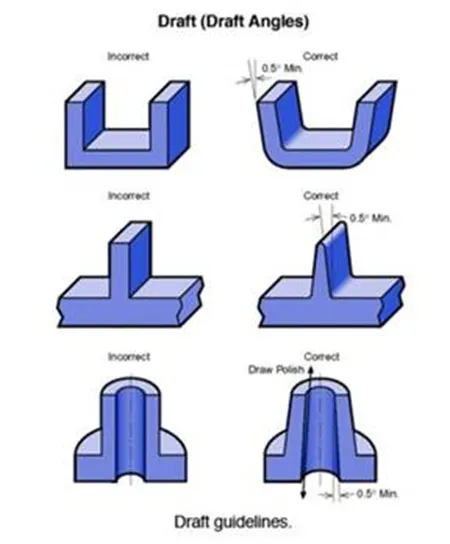

What is Draft Angle?
If part has a 90° of draft, then it cannot be manufactured in plastic mold, because on removal of part it may worn or tear as it creates friction on the part removal and will cause damage to the part. The recommended draft angle is prescribed as 3°, but it can be less or more depend on the accuracy needed on the model. For screw holes draft angle should not be more as it will not give perfect fit for the screw.

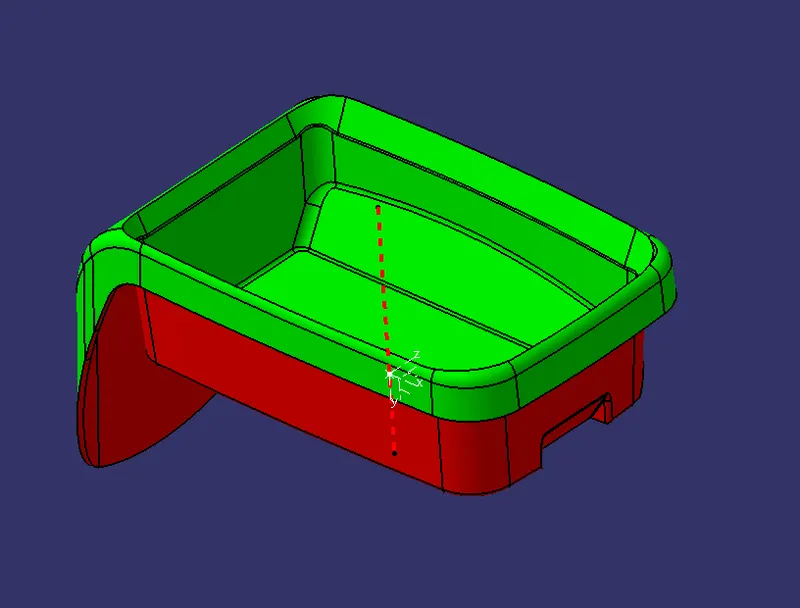

Draft Analysis in Coin Holder

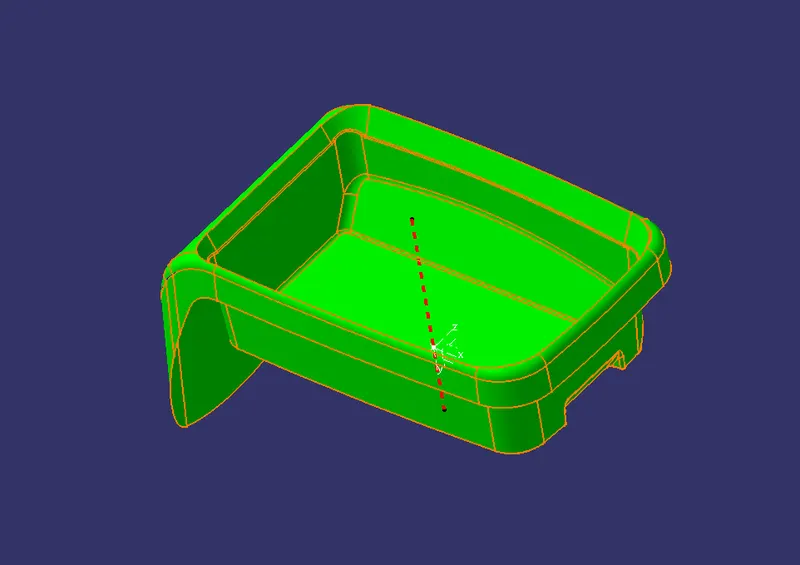

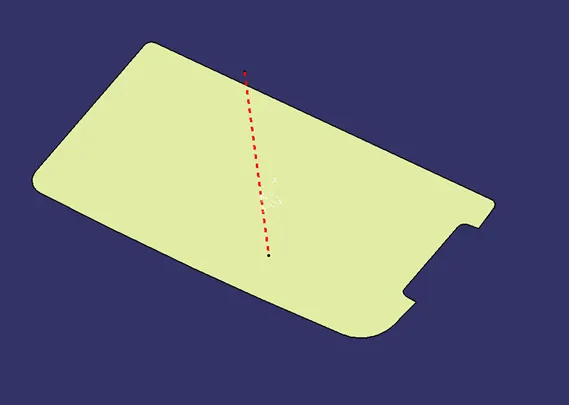

In this model we see that there are no angled walls or holes are there so we can simply create the tooling direction perpendicular to the base surface. That is done by extruding the base and creating the center point and then drawing a perpendicular line from that point. We can also see that draft analysis comes out to be perfect.
Draft Analysis
