Week 8 - Challenge 3 - Coin Holder Design

Draft Analysis Report

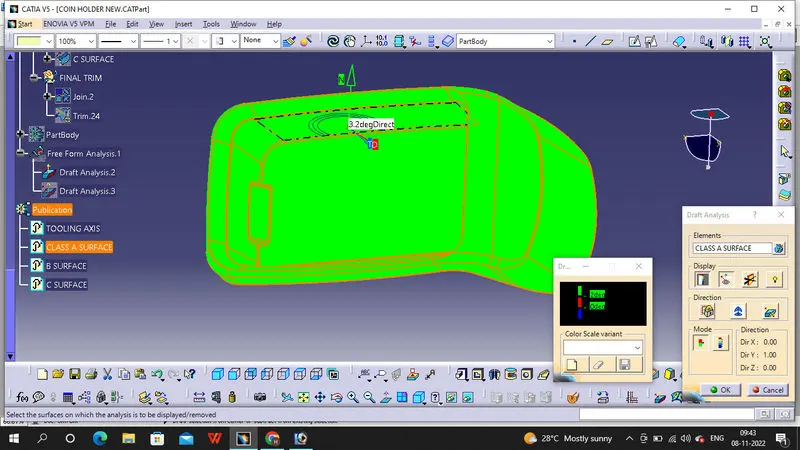

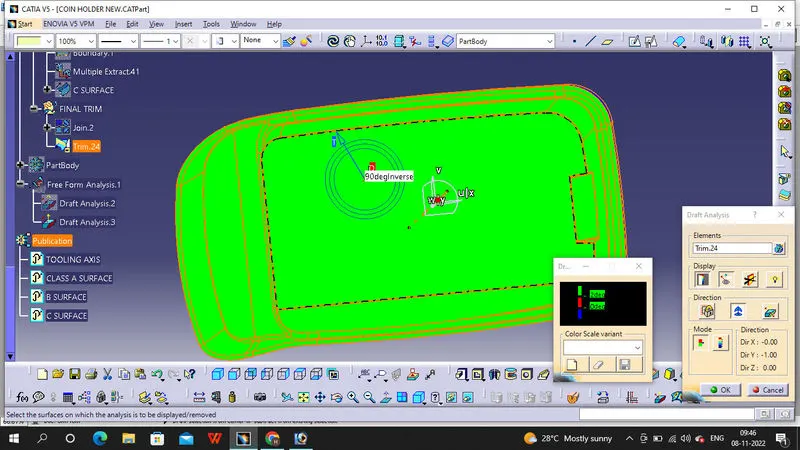

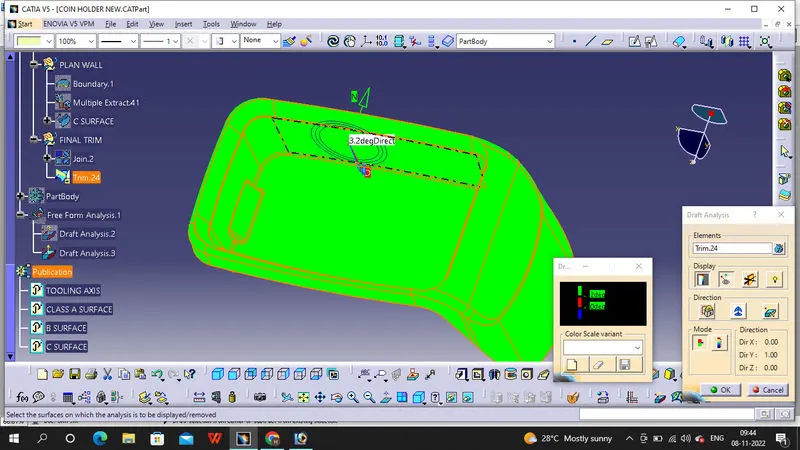

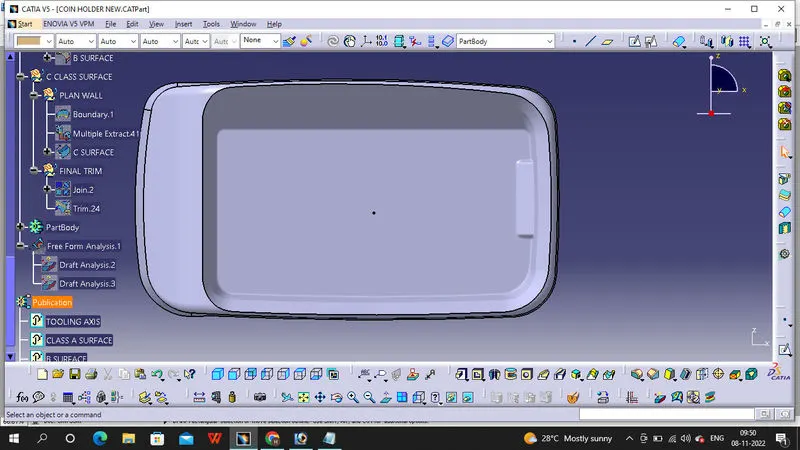

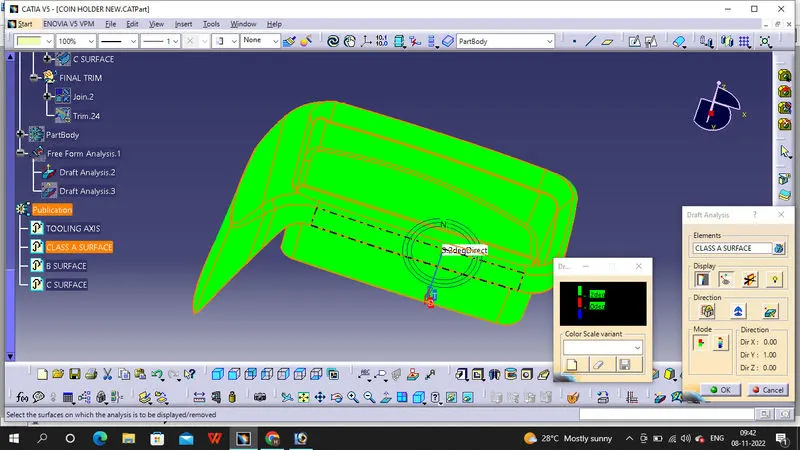

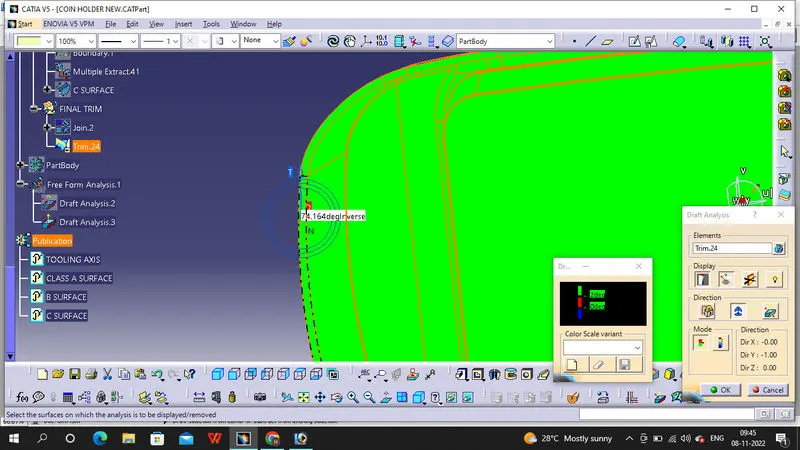

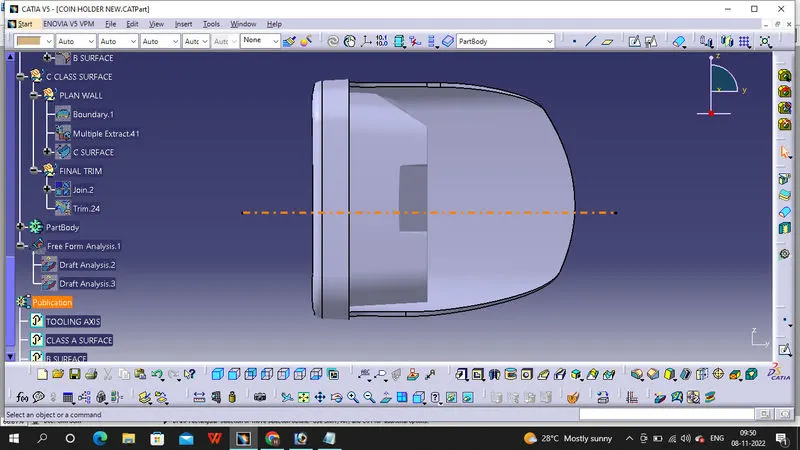

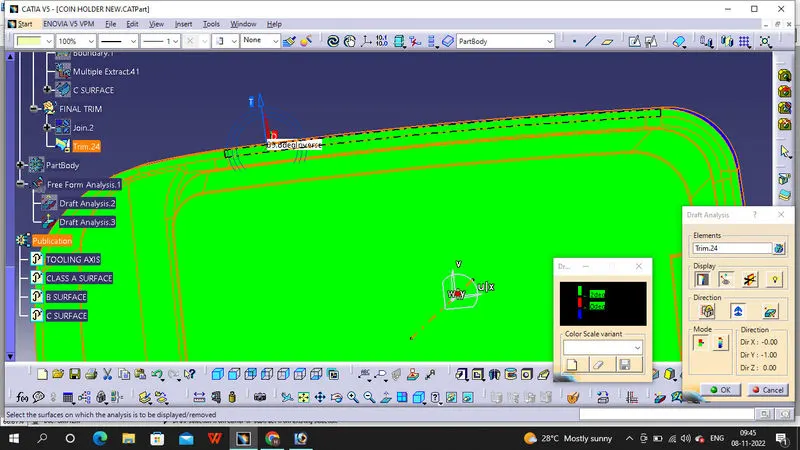

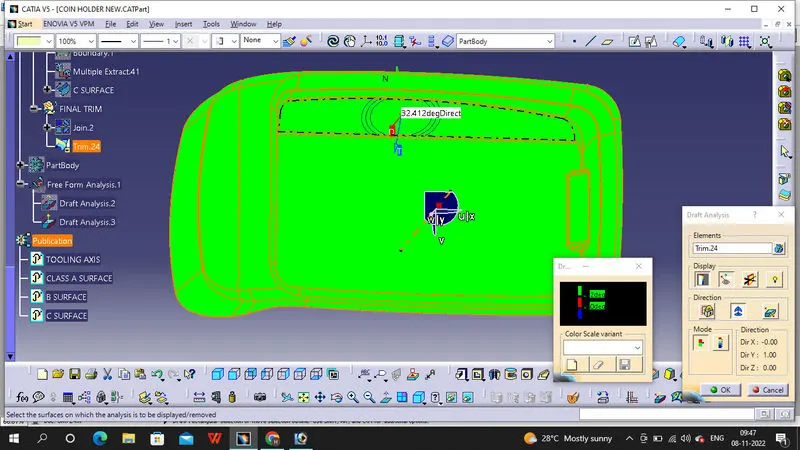

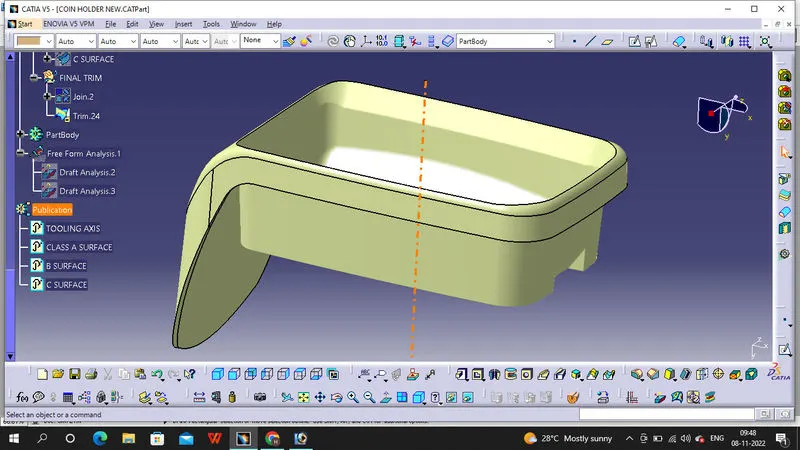

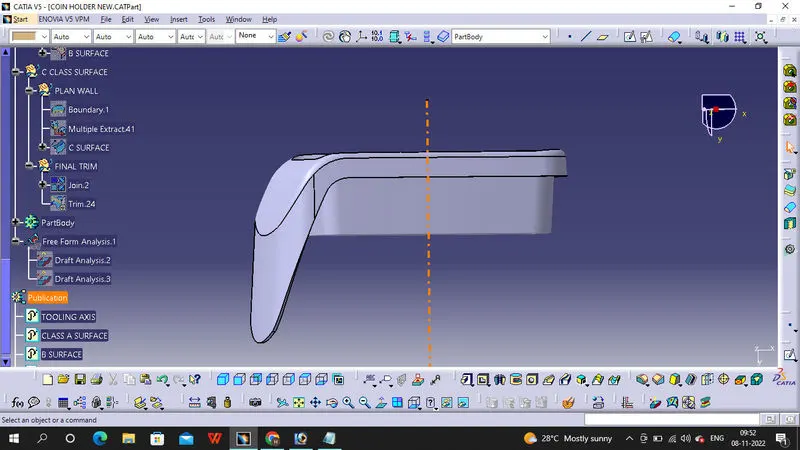

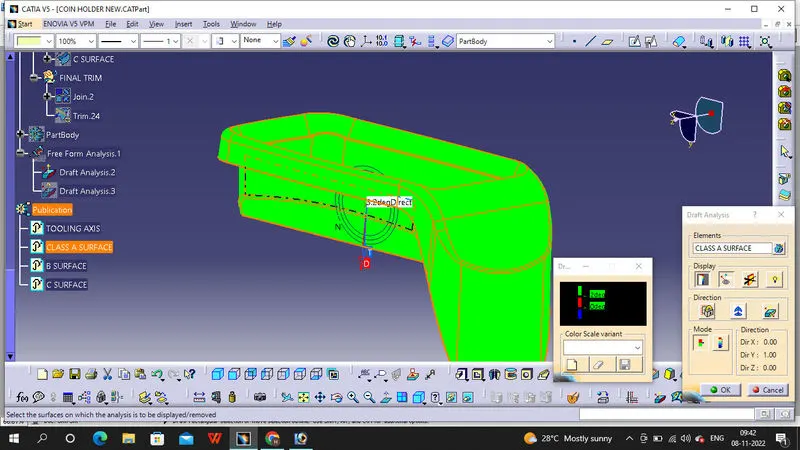

Coin Holder have four sides 90 degree faces so tooling axis is center of the base face, so take a center point of the base surface. make line which is tooling axis, after applied draft analysis we seen every face minimum 3 degree angle you can check it below images, Class A surface and Class C surface are also have minimum angle of 3 degree, by draft analysis we can conclude this component is okay.
