Week 8 - Challenge 3 - Coin Holder Design

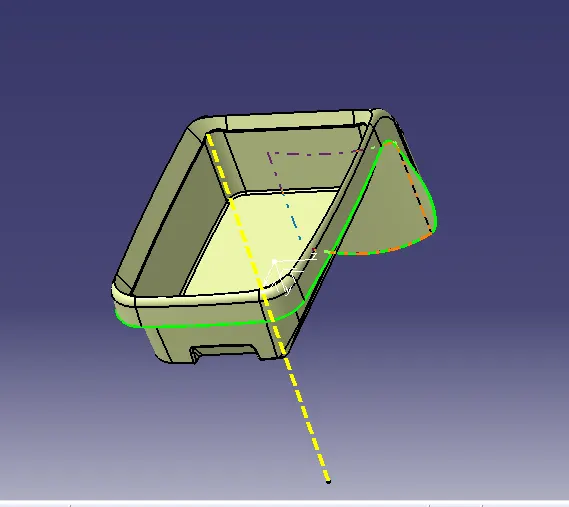

Class A surface with tooling axis

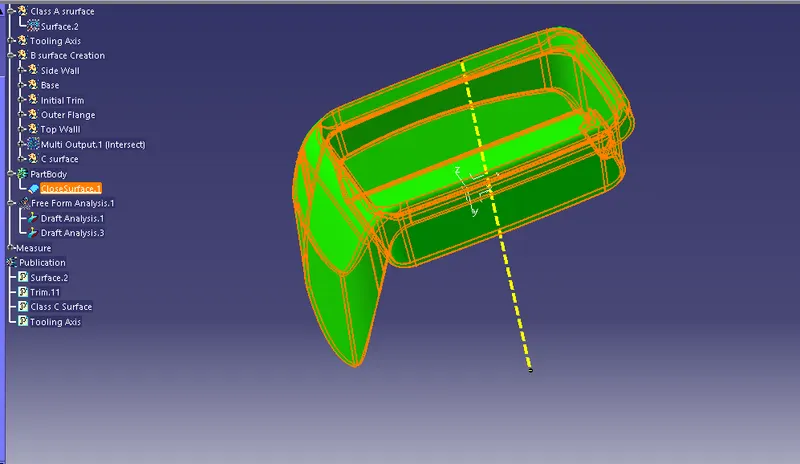

Draft Analysis

1. Draft allows for the component to release from the mould, most parts or applications require a minimum of 0.5 to 1 degree draft angle and 3 dgree draft angle is widely used.

2.Change the material mode to customize mode before moving to the draft analysis.

3.Insert –analysis-feature draft analysis

4.Defining the draft direction Select draft analysis from the tool bar and click on the compass symbol and pull the compass.

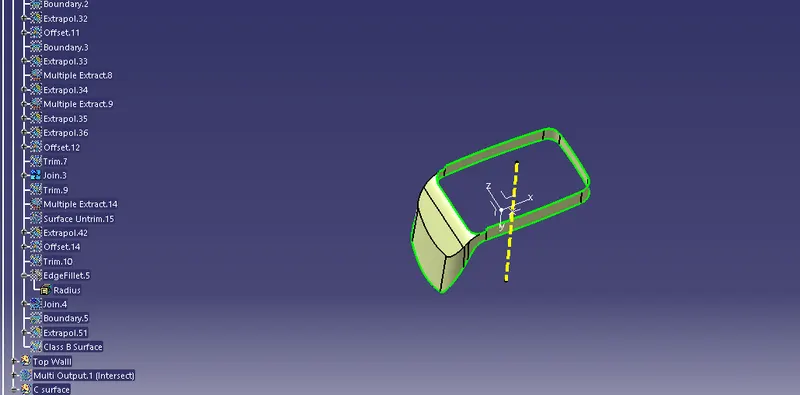

5. Analysis under running point and move the mouse on the surface and it will show the details of the surface deg direct at each and every point of the surface.

Class B Surface

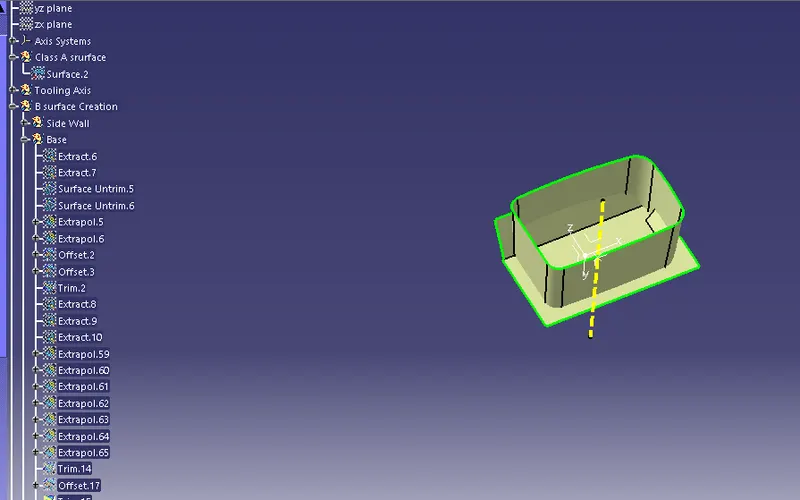

Base and Side Wall

Outer Flange

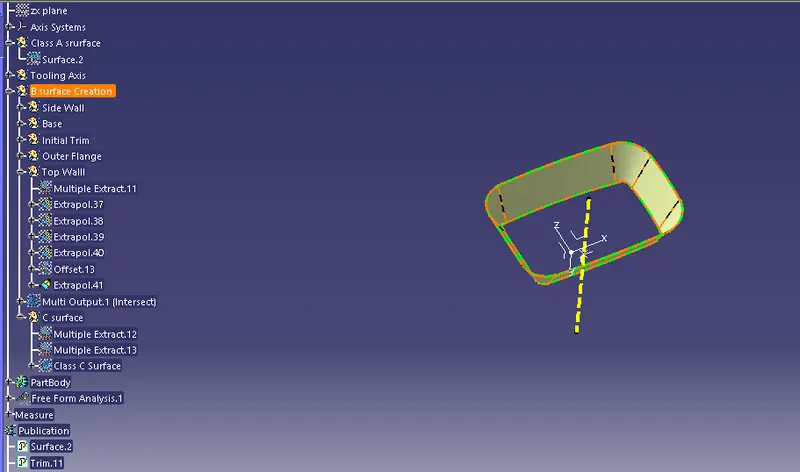

Top Wall

Class B Surface

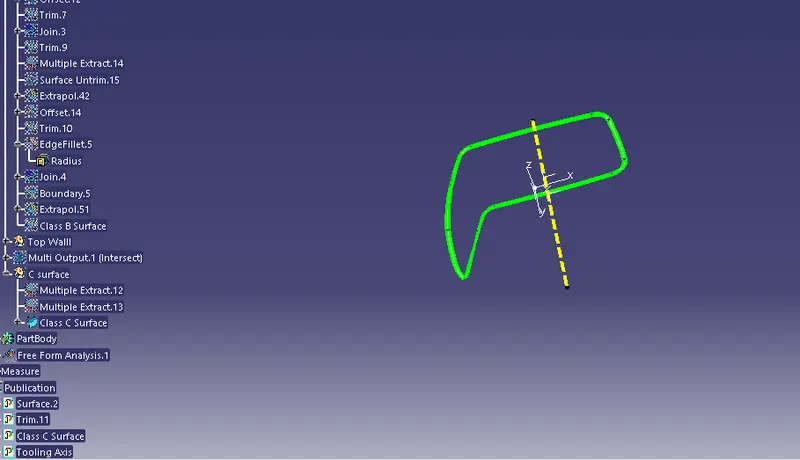

Class C surface

Solid Body

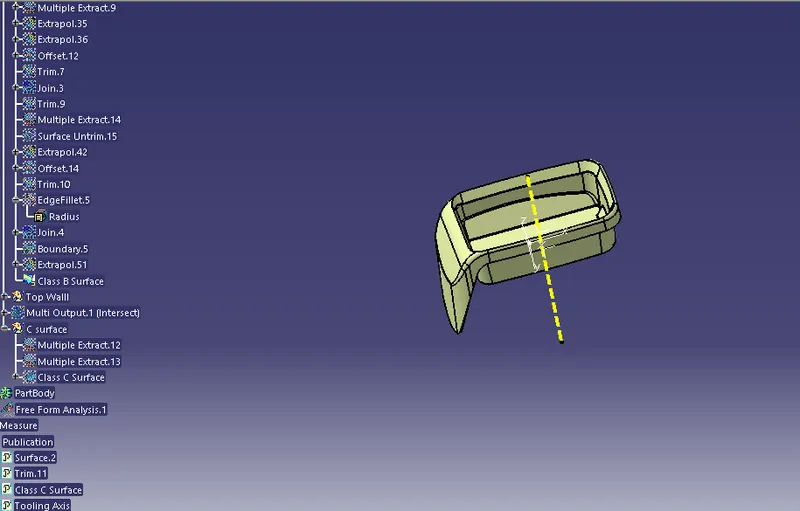

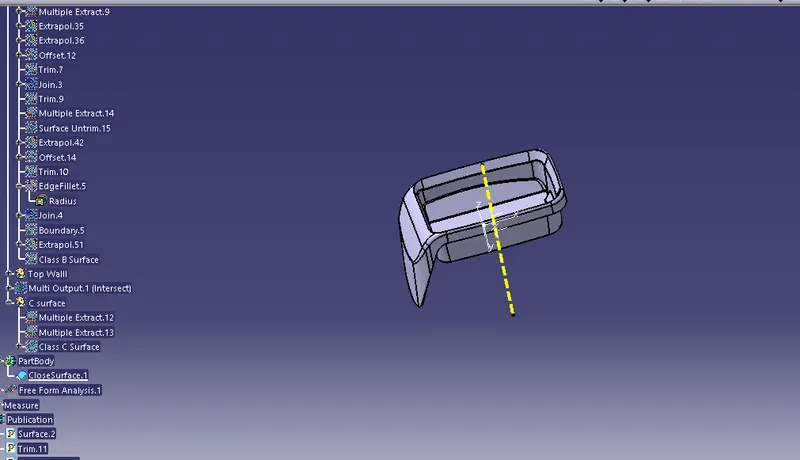

Draft Analysis for solid body
