Week 8 - Challenge 1 - Base Bracket Design

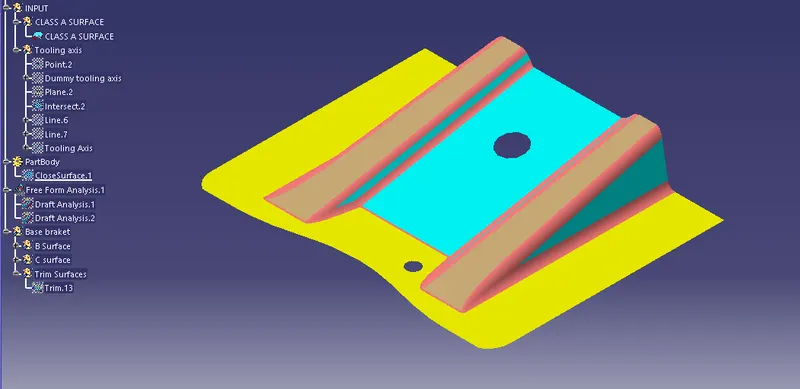

Class A Surface

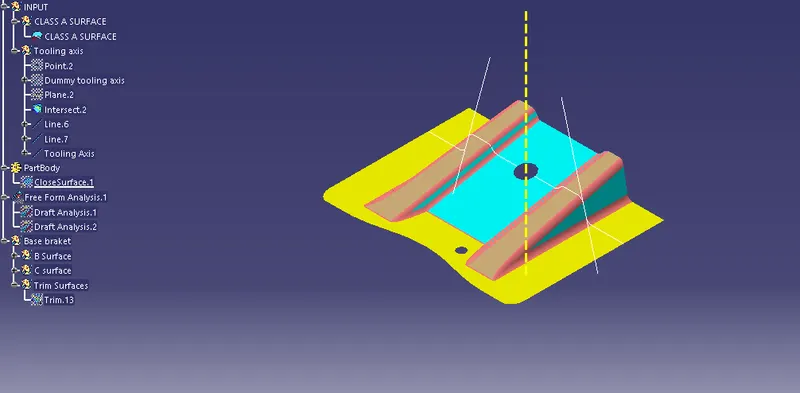

Create Tooling axis by intersecting the surface and biseting line

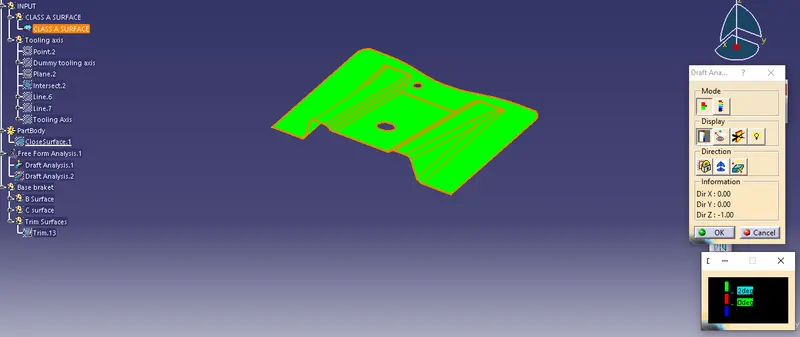

The above image is draft analysis for class A surface

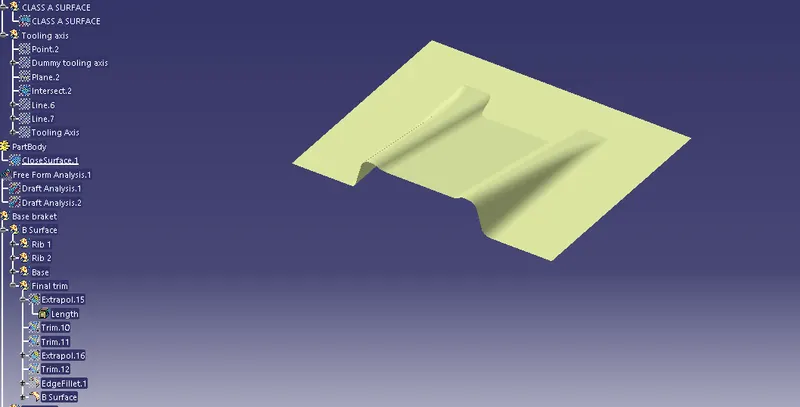

BY extracting the surfaces from class A and then offsetting the extracted surface we got a Class B surface

By using boundar and seep command class C surface is formed

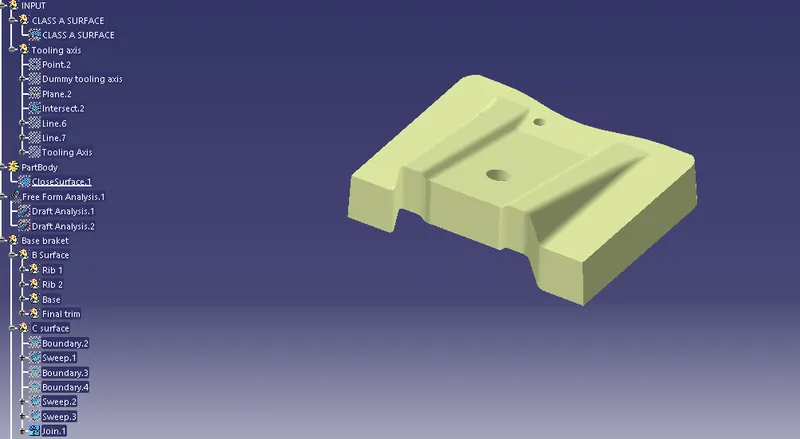

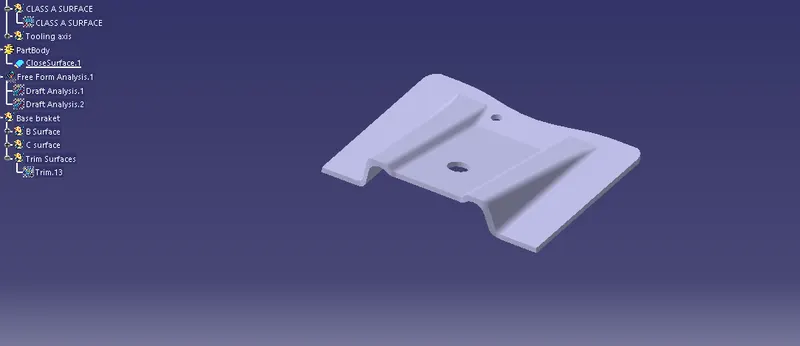

Closed surface is formed by trimming class B and Class from class c

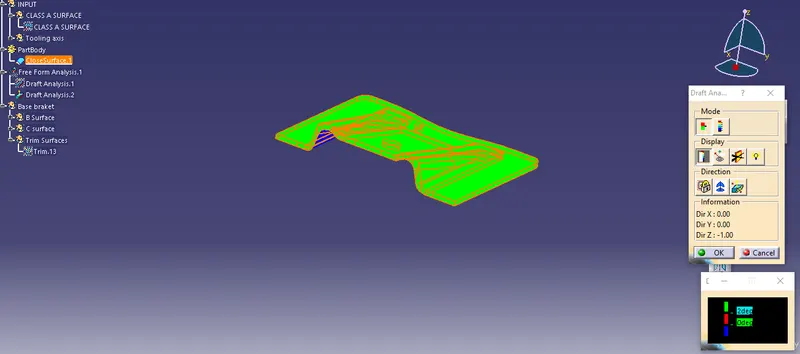

Draft analysis for plastic component
