Week 8 - Challenge 3 - Coin Holder Design

Step 1

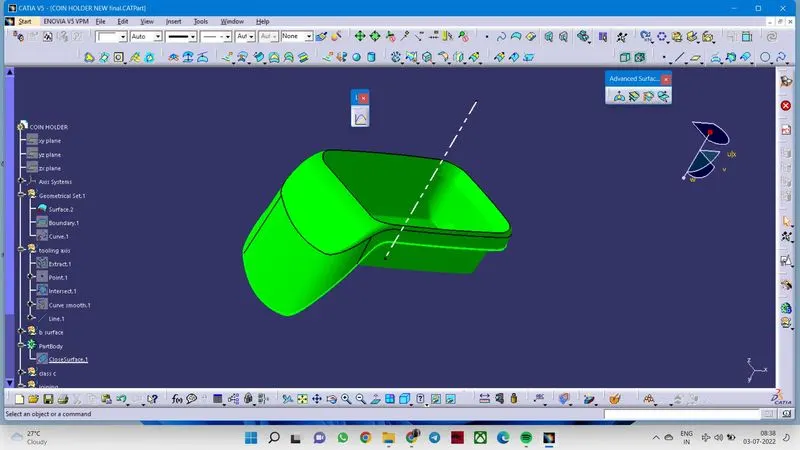

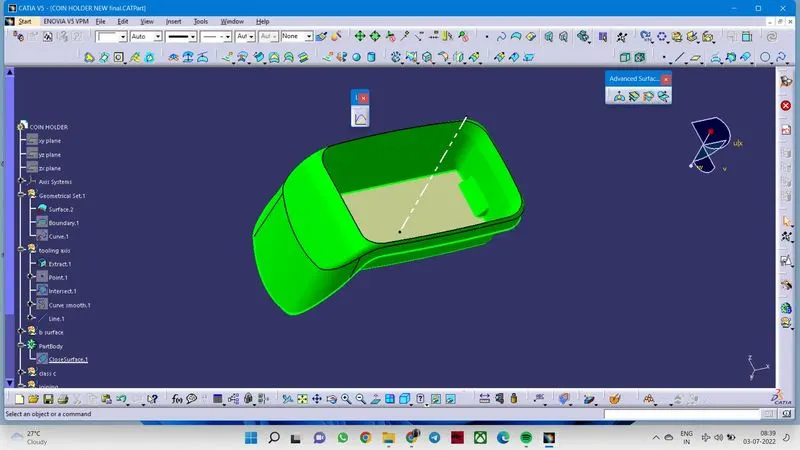

creation of tooling axis

extracted a surface

created point

created line

check it with draft analysis

Step 2

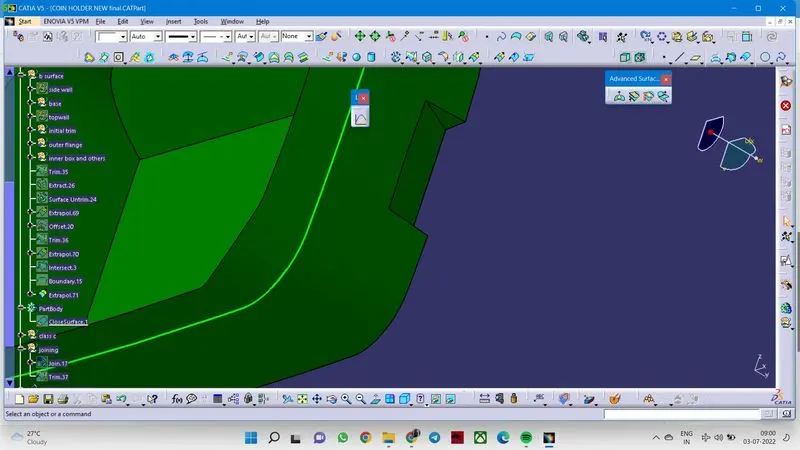

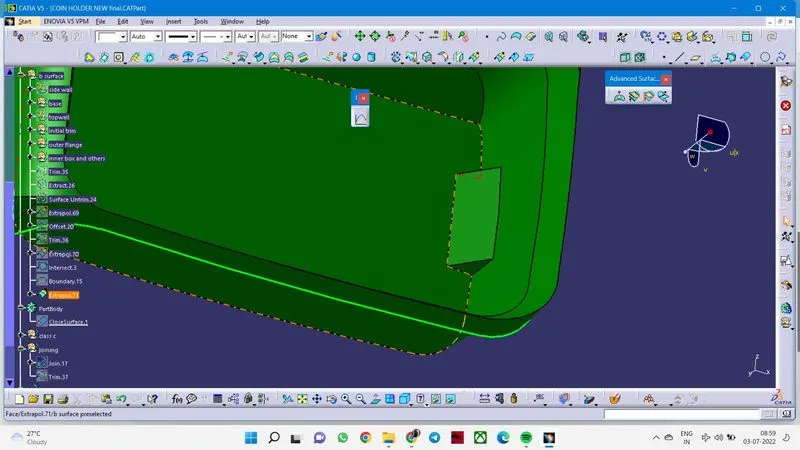

B surface creation

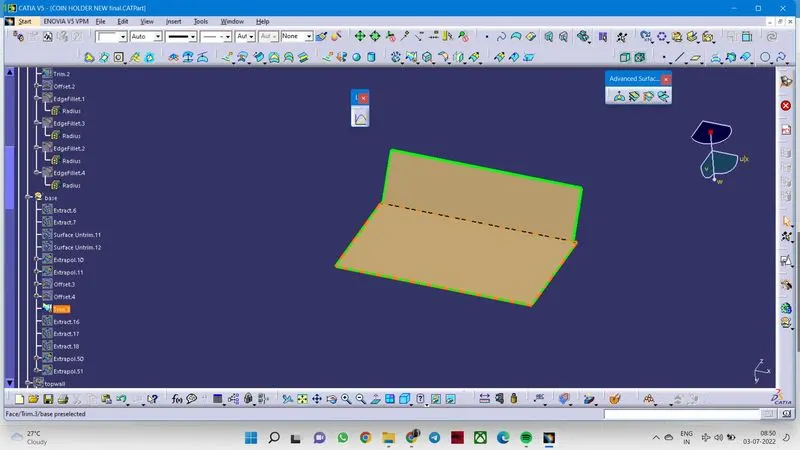

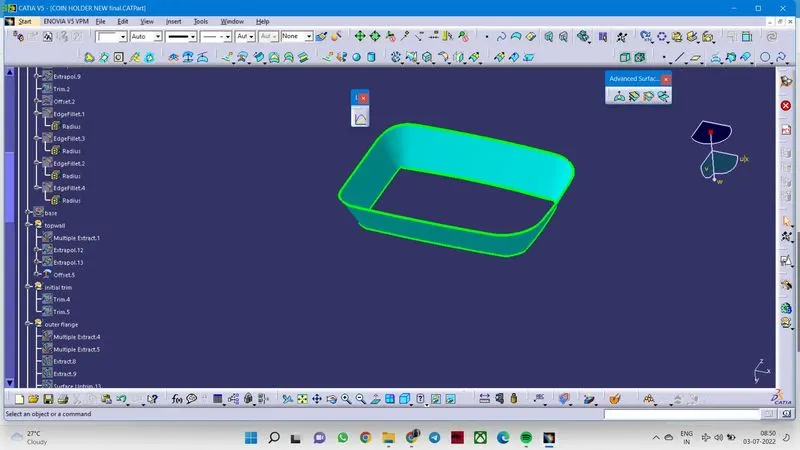

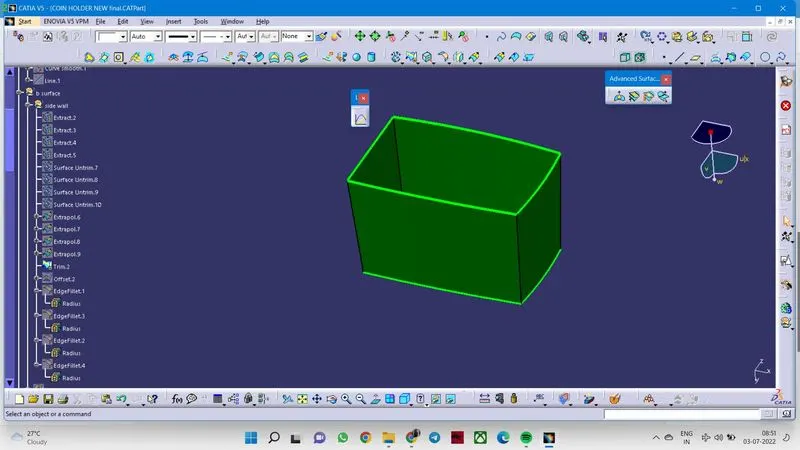

created base, sidewall, top wall, and outer flange

multiple extract, extract, untrim, trim extrapolation, offset and join tools are used

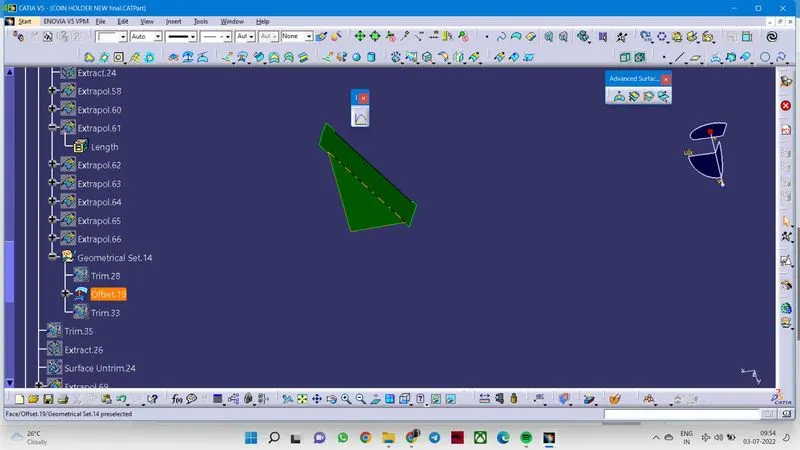

offset = 2.5mm

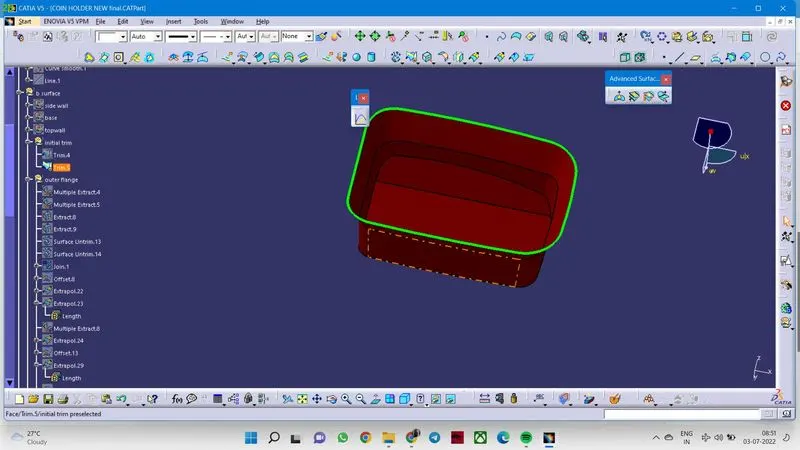

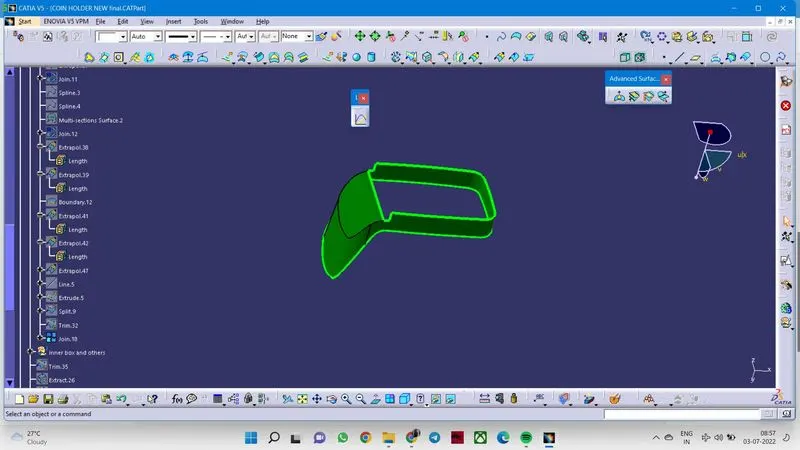

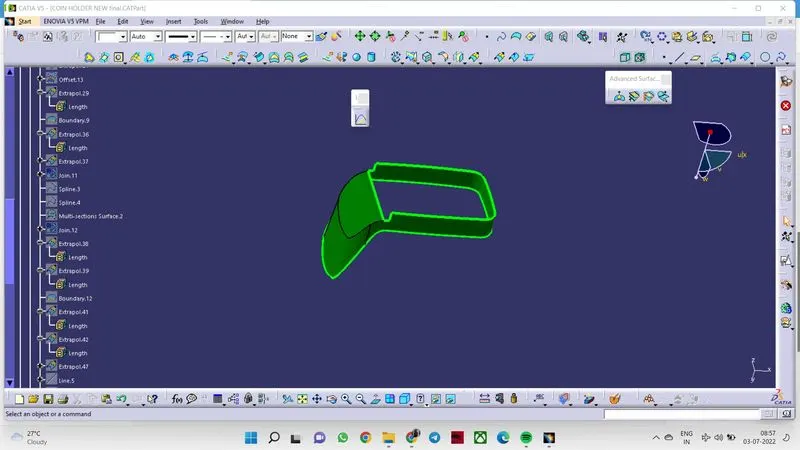

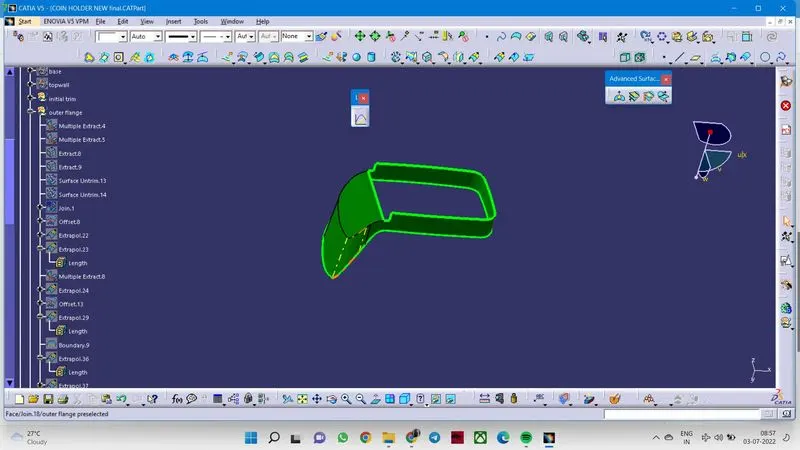

base, sidewall and top wall are trimmed first. the outer flange was created later and trimmed

The inner box like cutting portion created . and used replace options to add that on trimmed surface

step3

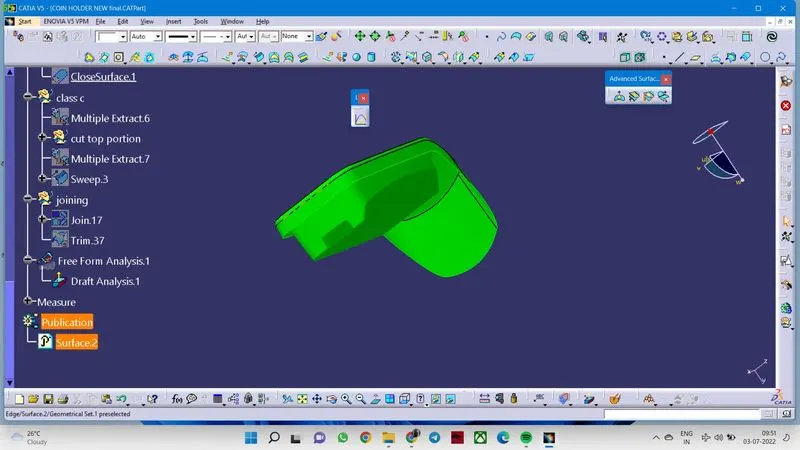

class c was created and joined with class A

finally it trimmed with class b.

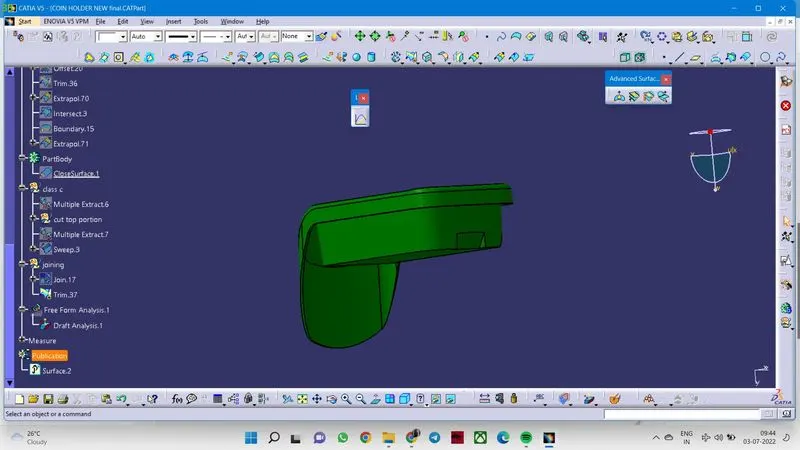

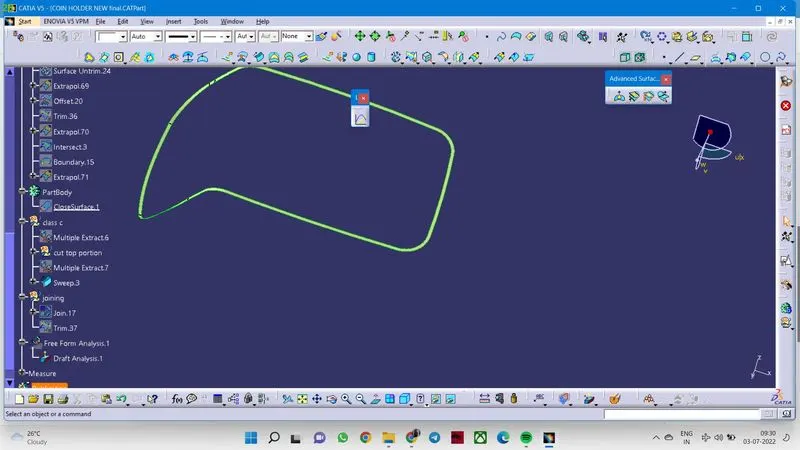

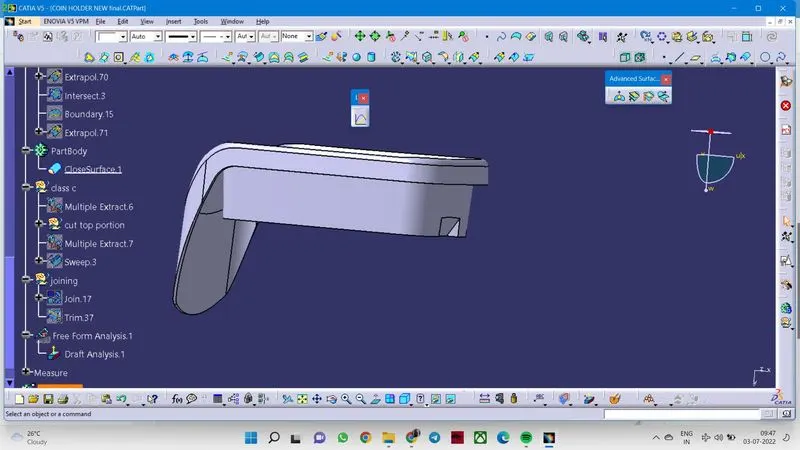

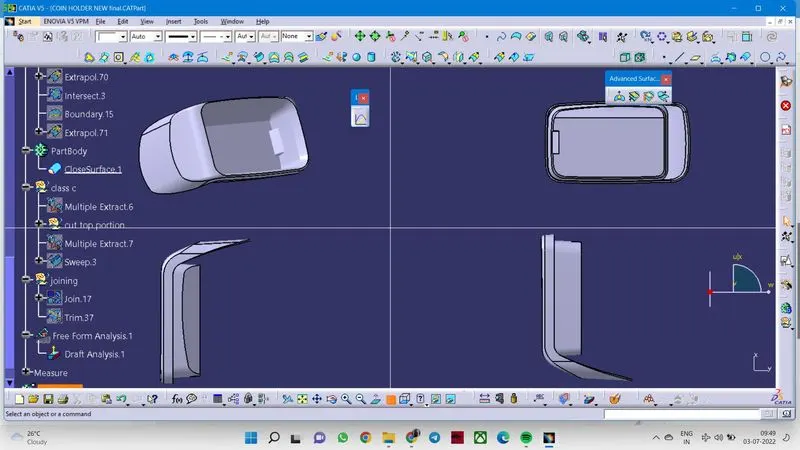

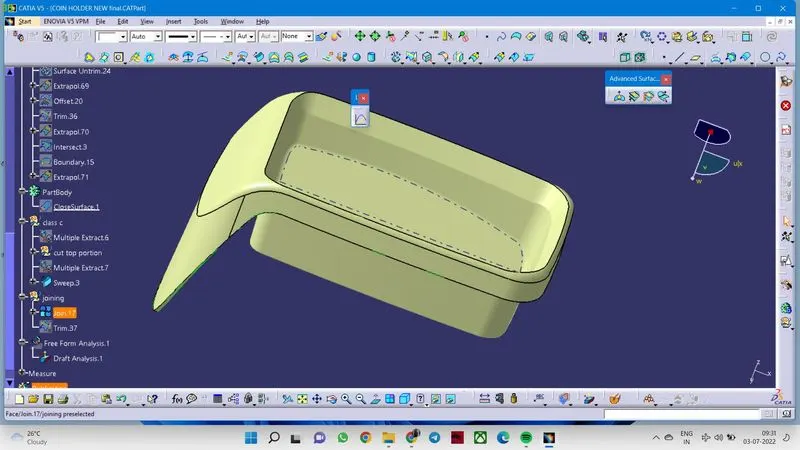

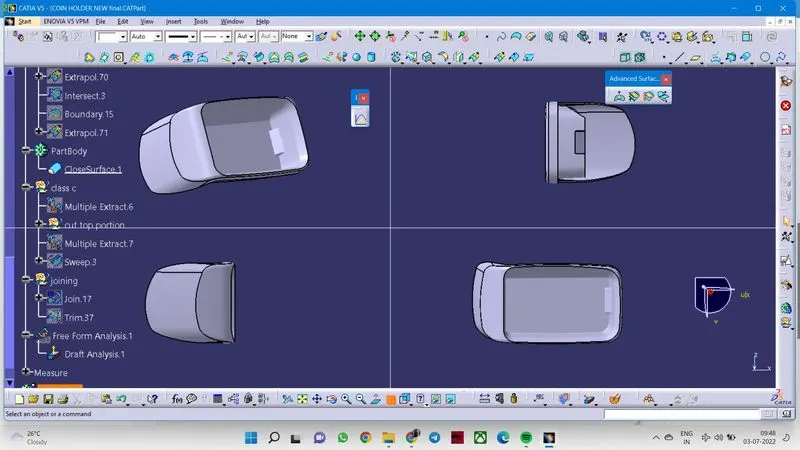

Partbody closed surface

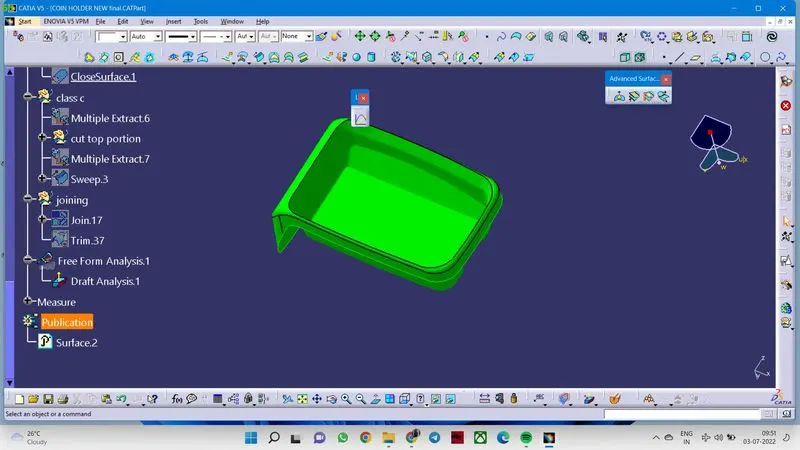

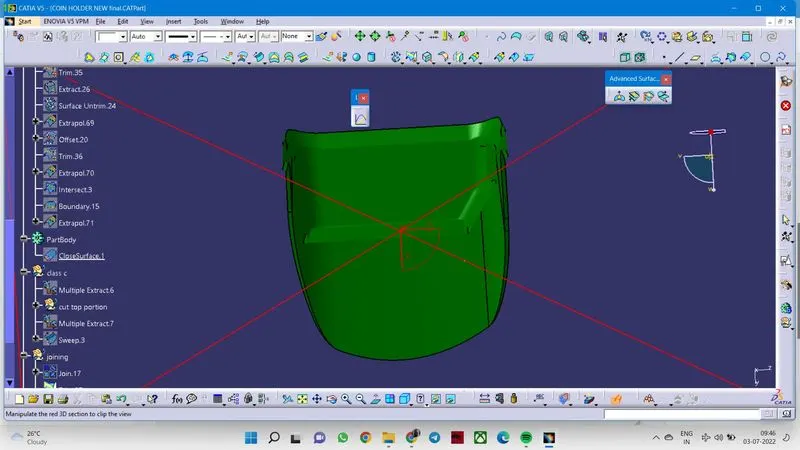

Draft analysis
