Week 8 - Challenge 3 - Coin Holder Design

TOOLING AXIS:

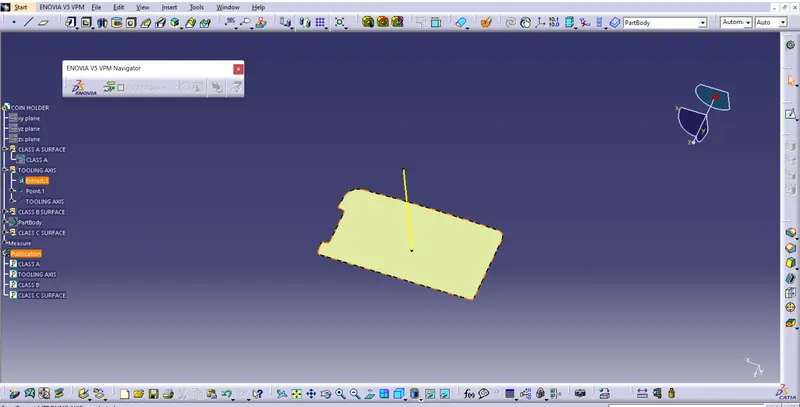

1)Firstly extract the base surface of class a and mark a point on that surface.

2)Next make line bisecting that point which will be your tooling axis.

DRAFT ANALYSIS:

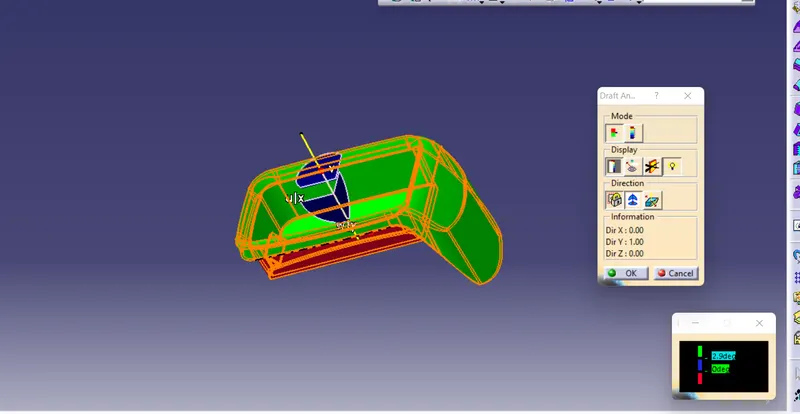

After closing the surface go to the feature draft analysis.

Then go to compass tab and drag compass to the tooling axis and lock it.

after this click on surface draft analysis will be created.
