Week 8 - Challenge 3 - Coin Holder Design

COIN HOLDER

Tooloing Axis creation:

In this coin holder challenge, I have not used the bisecting method to create the tooling axis.
Firstly analyze the given component in which direction tooling axis will be suitable.
Then extract the base surface from the given class A surface.
Then create a point in the centre of the extracted surface using 'on the surface' option.
Next create a line normal to the extracted surface that passing through the created point and consider the line as Tooling axis.

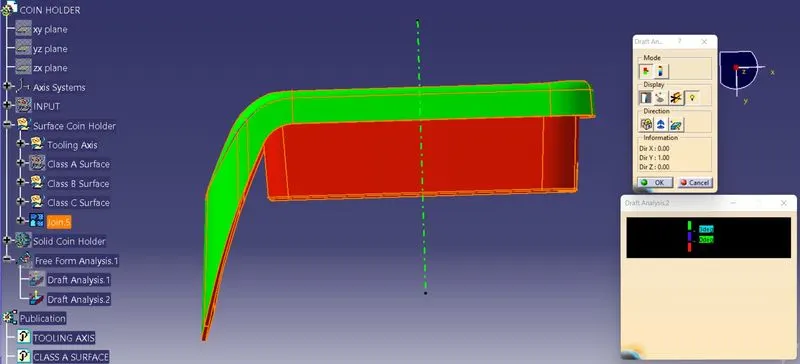

Draft Analysis:

Draft analysis is done on the class A surface and the final surface component.
Normally the draft angle for plastic surfaces ranges from 1/2 to 3 degrees.
I have given the maximum positive draft angle for plastic surface is 3 degree.

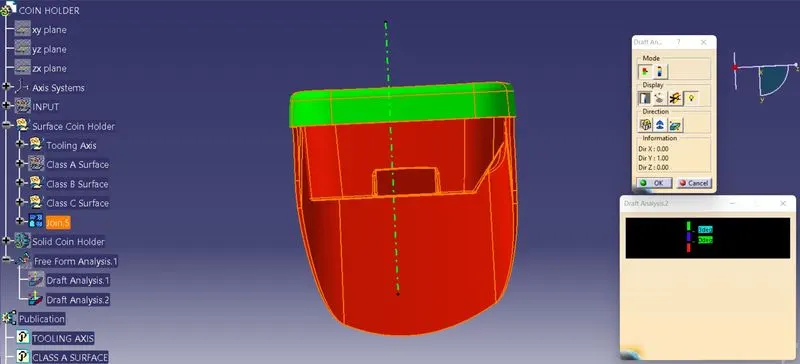

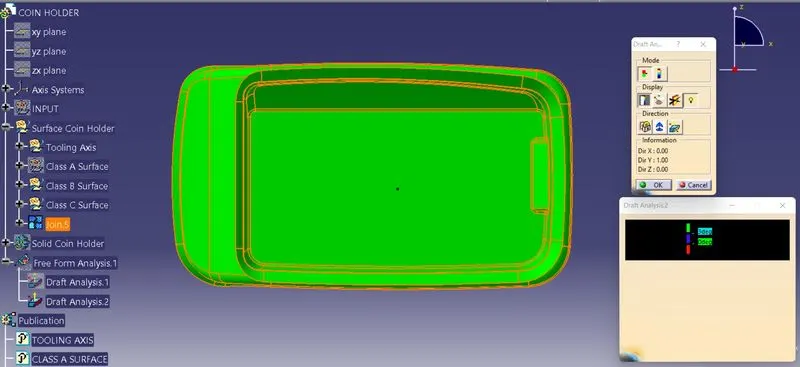

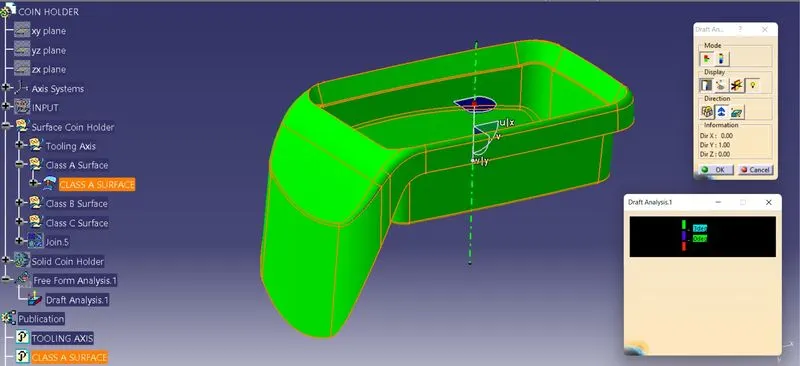

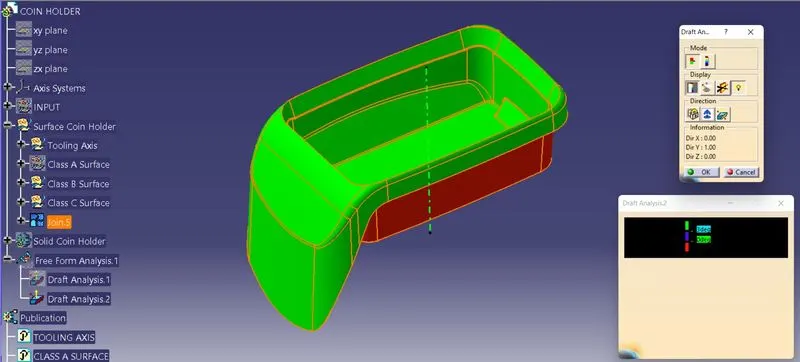

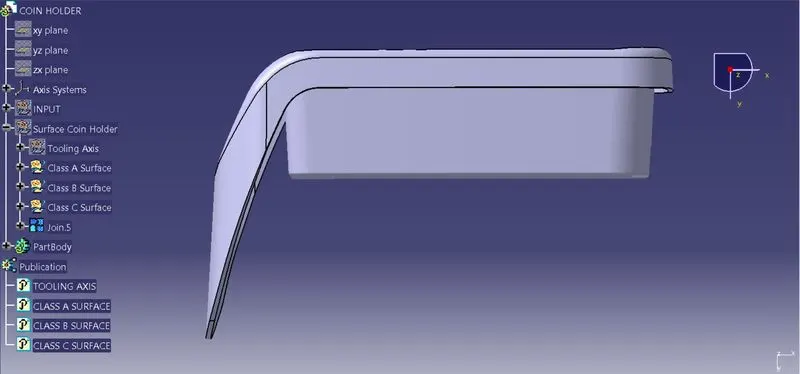

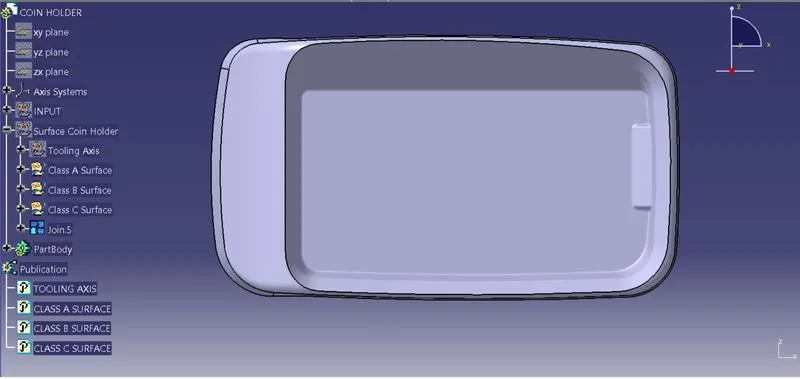

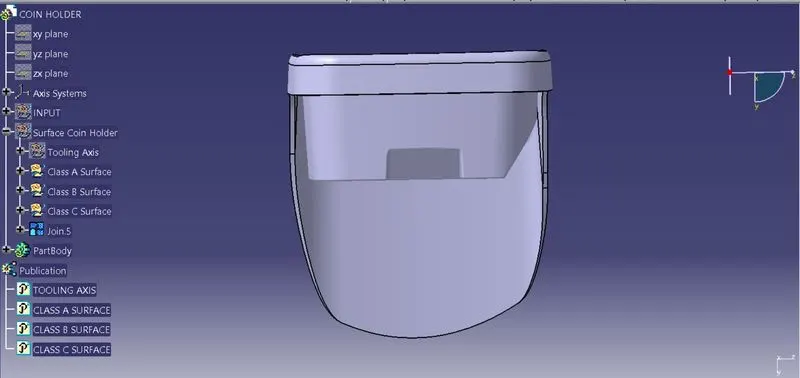

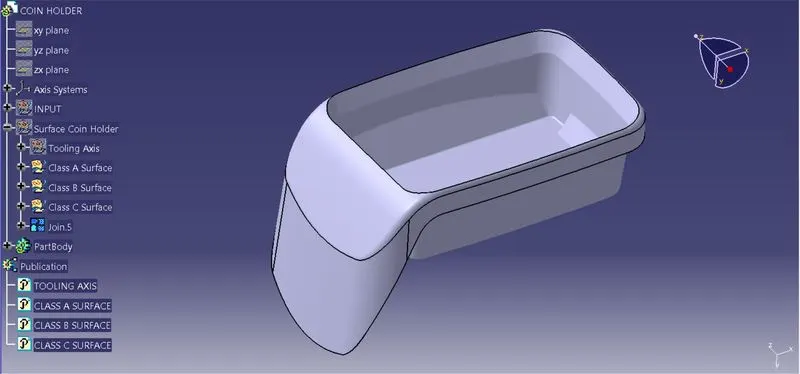

The results of the draft analysis on class A and the final components are as below.
