Week 8 - Challenge 3 - Coin Holder Design

OOmkar Bavadekar7 Aug 2022

Coin holder design

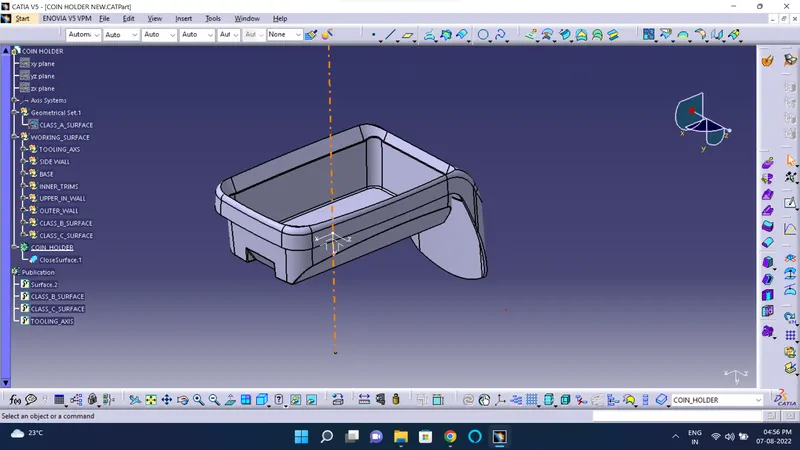

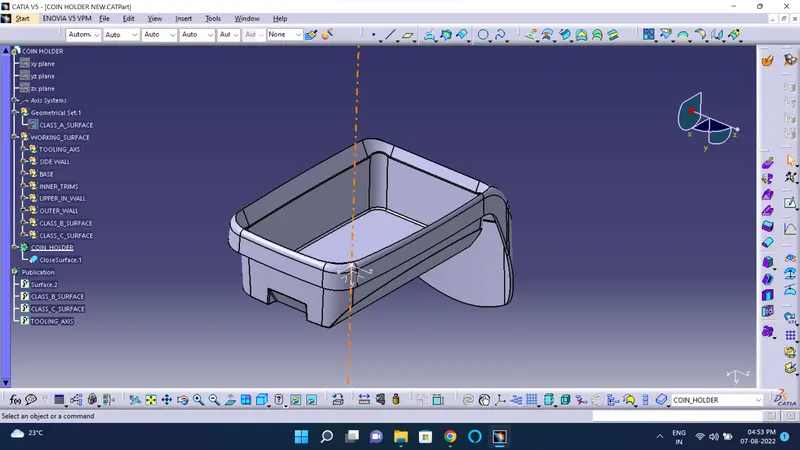

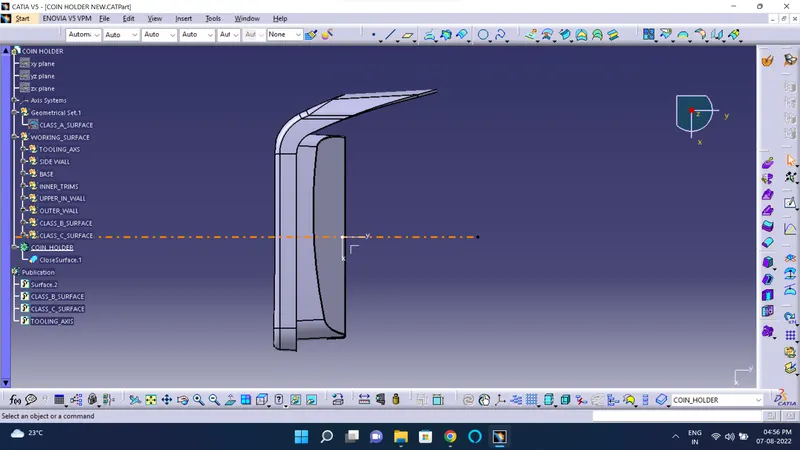

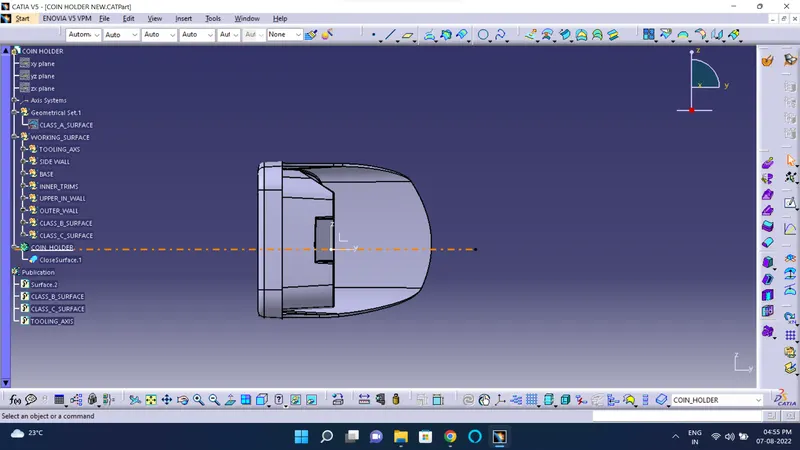

Tolling axis-

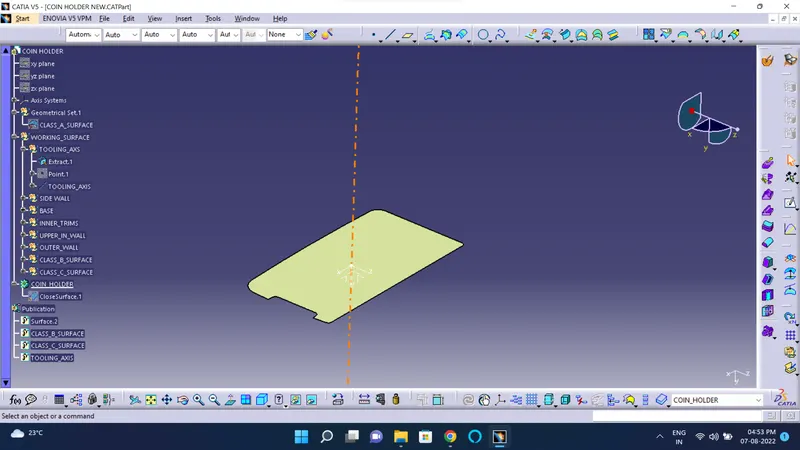

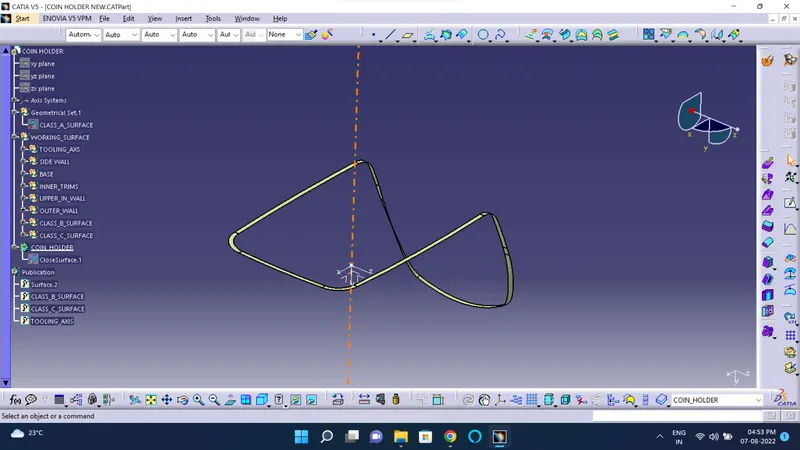

For creating the tooling axis for the coin holder take a point in the center of the base wall then create a line on that point normal to the base surface.

A tooling axis is given to ensure the proper ejection of the part from the manufacturing machine.

In the simple part, the part can be cleared using only one tooling direction but in complex components, more than one leave axis can be given by adding a side core.

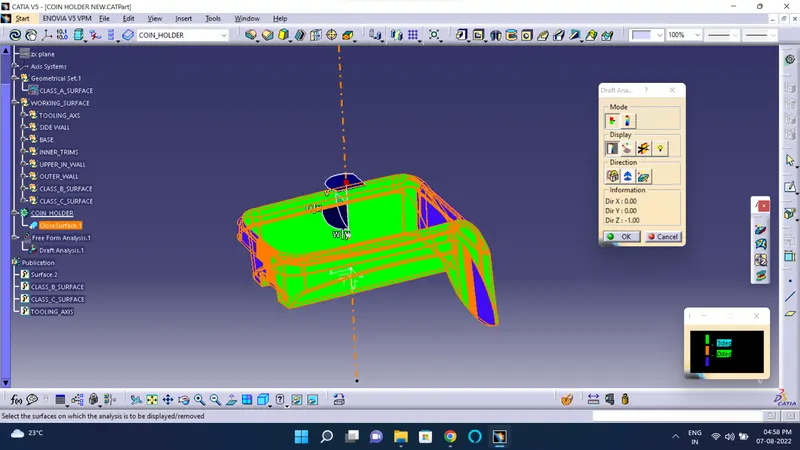

Draft analysis-

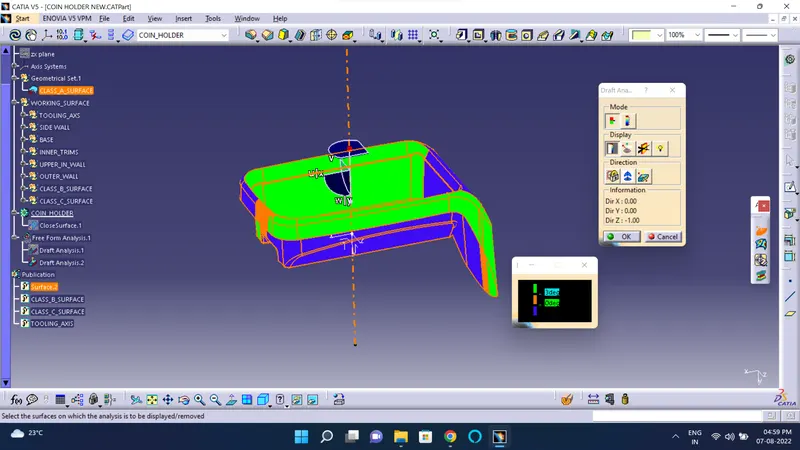

The draft analysis is the command that enables you to detect the party have created will be easily removed this type of analysis is performed in all the color grade identification zone on the light component where the deviation from the draft analysis at any point corresponds to a value.

The tooling direction or axis is the primary consideration of the plastic curtain mold party because it defined the moment of the mold part and the possibility of the plastic coming out of the mold part.
