Week 8 Challenge

given data :-

Span the Width =12 Mtr

Width is = 7 M

Live Load Is 70R

Design Speed is = 70 km /hr

radius of curvature = 3 m

Sol:-

Calculation

Centrifugal force = (w*v2)/(127R)

(70*75*75)/(127*3)=1033 Kn

The Centrifugal force is = 1033 kn

& Opan the staad pro

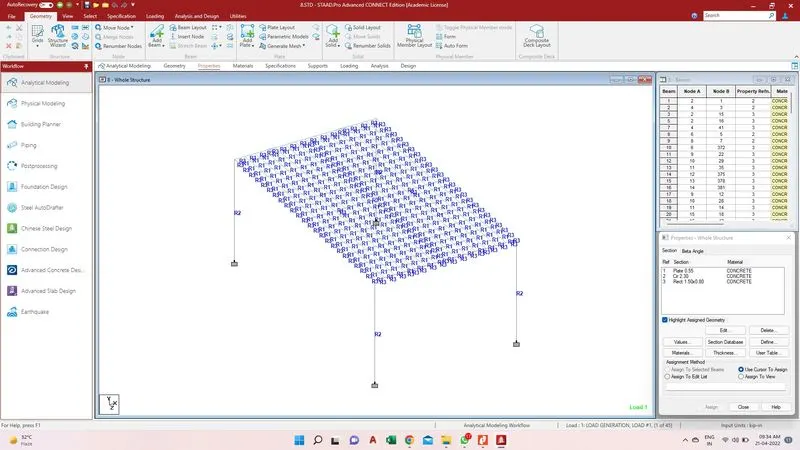

1. Draw the brige

span is 12 mtr

width is 7 mtr

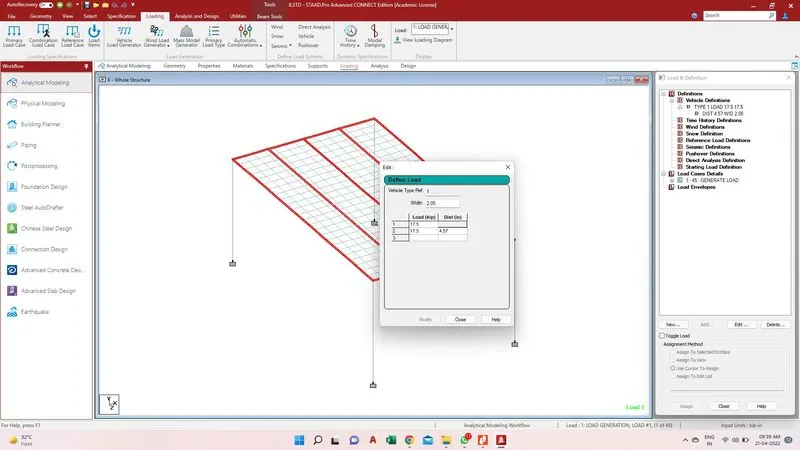

2 goimg to loading option

& Add the vechile details

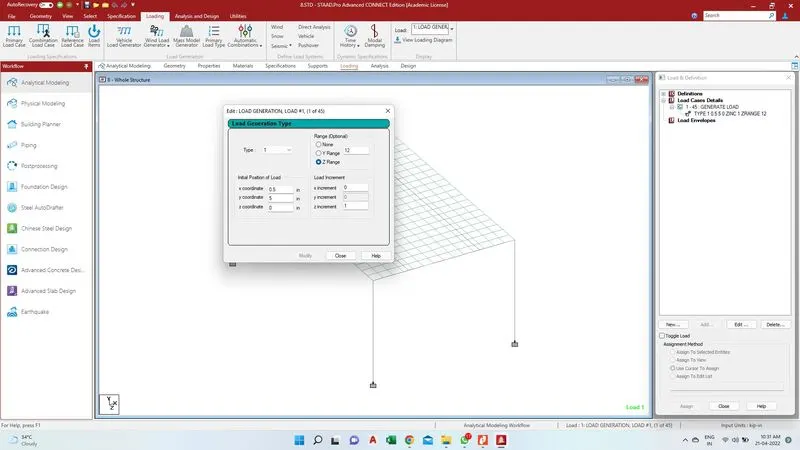

3. gong to load case details

add the generate load & type of Range

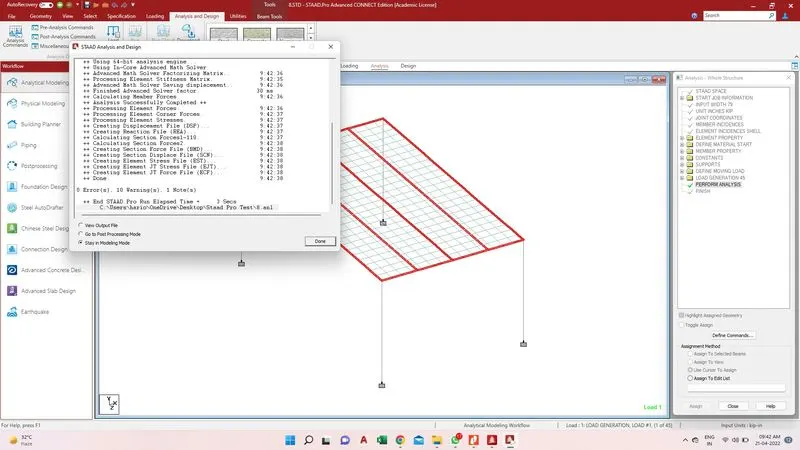

4 Save the file

& run Analysis

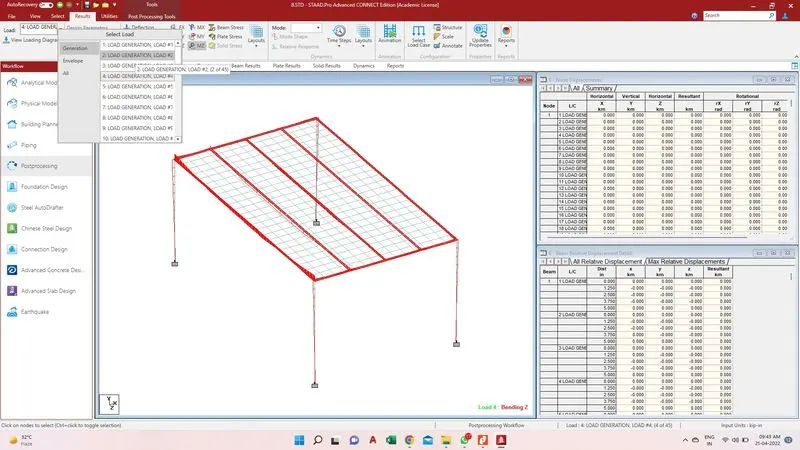

5 goimg to procing mode

& show difflection

MZ , MY

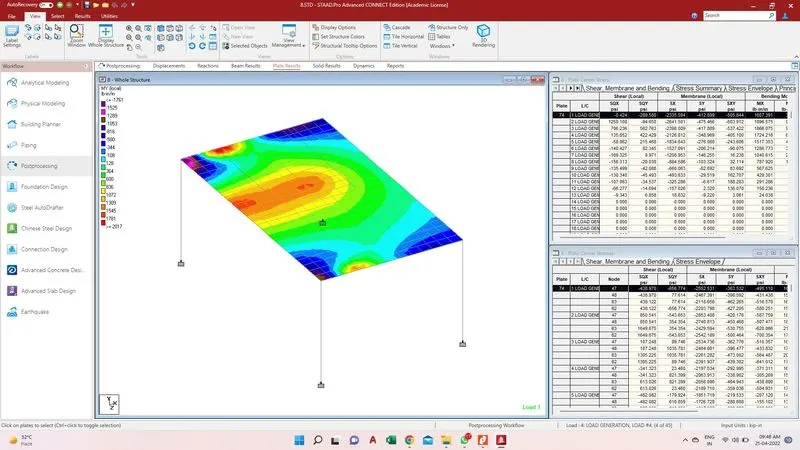

6. going to contoue datails.

Attach the Staad Pro file.

Thank You.
