Week 1 Challenge
Given Data:-
Width od Desk Slab=10.2m
Span of Bridge=12m
Pier Dia is 2.5 m
Seismic Zone is IV
Wind Speed is=47km/hr
Radius =60km
Soil is 19kn/m3
Sol:-
Dead Load:-

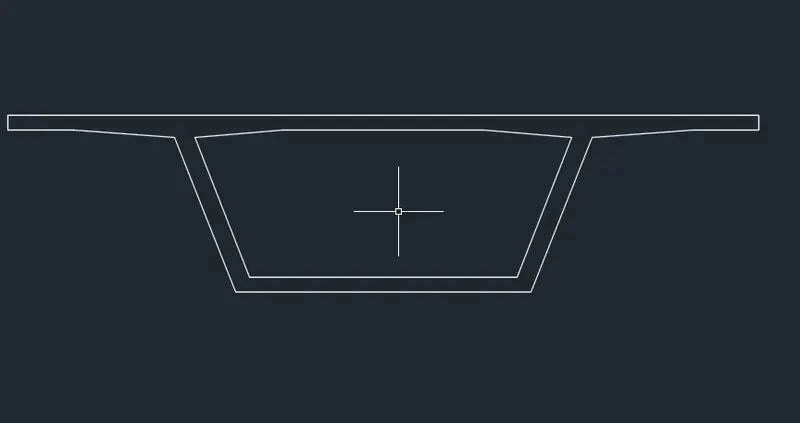

i Calculate area in auto cad.
Segment Area =4.3665
Unit Weigt of Concrte =25
=4.55*25=113.75 KN
Create A beam 12 Mtr

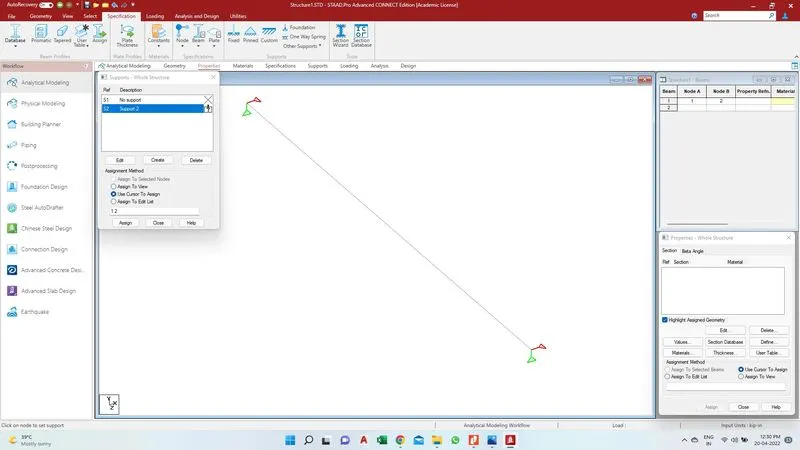

& Suppot Assign
Going to Loading

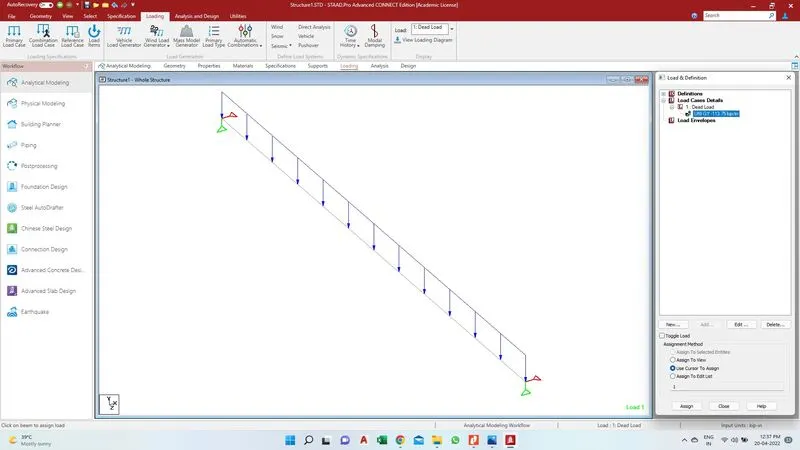

Create a dead load & Apply uniform force in Staad Pro.

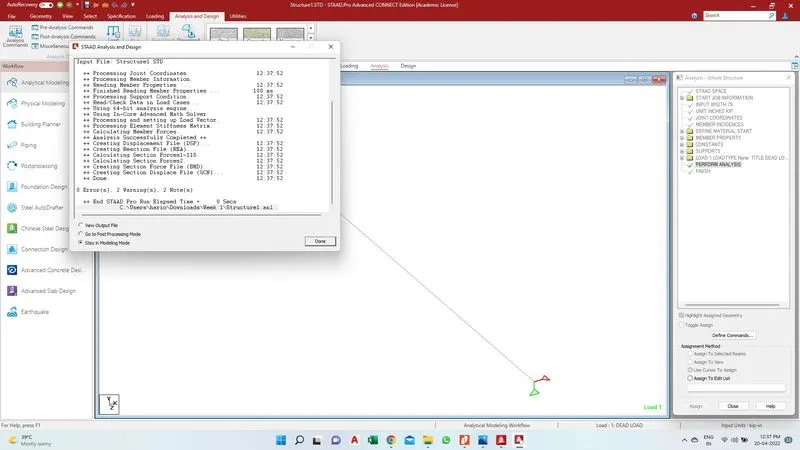

Run Analysis

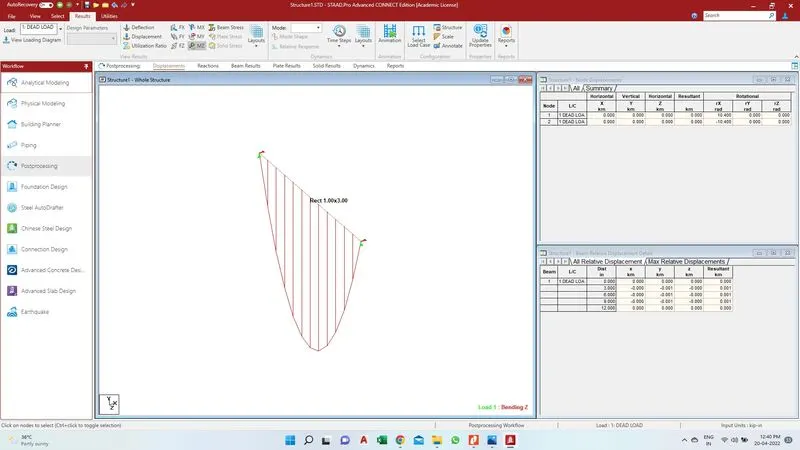

Diffelection
&
Attach the Staad Pro File.
Thank You
