Week 3 Challenge

Give Data:

Bridge Deck Width = 26 Mtr

Span =26 Mtr

Height = 10

Sol:-

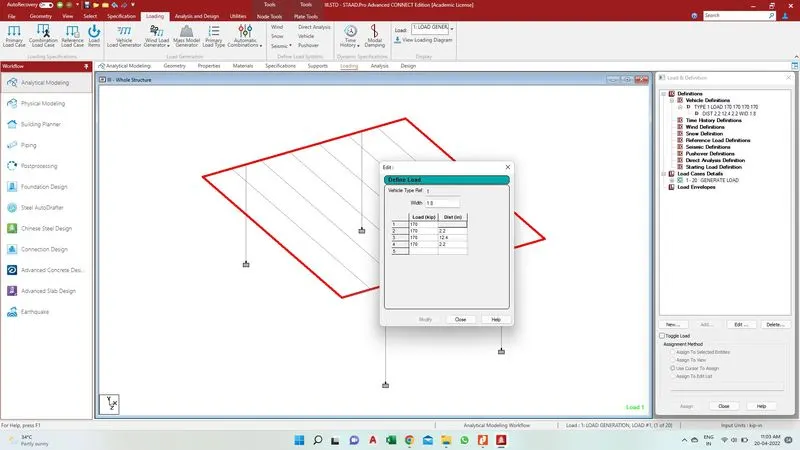

Metro Rail Load 170 Kn

Wheel Length (a) 2.1

(B) 2.2

(C) 12.4

Total Lenght = 21.1 Mtr

Span is 25 Mtr

Width Is 26 Mtr

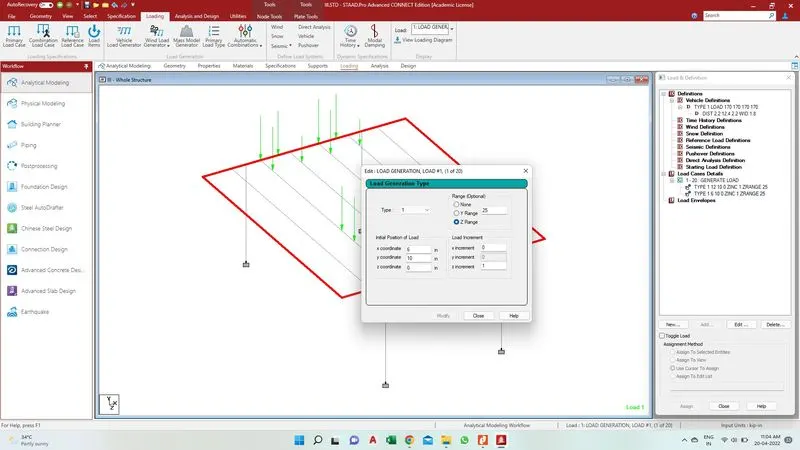

Vechile Load = 170 Kn

2nd Lane Load = 170 Kn

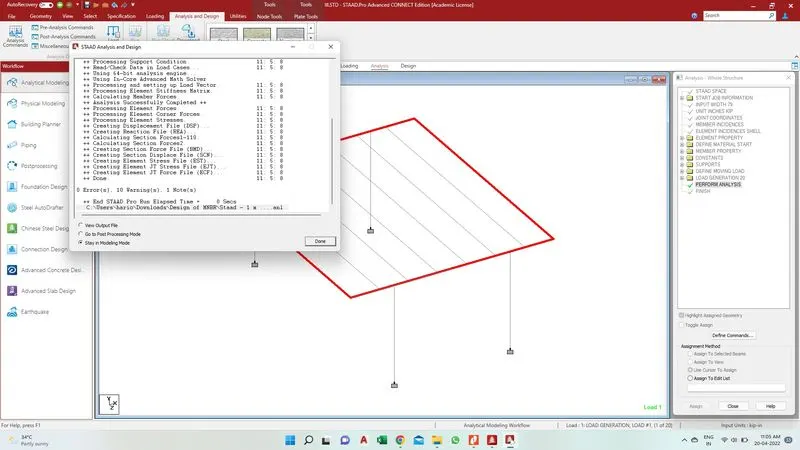

Run Analysis Compete

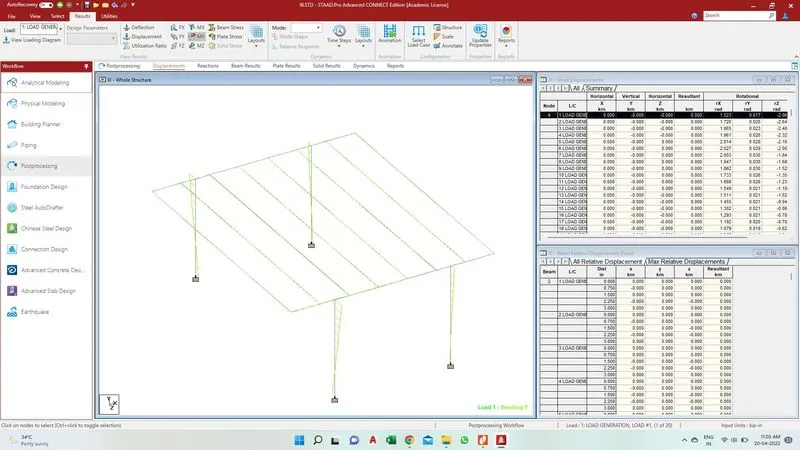

Difflection

& Attach the Staad Pro File.

Thank You
