Week 8 - Challenge 2 - Switch Bezel Design

Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

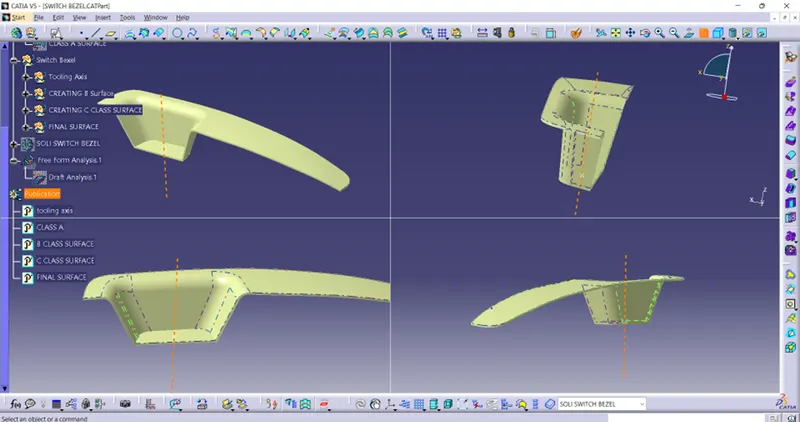

GIVEN CLASS-A SURFACE

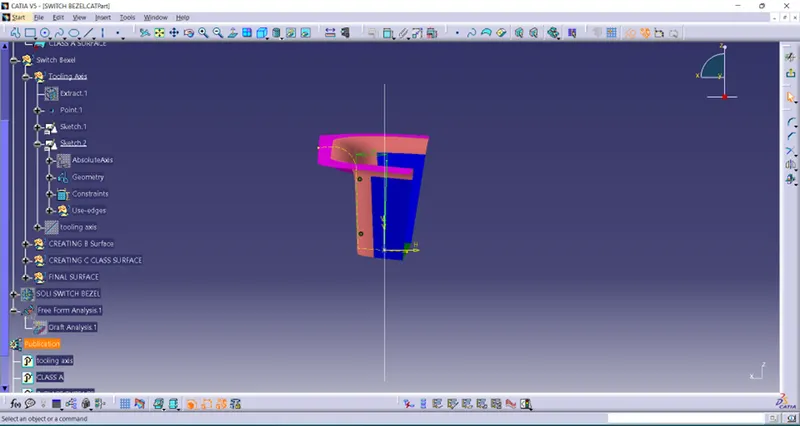

TOOLING AXIS

• In this object the prodect can be prodused by Z-axis and meets the plastic design concept

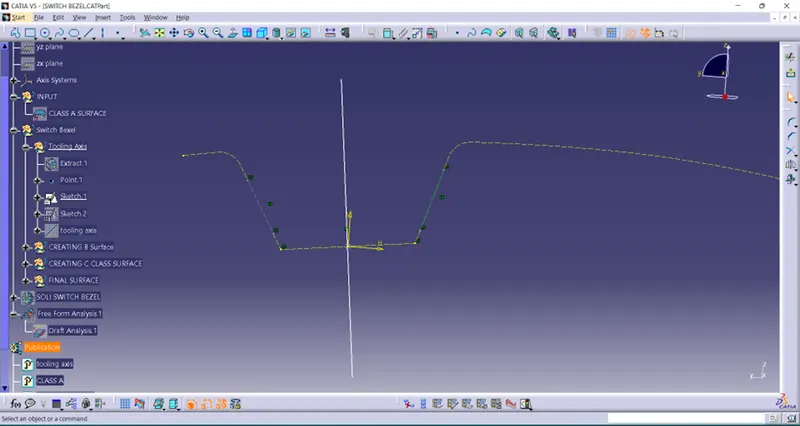

• For creating tool axis we are using bisecting method. It is created by bisecting X-axis line and Y-axis line
• For creating X-axis line we use intersecting comand to intersect class-a surface in X dirction
• Creat the line from intersecting line of surface that is parallal or angular to Z derection
• Bisectin line is made by line created in intersectin line.Now we get X-axis line
• For creating Y-axis line we use intersecting comand to intersect class-A surface in Y dirction
• Creat the line from intersecting line of surface that is parallal or angular to Z derection

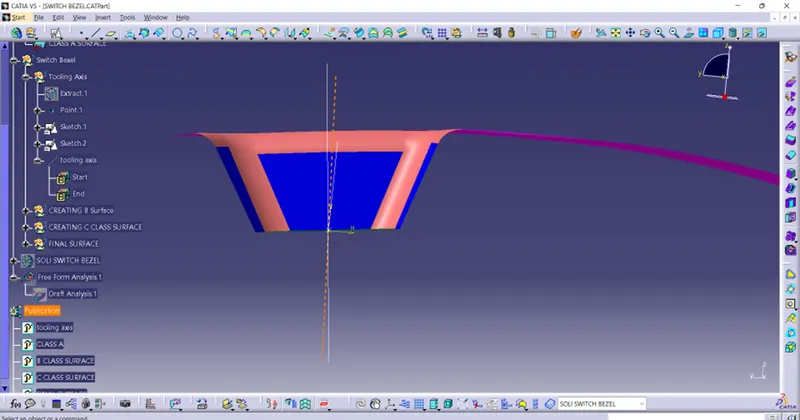

• Hence we have open surface in Y direction. We are creating a line with angle of 3^o
• Now we got Y-axis and Z-axis. Then we create bisecting line with Y-axis and X-axis.
• The line created is our tooling axis.

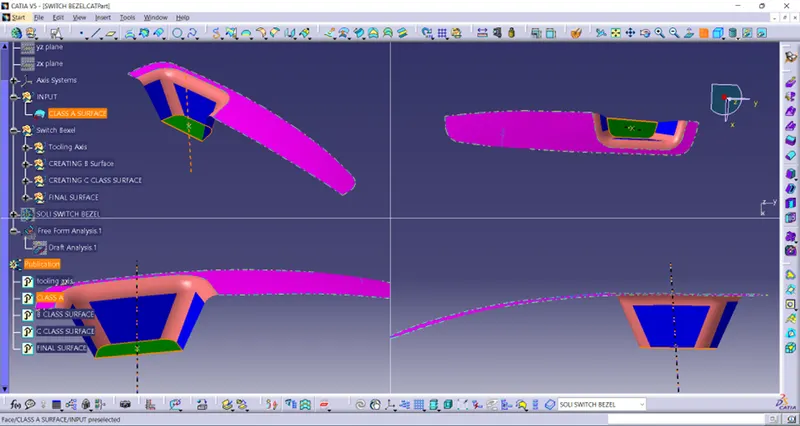

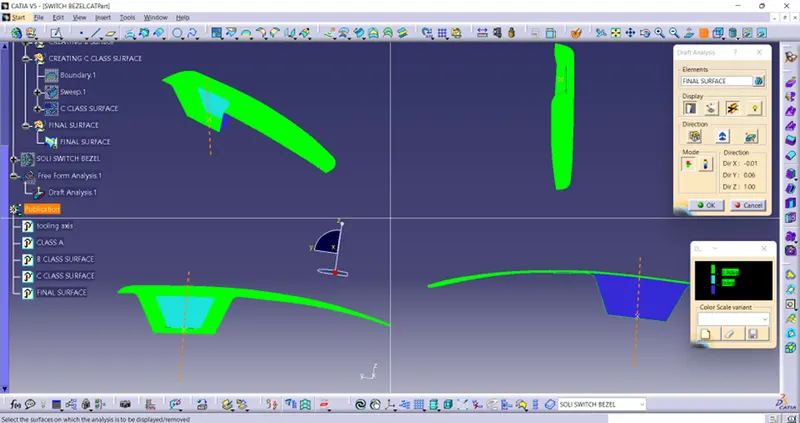

DRAFT ANALYSIS

In this process we found draft angle of the object. As draft angle is 3^o for plastic the surface got cleared in this process.

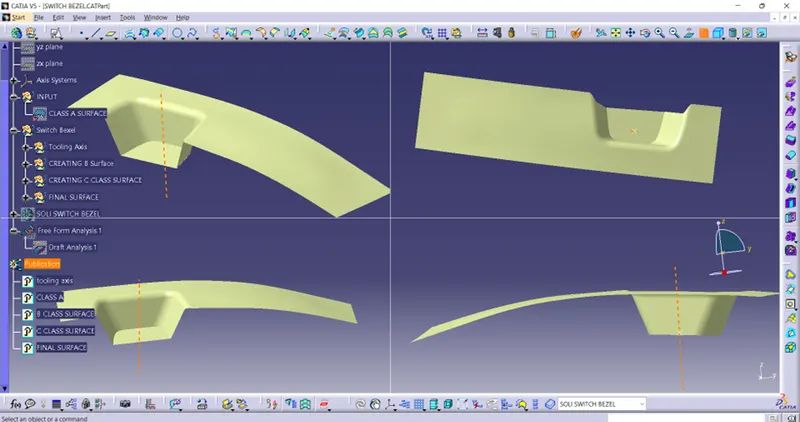

CLASS-A SURFACE

CLASS-B SURFACE

CLASS-C SURFACE

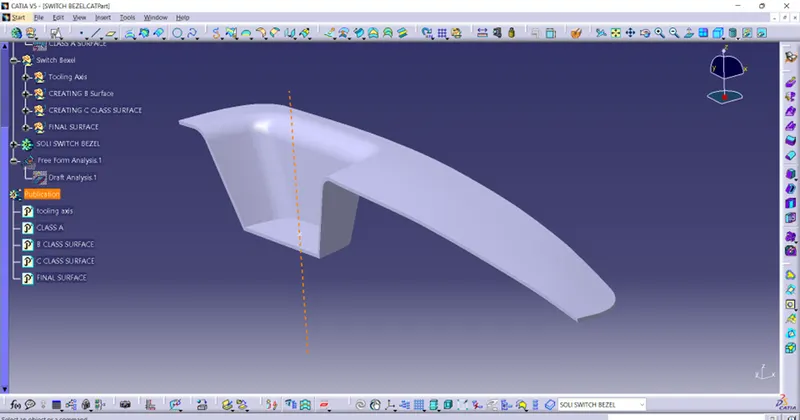

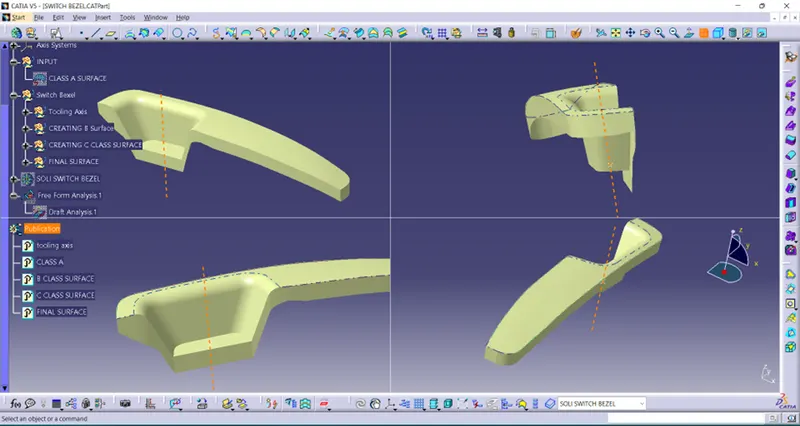

FINAL OUTPUT

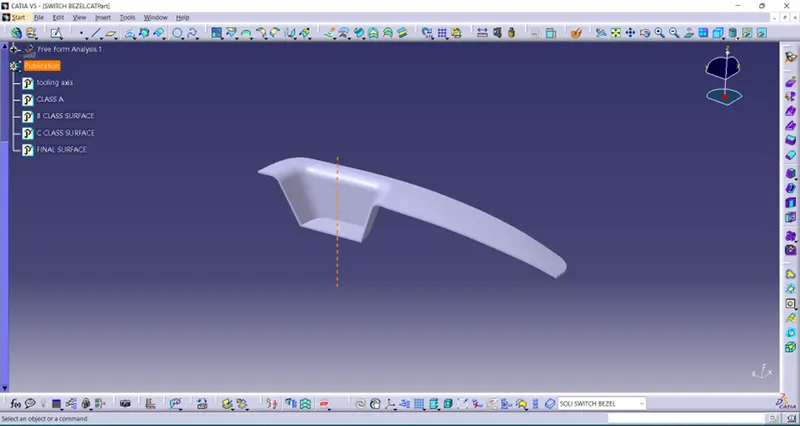

CLOSED SURFASE OF CLASS-A

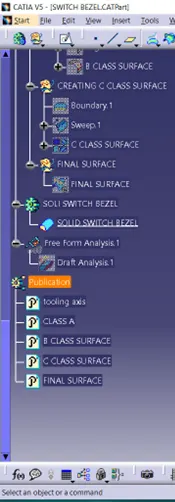

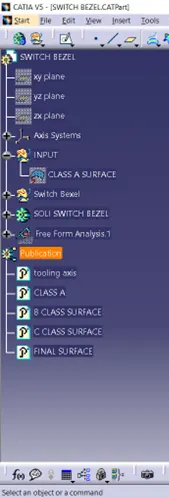

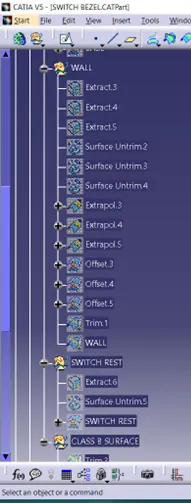

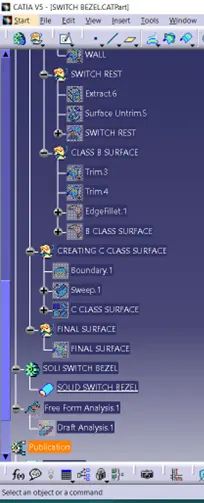

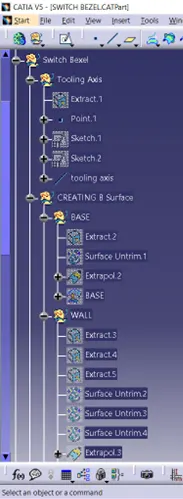

TREE STRUCTURE

PUBLICATION OF OUTPUT IN TREE STRUCTURE
