Week 8 - Challenge 2 - Switch Bezel Design

1. Bezel component

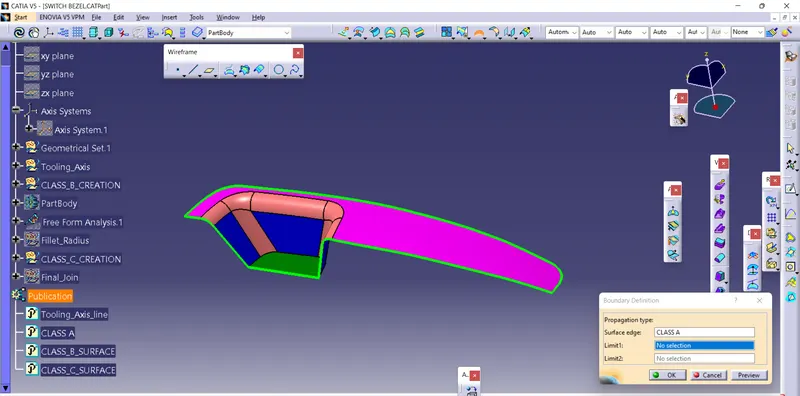

The initial step is to check for any discontinuity in the class A surface model using Join or Boundary option.

Here only the outer boundary line is found. There is no discontinuity between the surfaces.

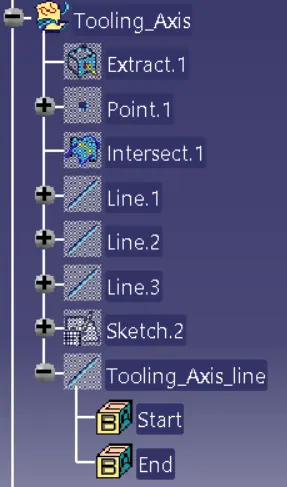

The next step is to define the tooling direction. Here the Bezel bin is more suitable for defining the tooling axis.

Creating a midpoint on the bottom wall surface and an axis system placed on that point.

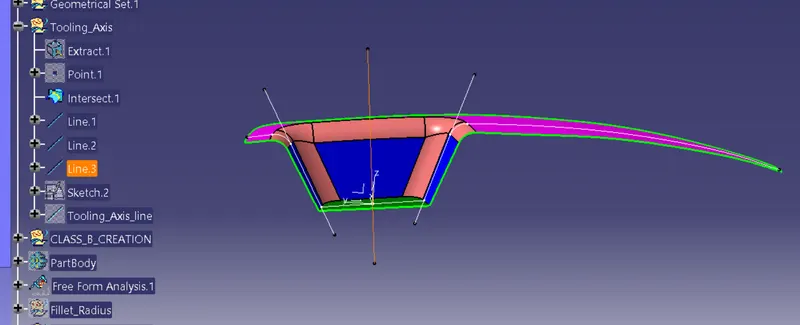

Y-direction reference axis:

Intersecting the class A surface with the YZ plane and extending two lines. Bisecting those two lines to create a reference axis for the Y-direction of the component.

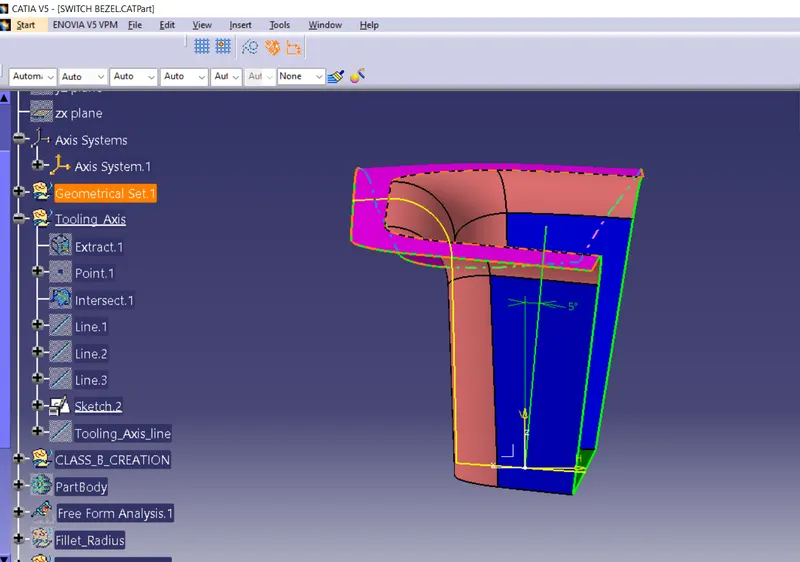

X-direction reference axis:

The next step is to define the reference tooling axis for the X-direction. Intersecting the plane XZ with class A surface. In the XZ direction, only one side is filled with material. The other side remains open. So that creates a line from the origin point and gives angle relation with the tooling axis. The minimum draft angle is 3 deg maintained. Here the axis is at an angle of 5 deg with the tooling axis.

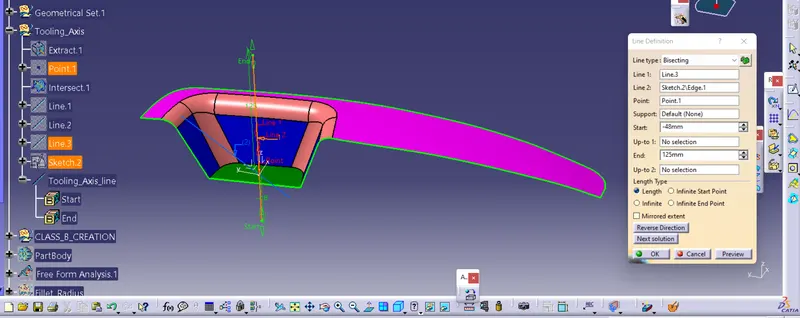

After that Bisect the X-direction reference axis with the Y-direction reference axis to get the tooling axis.

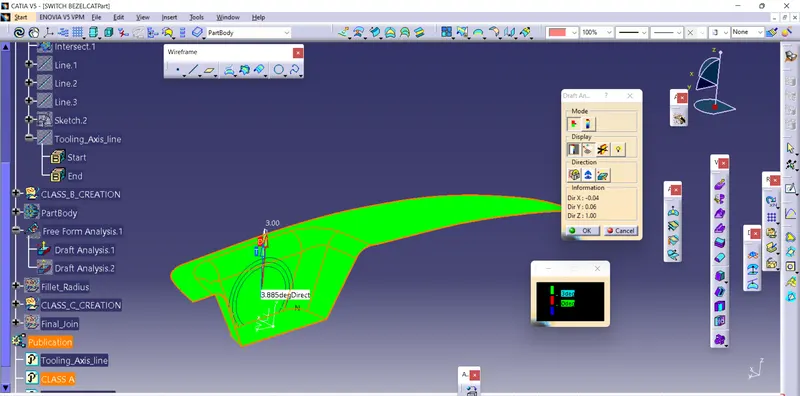

Draft analysis on Class A surface:

Draft analysis is performed on class A surface to check the draft angle's of each faces.

Green color on the class A surface denotes- Draft angle 3 degrees and above.

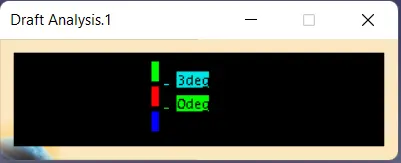

Other codes on the dialog box

Red denotes- 0-3 deg angle

Blue denotes- Less than 0 degree

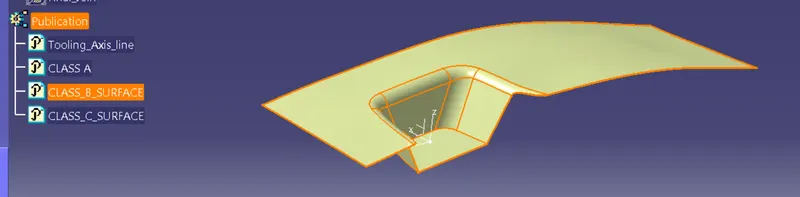

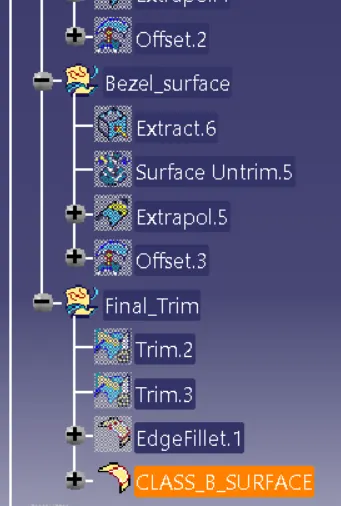

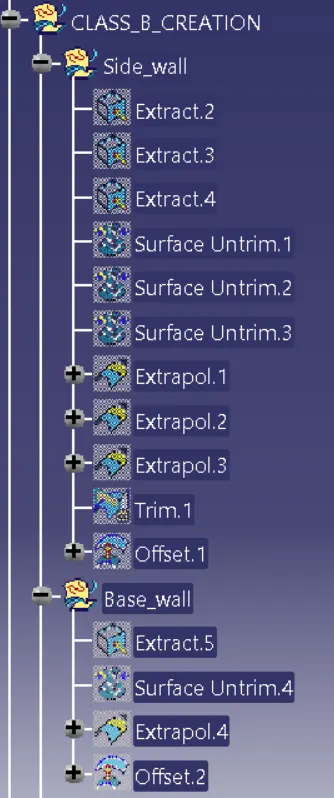

Class_B_Surface_creation:

Extracting the faces from class A surface and offset to 2.5mm.

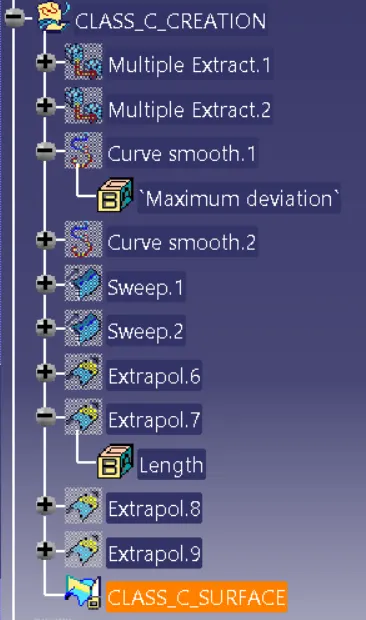

Class_C_Surface_creation:

Class C surface is used to close class A and Class B to form a closed surface.

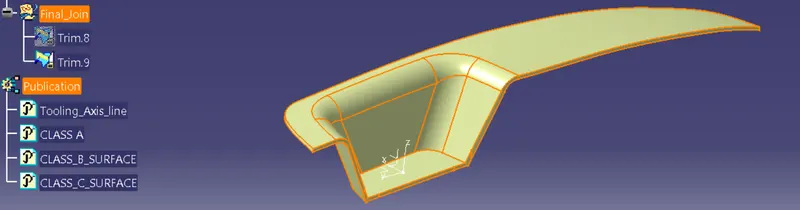

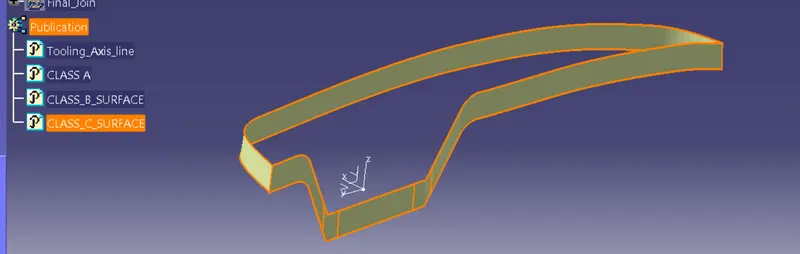

Joining Class A& Class C surface and trim with Class B surface to create a closed surface.

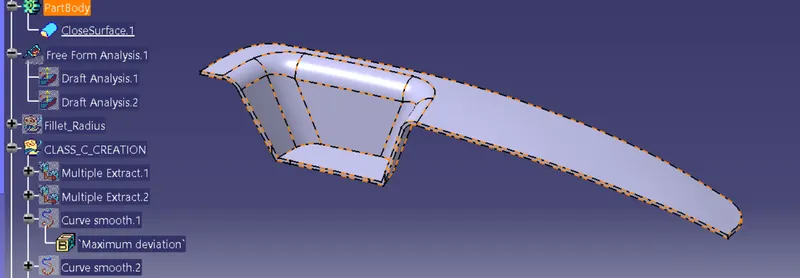

Creating a solid model:

Using the closed surface option in part modeling to form a solid model.

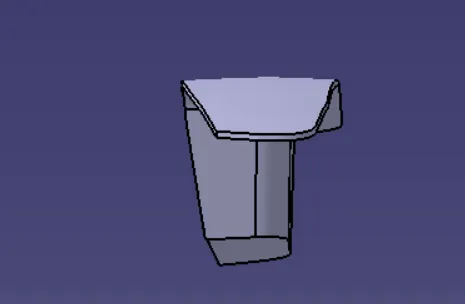

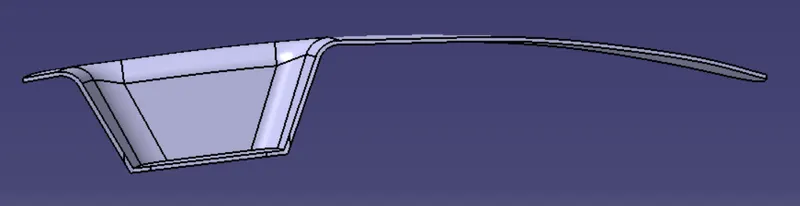

Front view

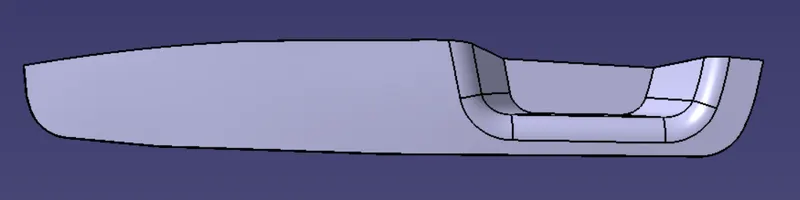

side view

Top view

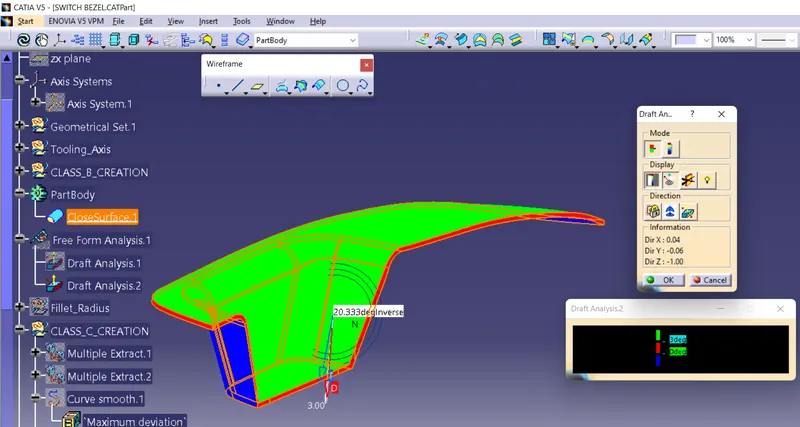

Draft analysis on the finished component:

Green color denotes- Draft angle 3 degrees and above

Red denotes- 0 degree

Blue denotes- Less than 0 degree
