Week 8 - Challenge 2 - Switch Bezel Design

SURFACE A IS NOT CLEAR SO,

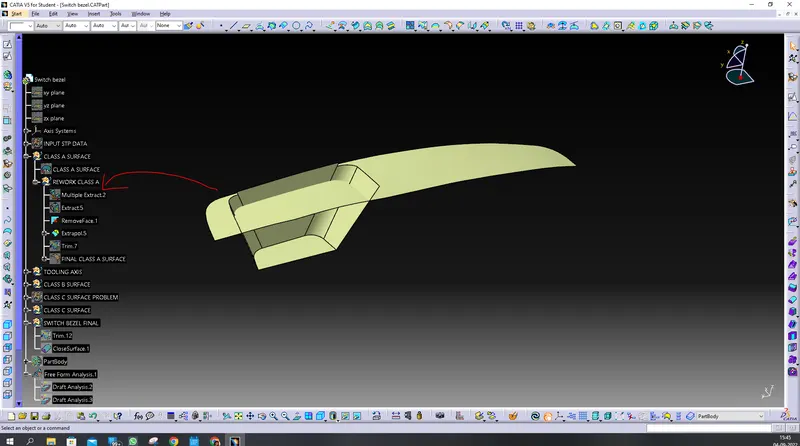

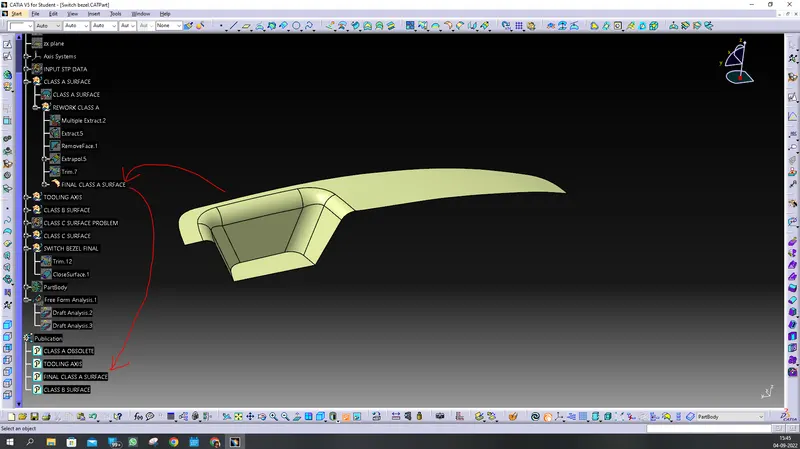

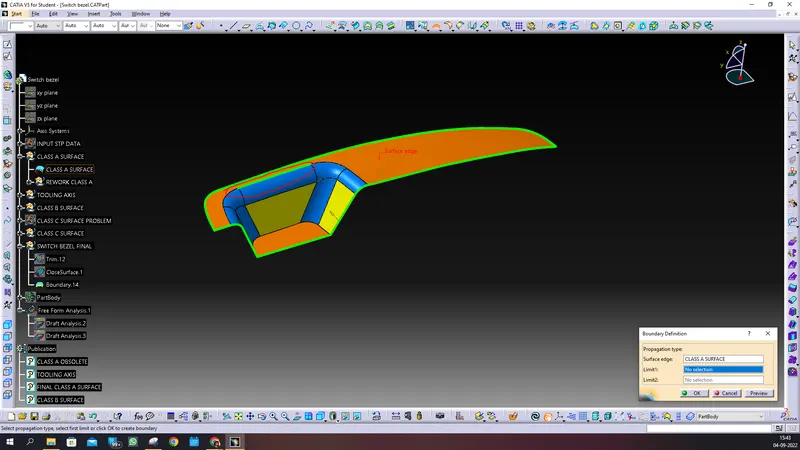

RECREATED SURFACE A

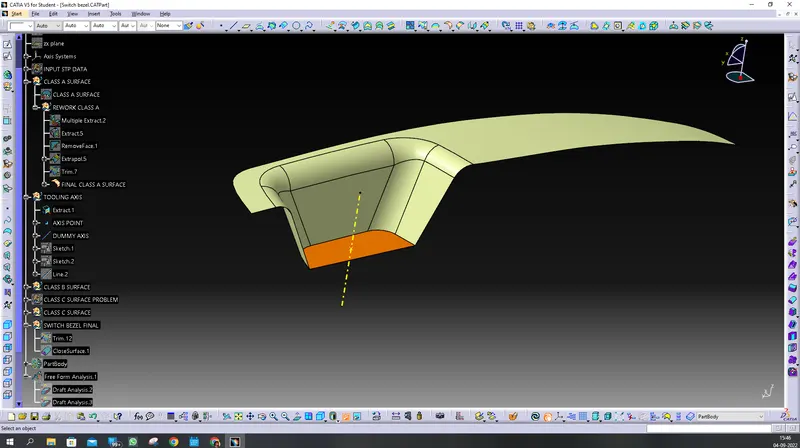

NOW WE GO FOR TOOLING Axis

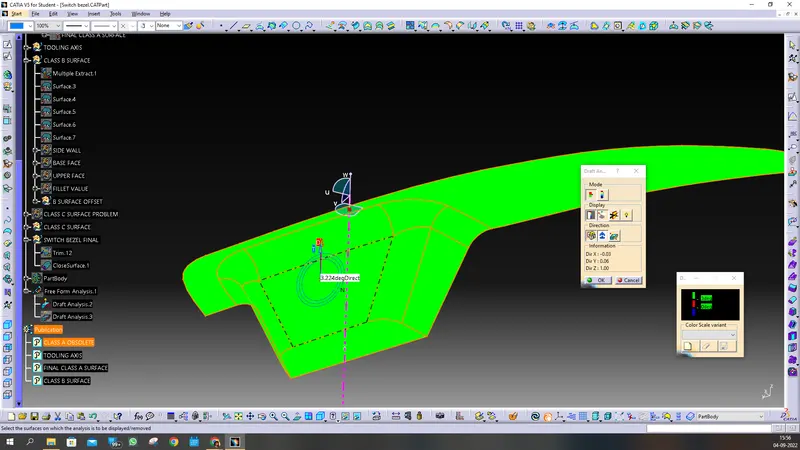

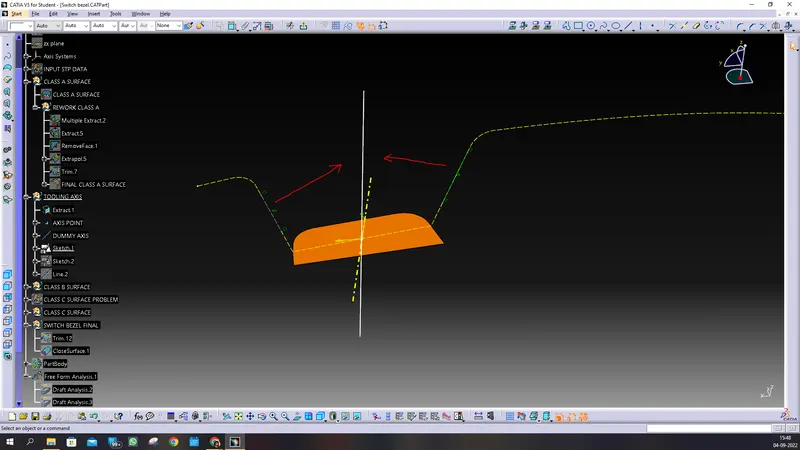

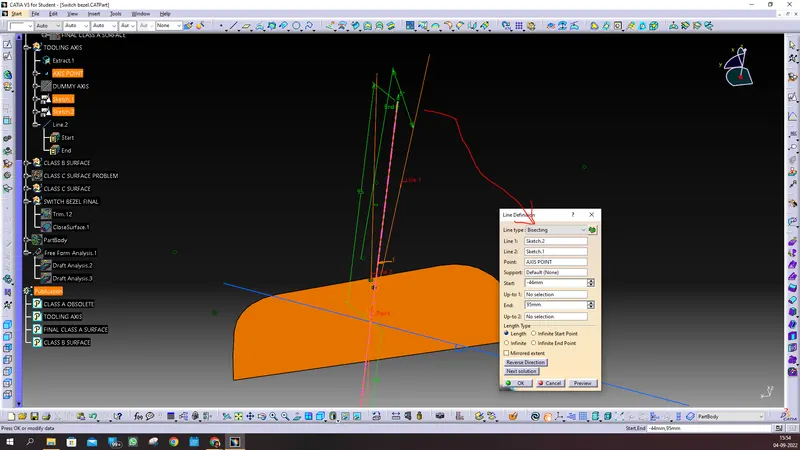

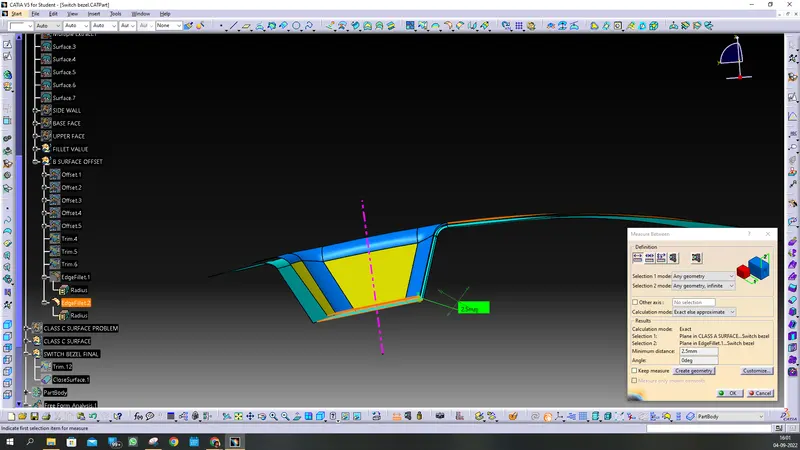

now i did, intersection sketch on plate with surface, and in sketch, we created bisecting line, to created 1st tooling axis for the front face draft

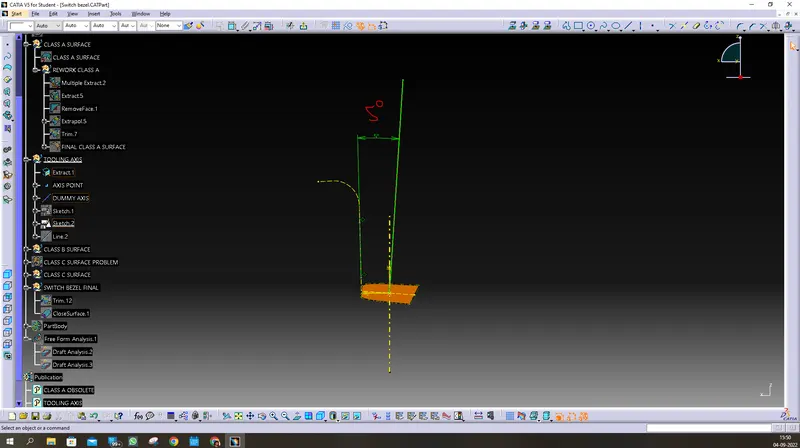

you can see, another sketch created for other side axis, intitially we have to create 3 degree from face, as shown above, we have to change while bisection with first tooling axis,

hence tooling axis is done okay.

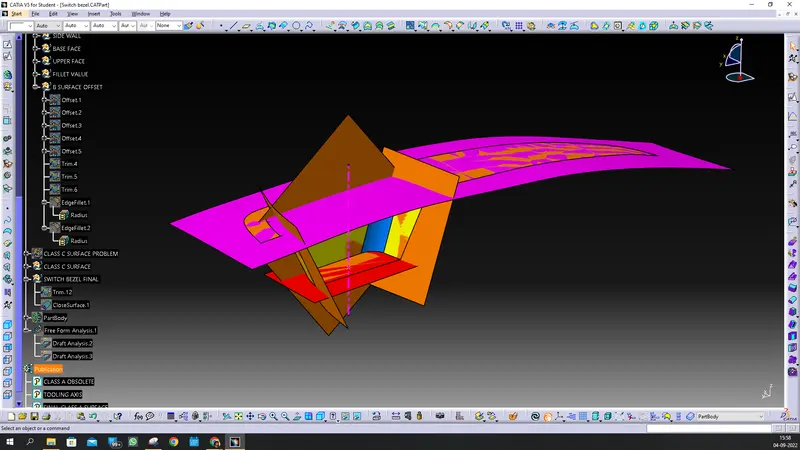

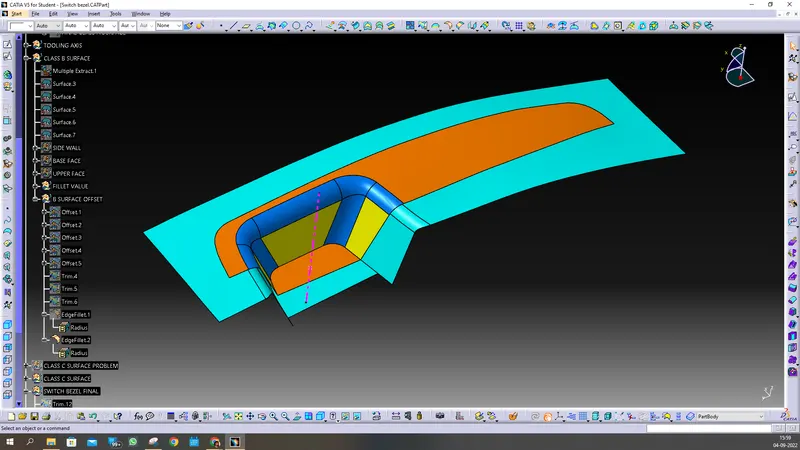

now we trim it, and offset it, as shown:

hence , CLASS B IS CREATED.

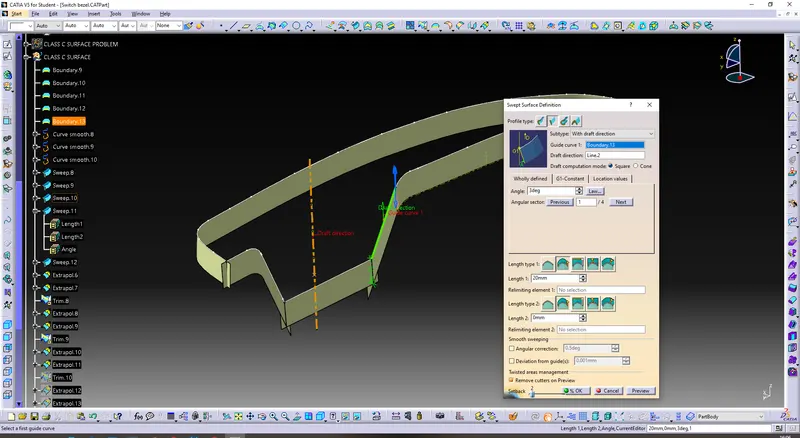

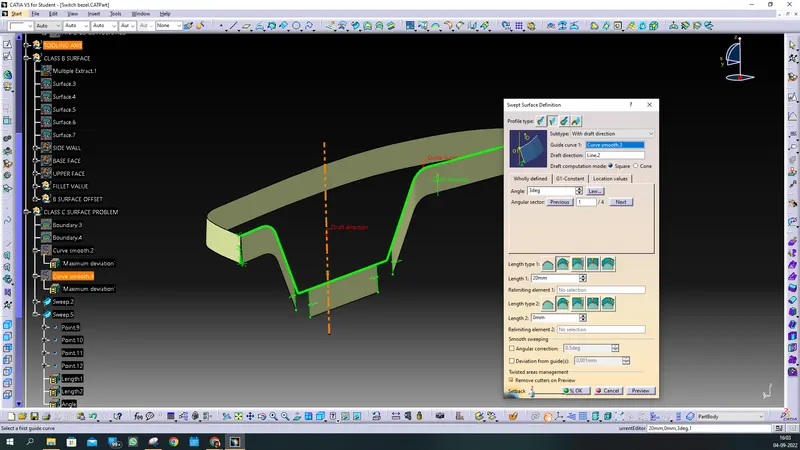

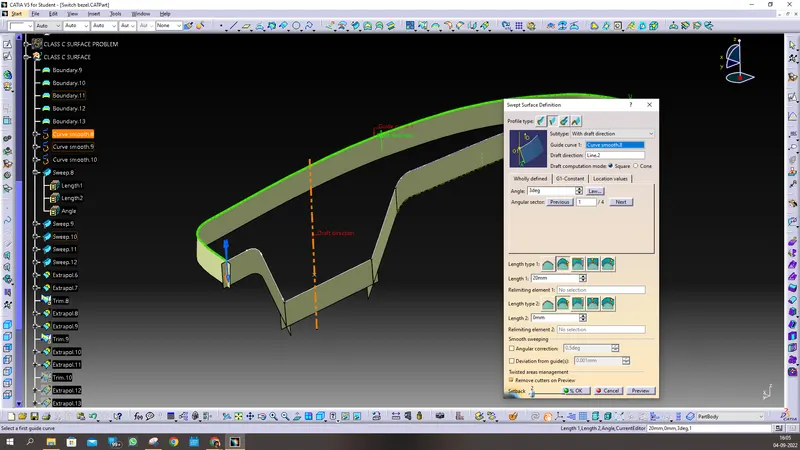

, NOW, i tried CLASS C surface, i got problem some problem so i tried again,

i have reacreated again, trim the corner,

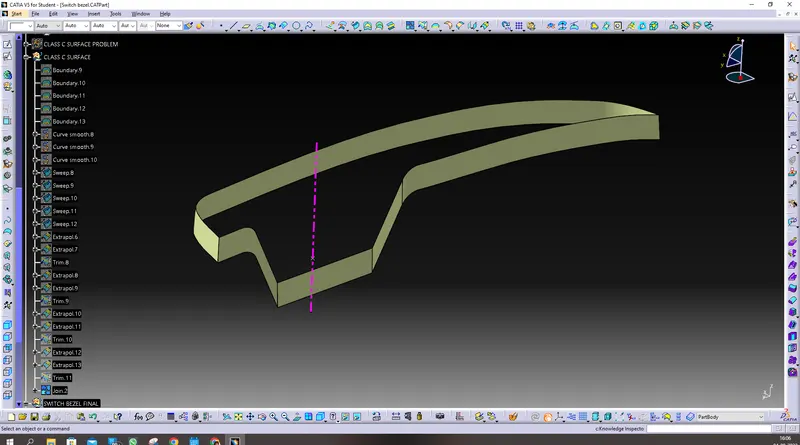

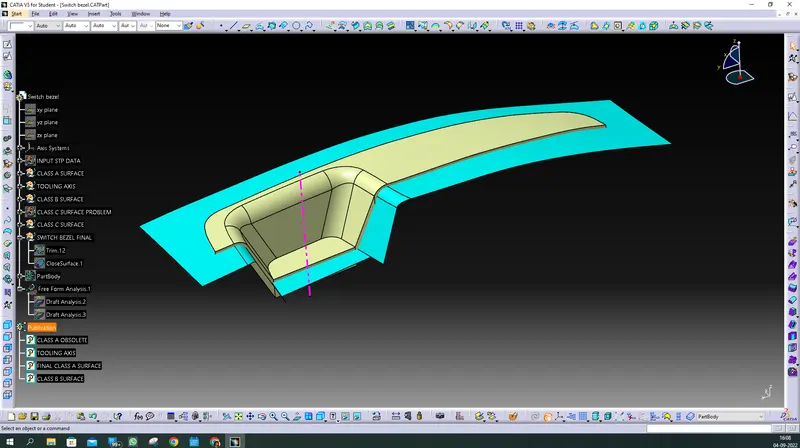

hence, FINAL CLASS C , is created,

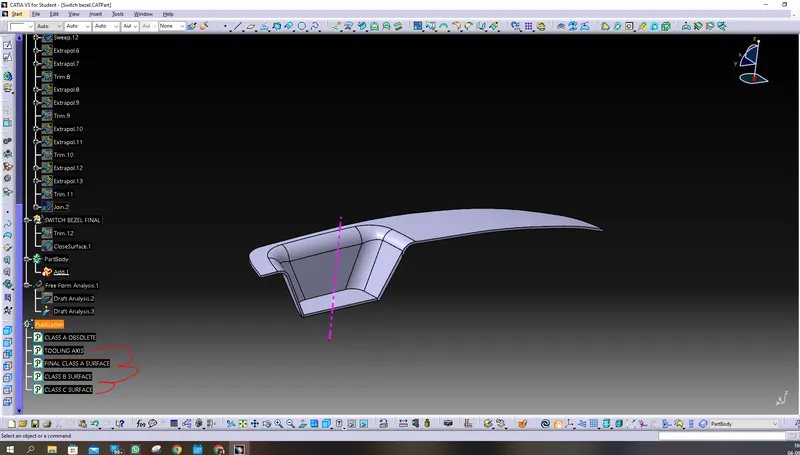

now we create another geometrical set, and trim

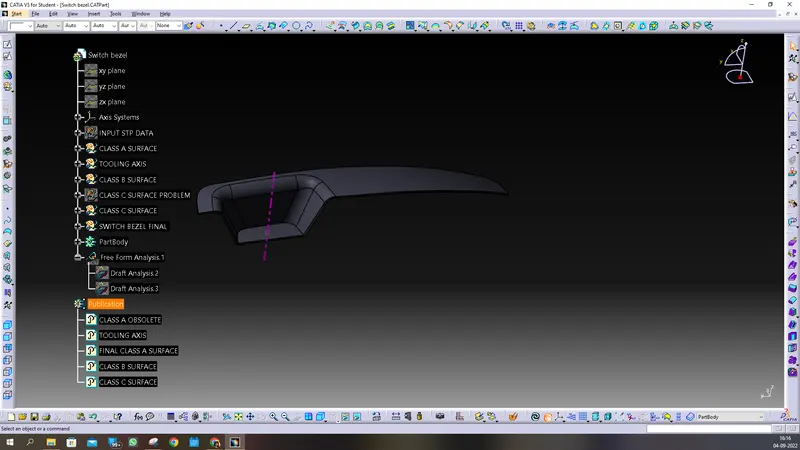

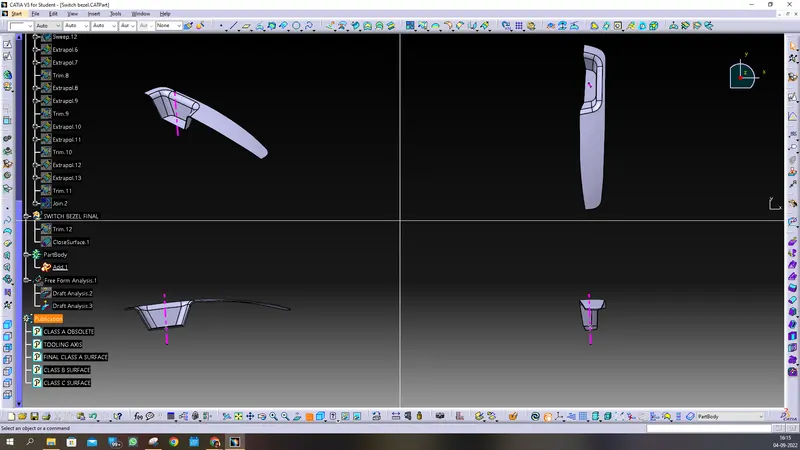

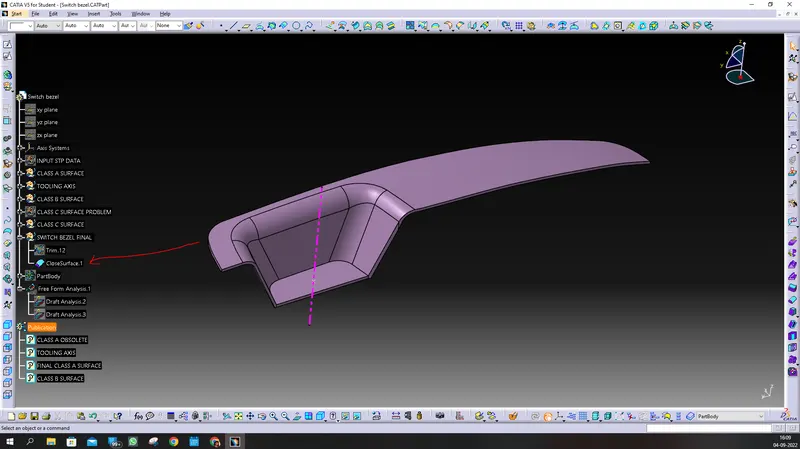

now, We Closed vole it, hence, volume is crated.
