Week 8 - Challenge 2 - Base Bracket Design
- In this project i have to do a base bracket designe we have use some tool for this that is off set, extrapolate,edge fillet , join,trim, boundary,point ,line, intersection,sweep.
- primarly i do draft analys for the intersection part which is named as free orm analys 1 prsent int part file
- i am doing a intersection of this object the i have to a 1st ofset it is in the part file
- next i have to do a second ofset by using some tools
- i do a trim operation for the 1st and 2nd of set to make a shap
- after did a edges forth body by using edge fillet present in the part file the name which i gave a B surace
- i give a boundary for the surface c surface and i do sweep onit
- and again i gave a boundary for the holes which is present in the class c surface and again giving a sweep
- the baody can be jion each other by using joing operation then use a trime operationfor to joining 3 and b surface

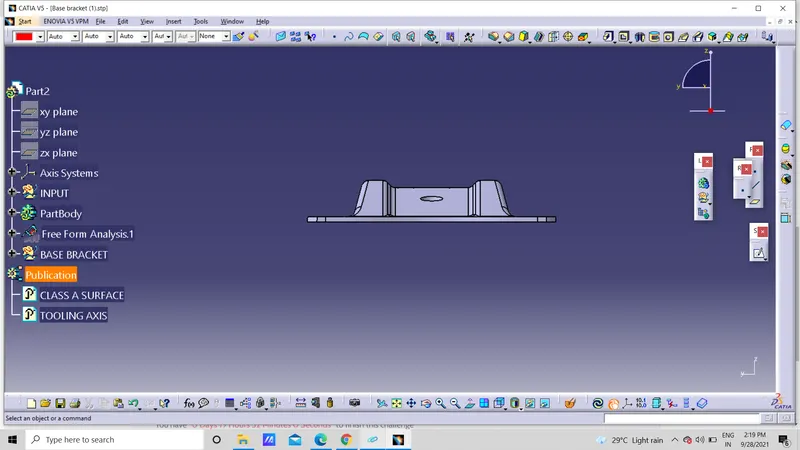

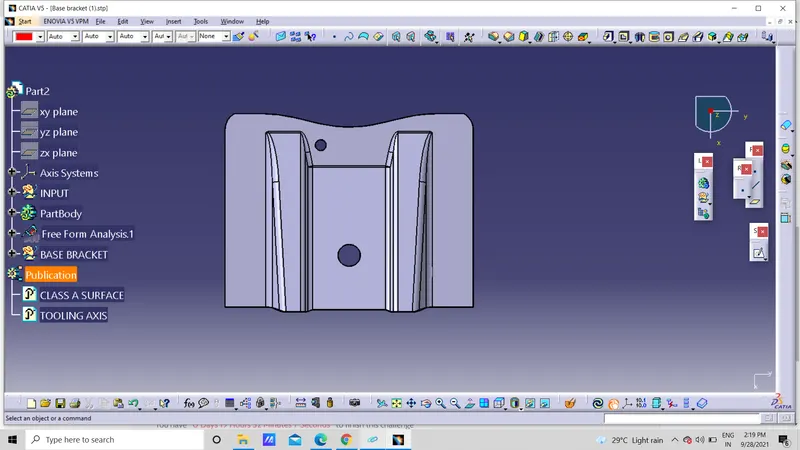

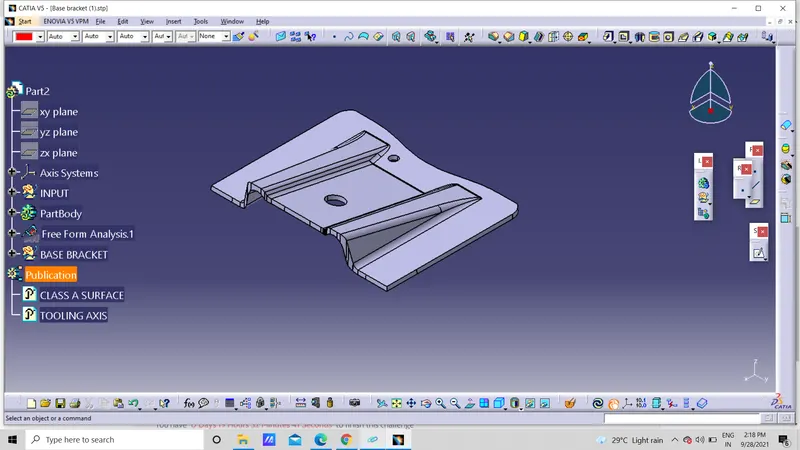

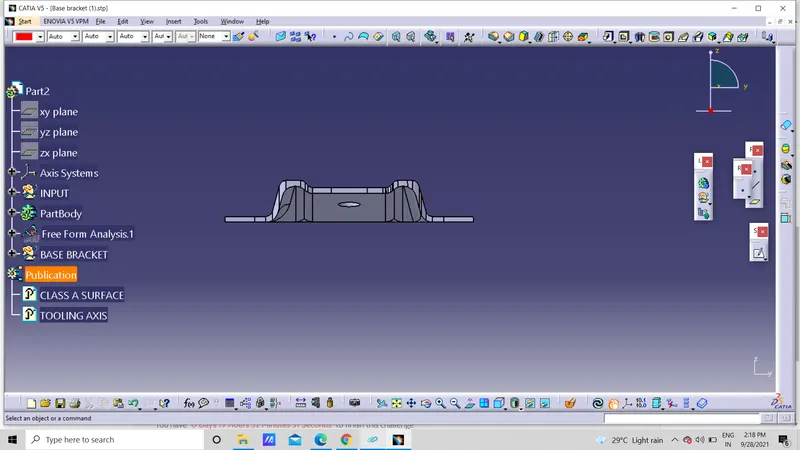

- then making a base bracket designe finaly we have to do ,going to part designe give a clooser surface finally make a slod bod
this the process for the base bracket designe.
