Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Aim:

Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model.

Body of content

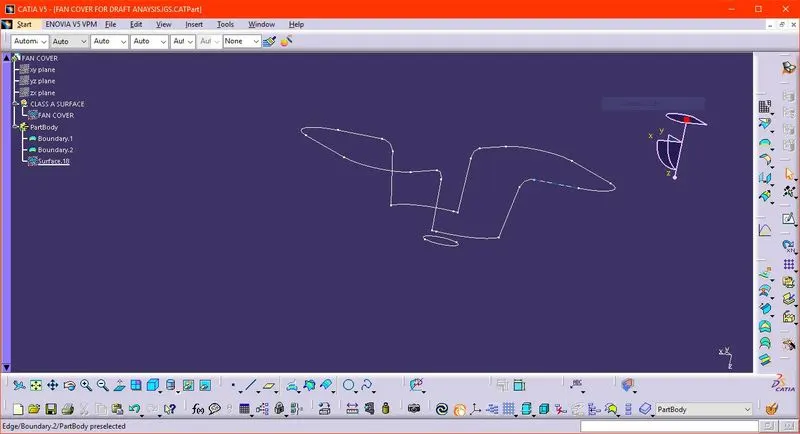

• First ensure the class-A surface has no discontinuity on it by using boundary command or join command.

• Make an axis system and intersect with the class-A surface. Now we have to see which surface will create problems. we will bisect the lines and choose proper direction, here vertical direction. This will be our tooling axis for X direction.
• simlarly for the y direction

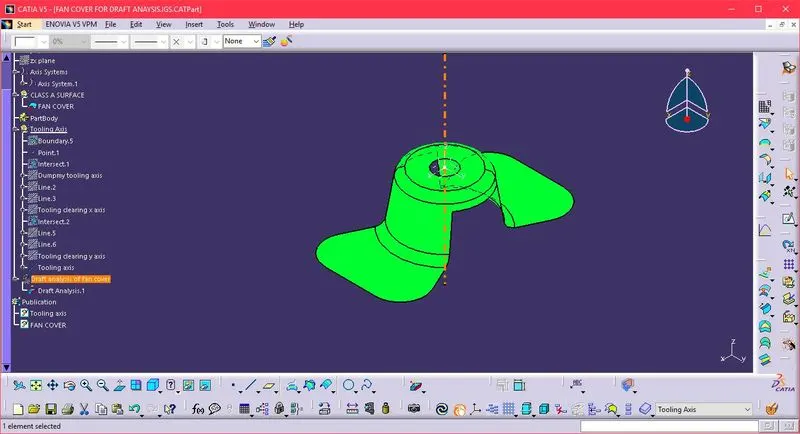

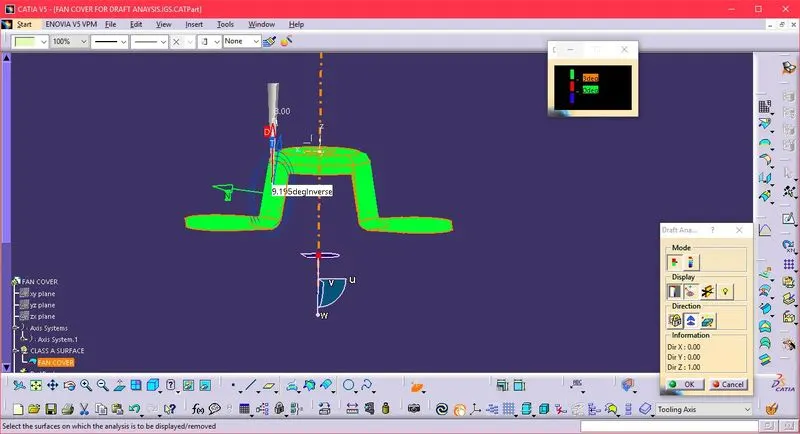

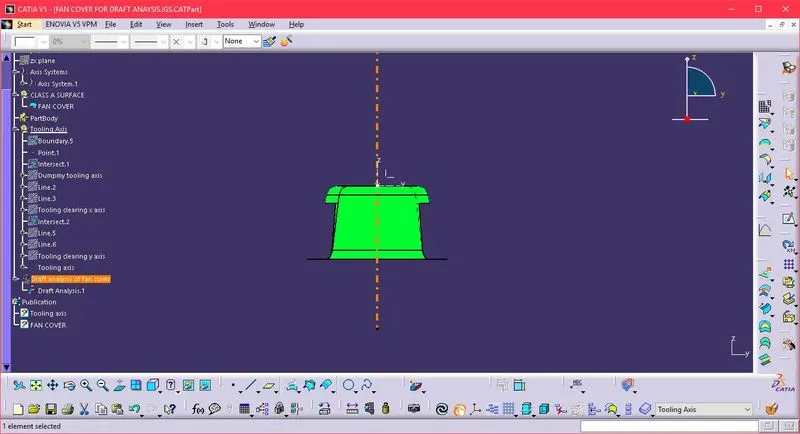

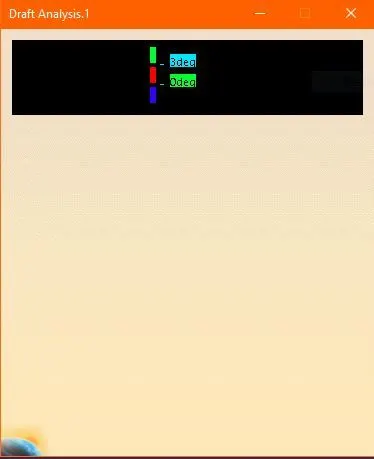

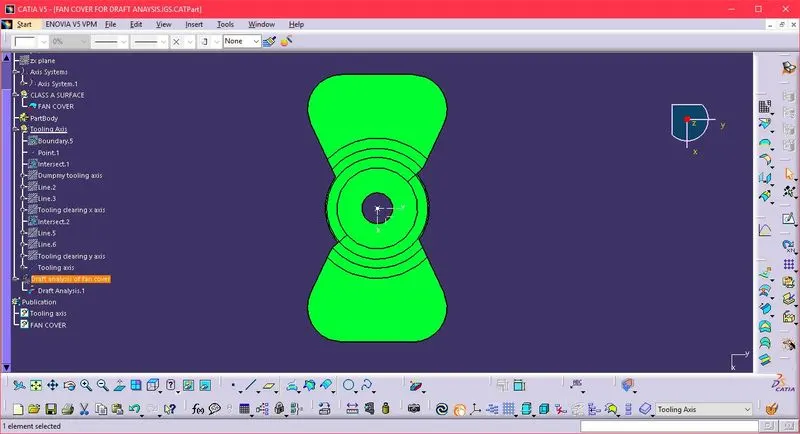

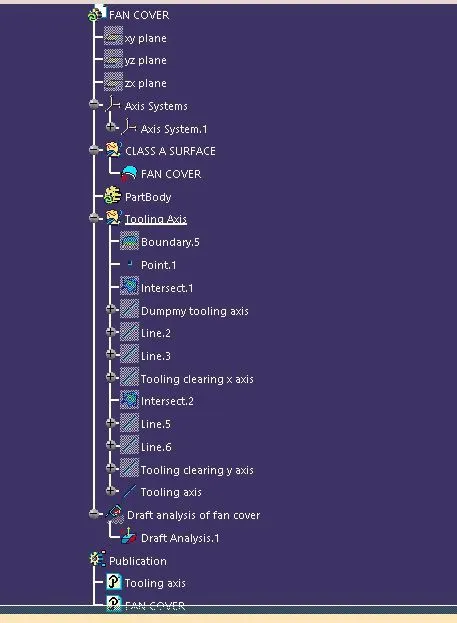

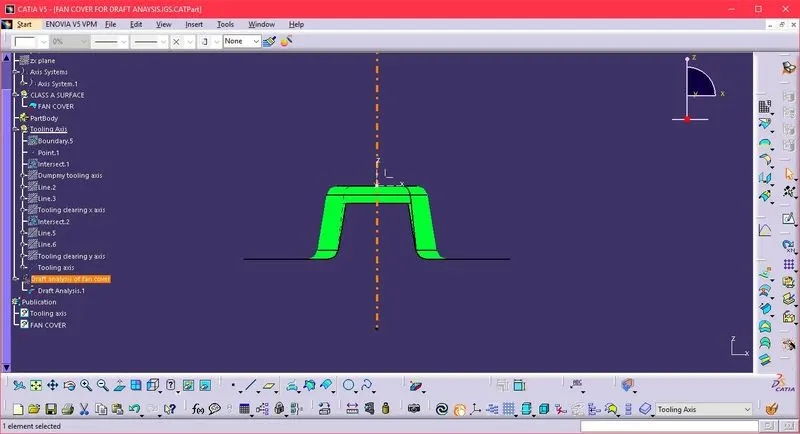

• screenshots are as follows

Results:

• Zip file is attached
• CATPART is attched
• Drive : https://drive.google.com/drive/folders/1FtkRaF3Eav8UEjYYyKWqSHHDc8CsFAd_?usp=sharing
