Week 8 - Challenge 1 - Draft Analysis on a Fan Cover
TOOLING AXIS:
FIRSTLY WE NEED TO CHECK THE CHECK THE BOUNDARY OF THE CAD PART. THEN MAKE A POINT ON THE CIRCLE IN THE FAN COVER AND MAKE DUMMY TOOLING AXIS FOR THE REFERENCE. CLICK ON INTERSECT FOR CREATING BISECTING LINE .TO MAKE BISECTING LINE ON THE CAD PART CLICK ON INTERSECT AND IDENTIFY THE DRAFT ANGLE .CREATE A LINE 1 BY MAKING POINT TO POINT AND CREATE OTHER SIDE LINE 2 BY SAME AS POINT TO POINT LINE . THEN CREATE A "BISECTING LINE" BY CLICKING BOTH THE LINE 1 AND LINE 2 IN BISECTING FORM . THEN A PERPENDICULAR BLUE LINE APPEARS AFTER CLICKING OK THEN MAKE A TOOLING CLEAR X DIRECTION OF NAME TO THAT BISECTING AXIS AND CHANGE COLOUR TO IDENTIFY.
CLICK ON INTERSECT AND DRAW TWO LINES OF POINT TO POINT AND BISECT THE LINES BY CLICKING ON THE 2 LINES TO GET BISECTING LINE AND ADD COLOR TO IT.
DRAFT ANALYSIS:

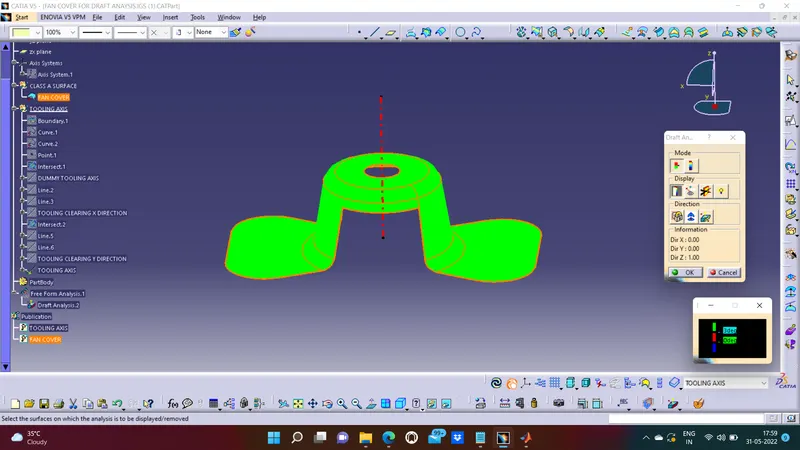

CLICK ON INSERT AND CLICK ON ANLYSIS AND FEATURED DRAFT ANALYSIS
CLICK ON THE COMPASS ,DRAG AND PLACE IT ON THE TOOLING AXIS TO CHECK THE DIRECTION OF THE TOOLING AXIS IDENTIFIED AND CLICK ON SURFACE THEN CHANGE TO GREEN IN COLOR SCALE .
TO IDENTIFY THE DRAFT COLOR IT SHOW ABOVE 3 DEGREES IN GREEN
AND FOR 0 DEGREE IT SHOW RED COLOUR
BELOW OR NEGATIVE DEGREE IT SHOWS BLUE IN COLOR.

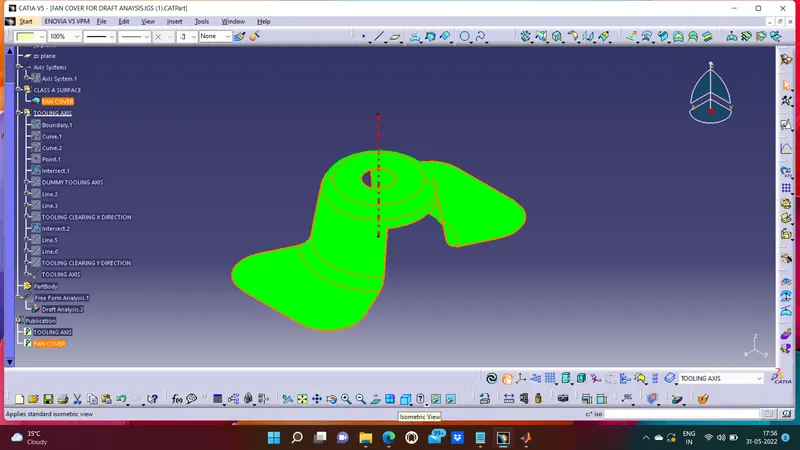

ISOMETRIC VIEW:

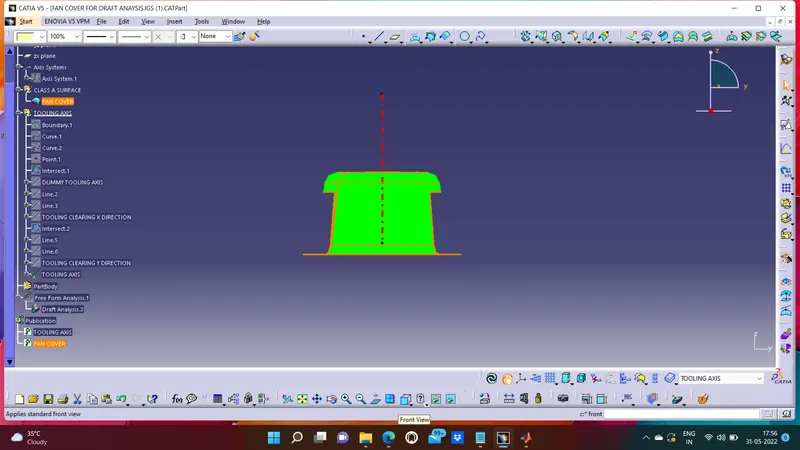

FRONT VIEW:

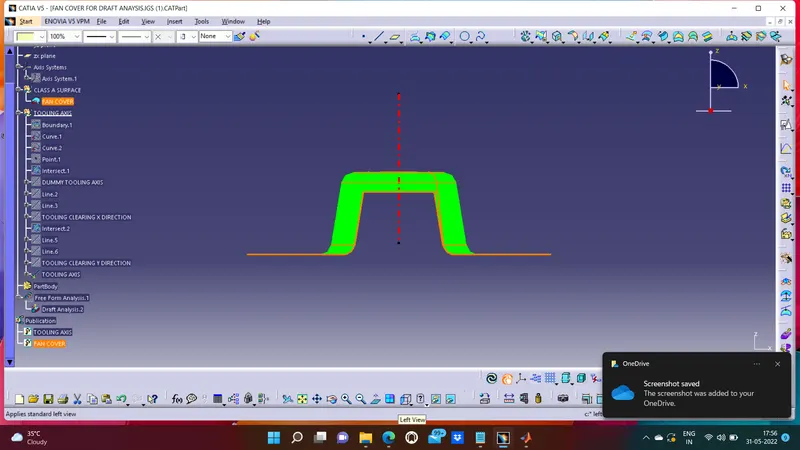

SIDE VIEW:

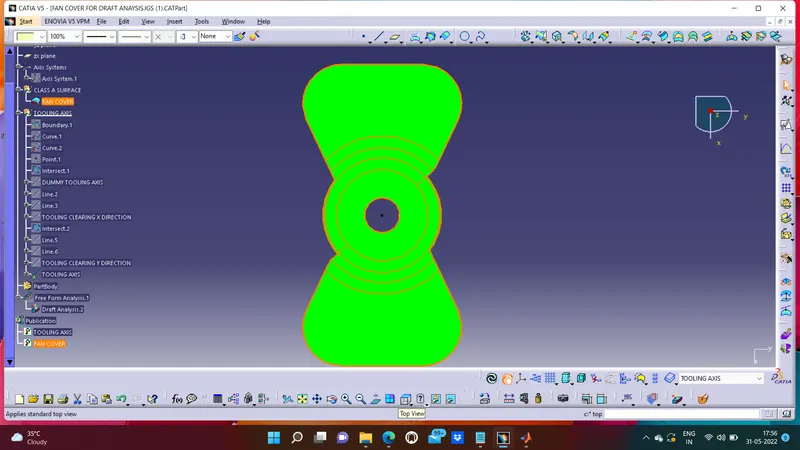

TOP VIEW:
