Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

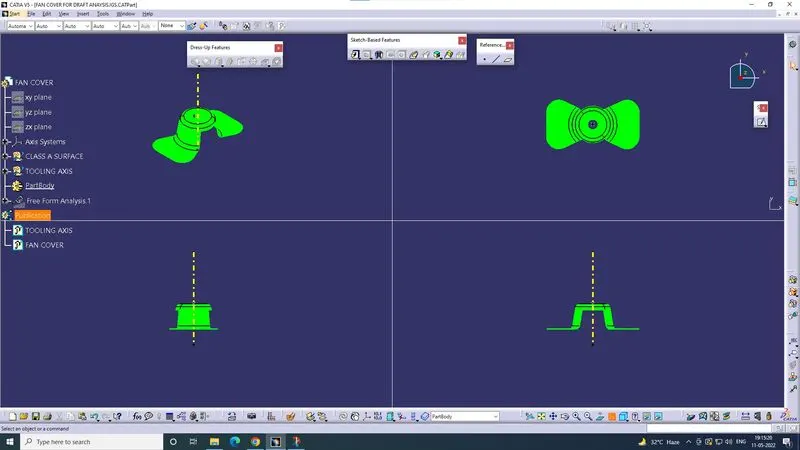

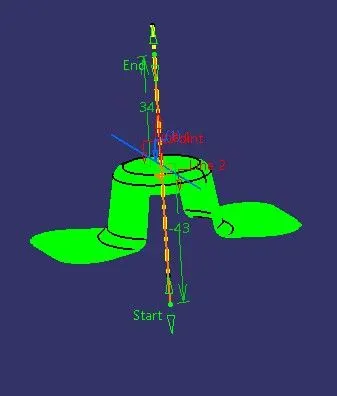

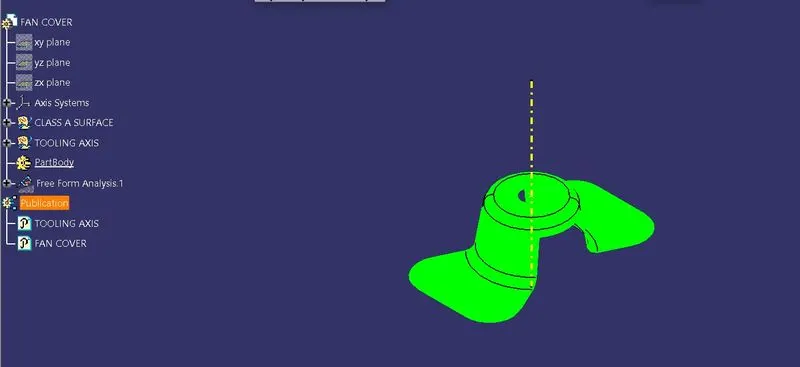

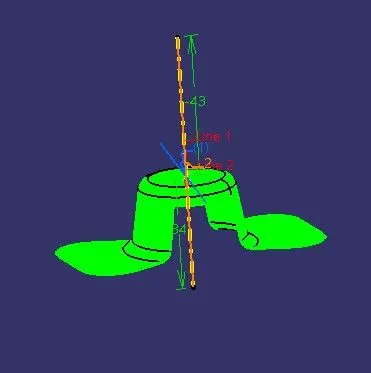

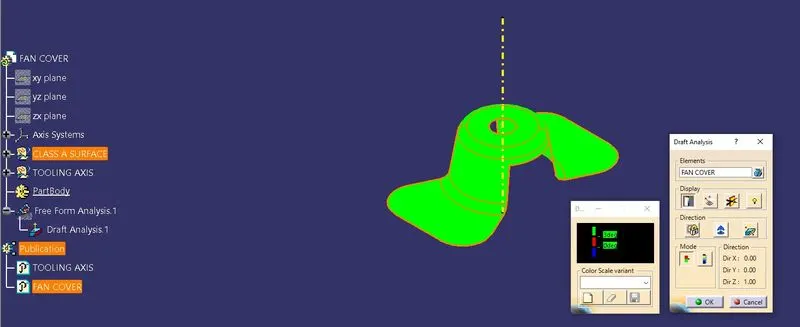

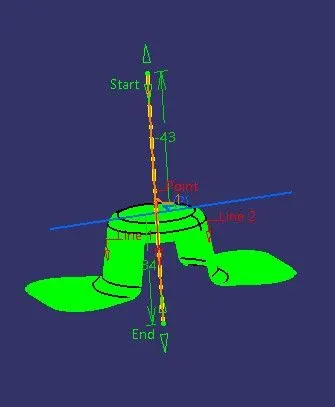

Firstly class A surface is given, then we need to create a geometrical set. now select the boundary ,then select hole circle for boundary projection. then give a point in the centre at centre of projected circle. now define an axis system and do note that current should be unckecked. create a dummy line through the centre point. Now take Z-X plane from axis system and intersect with fan component as a result. now after getting surface projections take two points from one side surface and define a line .same follow to other side and now make a bisector with two traces lines including the given point and make sure that bisector sholud be vertical. now take the intersection 2 onto Y-Z plane, then again follow the same procedure by defining a line by two points from both the sides. now again give bisector with respect to lines which you have just created. now create a bisector by x direction line and y direction line and make sure that direction should be correct. now publish the half a analysis and then go view mode customization and click onto material. open draft analysis and define the coordinate system with coinciding with final bisector line, you may need to try few attempts. then check the whole surface with analysis under the running point and make sure that it shoul not exceed more than 3 degree for fan faces and 9-10 degree for side surfaces. click ok if green surface comes your draft analysis is correct or else correct it.
