Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Aim
Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model.

Introduction

Having easier ejection from the mold may seem like a minor concern, but draft is crucial to manufacturing parts that meet your quality standard. Without draft, major problems can arise in the injection molding process that increase the time and cost of production.

When no draft is designed into the part, problems can come from friction and vacuums. These issues can damage both your part and even your mold in extreme cases. These problems are a direct result of having insufficient draft. Because plastic shrinks as it cools, portions of the part may pull away from the mold while others grip the core. If there is no draft angle that allows a simple push from the ejector pins to pop the part out of the mold, the part’s surfaces will often drag along the mold as it is being ejected. This friction between the two surfaces can cause scratches or gouges in your part and affect the appearance. This is particularly troublesome if your part is being molded with a surface finish or texture. The friction will scrape away texture and leave you with many rejected parts.

In addition to friction, no draft presents the possibility of a vacuum forming during ejection. If the sides of a feature cannot release from the mold, the ejector pins may push on the section until the vacuum becomes so stressed that the part may bend, break, or warp by the time it is pushed out. The alternative is that the part becomes stuck in the mold if the ejector pins are not strong enough to overcome the vacuum. A higher ejection force would be needed to remove a part without draft, which means the part would need to cool longer before it can be ejected successfully. This increase in cycle time and the likelihood of having more rejected parts overall will drive up your production costs.

Recommended draft angle
3 degree is the nominal draft
0.5 is the nominal draft
Above 5 degree for textured face
Procedure followed for draft analysis
1 check for any gap between the surfaces and make sure there is no gap by visually or by checking with boundary feature

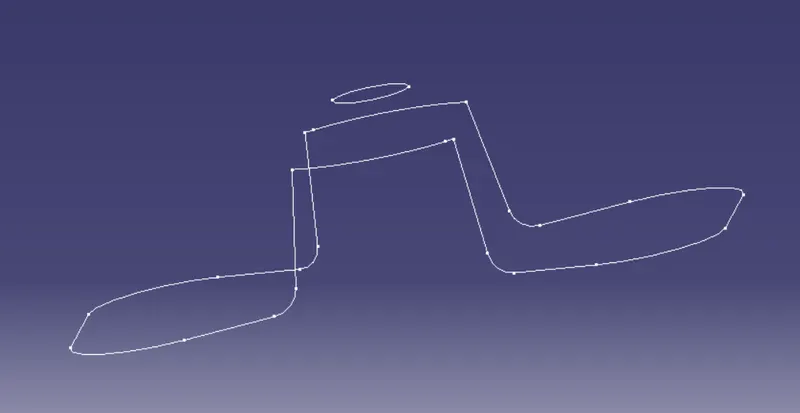

Creating the best possible dummy Axis(Makeing sure there are no undercuts)
Creating axis in y direction

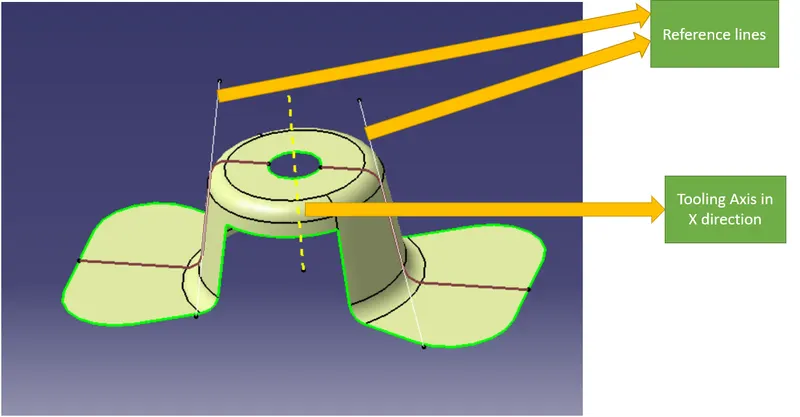

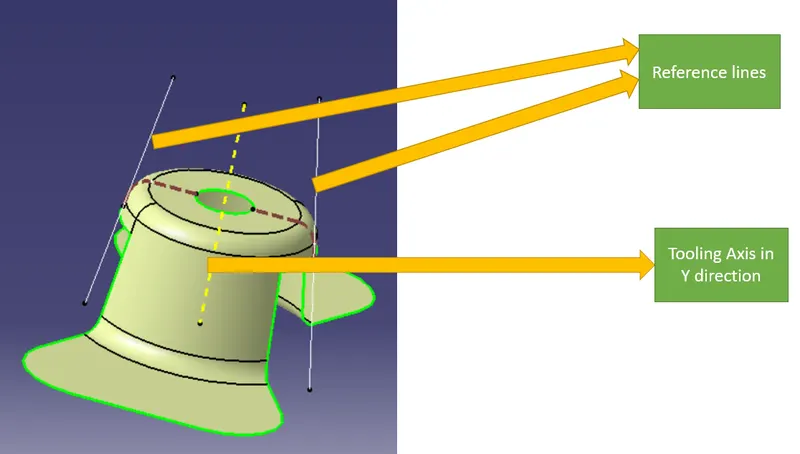

using the two reference lines which is tanjent to the intersection line we can generate the Y axis using the Bisecting method.
creating axis in X direction
using the two reference lines which is tanjent to the intersection line we can generate the Y axis using the Bisecting method.

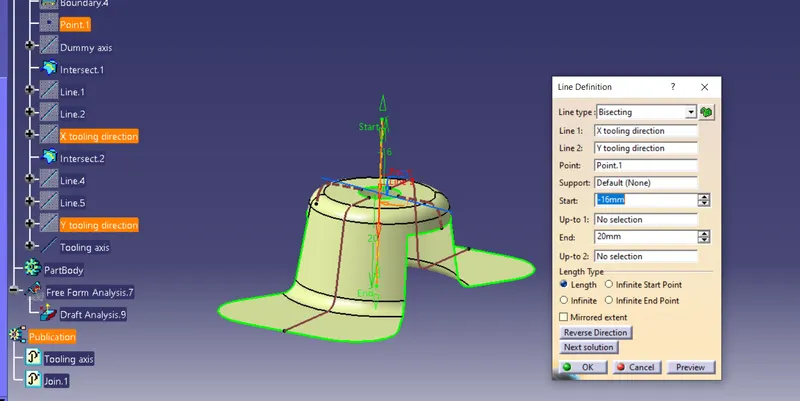

using both the X asis and Y axis tooling direction as reference now can generate a tooling axis with the Bisecting method.

With respect to this tooling axis we can move further with the analysis to ensure if the product is manufacurable or not

Analysis

Setting to be done before starting the analysis

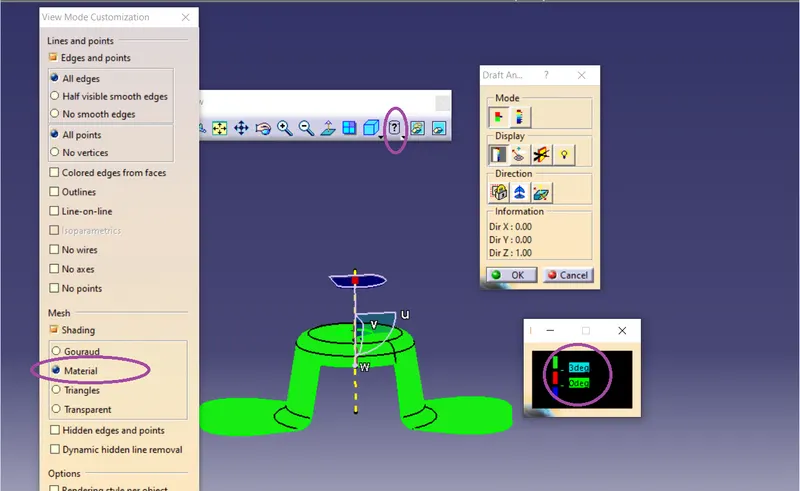

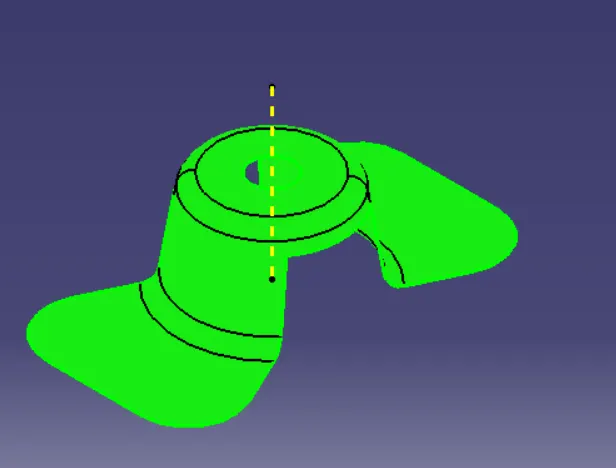

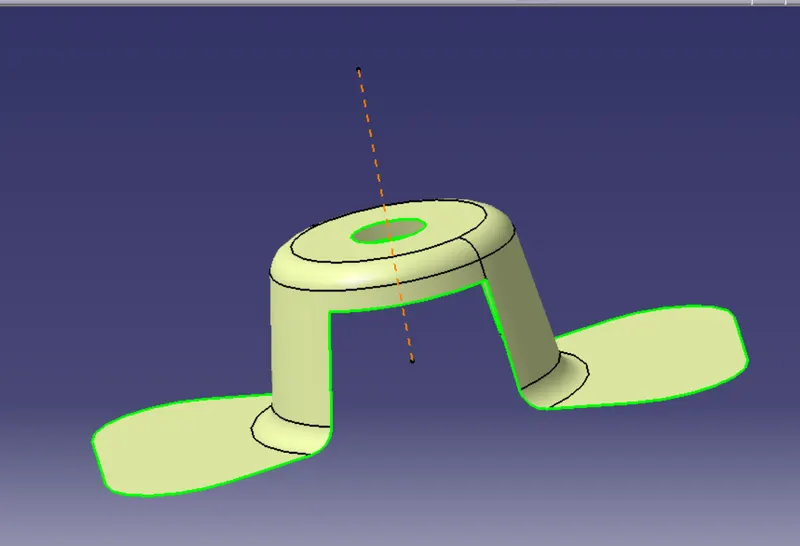

All the region of the fan cover are of the same colour which indiactes that it is draftable and it has more than 3degree draft

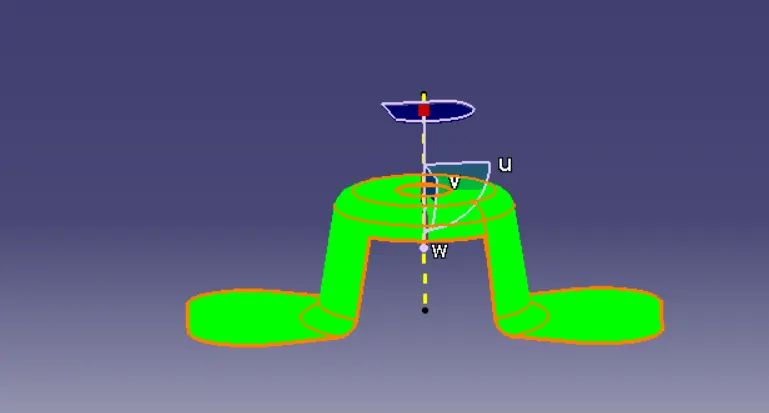

colour scale which indiactes the degrees at sepecific location

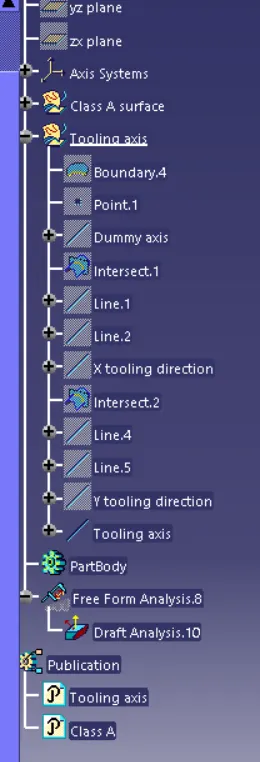

Tree Structure

Publication is done as it is easy to access the tooling axis and the Class A surface

draft angle in various orientations

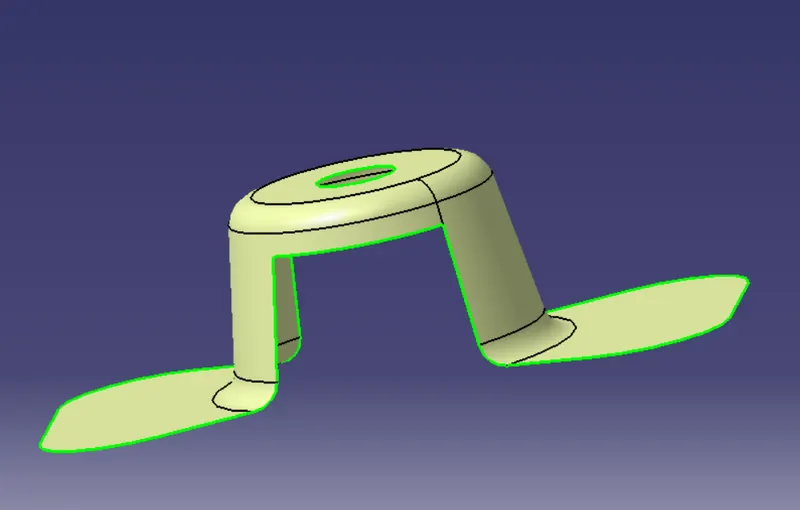

Isometric view

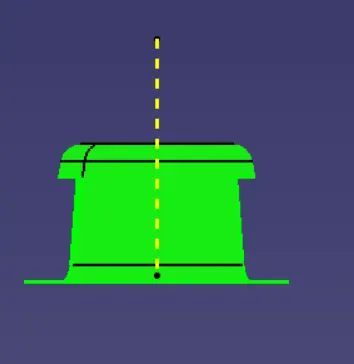

Front

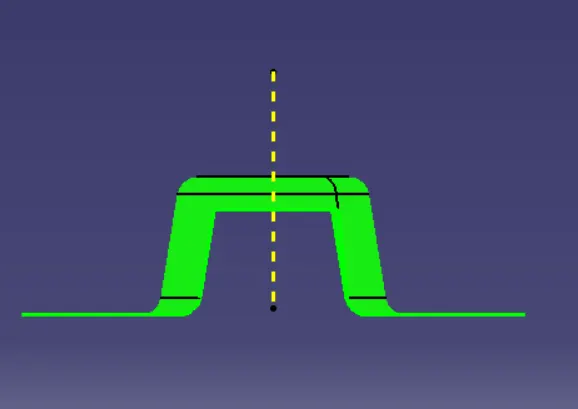

Side

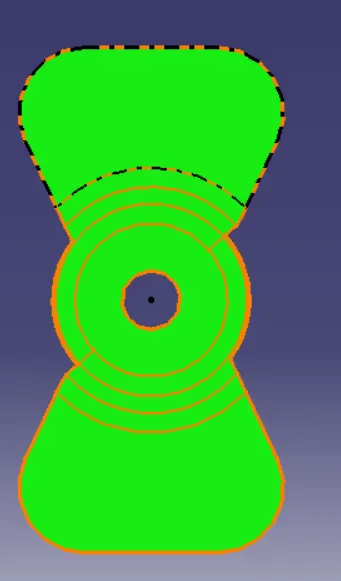

Top

Conclusion

The given surface is draftable as there is sufficent draft given to the class A surface
