Week 8 - Challenge 1 - Base Bracket Design

Class A Surface:

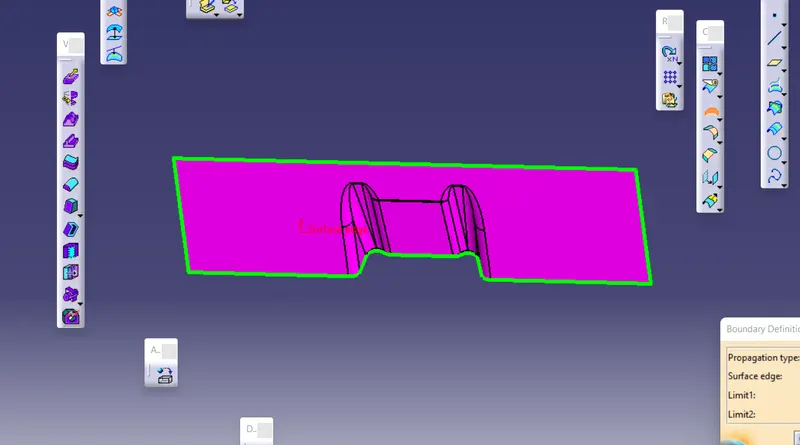

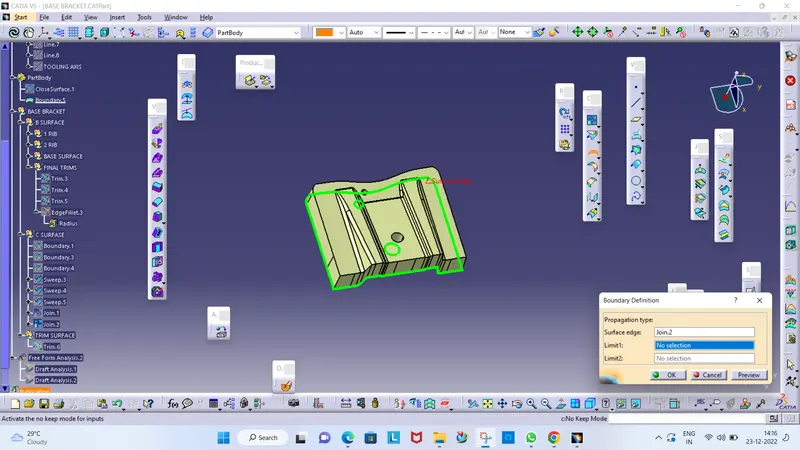

• Check the connectivity of the Class A Surface Ensure that there is no gap between the component, using join command. We can visually check it or by clicking boundary command. It has 3 boundaries one outer and two inner circle boundaries. Therefore first check completed.
• Find the tooling axis of the component. The tooling axis is nothing but the mould opens or cavity opens. Check visaully which is the best possible tooling axis. Check all three axis. Along x it possible but expensive and y is not possible. z is the best possible tooling axis.

Creating a Tooling axis along z:

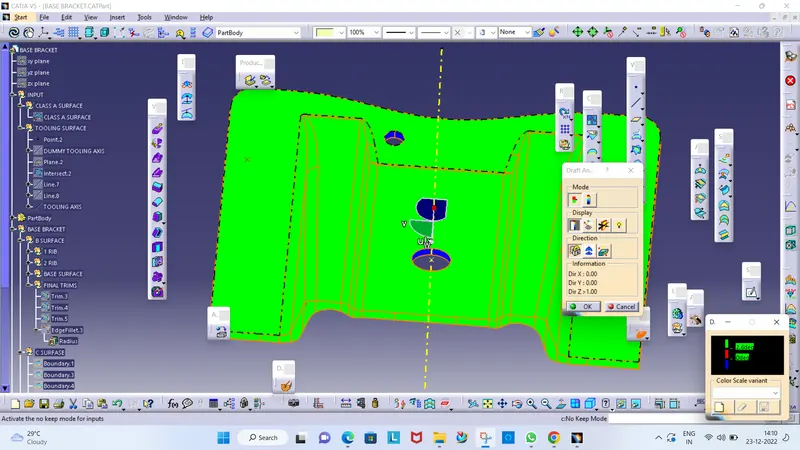

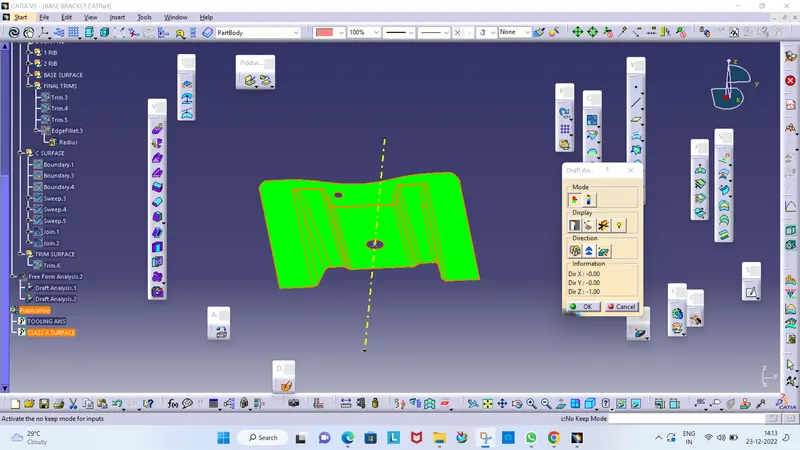

Therefore the main tooling axis is along z axis. Now perform the Draft analysis using the Featured Draft Analysis tool in the tools. Then after opening the draft analysis tool box go for the compass and place the compass alinged to tooling axis and click on the lock symbol after alinging and further click on the surface.

B Surface:

Intially extracting the right side rib using extract option from Class A surface.Then perform Extrapolate inorder to increase the length Now trim the surfaces to required surfaces Then Offset the surface inorder to get the required thickness Similary create the left side rib Now Similarly get the slanted as well as the flat surface and offset it to desired value And now trim inorder to get the required surface Now fillet the surface to required amount

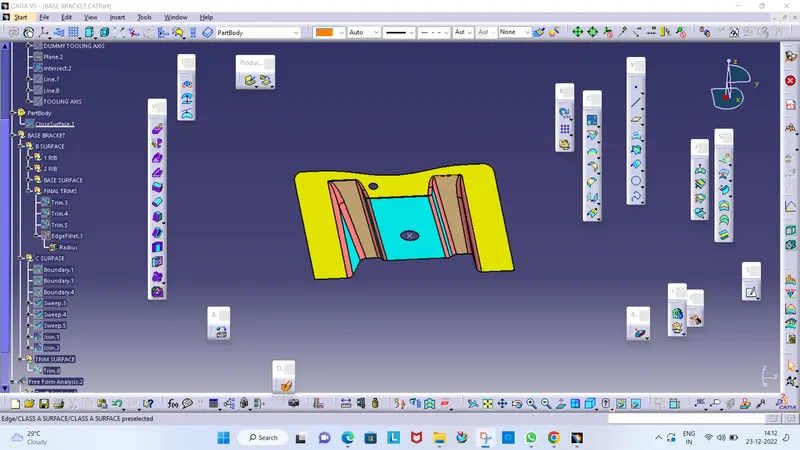

Class C Surface:

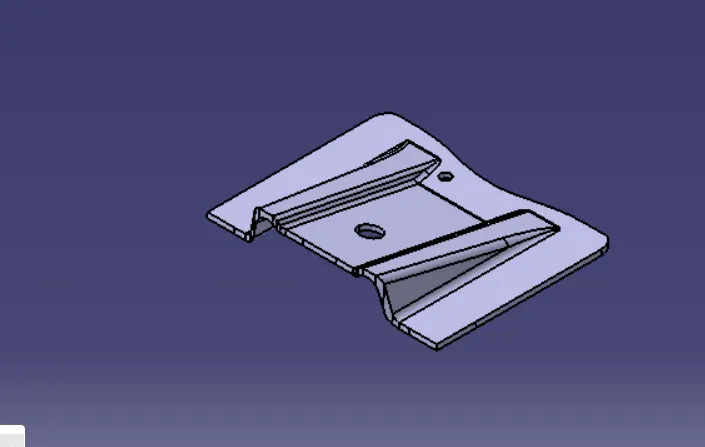

ISOMETRIC VIEW

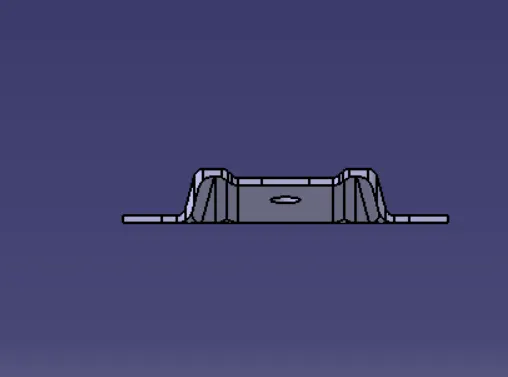

FRONT VIEW

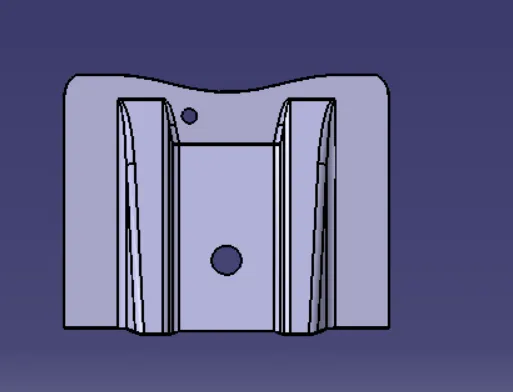

TOP VIEW

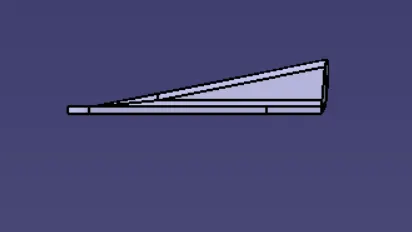

SIDE VIEW
