Week 8 - Challenge 1 - Base Bracket Design

The draft analysis and the tooling axis creation:

Tooling Axis Creation:

- first look for the difficult walls while molding the component.
- here I took the hole and a point has been taken using poin command circle.
- later plane taken and intersection lines are taken.
- in this component, ribs are difficult to mold for lookin.
- so I am checking draft analysis for the ribs to check whether they can molded.
- for tooling axis I took the dummy line from the hole.

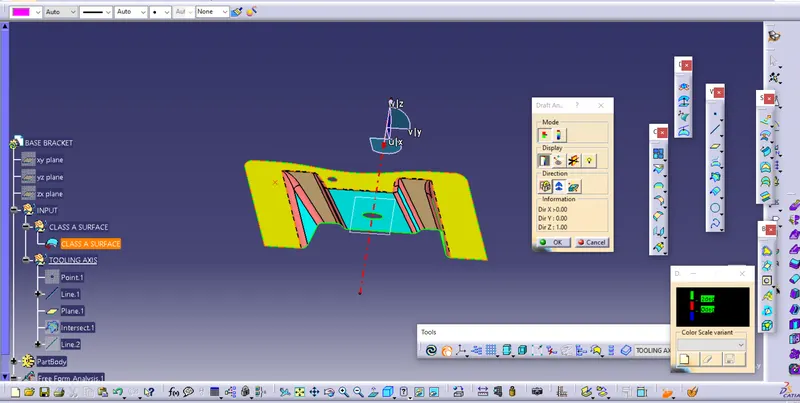

- using the dummy tooling axis the  draft analysis done as show below.

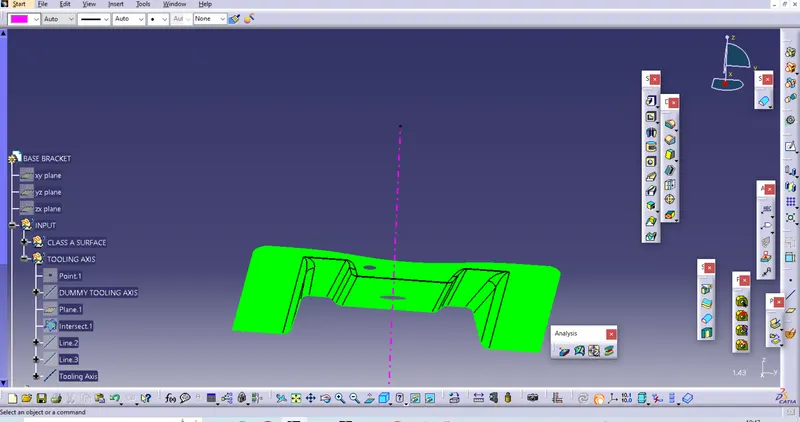

Draft analysis using tooling axis.

 - for tooling axis, I have taken two lines away from the dummy tooling axis.

- Rib1 and Rib 2 lines are taken using the line command point to point.

- for both lines now created the bisectin line using line-bisecting command and it is the tooling axis shown above.

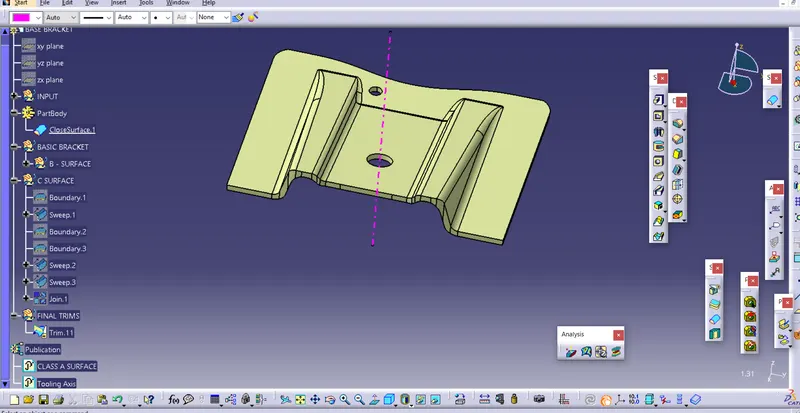

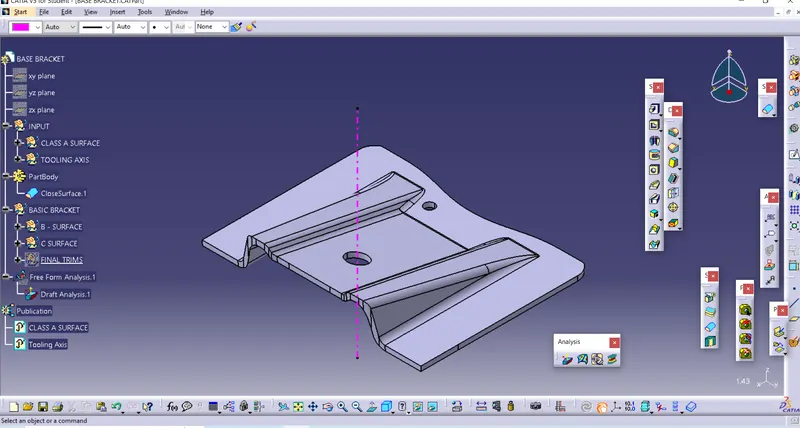

Below shown figure is the final A,B,C surface after joining and trimming.

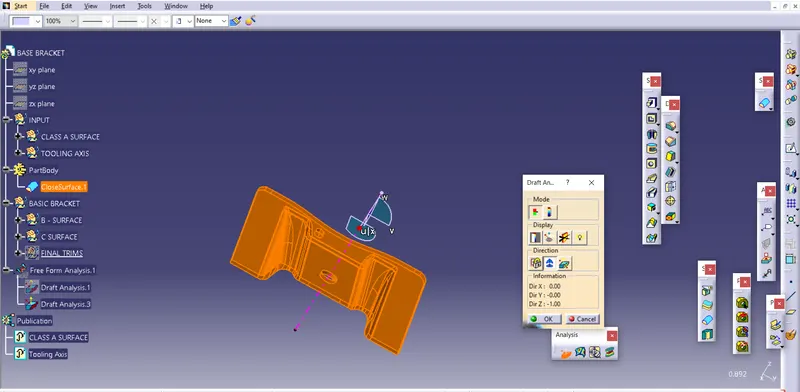

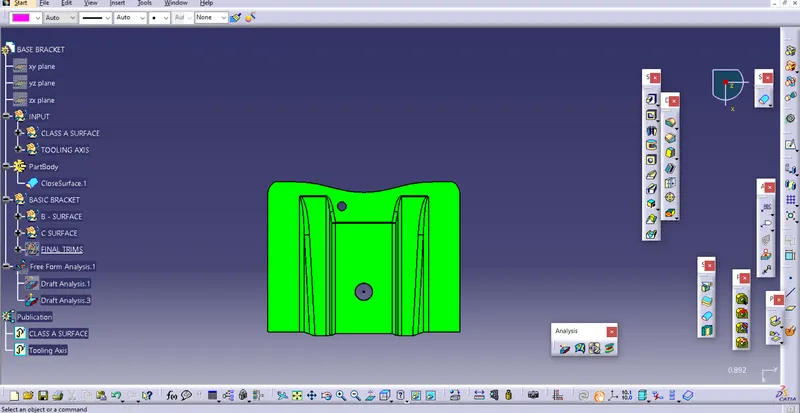

Draft analysis for part:

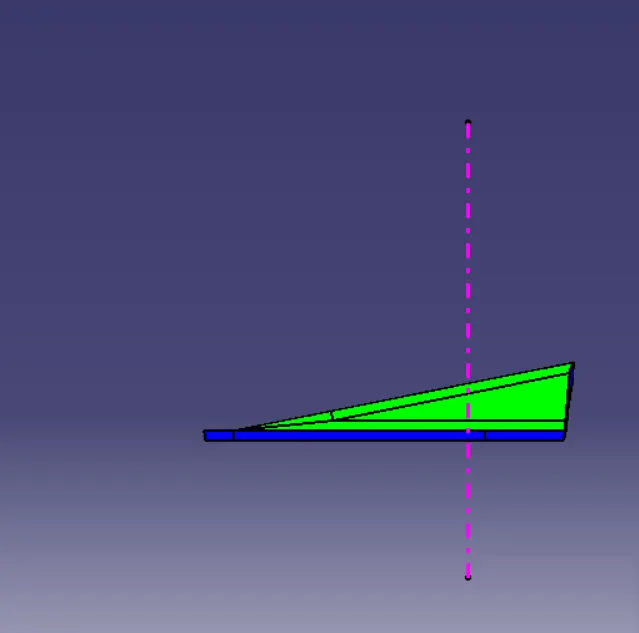

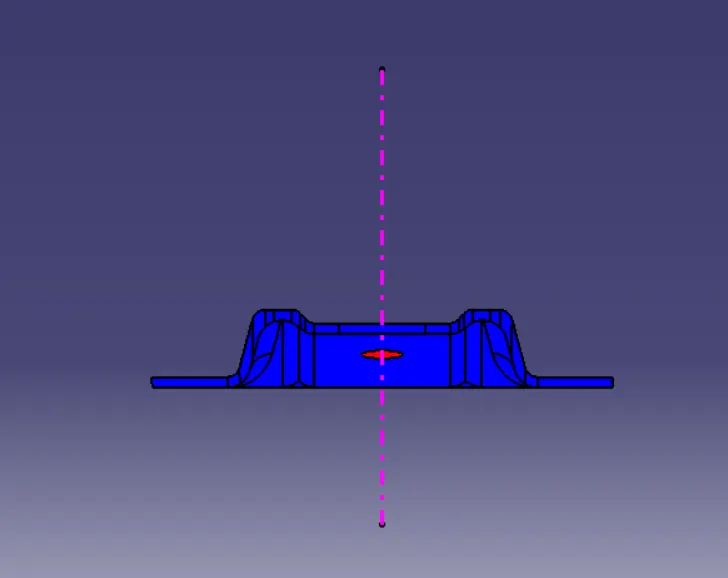

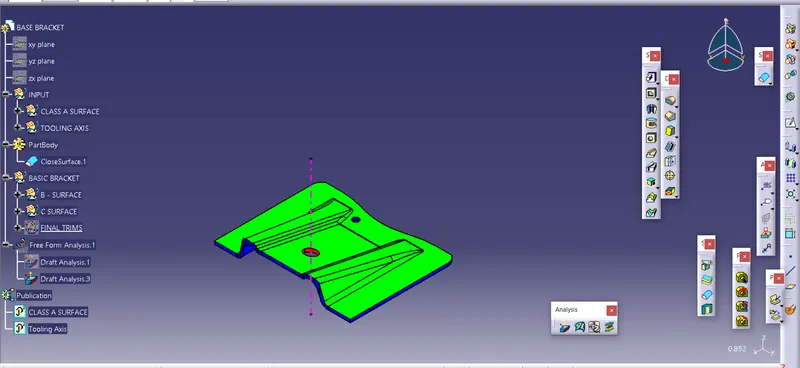

• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
