Week 8 - Challenge 1 - Base Bracket Design

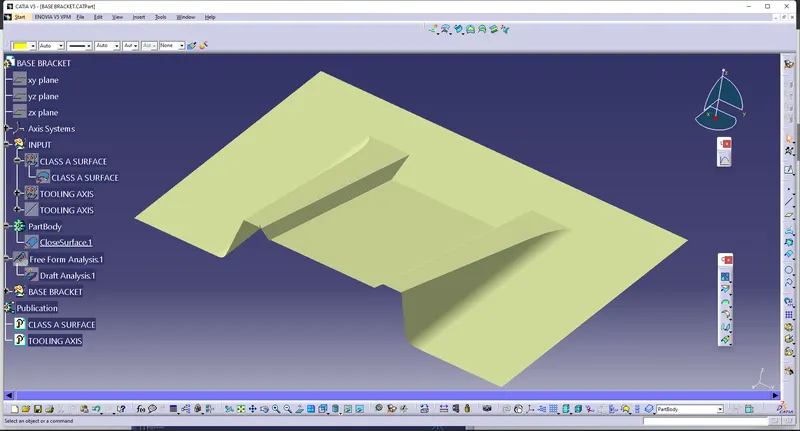

AIM: To create the Base Bracket Plastic component through the given Class-A surface.

OBJECTIVE: The objective is to begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

PROCEDURE:

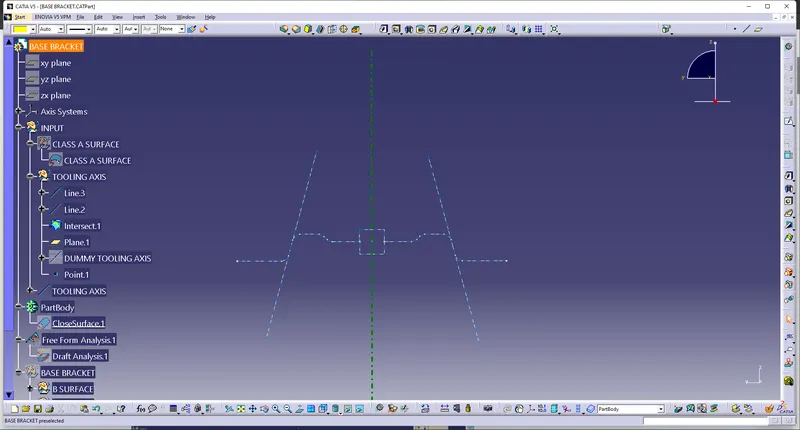

TOOLING AXIS

COMMANDS USED:- POINT, 2 POINT LINE, PLANE, BISECTIING LINE

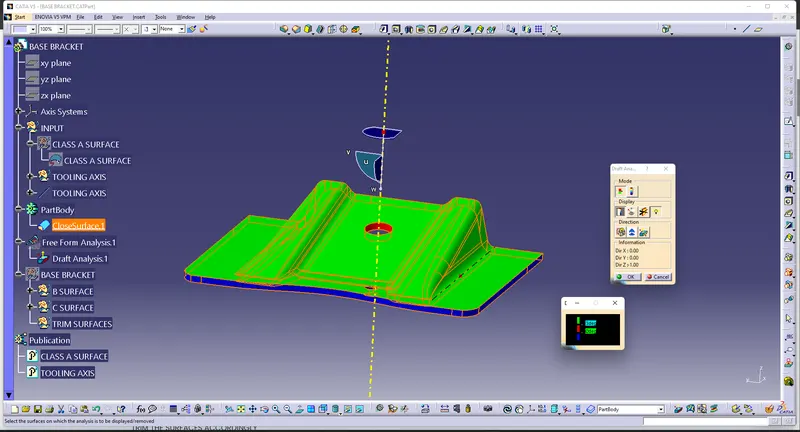

DRAFT ANALYSIS

GO TO INSERT->ANALYSIS->FEATURE DRAFT ANALYSIS

DRAG COMPASS ON THE OBJECT

AND SELECT SURFACE AND LOCK BUTTON

B SURFACE

B SURFACE IS DIVIDED IN 2 PARTS RIBS AND BASE

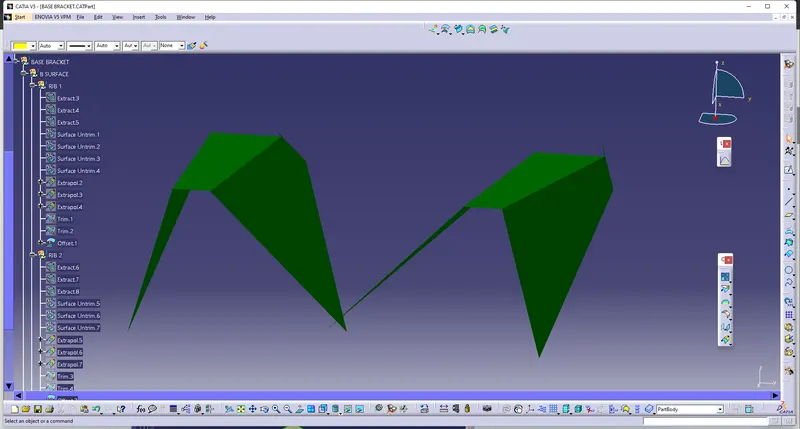

RIB 1 AND 2

SELECT RIBS FLAT SURFACES AND THEN EXTRACT IT --> THEN UNTRIM THESE FACES --> EXTRAPOLATE IT --> THEN OFFSET ACCORDING TO OUR NEED

TRIM THE SURFACES ACCORDINGLY

BASES

SAME PROCEDURE TO BE FOLLOW AS PER RIBS

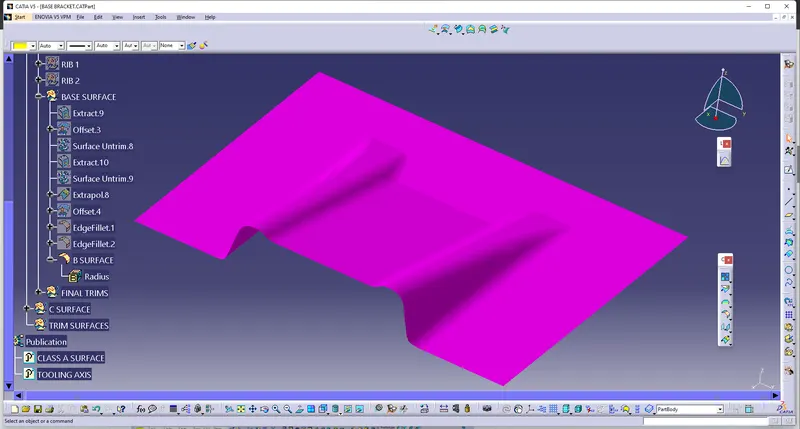

THEN AFTER TRIMMING SURFACES WE GET FINAL B SURFACE

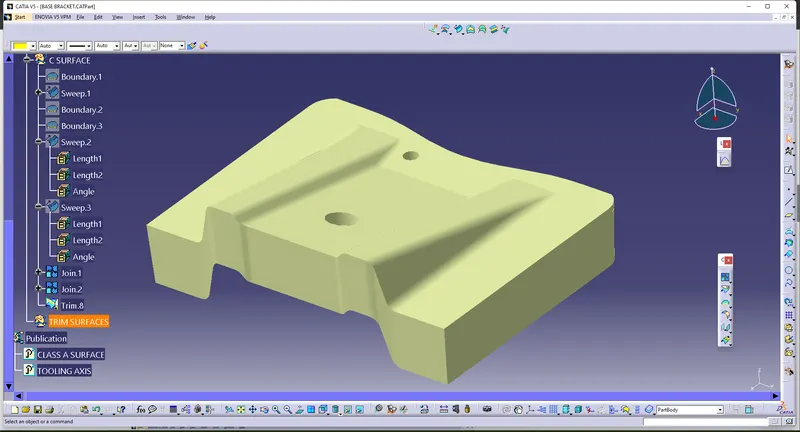

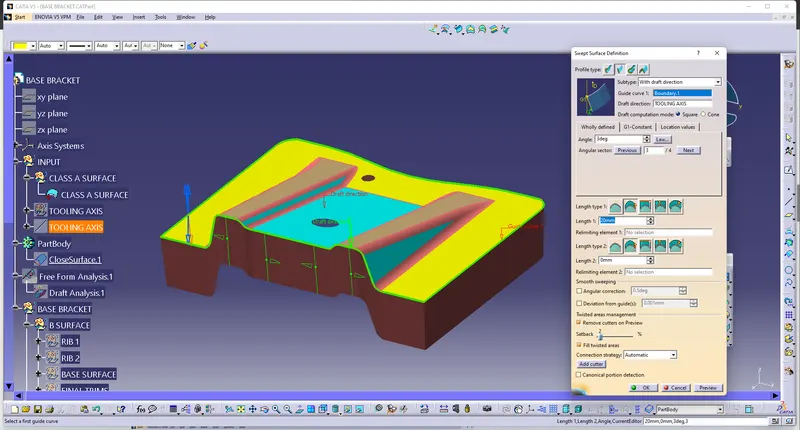

C SURFACE

C SURFACE IS USED FOR CONNECTING A SURFACE AND B SURFACE

COMMANDS USED :- SWEPT SURFACE, BOUNDARY

JOINING SURFACES

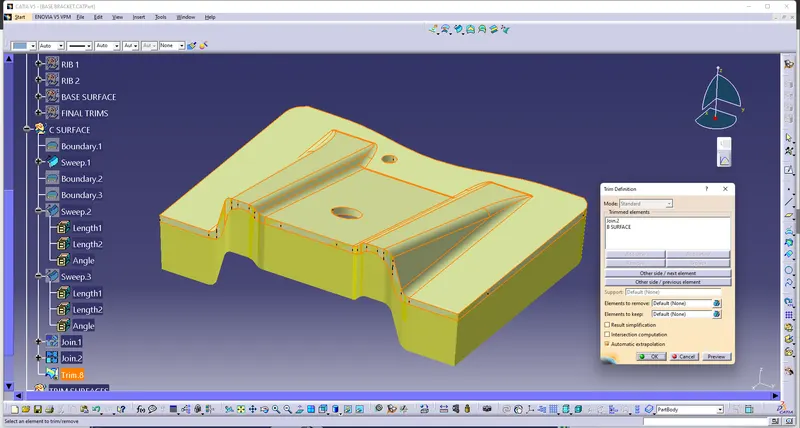

FINAL TRIM

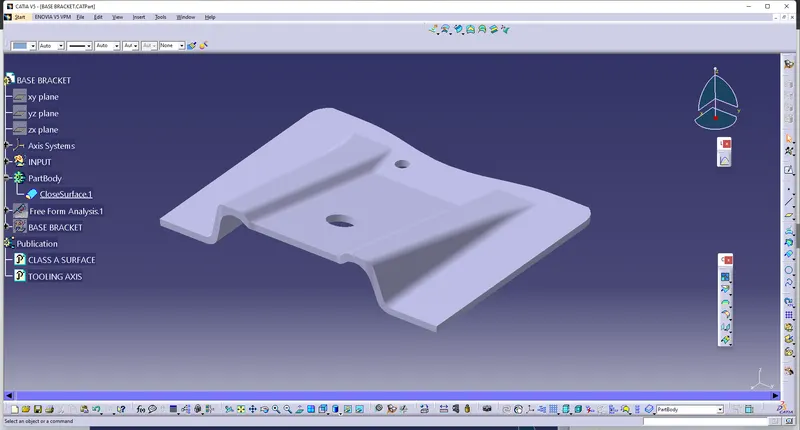

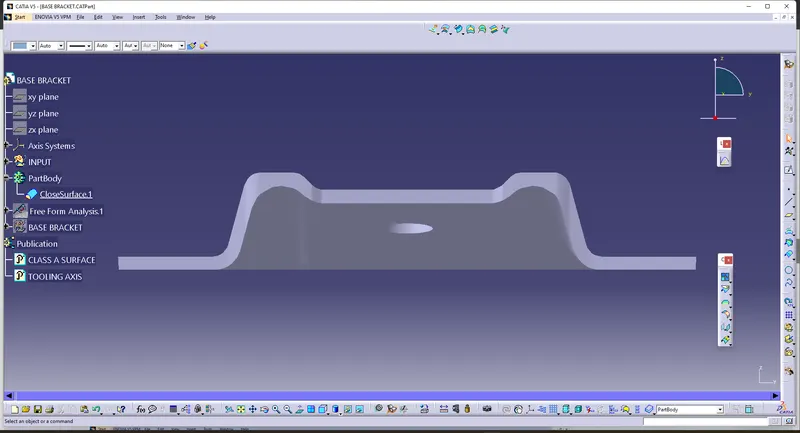

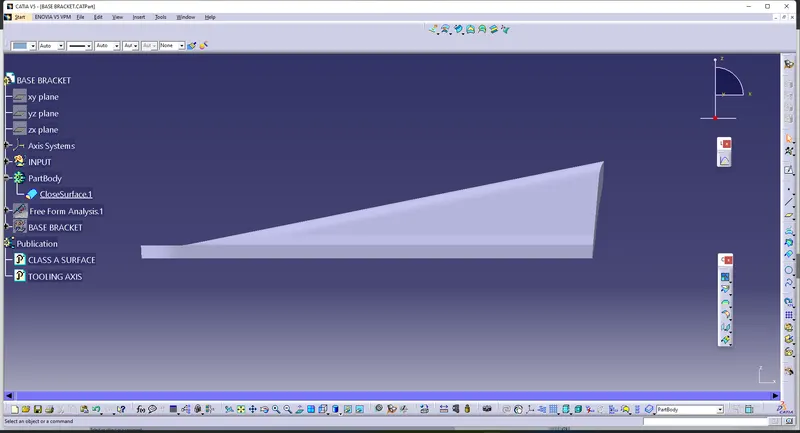

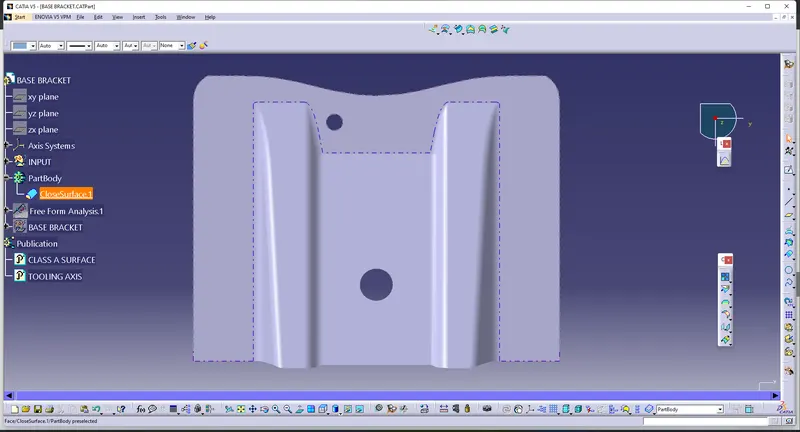

THEN GO TO PART DESIGN AND USE SOLID BODY COMMAND THEN WE GET OUR FINAL PART
