Week 8 - Challenge 1 - Base Bracket Design

AAhamed Sukriya25 Sept 2022

Challenge 1 - Base Bracket Design

Objective: To Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and to perform the Draft analysis on the model.

Aim:

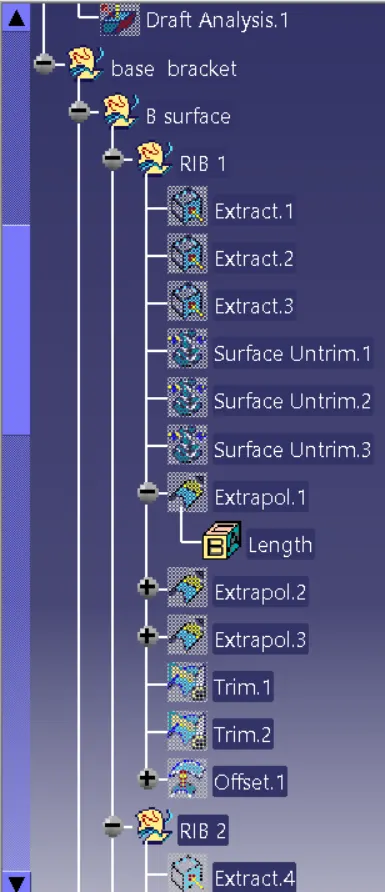

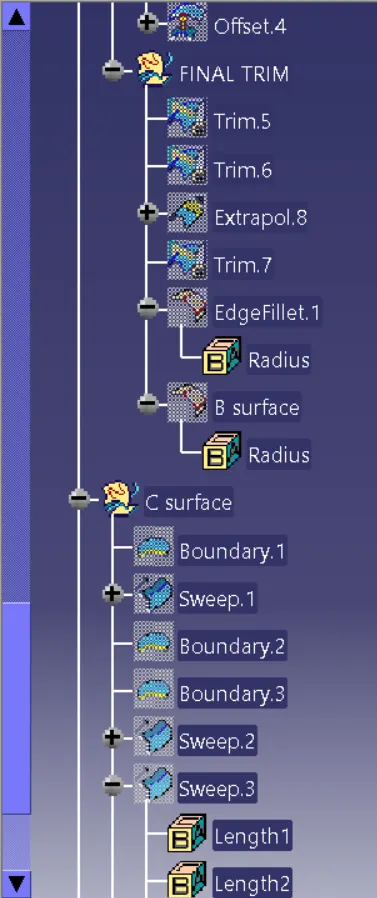

Tree Structure

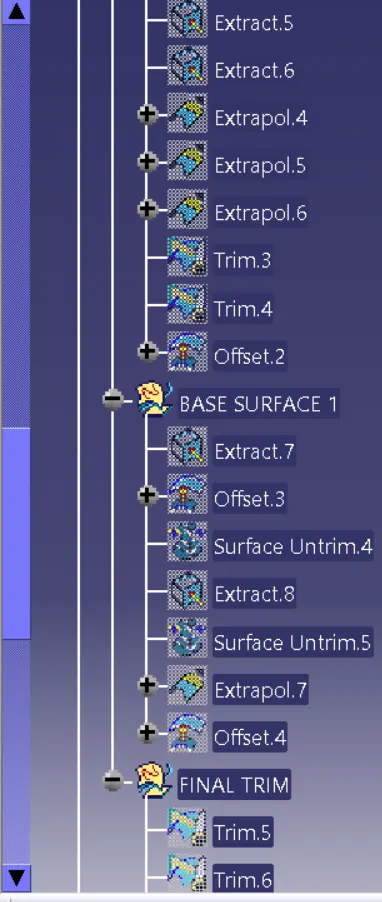

To Ensure Proper Tree Structure
Geometrical sets should have a proper name based on the sketches present inside of it

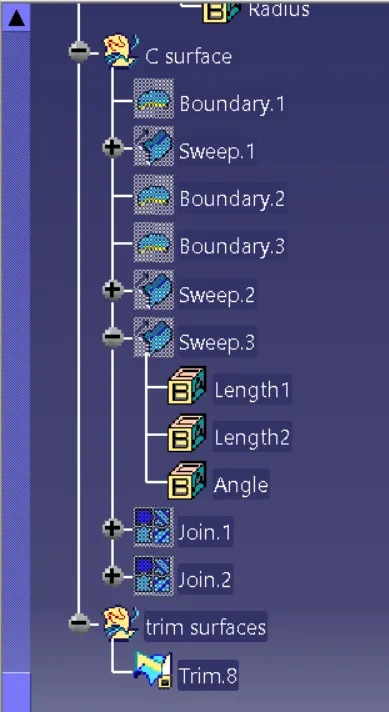

All the sketches should be created under the Geometrical set
Make the Close Surface feature to make a solid body from the surface.

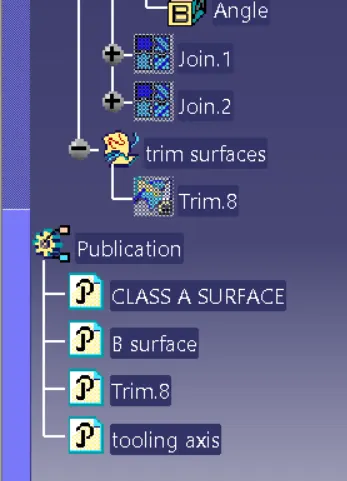

Publications: Use the publication option and publish the below
- Tooling Axis
- Class A, B, and C surface

Class A-

In automotive design application Class A surfaces are created on all visible exterior surfaces (ex; body panels, bumper, grill, lights etc.) and all visible surfaces of see-touch & feel parts in interior (ex: Dashboard, seats, door pads etc.).

Class B-

The Class B finish is a quality finish with only minimal imperfections. A Class B finish is the most common finish for exterior surfaces. It is normally specified on surfaces such as external covers, panels, and parts that are fairly prominent.

Class C-

The Class C finish allows more imperfections than Class A or B. Class C is often specified for interior surfaces not readily visible, surfaces that will be covered by another part when assembled, or surfaces which the Customer feels do not need to meet a high cosmetic finish.

Draft analysis-

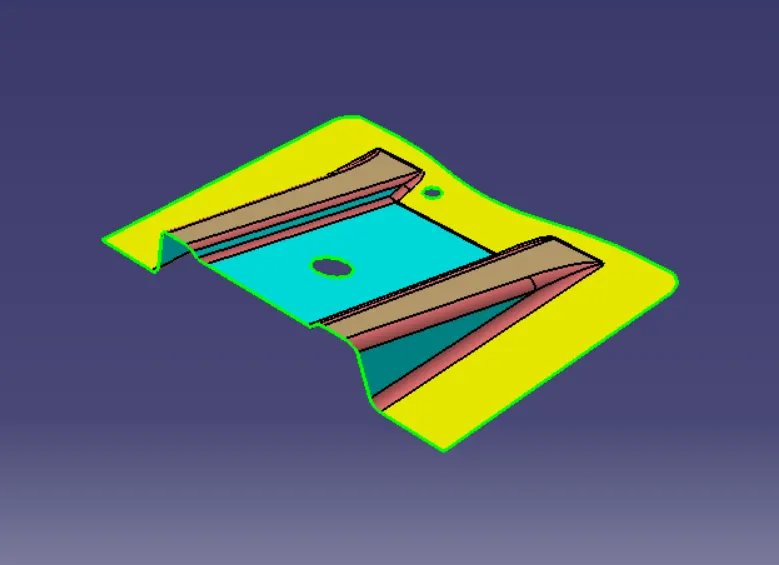

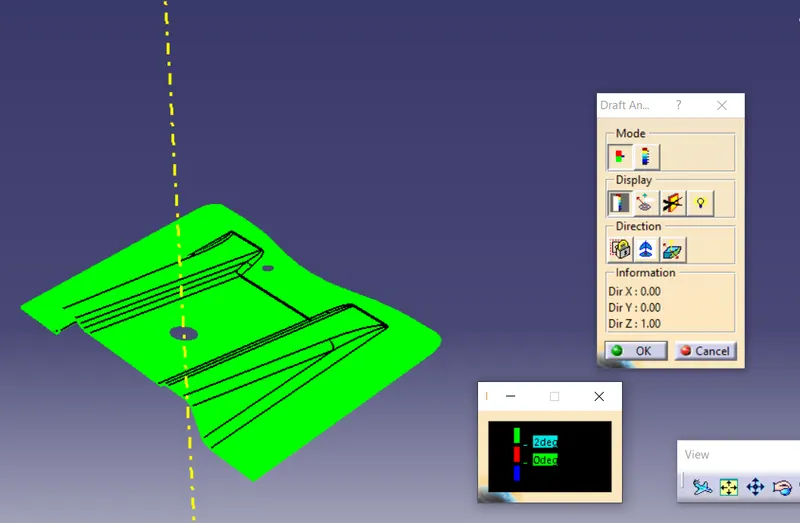

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Tooling axis-

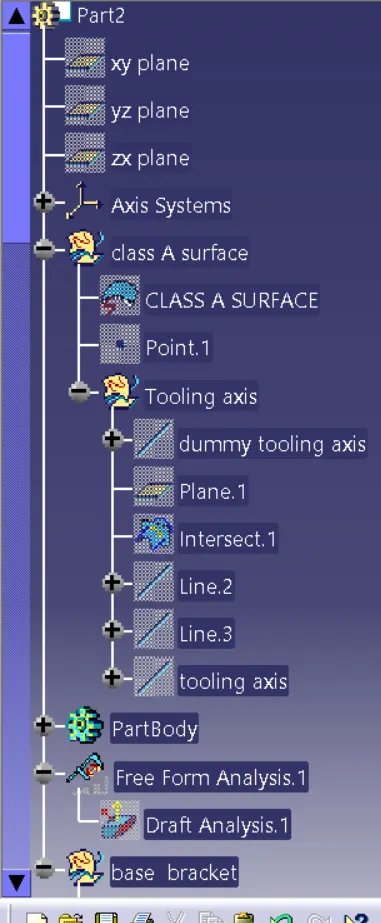

In Molding, machine arrangement is given to open the mould along a direction which is known as Tooling Direction. In other words. The mould is built from two separate halves (Core and Cavity) and tooling direction basically defines the direction of mould pulls apart. Tooling direction is known as primary direction.

Design requirements:

base bracket model in catia-

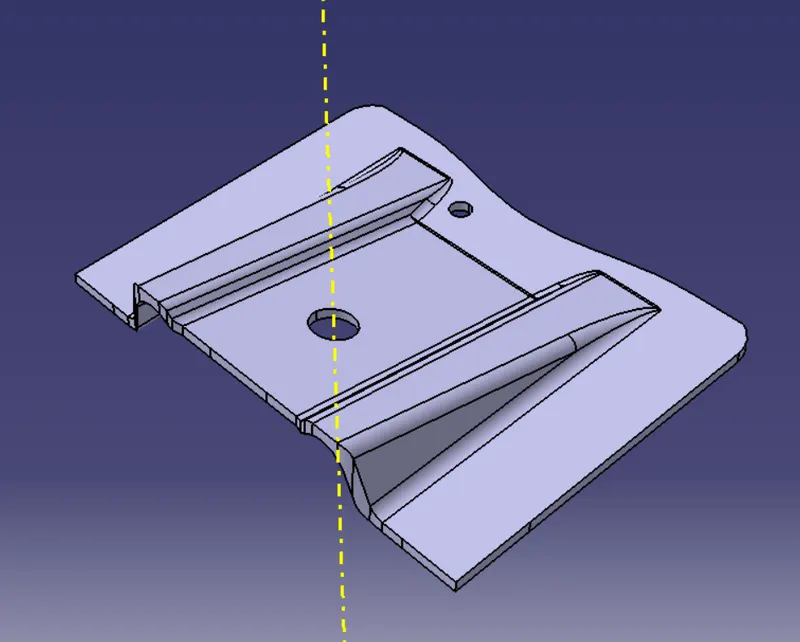

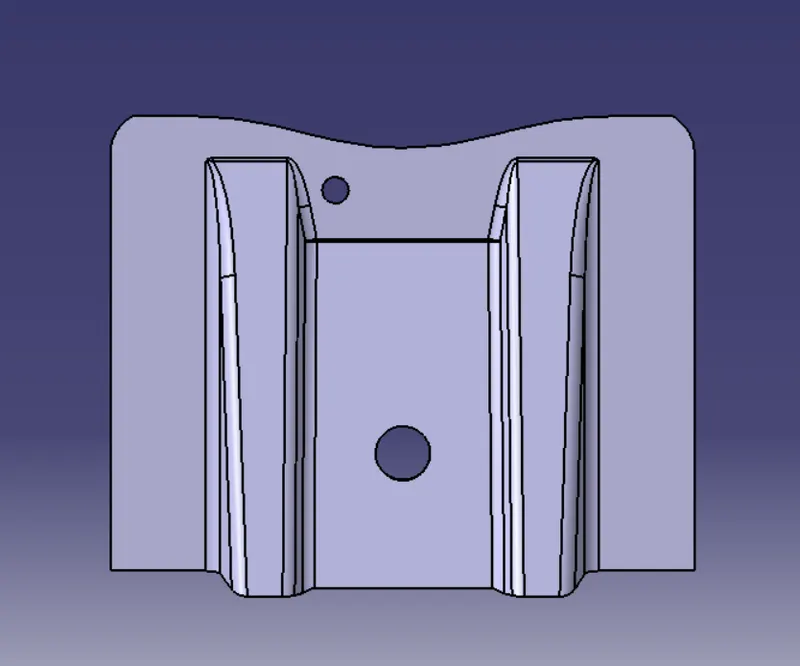

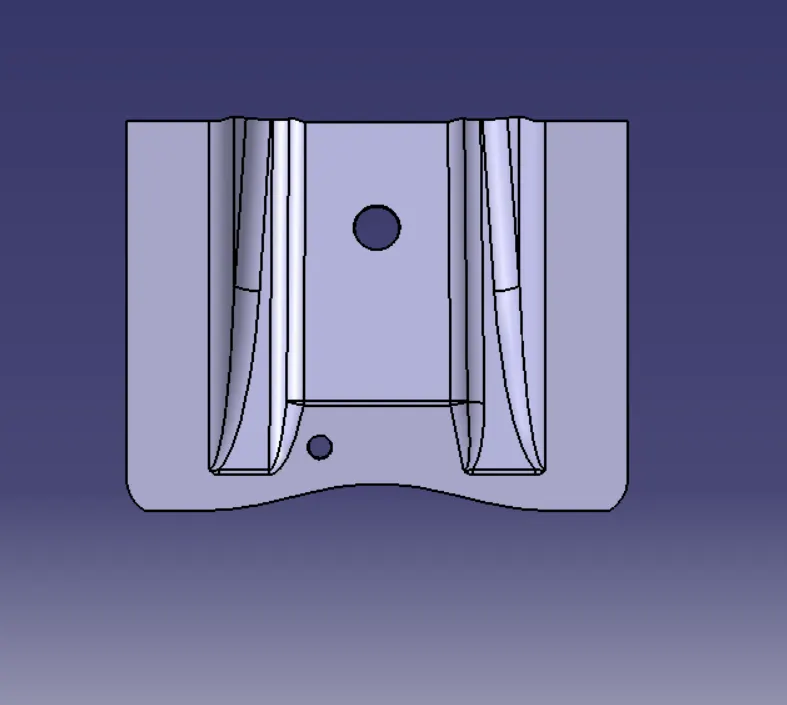

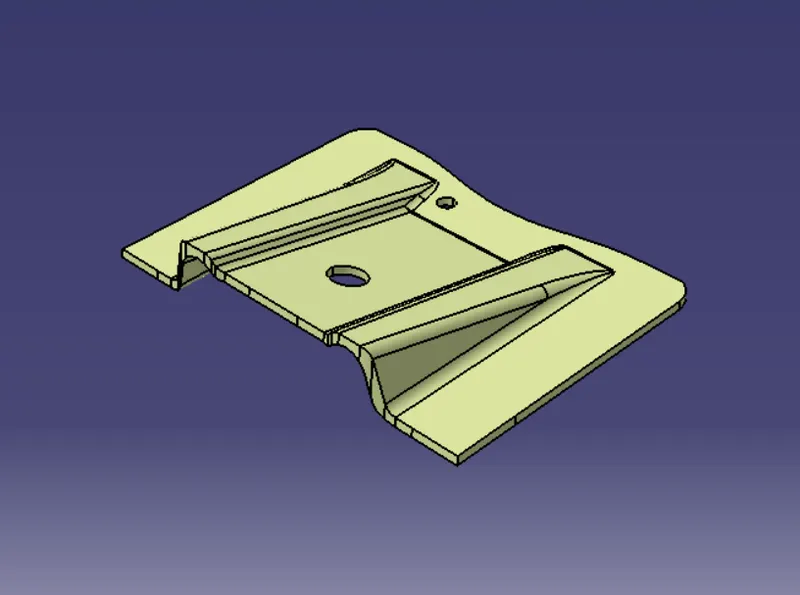

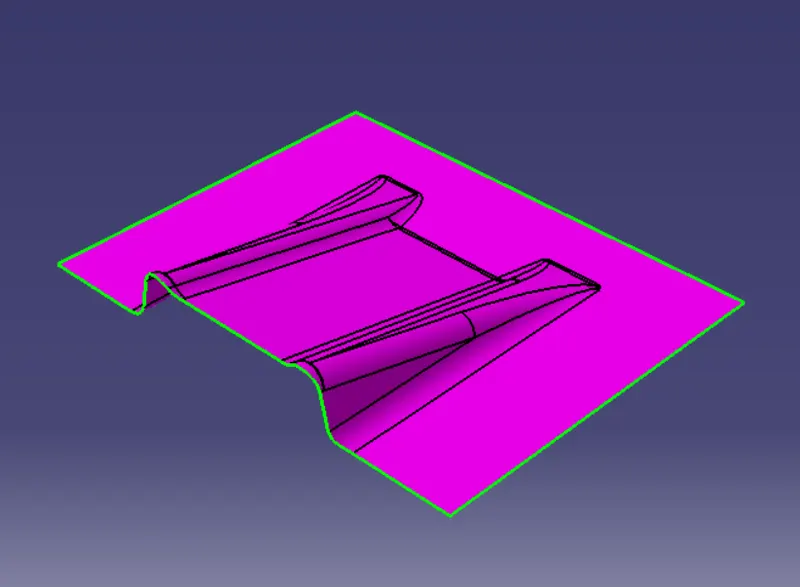

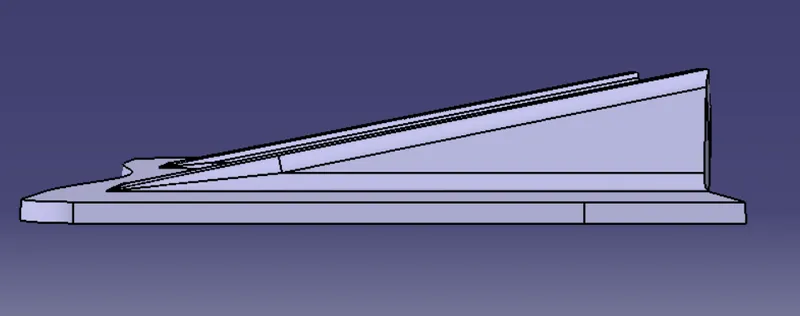

iso view bottom view side view
