Week 8 - Challenge 1 - Base Bracket Design

Steps to create tooling axis and draft analysis:

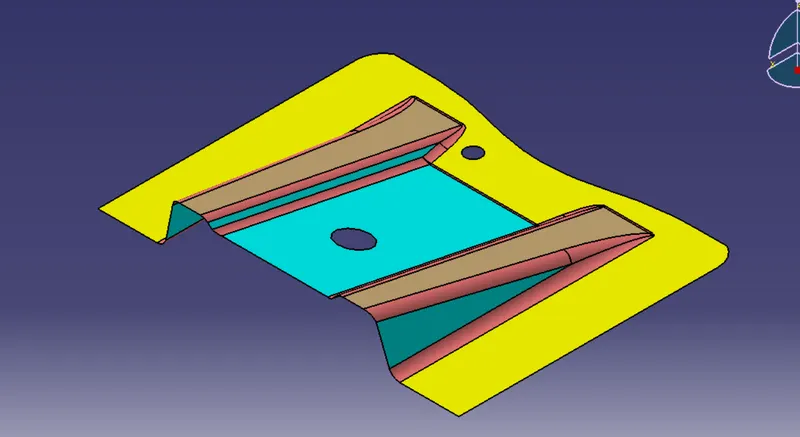

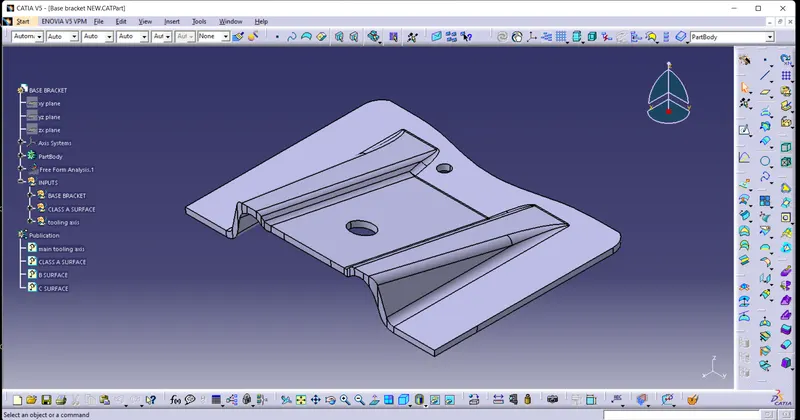

1:Load the class A surface part

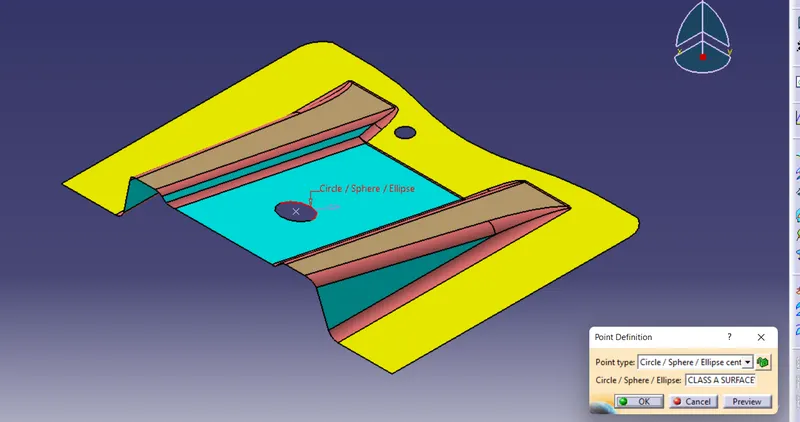

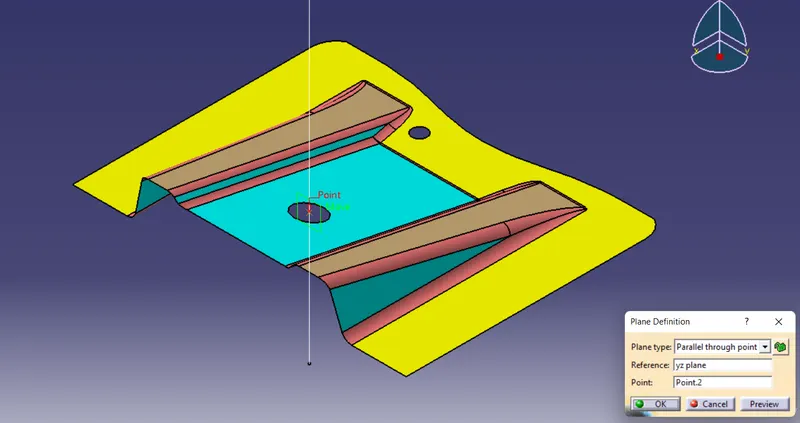

2:Make point on the center of circle

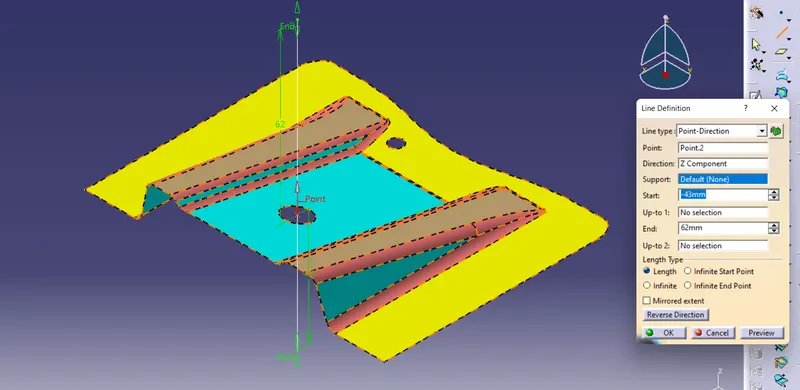

3:Draw a line passing through the point anlong z-axis

4:Make a plane to that line

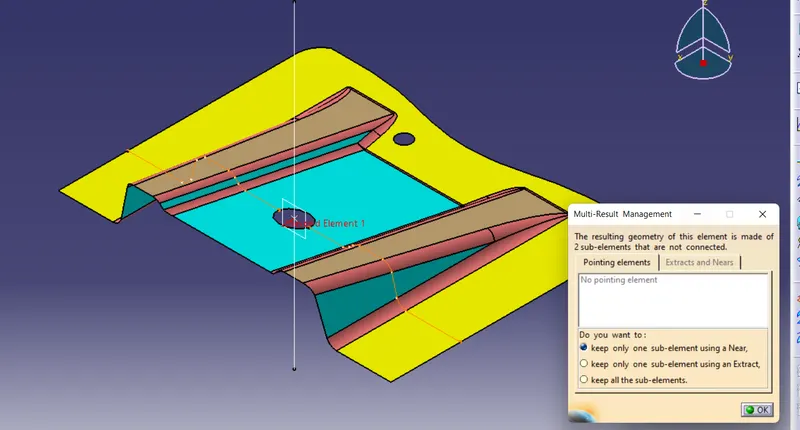

5:Make intersection on that plane

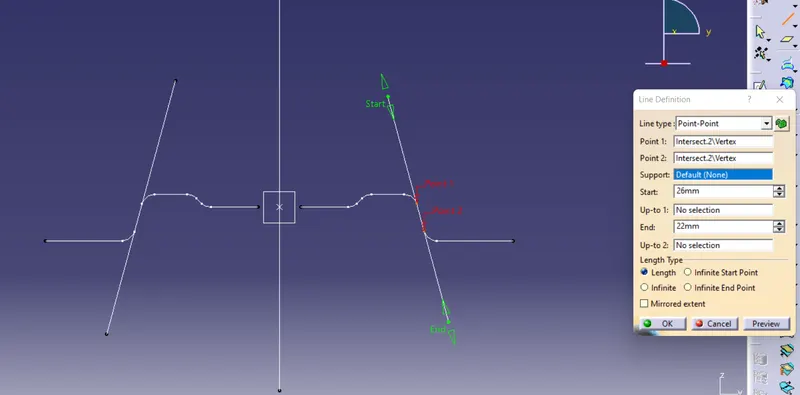

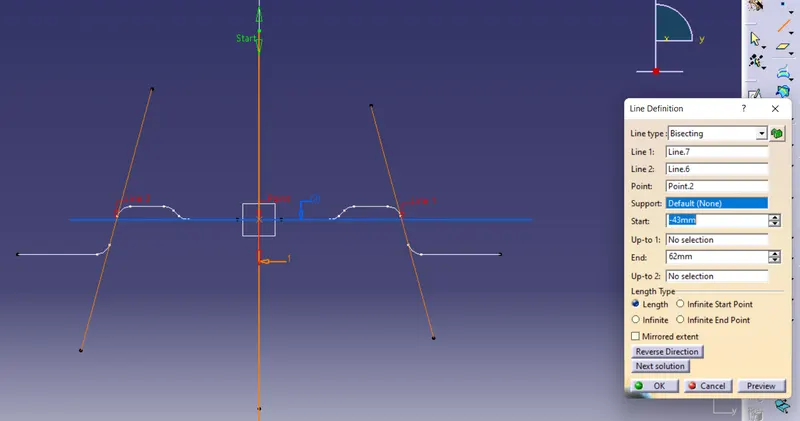

6:Hide other surfaces and draw two lines passing through inclined lines

7.By using bisecting line draw verticle line passing through point

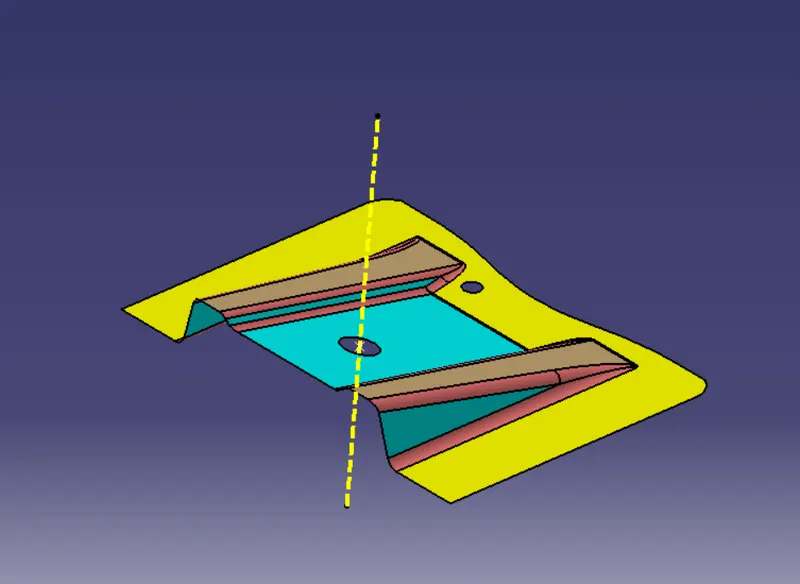

8.You will get center line that will be your tooling axis

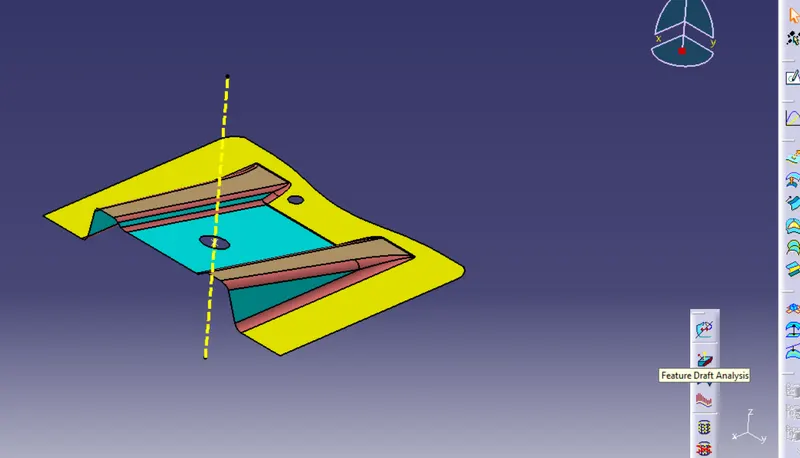

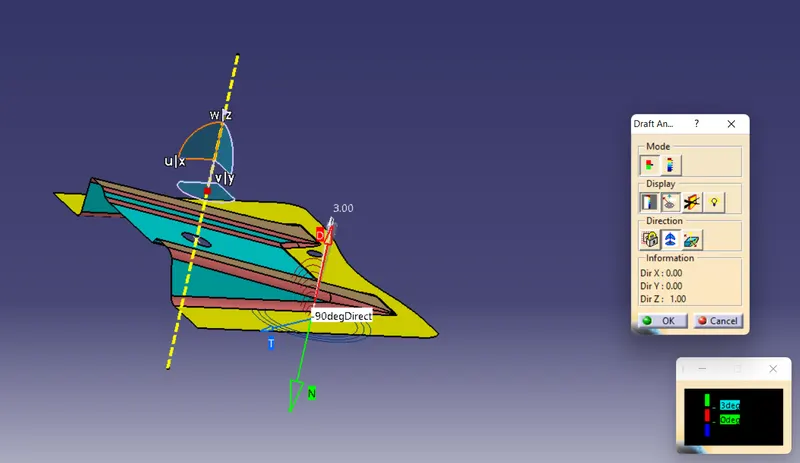

9:Open feature draft analysis tool

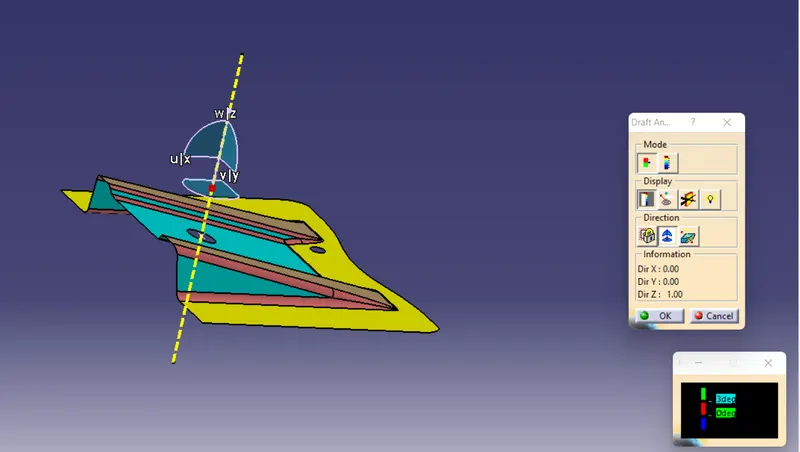

10.Using compass tool drag axis to tooling axis

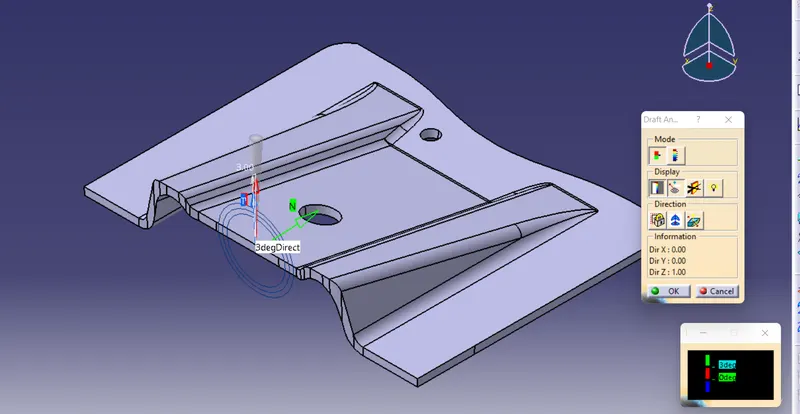

11.Using analysis under running point you can check draft angle at various points.
