Week 8 - Challenge 1 - Base Bracket Design

REPORT:

The tooling axis is based on the Z-axis as the mould can be made from this axis only.

The mould cannot be made in the Y-asis as all the components are visible in the view, it can be made in the X-axis but hole in the base cannot be extruded while mouldin.

It is made sure that all the faces of the intersection of the part is perpendicular to the tooling axis or to be maintained within the limit of 3DEG. Hence the bisection of the both doubtful lines is made the TOOLING AXIS.

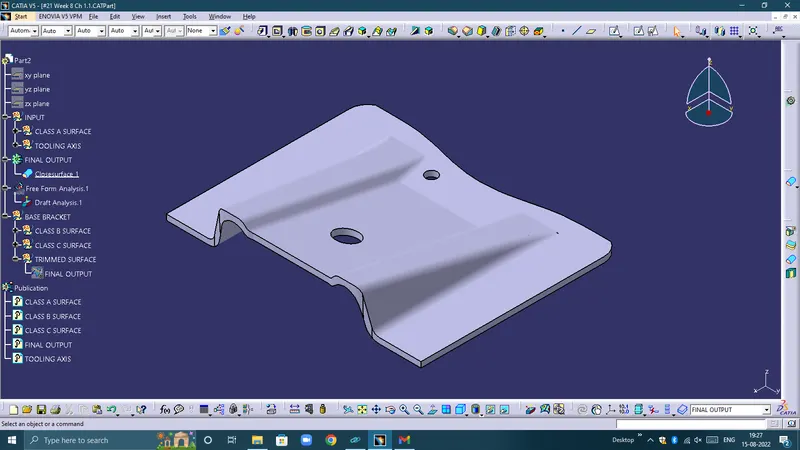

ScreenShots:

Regards,

Aasif Faiz L
