Week 8 - Challenge 1 - Base Bracket Design
Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
AIM
To be able to create solid from the given Class-A surface, by considering tooling axis and draft analysis.

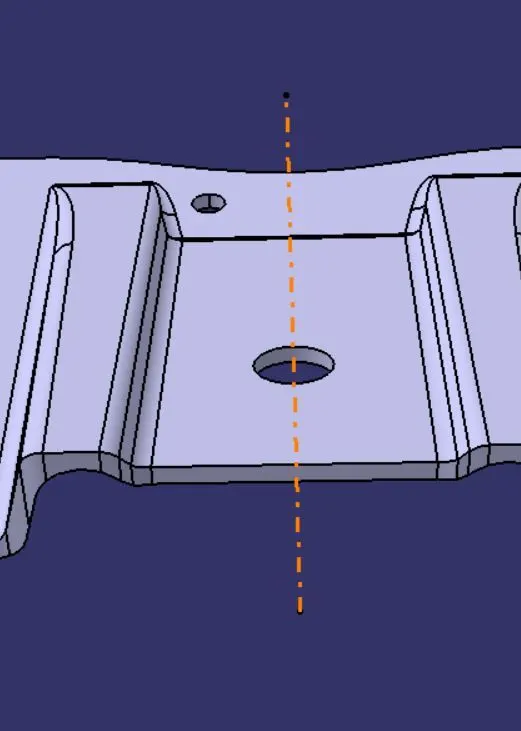

Class-A surface given:
A point was created at the center of the large circle, Using that axis system is inserted,

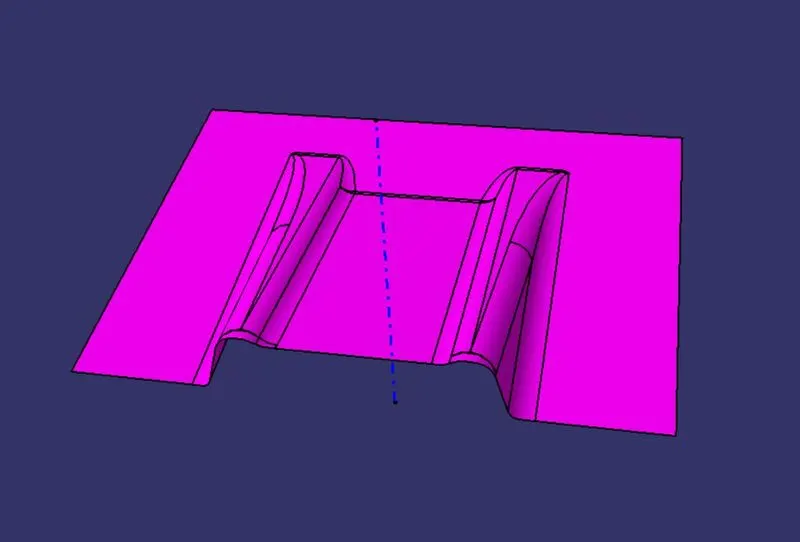

Tooling Axis:
Creation of Class B:
- Now for Class B creation, we have extracted surfaces from Class A and untrimmed them to obtain the original parent surface.
- These surfaces are then offset to the required thickness.
- After offsetting, all the surfaces are trimmed into the required shape.
- Required fillets are given to the surfaces.

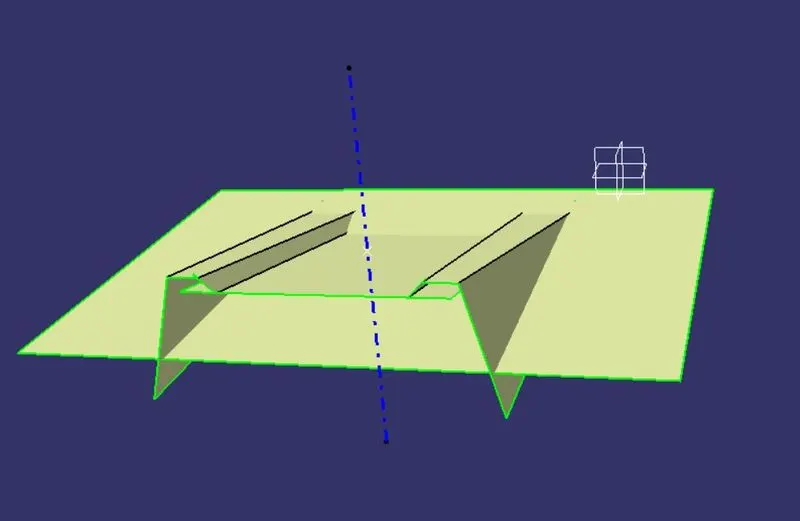

Two rib are created and show bellow

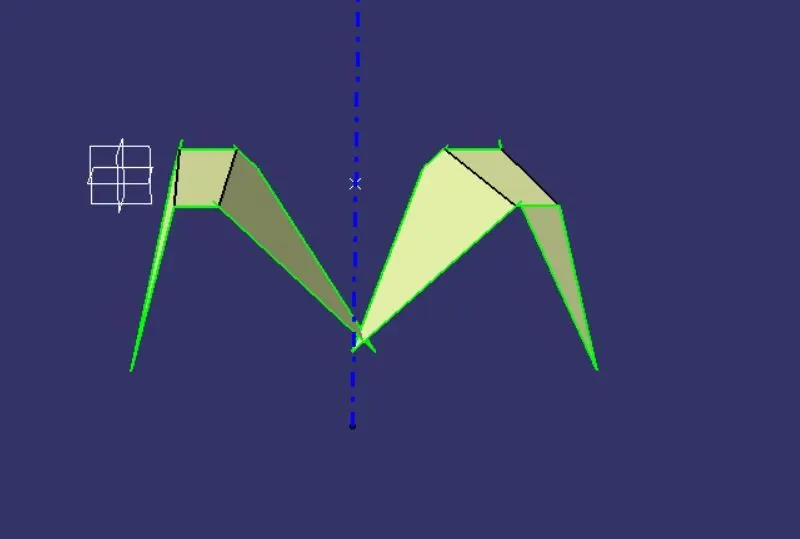

triming with two rib an join to gather is show bellow
Creation of Class C:

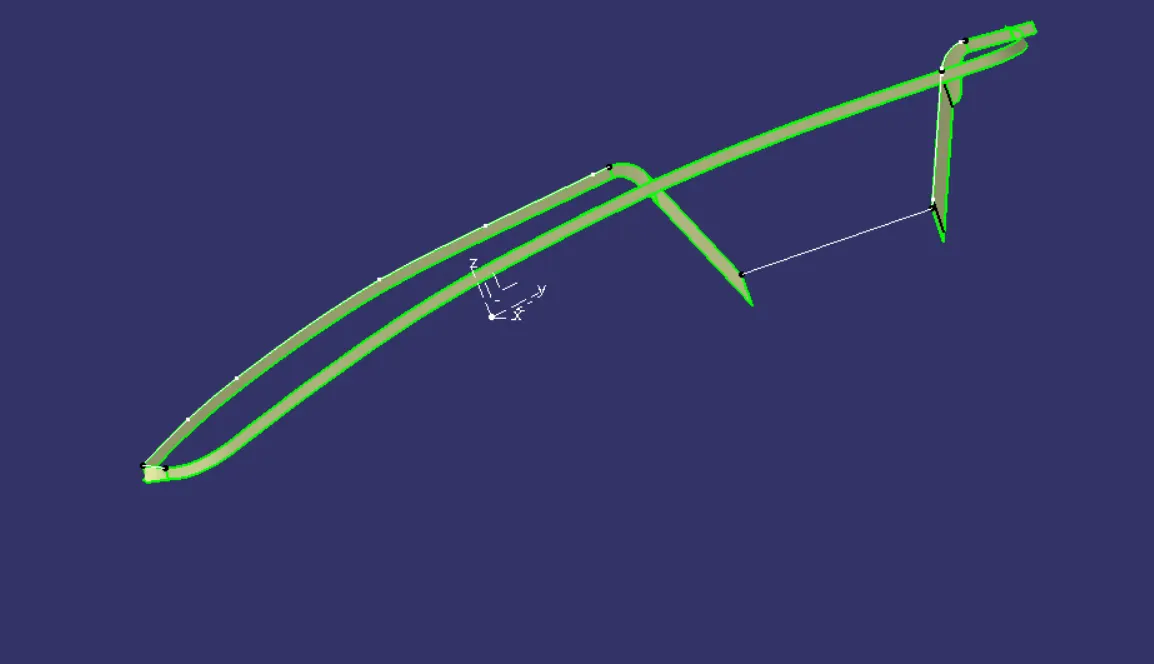

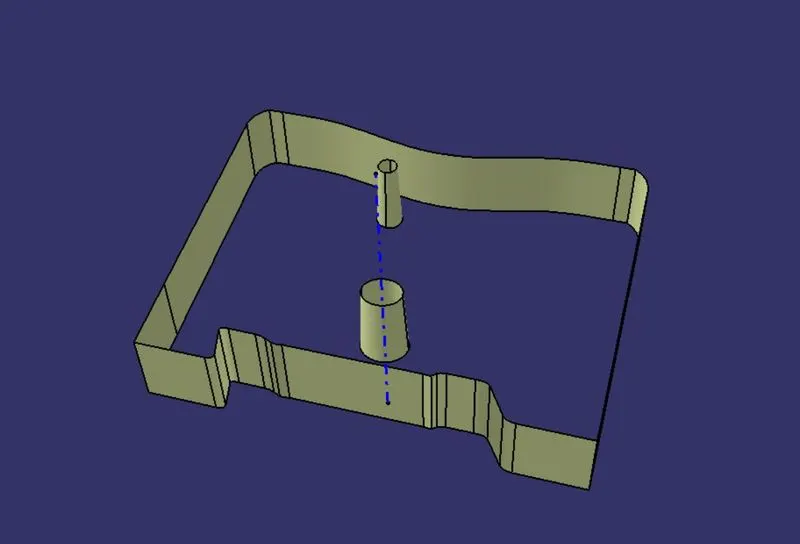

class c created with the help of sweep
and show bellow
also encure that class c should be pass 3 degree of draft angle

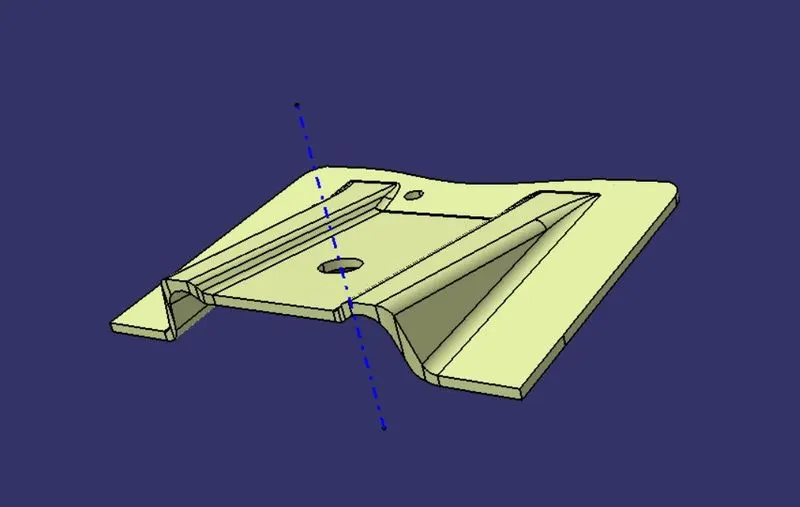

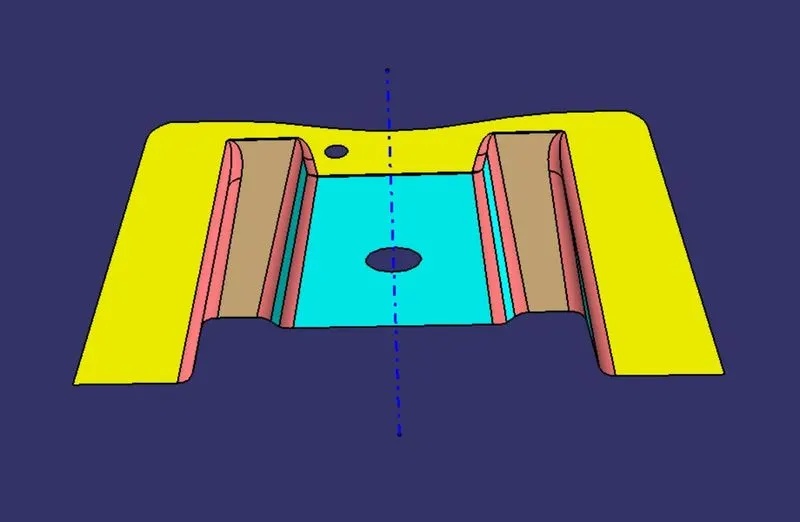

complete A, B, AND C are shown in join

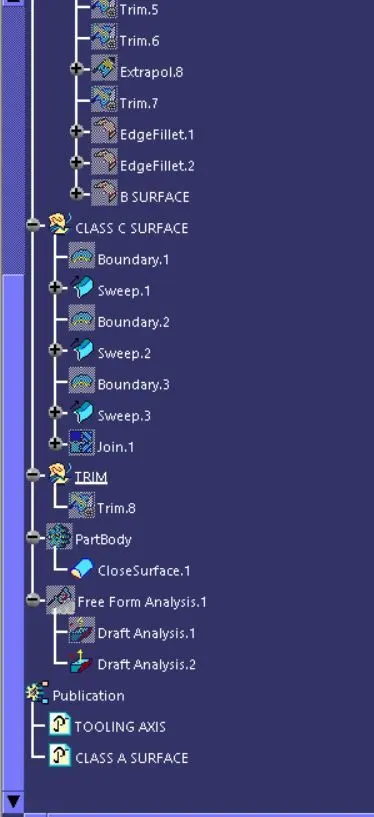

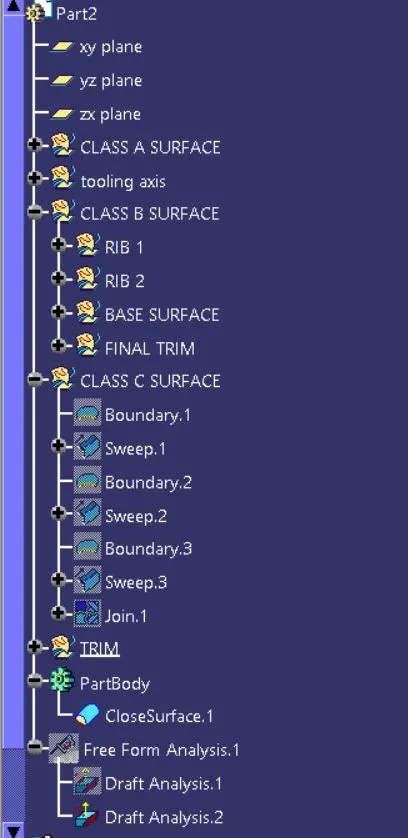

tree image is shown bellow

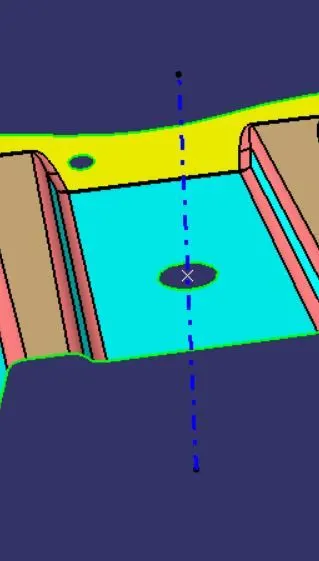

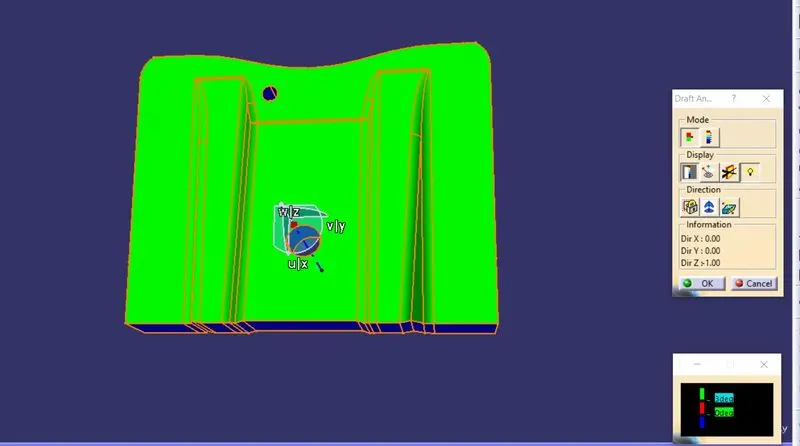

draft analysis
