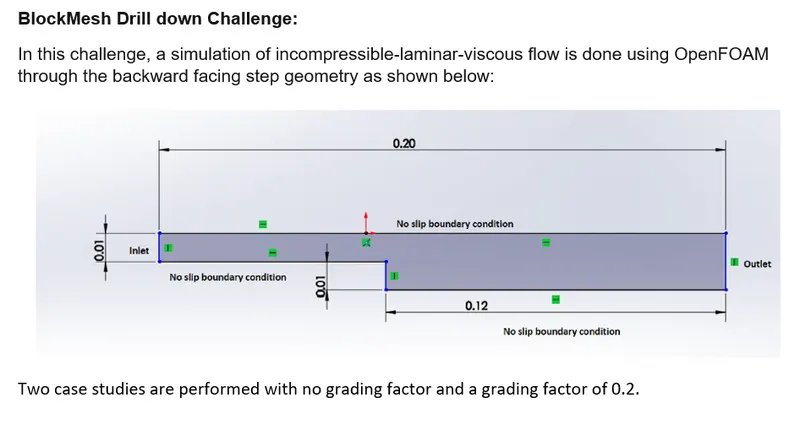

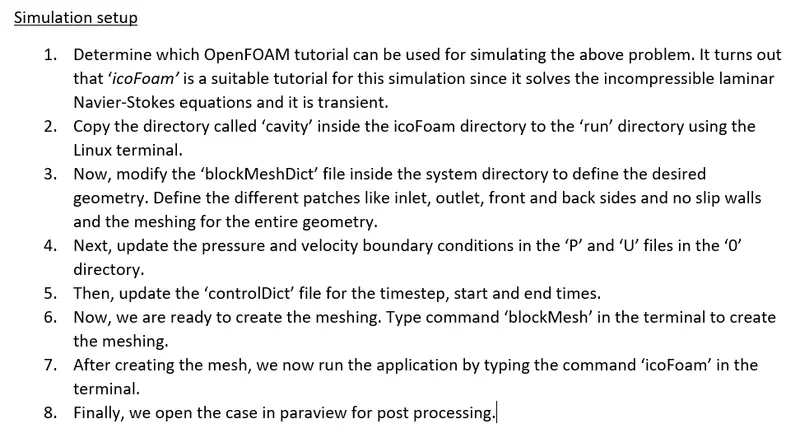

Week 8 - BlockMesh Drill down challenge
blockMeshDict:
Case1:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 0.1;
vertices
(
(0 0 0) //p0
(8 0 0) //p1
(8 0.5 0) //p2
(0 0.5 0) //p3
(8 1 0) //p4
(0 1 0) //p5
(20 1 0) //p6
(20 0.5 0) //p7
(20 0 0) //p8
(20 -1 0) //p9
(8 -1 0) //p10
(0 0 0.1) //p11
(8 0 0.1) //p12
(8 0.5 0.1) //p13
(0 0.5 0.1) //p14
(8 1 0.1) //p15
(0 1 0.1) //p16
(20 1 0.1) //p17
(20 0.5 0.1) //p18
(20 0 0.1) //p19
(20 -1 0.1) //p20
(8 -1 0.1) //p21
);
blocks
(
hex (0 1 2 3 11 12 13 14) (200 10 1) simpleGrading (1 1 1)
hex (3 2 4 5 14 13 15 16) (200 10 1) simpleGrading (1 1 1)
hex (2 7 6 4 13 18 17 15) (200 10 1) simpleGrading (1 1 1)
hex (1 8 7 2 12 19 18 13) (200 10 1) simpleGrading (1 1 1)
hex (10 9 8 1 21 20 19 12) (200 10 1) simpleGrading (1 1 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
outlet
{
type patch;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(10 1 8 9)
(1 2 7 8)
(2 4 6 7)
(11 12 13 14)
(14 13 15 16)
(21 20 19 12)
(12 19 18 13)
(13 18 17 15)
);
}
Noslipwalls
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
(0 1 12 11)
(10 21 12 1)
(10 9 20 21)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //
Case2:

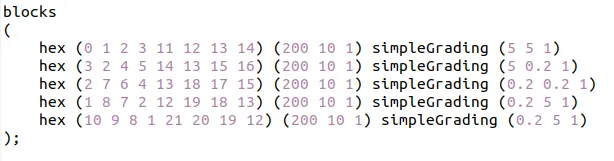

For case 2 , the simpleGrading is changed as below
Boundary conditions:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
Noslipwalls
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
}
// ************************************************************************* //
The inlet velocity is considered as 1m/s.
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (1 0 0);
}
outlet
{
type zeroGradient;
}
Noslipwalls
{
type noSlip;
frontAndBack
{
type empty;
}
}
// ************************************************************************* //
controlDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 0.5;
deltaT 0.00001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
Simulation results:
Case1:

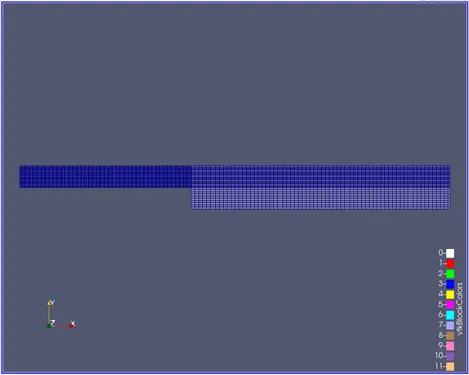

Mesh

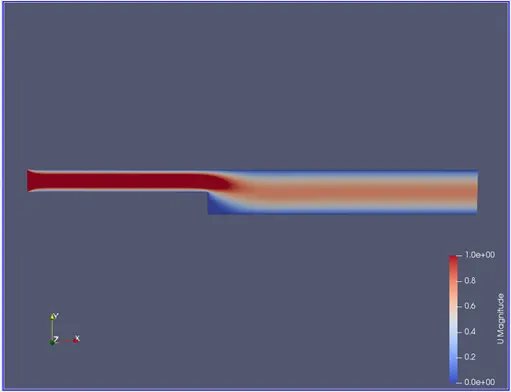

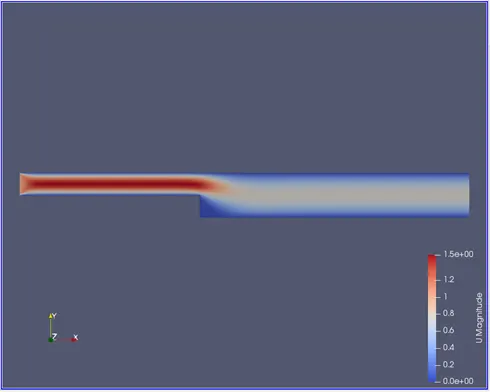

Velocity

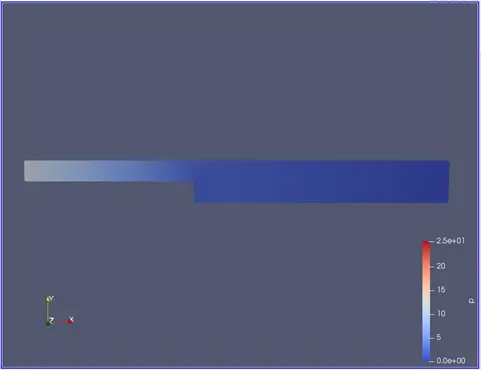

Pressure

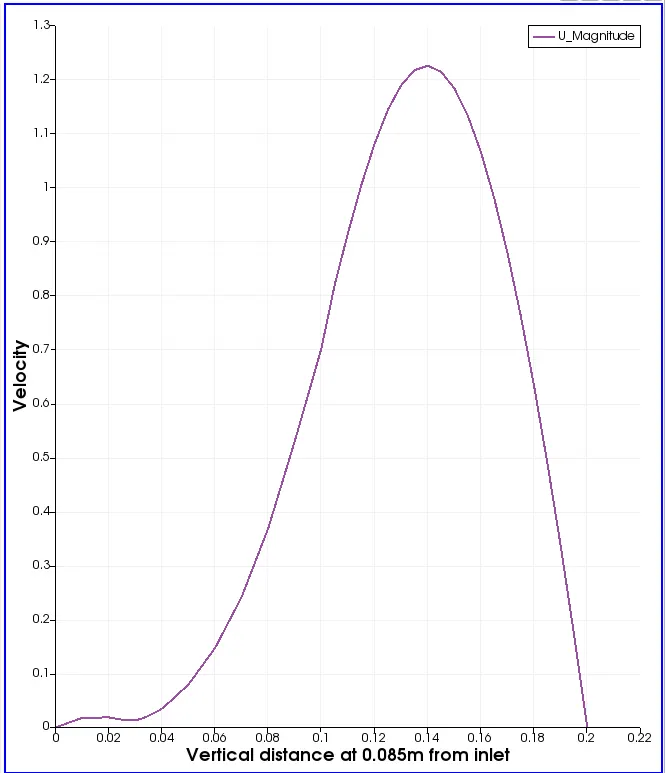

Velocity Profile at 0.085m from inlet
Case2 (with grading):

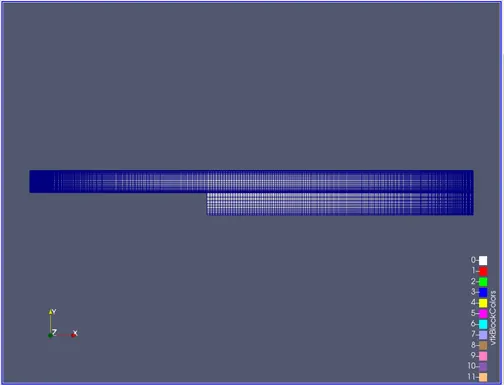

Mesh:
Velocity:

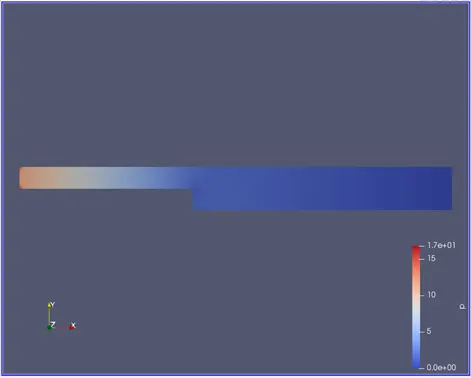

Pressure:

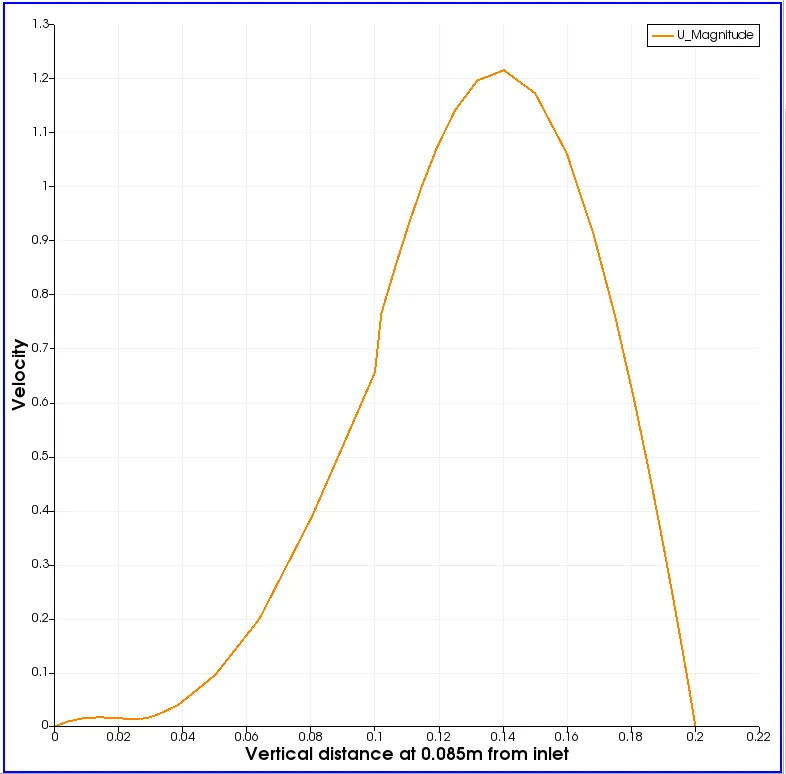

Velocity Profile at 0.085m from inlet
Discussion:
The blockMesh was modified in case2 such that the mesh becomes finer at the boundaries of the geometry and as a result there are some minor variations in the velocity. In addition, if we compare the velocity profile on a line at a distance of 0.085m from the inlet, we can see that the case without any grading yields a little more smooth curve especially at the center height since the grading introduces a finer mesh at the center.

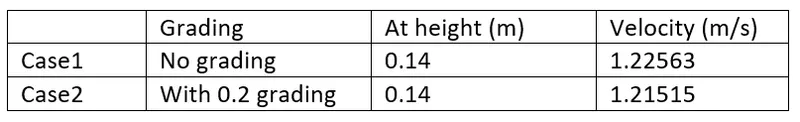

The peak velocity values for both the cases at a distance of 0.085m are also very close as shown below:
