Week 8-3D Tetra Meshing Challenge

Objective:

To create the tetramesh for the given cad model with quality criteria and methods as mentioned above.

Â

Procedure:

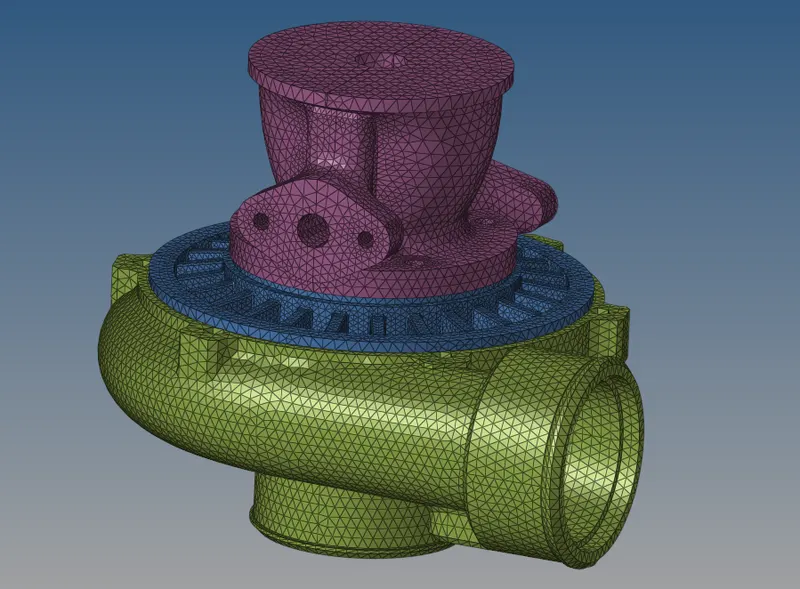

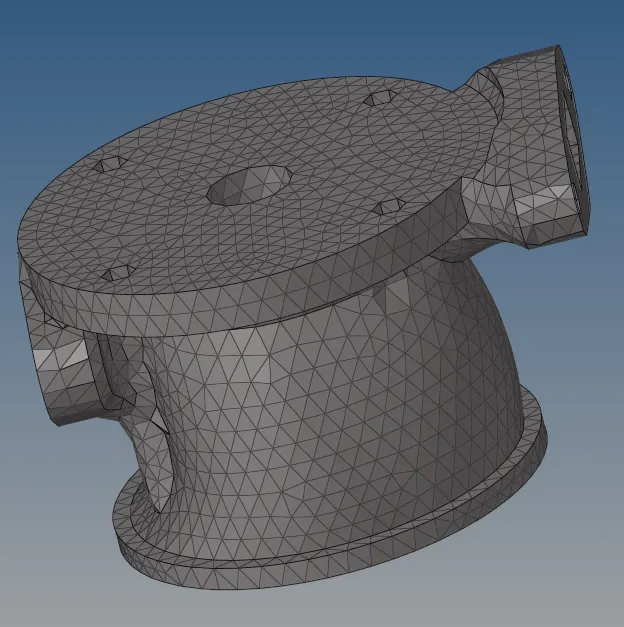

Housing:

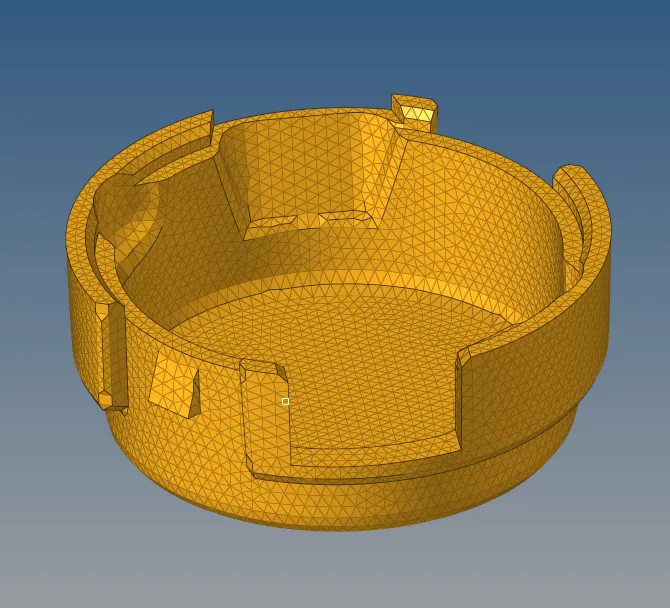

Using tetramesh tool the 3d mesh is using various methods. For housing method 2D mesh is created and with the genersted 2D elements the required tetramesh is done.

Â

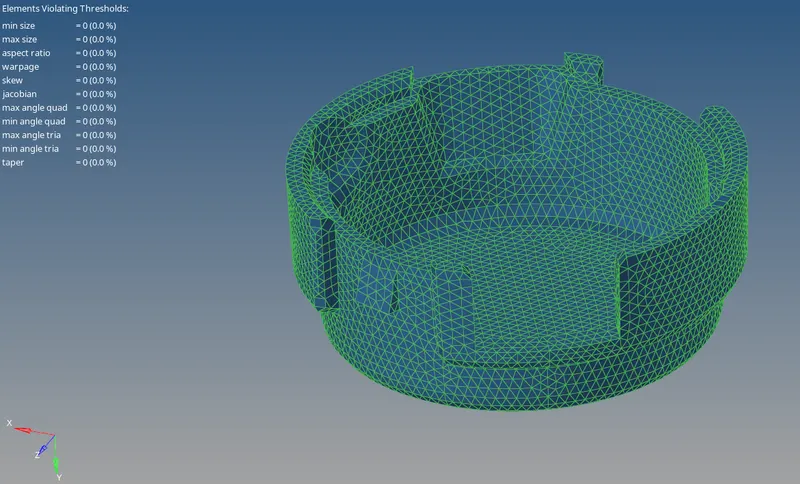

The given quality citeria is applied and without any tet collapse the tetramesh for the given cad model is created.

Â

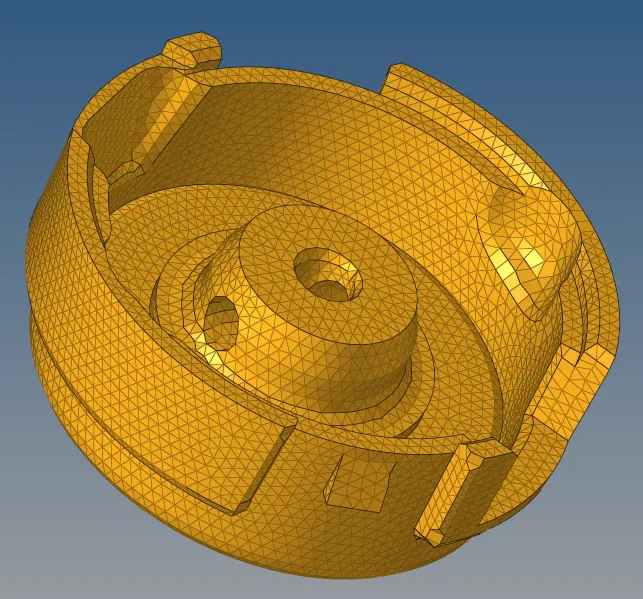

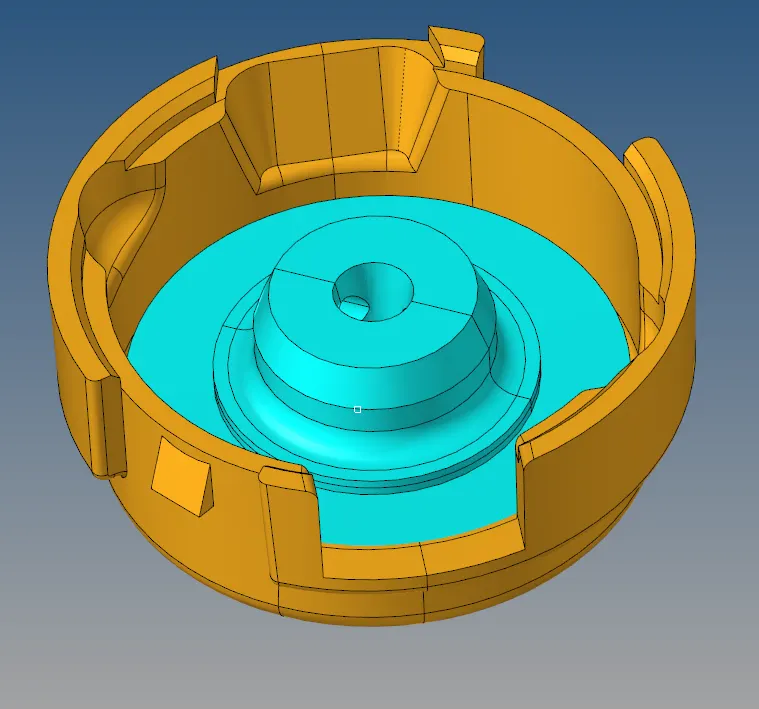

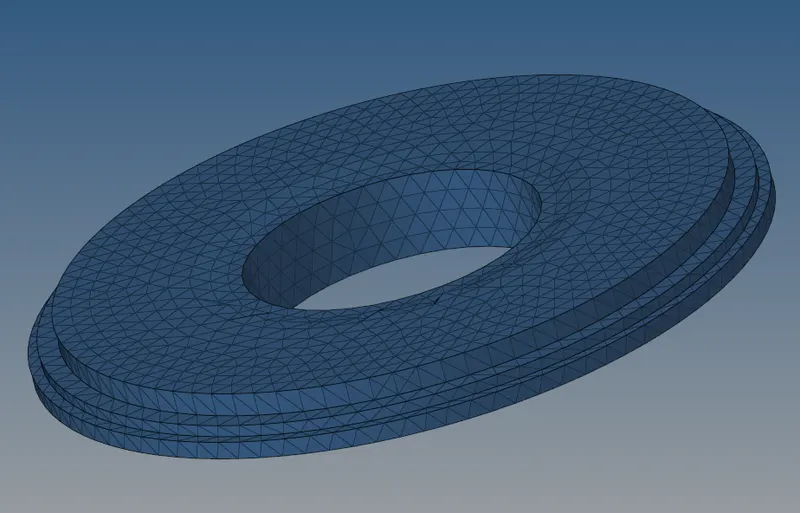

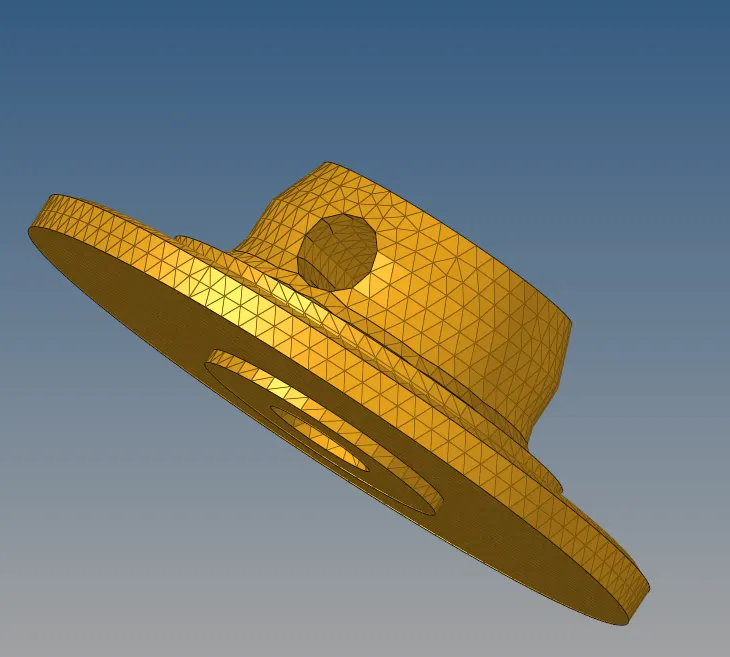

Model 2:

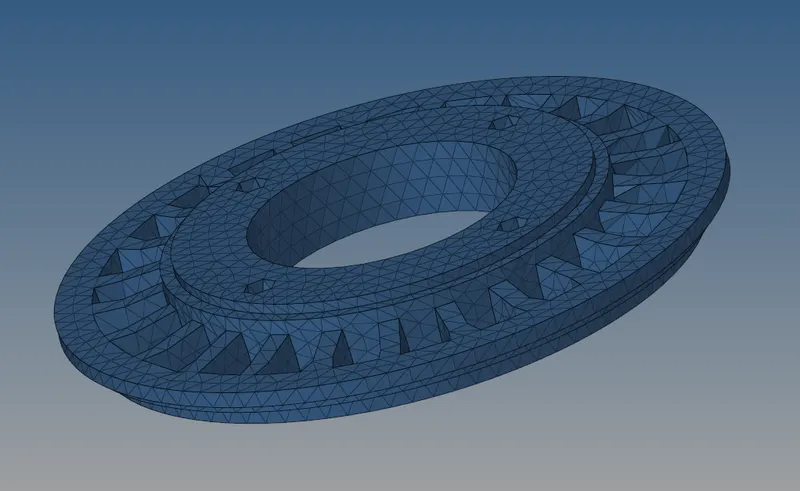

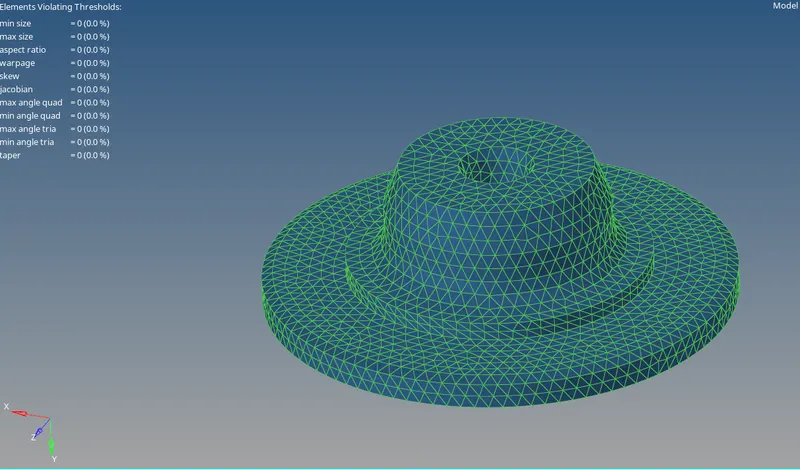

For model 2 the element size is 3 and using quick tetramesh or volume tetra tool the 3D tetramesh is generated.

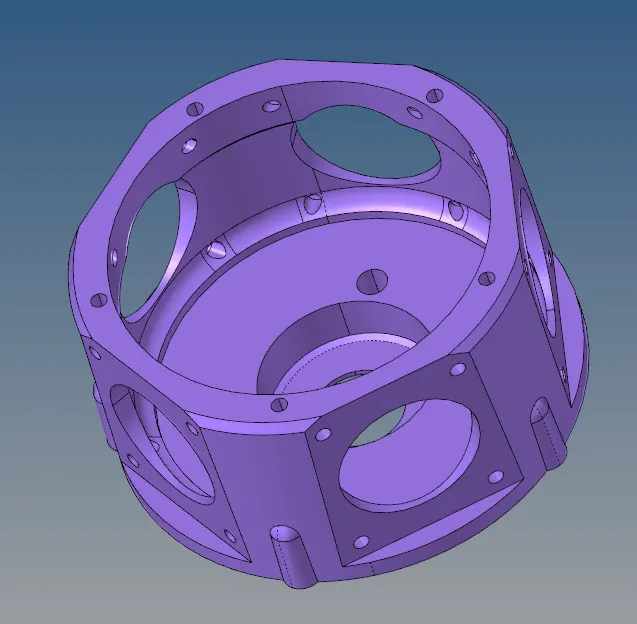

Model 3:

Result:

The tetramesh for the given models are created with the quality criteria as above mentioned.
