Week 10 Bullet penetrating a Bucket Challenge
Week 10: Bullet penetrating a Bucket Challenge
Aim: Simulating Bullet penetrating a Bucket for the given model in Ansys Workbench.

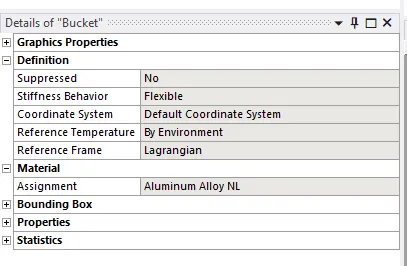

Case1: Aluminium NL as Bucket Material

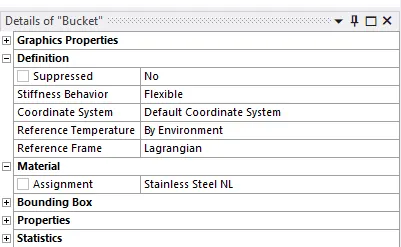

Case2: Stainless Steel NL as Bucket Material
Case3: Titanium Alloy NL as Bucket Material
Procedure:
Intially the Explicit Dynamics system is loaded in workbench.

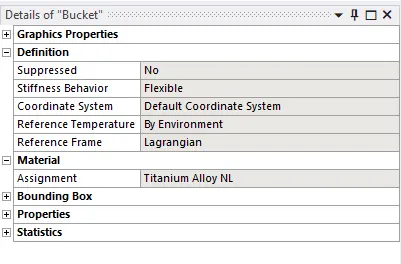

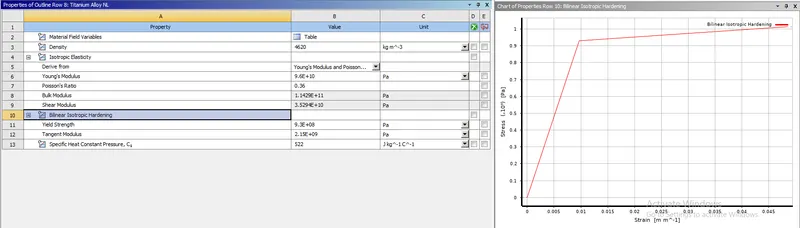

Engineering materials used for this model:

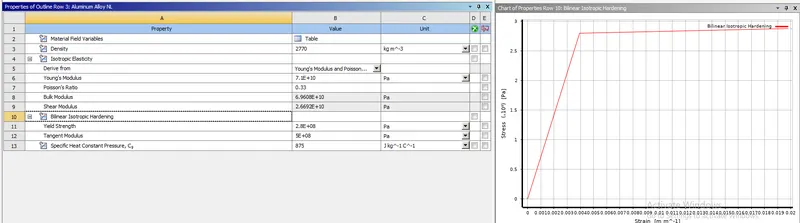

Case1:

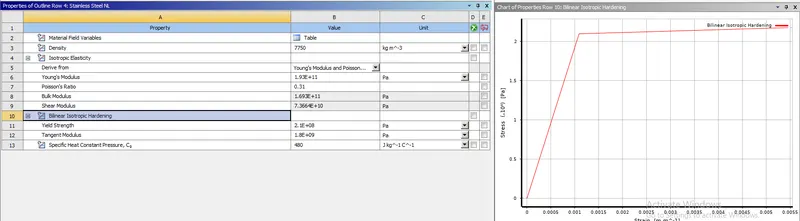

Case2:
Case3:

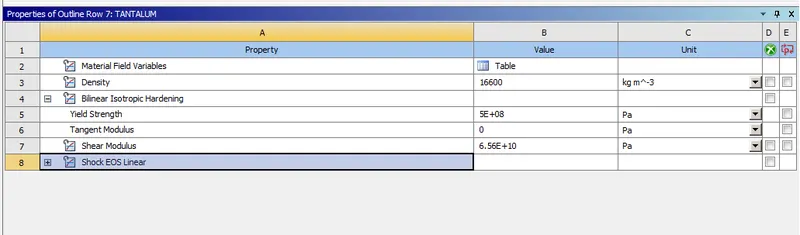

Bullet Material for all cases:

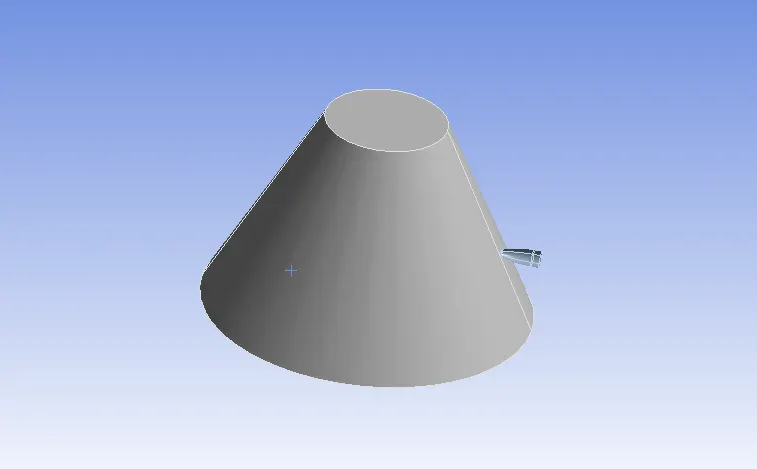

The model imported to Geometry by RMB on geometry -> import -> Bullet_bucket.stp
- After importing model, the model is updated to model and the next model, setup and solution is done in mechanical modeler.
Case1:
Case2:
Case3:
Here, meshing, contacts, boundary condition setup, and solution output request are given for analysis.
Meshing:

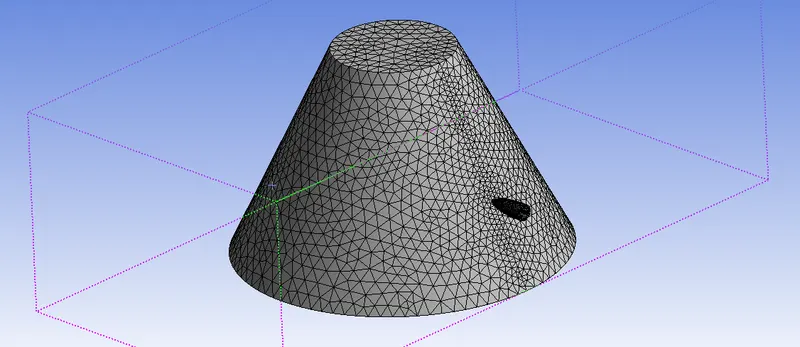

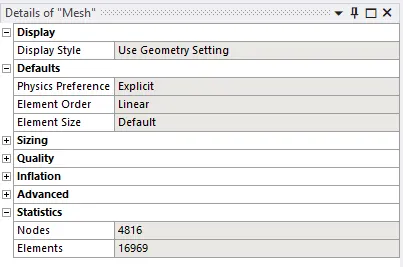

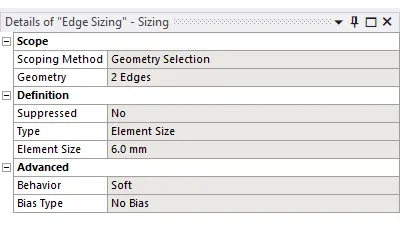

Meshing is done to Bucket by sizing around the partition edge

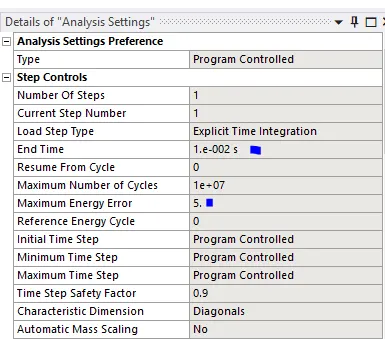

Analysis Settings:
Same for both tests and end time is taken as 0.01s and energy error as 5
Boundary Conditions:

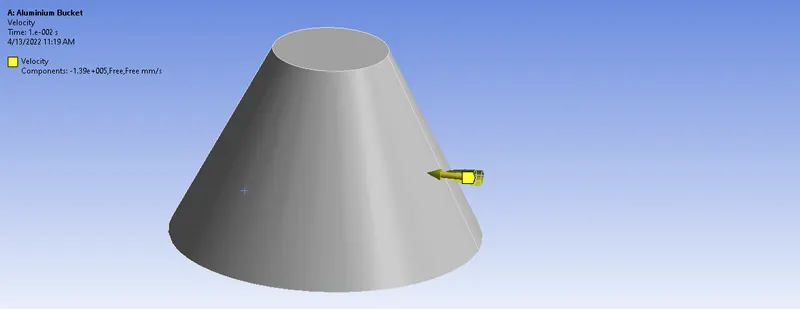

velocity is applied on Bullet: -139000mm/s

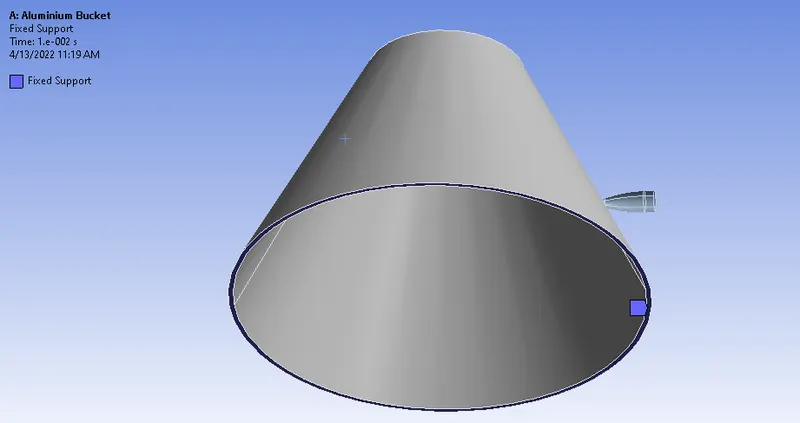

Fixed support applied on bottom of the bucket:
- Solution output request
After setting the boundary conditions, the soultion outputs as requested is included from
Only for Case 1:
solution -> insert -> Stress -> equivalent von mises
solution -> insert -> Deformation -> Total deformation
Solution -> Worksheet -> user defined temperature
Results:

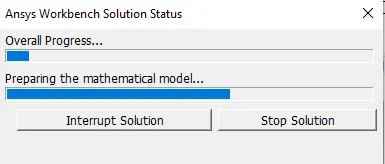

The solving is taken place and can be checked from
The results are taken for Stress and deformation for both cases
Equivalent stress:

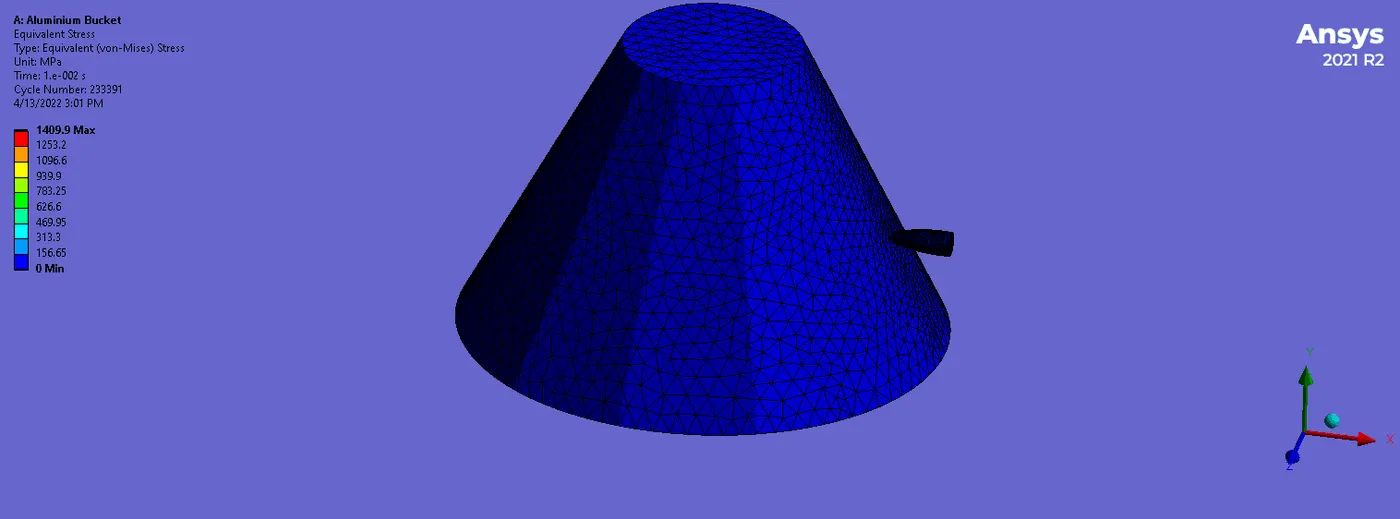

Case 1:Aluminium NL

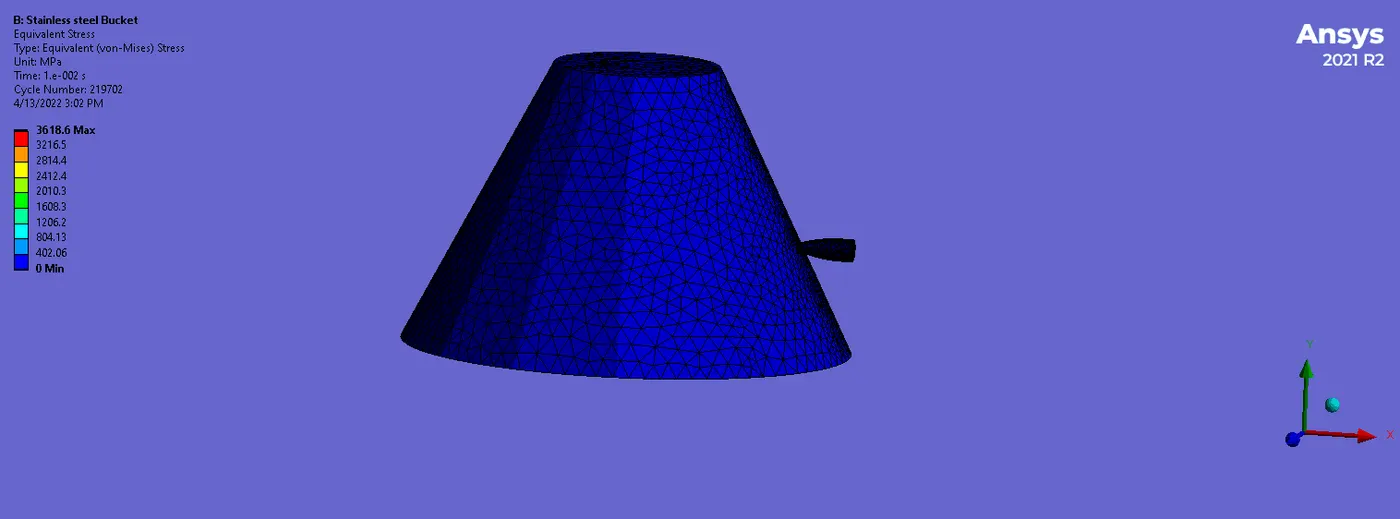

Case 2: Stainless Steel NL

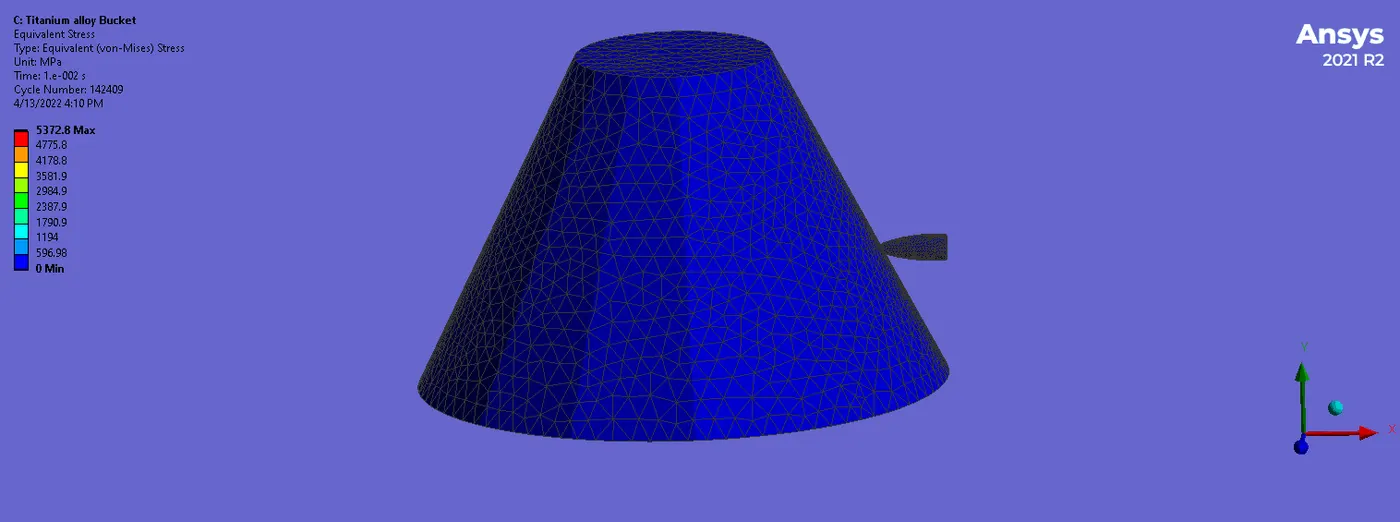

Case 3: Titanium Alloy
Total deformation:

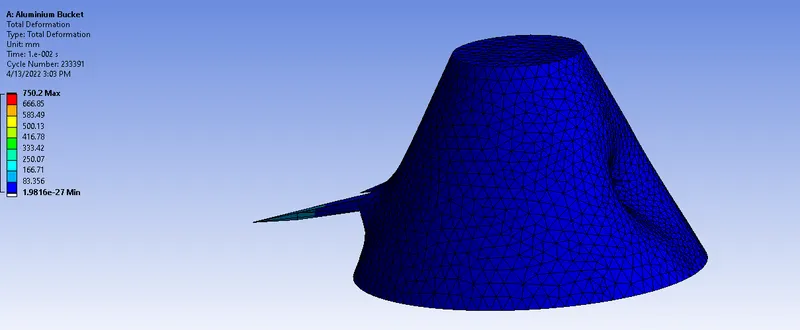

Case 1: Aluminium NL

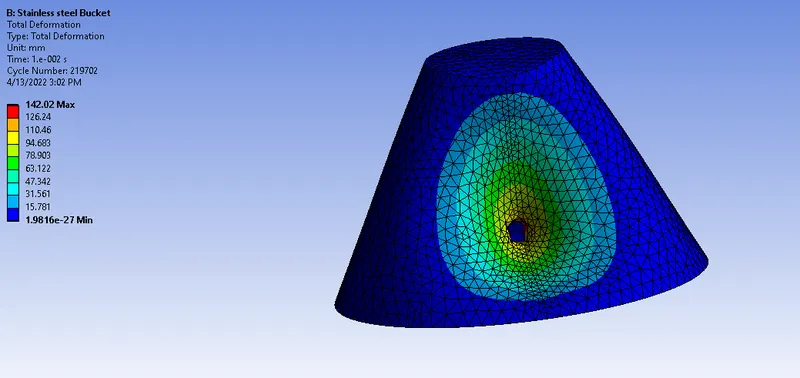

Case 2: Stainless Steel NL

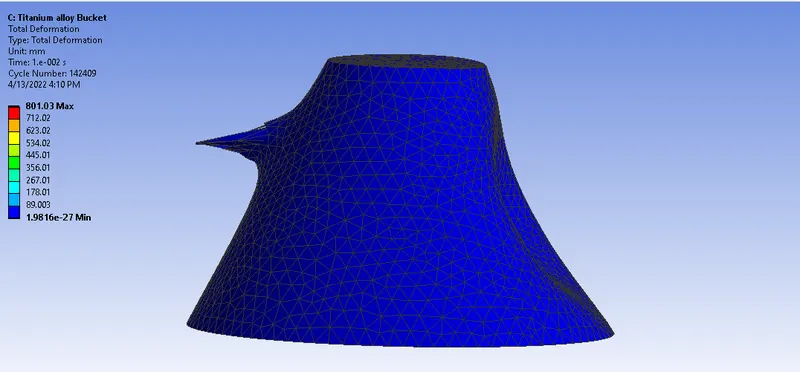

Case 3: Titanium Alloy NL
Comparison of Equivalent stress and directional deformation for both cases:
| Bucket Material | Max Equivalent Stress, MPa | max Total Deformation , mm |
| Aluminium NL | 1409.9 | 750.2 |
| Stainless Steel NL | 3618.6 | 142.02 |
| Titanium Alloy NL | 5372.8 | 801.3 |
The very high values in deformation is due to splintering of bucket at high temperature due to impact of bullet.
Conclusion:
Simulation of bullet impact on the bucket on the given model is successfully simulated using ANSYS WORKBENCH.
