Week 8:- 3D Finishing Challenge 2

) Perform 3D finish and create Rough locators for the Assembly design?

3D FINISH:

The 3D finish is the process where design is completely finishing & to be ready for final simulation & 2D detailing

• In 3D finishing we perform and ensure the following points:

1. Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
2. Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange colour.
3. Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
4. Holes colouring standard- Color Code standard used in the 3D finishing
   • Violet    -  Simple Hole
   • Yellow  -  Threaded Hole
   • Cream -  Machined area
   • cyan     -  Dowel pin Hole
5. Fasteners implementation- Fasteners are implemented in all unit as per the requirement & load on the part.
6. Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
7. Mylar splitting as per panel profile- Mylar splitting are confirmed while finishing the design.
8. Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design hence we can identify each & every part easily with a unique identification.

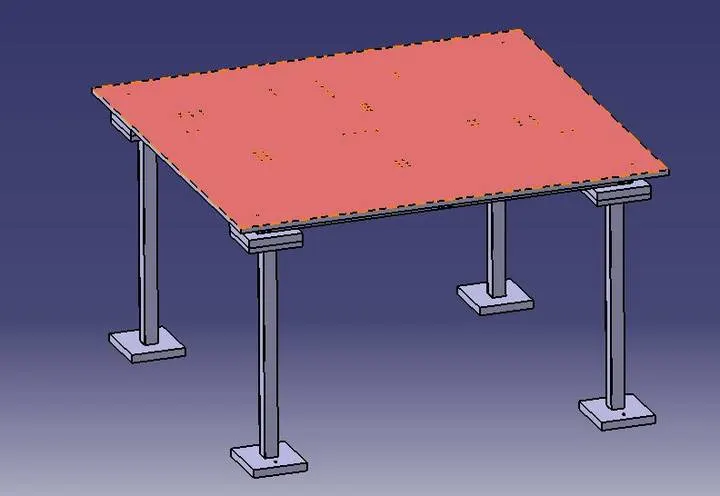

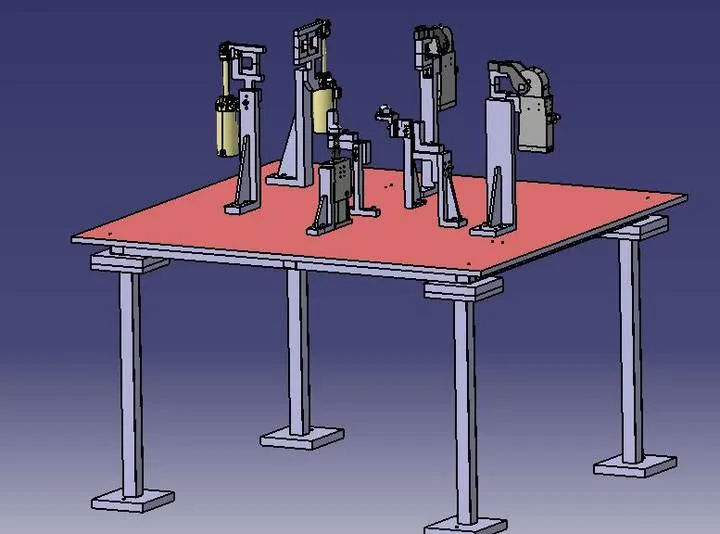

3D FINISH ASSEMBLY:

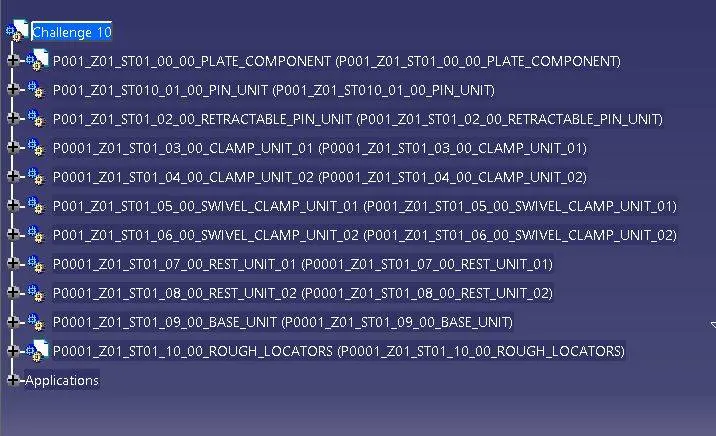

DESIGN TREE STRUCTURE:

PIN UNIT:

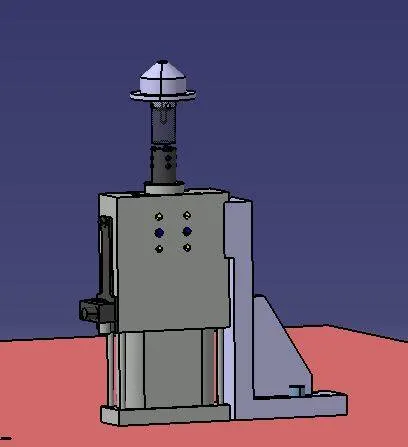

RETRACTABLE PIN UNIT:

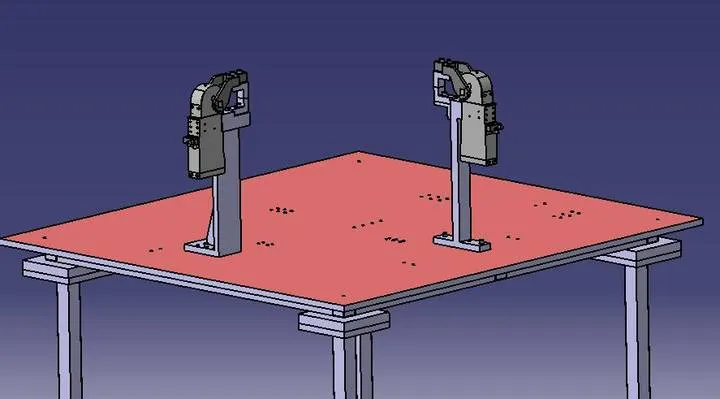

CLAMP UNITS:

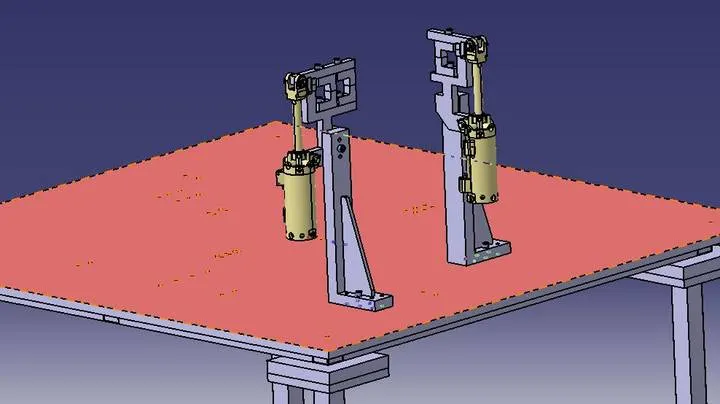

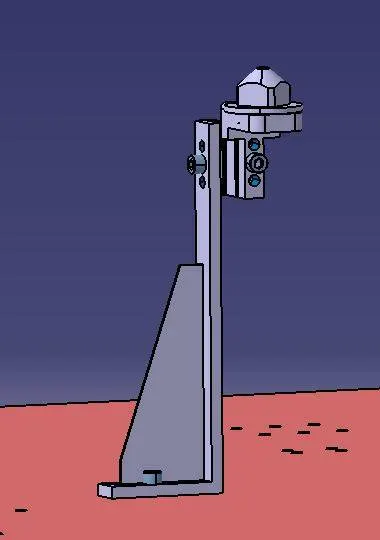

SWIVEL CLAMP UNITS:

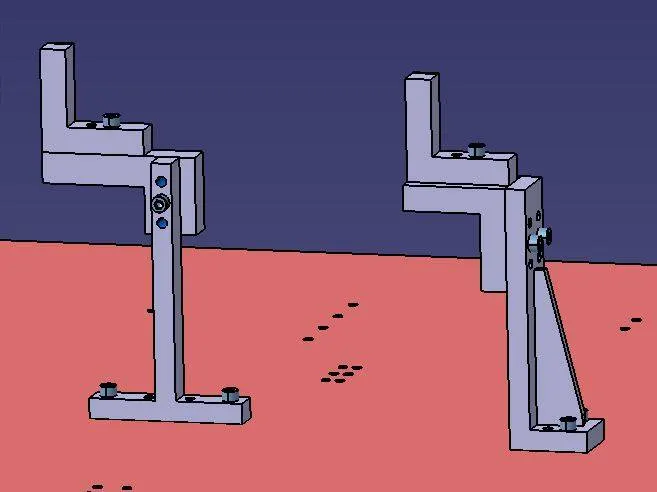

REST UNITS:

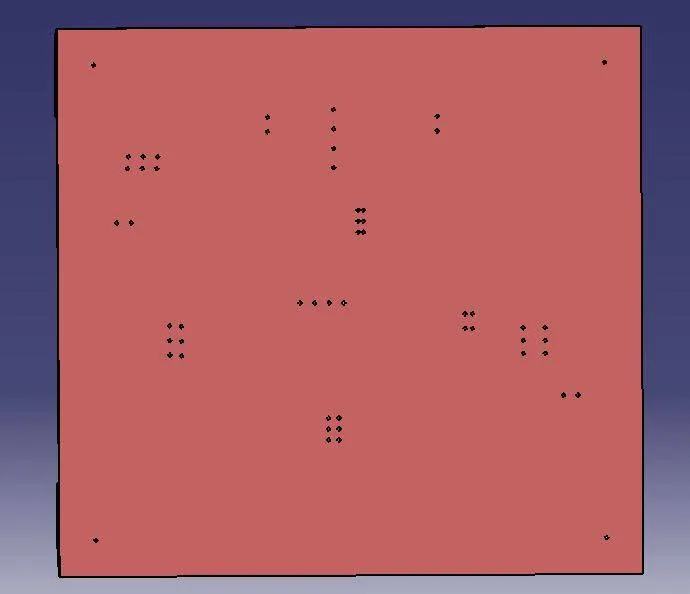

BASE UNIT:

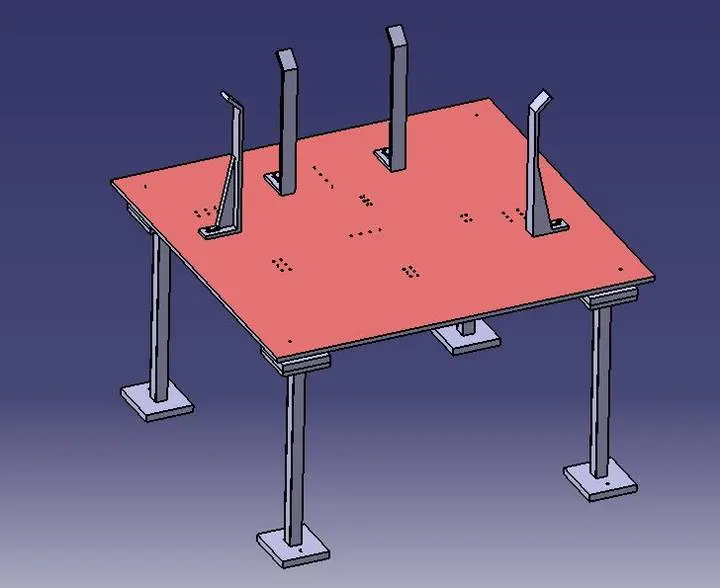

ROUGH LOCATORS:

ASSEMBLY UNIT:

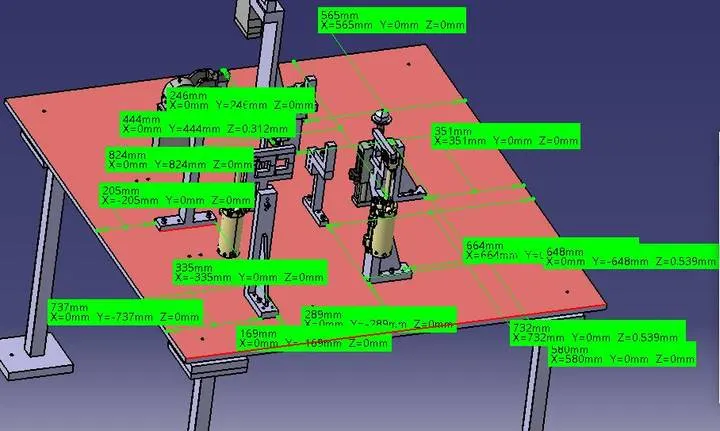

NOMINALITY OF HOLES:

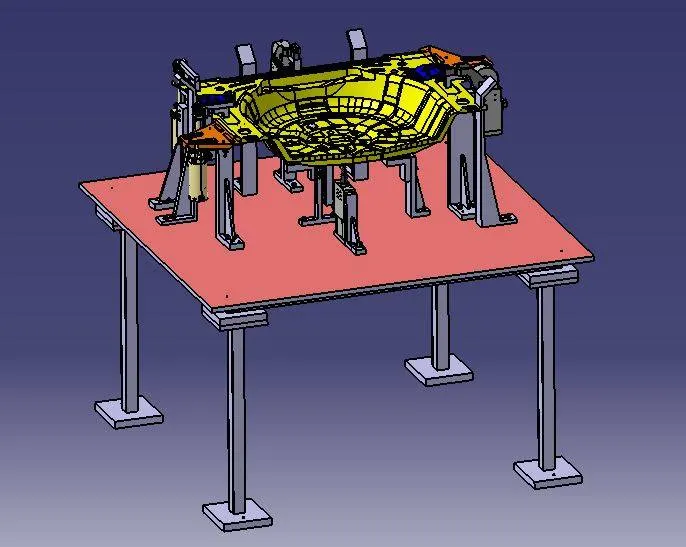

3D FINISH FULL ASSEMBLY
