Week 7 State of charge estimation

When simulation will start, the model will be in driving condition. After 3000 seconds it will be in standby mode and after 1000 seconds it will be in charging mode. Now by Running the simulation.

Results:-

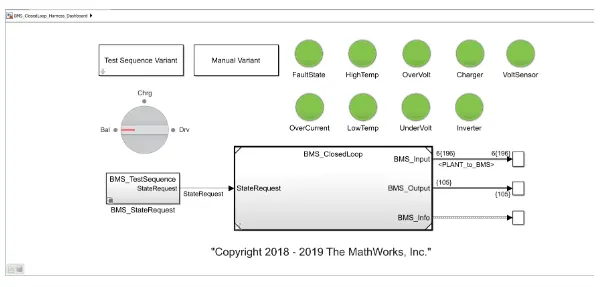

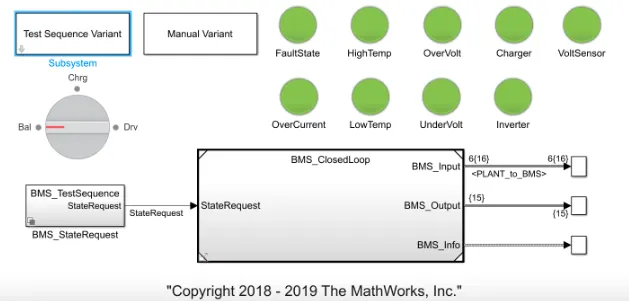

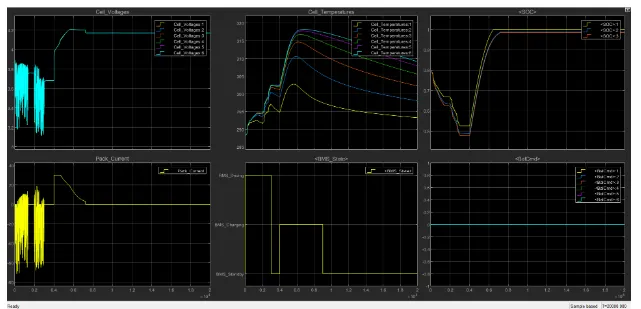

Here all the indicators are green. So we can see no errors and we check the plot for this model and is shown below.

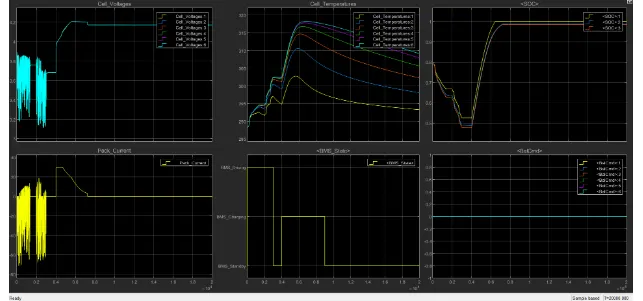

From the plot we can see the vehicle is initially in driving state and charging was done till 90%. After charging it reaches to standby mode. It can be seen in BMS state plot.Battery temperature increases in driving and charging. Battery voltage was increased to 4.2V while charging. Current plot shows the value of current supplied to vehicle while driving. SOC decreased up to 50% in driving condition and it was increased while charging.

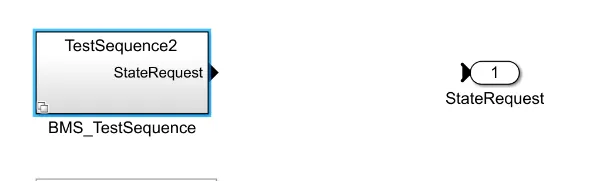

2) Now change the test sequence varient in case two.

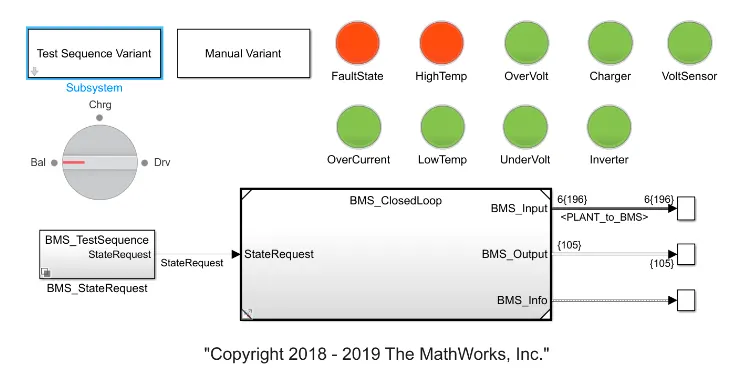

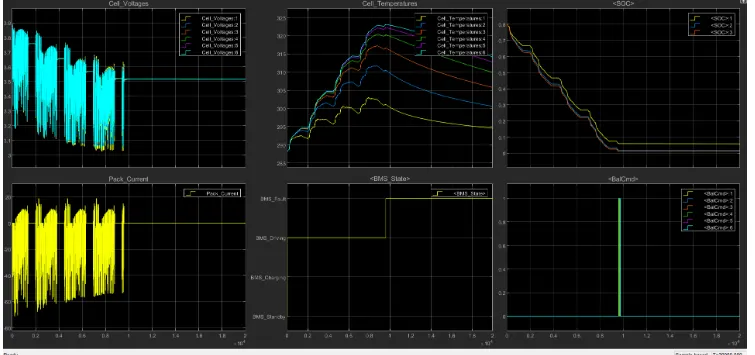

From the above graph , a fault condition occured in second case. So even after charging was started, the soc didnt increase. It continue to decrease.

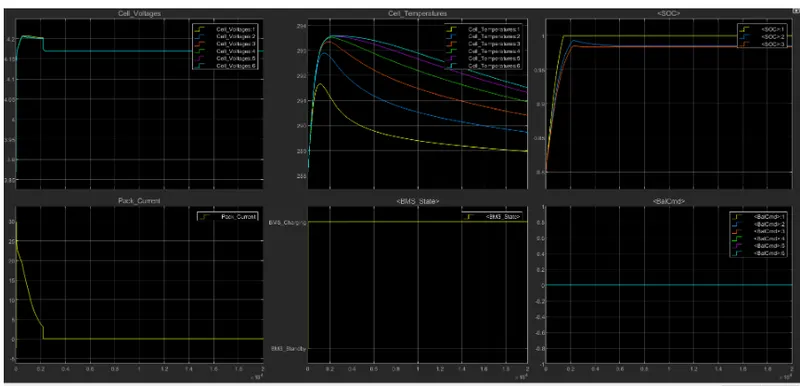

3) Now by changing the test Sequence Value to 3

The Coulomb counting method measures the discharging current of a battery and integrates the discharging current over time in order to estimate SOC . Coulomb counting method is done to estimate the , which is estimated from the discharging current, , and previously estimated SOC values, . SOC is calculated by the following equation:

But there are several factors that affect the accuracy of Coulomb counting method including temperature, battery history, discharge current, and cycle life.

Modified Coulomb Counting Method

To improve the Coulomb counting method, a new technique called modified Coulomb counting method is proposed. The modified Coulomb counting method uses the corrected current to improve the accuracy of estimation.

The corrected current is the function of discharging current. There is a quadratic relationship between the corrected current and discharging current of battery. By practice of experimental data, corrected current is calculated by the following form:

where k2,k1andk0are constant values obtained from the practice experimental data.

In modified Coulomb counting method, SOC is calculated by the following equation:

The experimental results show that the accuracy of the modified Coulomb counting method is superior to the conventional Coulomb counting method.

But there are several factors that affect the accuracy of Coulomb counting method including temperature, battery history, discharge current, and cycle life .

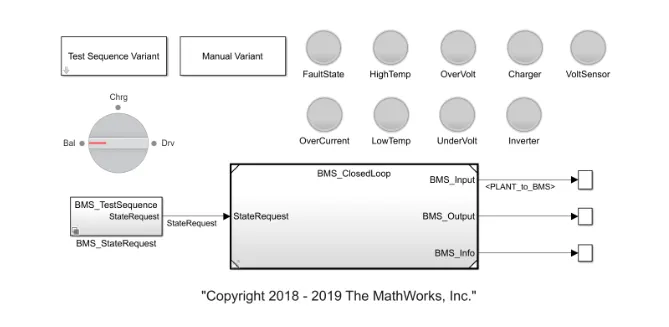

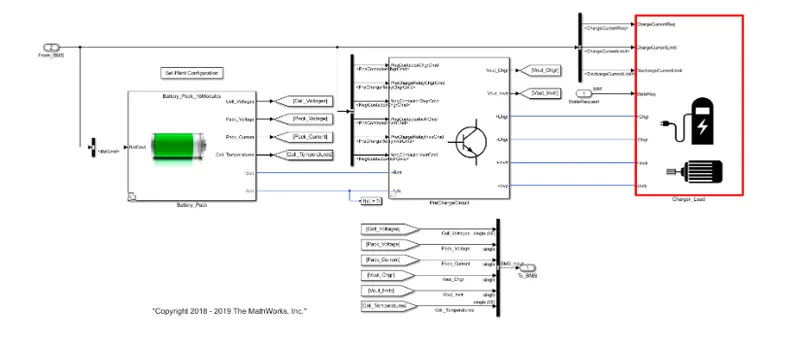

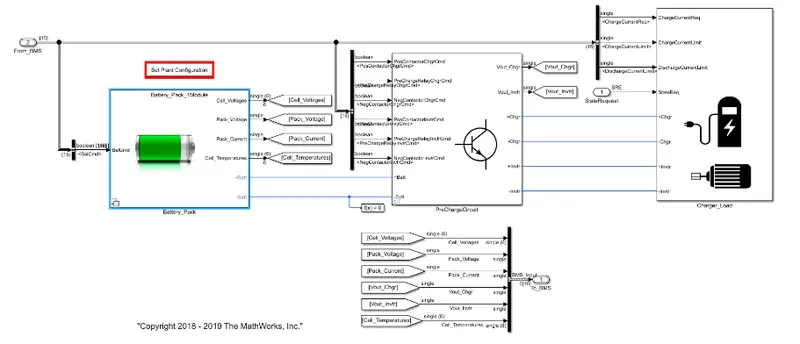

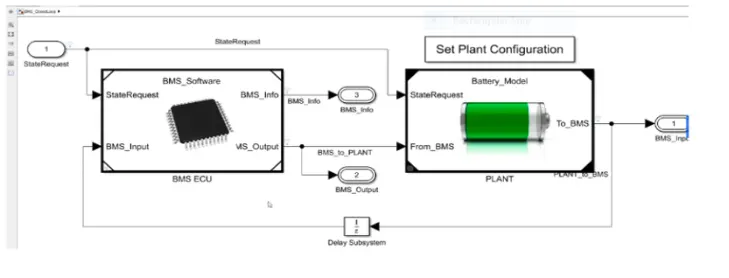

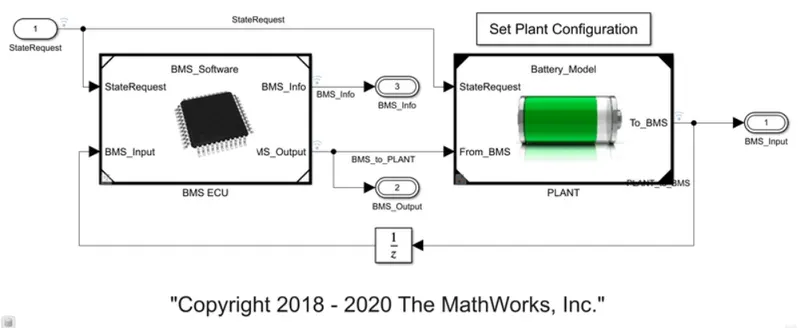

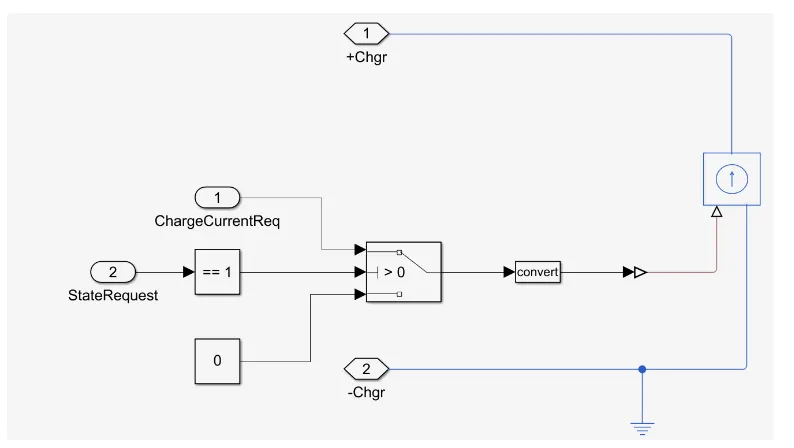

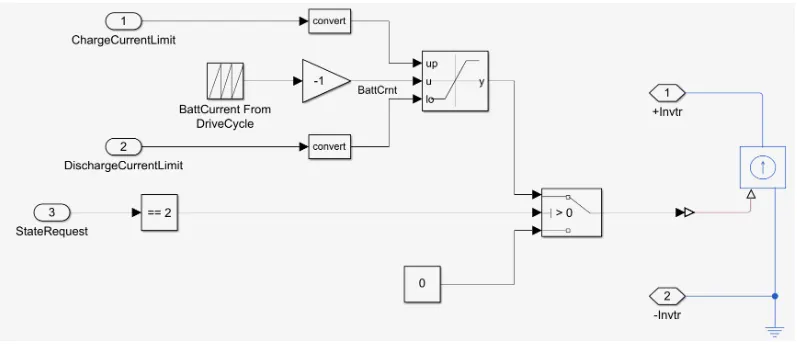

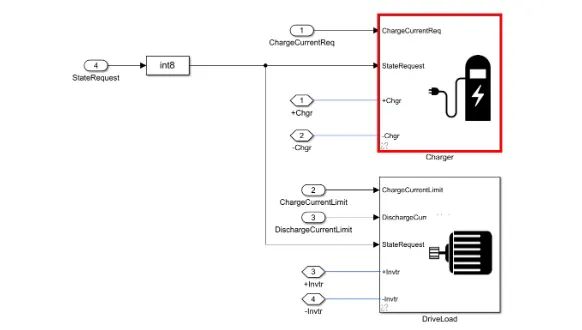

For example we can look into the project file we downloaded. A BMS system in the file is represented below.

BMS algorithm models , protects , reports the measurement from battery pack.

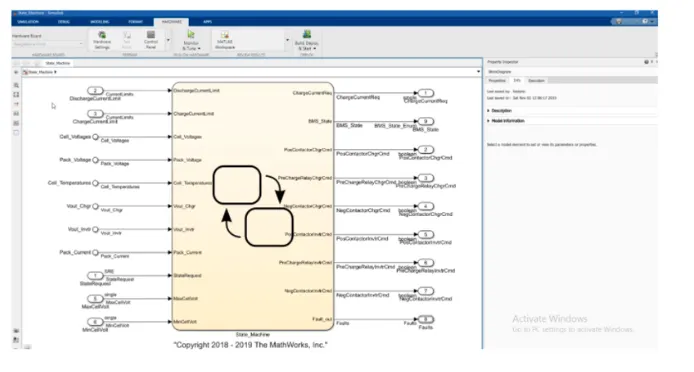

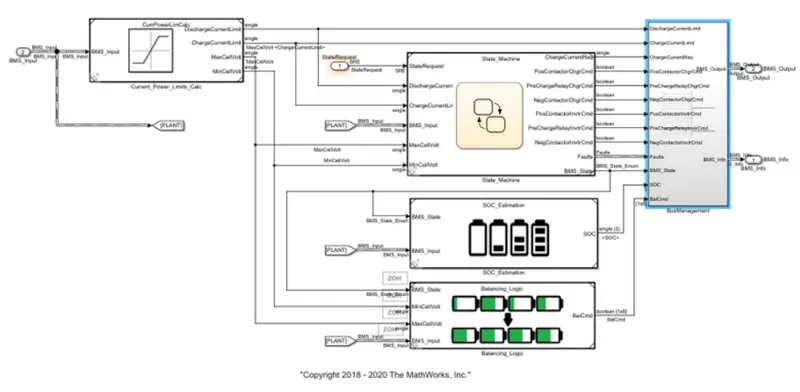

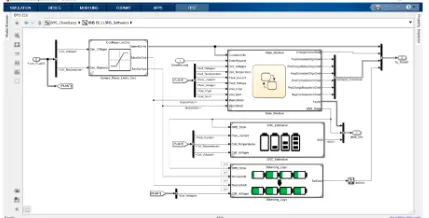

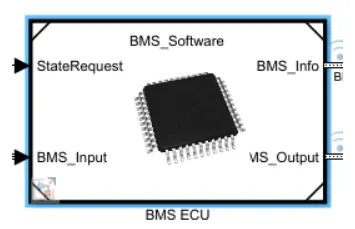

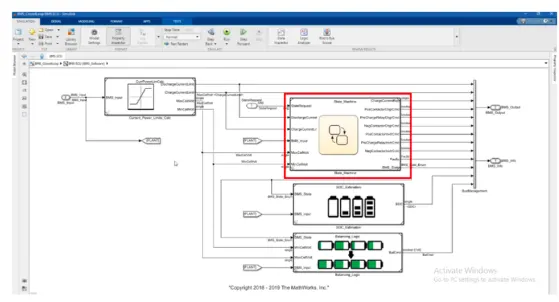

By Clicking on the BMS ECU we get the Subsystem

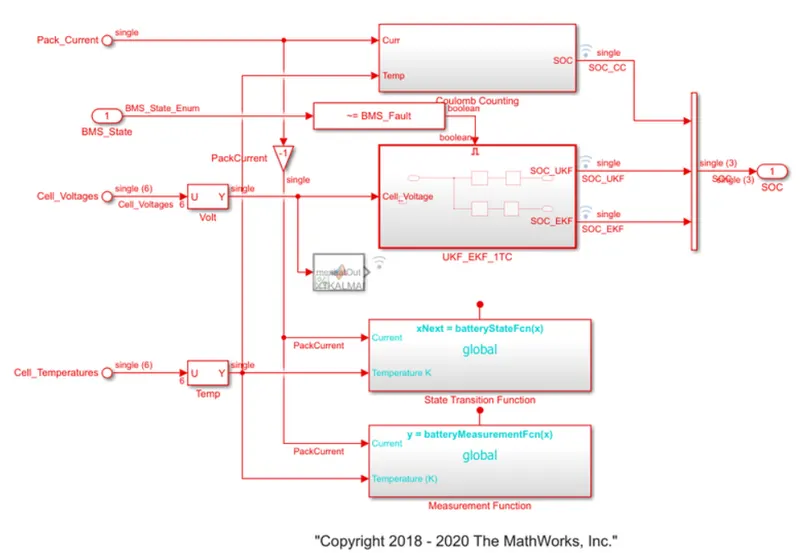

By clicking on the SOC estimation block we get

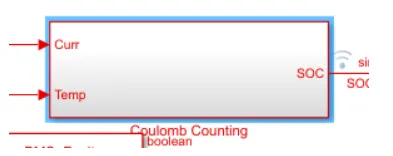

From above figure we observe the Coulomb Counting block.

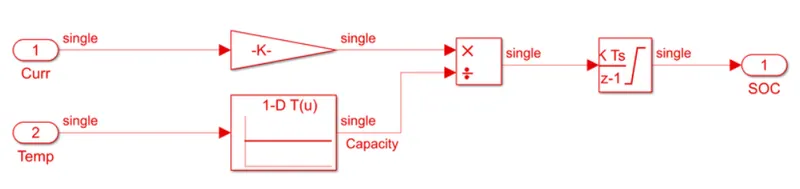

A subsystem opens when we click on the Coulomb Counting

• This system does the estimation by coulomb counting equation mentioned above.
• Advantage of coulomb counting method is its simplicity and low computational cost.
• Temperature and current from the battery is given as inputs.
• Current signal is given to a gain block and temperature is given to capacity since it varies according to temperature.
• These inputs are given for integration where current will be integrated with respect to time.
• This outout is given to another block where it is divided by capacity.
• Hence the SOC is estimated.
