Project - Position control of mass spring damper system

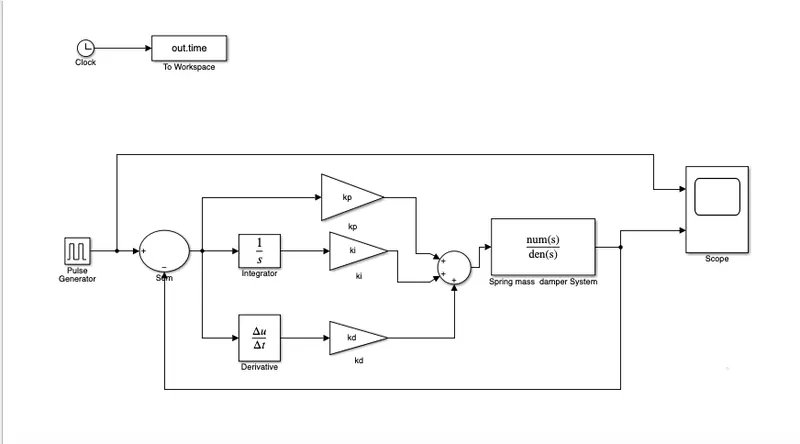

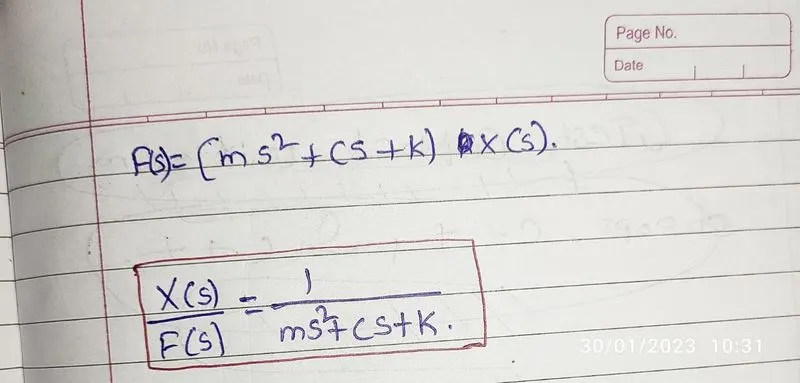

Obtain the transfer function of a mass spring damper system and use it in the model. Add a PID controller to adjust the force on mass so that its position follows a reference signal.

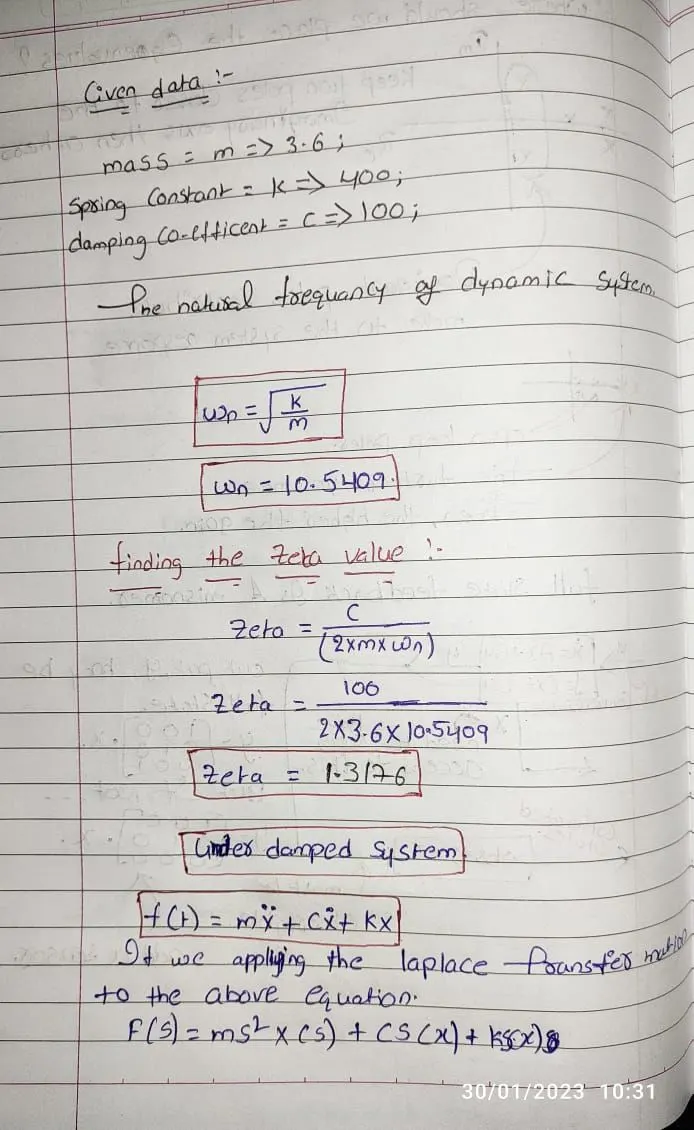

Take m = 3.6; %kg k = 400; %N/m c = 100; %Ns/m .

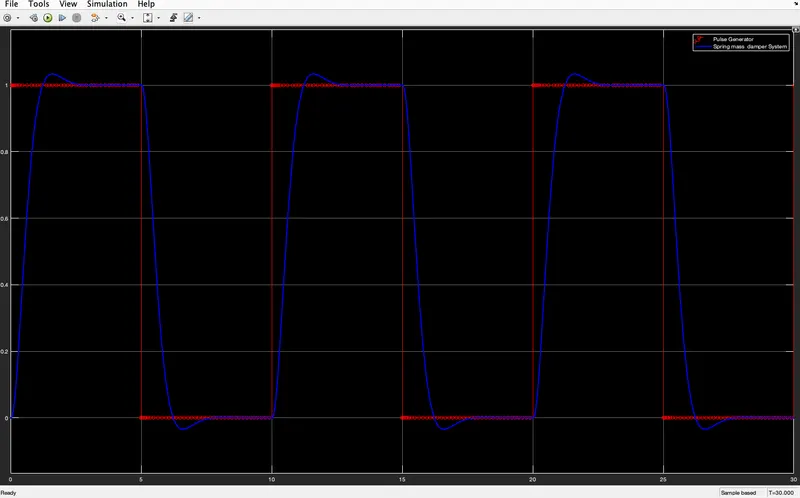

Lets go for the tracking...

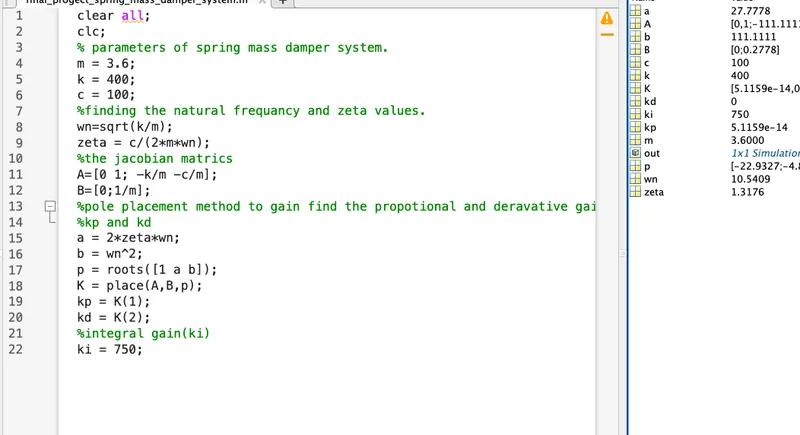

K = place(A,B,p)

we using of place commend we get kp and kd values.

here A ,B jacobian matrix(The Jacobian matrix is a matrix of partial derivatives that describes the rate of change of a vector-valued function with respect to its inputs.)

p = roots([1 a b])

a = 2*zeta*wn;

b = wn^2;

kp = K(1) = 5.115907697472721e-14 ;

kd = K(2) = 0 ;

Integral Gain ki : - Which represents the proportionality constant between the integral of the error signal and the control signal.

ki = 750;
