Week 7 - Simulation of a 1D Supersonic nozzle flow simulation using Macormack Method

• To simulate the isentropic flow through a Quasi 1D subsonic-supersonic nozzle.
• Derive both the conservation and non-conservation forms of the governing equations and solve them using MacCormack’s technique.
• To determine the steady-state temperature distribution for the flow-field variables and investigate the difference between the two forms of governing equations by comparing their solutions.
• To show the following plots inside the report
  • Stead-state distribution of primitive variables.
  • Time-wise variation of primitive variables.

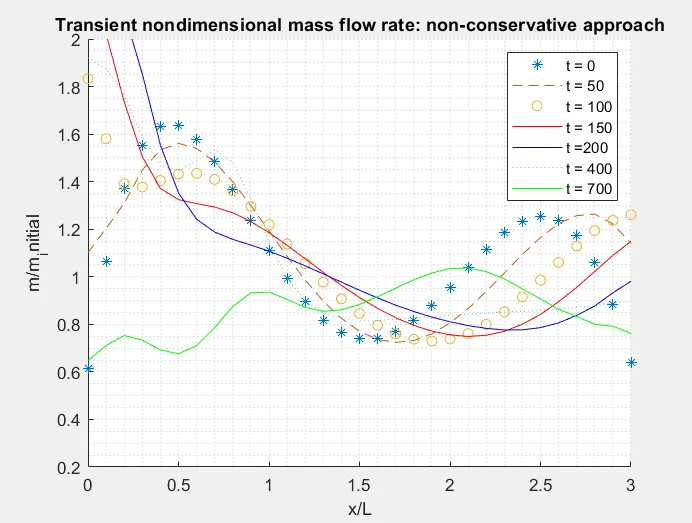

  • Variation of mass flow rate distribution inside the nozzle at different time steps during the time-marching process.
  • Comparison of normalized mass flow rate distributions of both forms.

Highlights:

• Perform a grid independence test on the solution and explain all your findings.
• The code must be modular. Write separate functions to solve both forms.
• Discuss all the plots that will be provided with observed inferences.

SOLUTION

Considerations

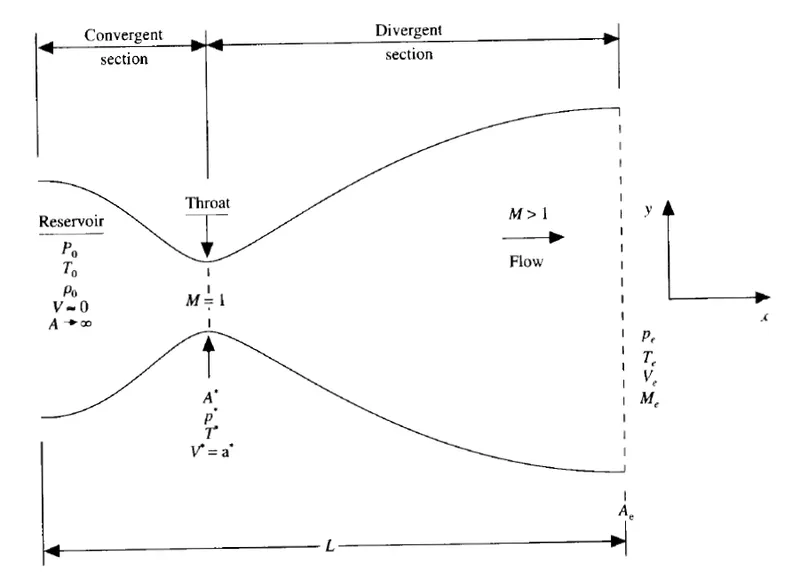

• Consider a steady, isentropic flow through the Convergent- Divergent nozzle as shown in the figure above.
• The flow at the inlet of the nozzle comes from a reservoir where pressure and temperature are denoted by P_o and T_o. These are stagnation values.
• At the throat, sonic values of pressure and temperature are denoted by P* and T* respectively.
• The area at the sonic throat is denoted as A*.
• In the subsonic inlet, it is assumed that the cross-sectional area of the reservoir is large so the velocity is considered very small.
• In the divergent nozzle, the flow expands isentropically to supersonic speed at the exit.
• At the supersonic outlet, the exit pressure, temperature, velocity, and Mach number are denoted by P_e, T_e, V_e, and M_e
• Force exerted on the gas to accelerate through the nozzle depends on the pressure ratio. Pressure ratio = P0/Pe

• It is assumed that the flow is Quasi 1D flow. This means that the flow properties will vary primarily along one direction i.e. x-direction only.

MacCormack Technique

It is an explicit finite difference technique which is second-order accurate in both space and time. The solution is obtained through three steps:

• Predictor Step

Forward differencing schemes are used for spatial derivatives, and calculate the solution gradient following which we obtain an intermediate solution (with initial conditions and calculated solution gradient)

• Corrector Step

Backward differencing schemes are used for spatial derivatives, and calculate the solution gradient following which we obtain a corrected solution (predicted values and solution gradient)

• Final Solution

The average for the two solution gradients (the predictor as well as corrector) is taken and from the initial state, the averaged solution gradient is added to obtain the final solution.

Setup

1. The governing equations are to be couched in terms of partial differential equations suitable for the time-marching solution of quasi-one-dimensional flow.
2. The finite-difference expressions pertaining to MacCormack’s technique as applied to be set up.
3. Other details for numerical solutions such as the calculation of the time step and the treatment of boundary conditions are to be formulated.

Conservation

Conservation form refers to an arrangement of an equation or system of equations, usually representing a hyperbolic system, which emphasizes that a property represented is conserved.

EULERIAN APPROACH →→ CONSERVATIVE FORM

The eulerian approach refers to a fixed coordinate system in space and time and the particles are studied with respect to this fixed system.

When the fundamental principles are derived using this approach we get a conservative form.

Non Conservation form

LAGRANGIAN APPROACH →→ NON-CONSERVATIVE FORM

In the Lagrangian approach, the fluid particles are followed as they travel through the flow. Fundamental principles derived from this approach non-conservation form of equations are obtained.

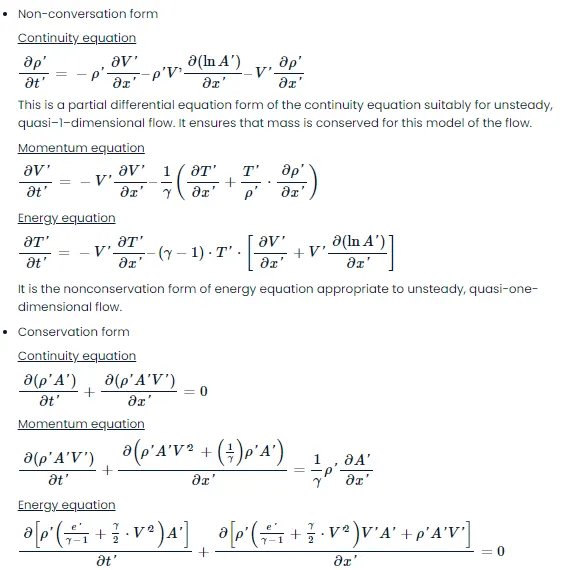

Governing flow equations

• Non-dimensional variables

For nozzle flows, the flow field variables are frequently expressed in terms of nondimensional variables. The non-dimensional variables vary between 0 and 1, which is an aesthetic advantage when presenting the results.

Non-dimensional temperature and density

Let L denote the length of the nozzle

Dimensionless length

Speed of sound in the reservoir a_o, where

Dimensionless velocity

Dimensionless time

Dimensionless area

Main code

clear all

close all

clc

% inputs

n= 31;

x = linspace(0,3,n);

dx = x(2)-x(1);

gamma = 1.4;

R = 287;

% calculate initial profiles

rho = 1-0.3146*x;

t = 1-0.2314*x; % t = temperature

v = (0.1+1.09*x).*t.^0.5;

% area

a = 1+2.2*(x-1.5).^2;

n_throat = find((a-1)<0.001);

type_of_solver = input('select the type of solver: n=1 for non-coservative and n=2 for conservative')

% non coservative form solver

if type_of_solver == 1

tic

[rho,t,v,m,M,p_throat,rho_throat,v_throat,t_throat,M_throat,e] = non_conservative_nozzle(n,x,dx,gamma,a,R,n_throat)

time_non_conservative = toc;

fprintf('Computational Time: Non-Conservative Approach = %f sec',toc)

fprintf('\n Number of Iterations required = %f', e);

% Transient properties at throat

figure(2)

% density ratio

subplot(4,1,1)

plot(rho_throat,'b')

title('Transient analysis of properties at throat')

legend('density ratio')

ylabel('rho/rho_initial')

axis([0 500 0.5 1])

grid minor

% temperature

subplot(4,1,2)

plot(t_throat,'m')

legend('Temperature')

axis([0 500 0.5 1])

grid minor

%pressure

subplot(p_throat,'g')

legend('Pressure')

ylabel('P/P_initial')

grid minor

% Mach number

subplot(4,1,4)

plot(m_throat,'r')

legend('Mach number')

ylabel('M/M_initial')

axis([0 500 0.5 1])

grid minor

xlabel('Number of Iterations')

% steady profiles

figure(3)

% density ratio

subplot(4,1,1)

plot(x,rho,'b')

title('steady state profiles of nozzle')

legend('density ratio')

ylabel('rho/rho_initial')

grid minor

% temperature

subplot(4,1,2)

plot(x,t,'m')

legend('Temperature')

ylabel('T/T_{o}')

grid minor

%pressure

subplot(4,1,3)

plot(x,p,'g')

legend('Pressure')

ylabel('P/P_initial')

axis([0 500 0.5 1])

grid minor

% Mach number

subplot(4,1,4)

plot(x,m,'r')

legend('Mach number')

ylabel('M/M_initial')

axis([0 500 0.5 1])

grid minor

xlabel('Space Domain')

% Conservative form solver

elseif type_of_solver == 2

tic

[rho_c,v_c,t_c,p_c,M_c,m_c,rho_throat_c,v_throat_c,t_throat_c,M_throat_c,p_throat_c] = conservative_nozzle(n,x,dx,a,gamma,n_throat,R)

time_conservative = toc;

fprintf('Computational Time: Conservative approach = %f sec', toc)

% transient properties at throat

figure(2)

% density ratio

subplot(4,1,1)

plot(rho_throat_c,'b')

title('Transient analysis of properties at throat')

legend('density ratio')

ylabel('rho/rho_initial')

axis([0 500 0.5 1])

grid minor

% temperature

subplot(4,1,2)

plot(t_throat_c,'m')

legend('Temperature')

axis([0 500 0.5 1])

grid minor

%pressure

subplot(p_throat_c,'g')

legend('Pressure')

ylabel('P/P_initial')

axis([0 500 0.5 1])

grid minor

% Mach number

subplot(4,1,4)

plot(m_throat_c,'r')

legend('Mach number')

ylabel('M/M_initial')

axis([0 500 0.5 1])

grid minor

xlabel('Number of Iterations')

% steady profiles

figure(3)

% density ratio

subplot(4,1,1)

plot(x,rho_c,'b')

title('steady state profiles of nozzle')

legend('density ratio')

ylabel('rho/rho_initial')

grid minor

% temperature

subplot(4,1,2)

plot(x,t_c,'m')

legend('Temperature')

ylabel('T/T_{o}')

grid minor

%pressure

subplot(4,1,3)

plot(x,p_c,'g')

legend('Pressure')

ylabel('P/P_initial')

axis([0 500 0.5 1])

grid minor

% Mach number

subplot(4,1,4)

plot(x,m_c,'r')

legend('Mach number')

ylabel('M/M_initial')

grid minor

xlabel('Space Domain')

end

Conservative form

function [rho_c,v_c,t_c,p_c,M_c,m_c,rho_throat_c,v_throat_c,t_throat_c,M_throat_c,p_throat_c] = conservative_nozzle(n,x,dx,a,gamma,n_throat,R)

nt = 500;

C = 0.5;

% intial values

for i = 1: length(x)

if x(i) >= 0 && x(i) < 0.5

rho_c(i) = 1;

t_c(i) = 1;

elseif x(i) >= 0.5 && x(i) < 1.5

rho_c(i) = 1 - 0.366*(x(i) - 0.5);

t_c(i) = 1 - 0.167*(x(i) - 0.5);

elseif x(i) >= 1.5 && x(i) <= 3

rho_c(i) = 0.634 - 0.3879*(x(i) - 1.5);

t_c(i) = 0.833 - 0.3507*(x(i) - 1.5);

end

end

v_c = (0.59)./(rho_c.*a);

rho_old_c = rho_c;

v_old_c = v_c;

t_old_c = t_c;

% time marching solution

U1 = rho_c.*a;

U2 = rho_c.*a.*v_c;

U3 = rho_c.*a.*((t_c./gamma - 1)) + ((gamma/2).*v_c.^2);

% time loop

for k = 1:nt

U1_old = U1;

U2_old = U2;

U3_old = U3;

% time step

a_c = sqrt(gamma.*R.*t_c);

% courant time step

TS = C*dx./(a_c + v_c);

dt = 0.001;

% flux vectors

F1 = U2;

F2 = (U2.^2./U1) + ((gamma-1)/gamma)*(U3-(gamma*U2.^2)./(2.*U1));

F3 = (gamma*U2.*U3./U1) - ((gamma*(gamma-1)/2)*(U2.^3./U1.^2));

% predictor step

for j = 2:n-1

J(j) = (1/gamma).*rho_c(j).*t_c(j).*((a(j+1)-a(j))/dx);

% continuity equation

dU1dt_c_p(j) = -(F1(j+1)-F1(j))/dx;

% momentum equation

dU2dt_c_p(j) = (-(F2(j+1)-F2(j))/dx) + J(j);

% energy equation

dU3dt_c_p(j) = -(F3(j+1)-F3(j))/dx;

% predictor step solution update

U1(j) = U1(j) + (dU1dt_c_p(j)*dt);

U2(j) = U2(j) + (dU2dt_c_p(j)*dt);

U3(j) = U3(j) + (dU3dt_c_p(j)*dt);

end

% presicted value of properties (variables) of interest and flux

rho_c = U1./a;

v_c = U2./U1;

t_c = (gamma-1)*((U3./U1)-((gamma/2)*(U2./U1).^2));

p_c = rho_c.*t_c;

F1 = U2;

F2 = (U2.^2./U1) + (((gamma-1)/gamma)*(U3 - (((gamma/2)*U2.^2)./U1)));

F3 = (gamma*U2.*U3./U1) - ((gamma*(gamma-1)/2)*(U2.^3./U1.^2));

% corrector step

for j = 2:n-1

J(j) = (1/gamma).*rho_c(j).*t_c(j).*((a(j)-a(j-1))/dx);

% continuity equation

dU1dt_c_c(j) = -(F1(j)-F1(j-1))/dx;

% momentum equation

dU2dt_c_c(j) = (-(F2(j)-F2(j-1))/dx) + J(j);

% energy equation

dU3dt_c_c(j) = -(F3(j)-F3(j-1))/dx;

end

% average time derivative

dU1dt_c_avg = 0.5*(dU1dt_c_p + dU1dt_c_c);

dU2dt_c_avg = 0.5*(dU2dt_c_p + dU2dt_c_c);

dU3dt_c_avg = 0.5*(dU3dt_c_p + dU3dt_c_c);

% final solution update

for i = 2:n-1

U1(i) = U1_old(i) + (dU1dt_c_avg(i)*dt);

U2(i) = U2_old(i) + (dU2dt_c_avg(i)*dt);

U3(i) = U3_old(i) + (dU3dt_c_avg(i)*dt);

end

% boundary conditions

% inlet

rho_c(1) = 1;

t_c(1) = 1;

U1(1) = rho_c(1)*a(1);

U2(1) = 2*U2(2)-U2(3);

U3(1) = U1(1)*(t_c(1)/(gamma-1)+(gamma/2)*v_c(1).^2);

% outlet

U1(n) = 2*U1(n-1) - U1(n-2);

U2(n) = 2*U2(n-1) - U2(n-2);

U3(n) = 2*U3(n-1) - U3(n-2);

% calculation of properties (variables) of interest

rho_c = U1./a;

v_c = U2./U1;

t_c = (gamma-1)*(U3./U1-(gamma/2)*v_c.^2);

p_c = rho_c.*t_c;

% calculation of remaining important properties

%mach number

M_c = v_c./sqrt(t_c.*gamma.*R);

% mass flow

m_c = rho_c.*a.*v_c;

% throat values

rho_throat_c(k) = rho_c(n_throat);

t_throat_c(k) = t_c(n_throat);

M_throat_c(k) = M_c(n_throat);

v_throat_c(k) = v_c(n_throat);

p_throat_c(k) = p_c(n_throat);

% capturing change in mass-flow before steady state is reached

figure(1);

hold on;

if k == 1

plot(x,m_c,'*');

elseif k ==50

plot(x,m_c,'--');

elseif k == 100

plot(x,m_c,'o');

elseif k == 150

plot(x,m_c,'r');

elseif k == 200

plot(x,m_c,'b');

elseif k == 400

plot(x,m_c,':');

elseif k == 700

plot(x,m_c,'g');

end

end

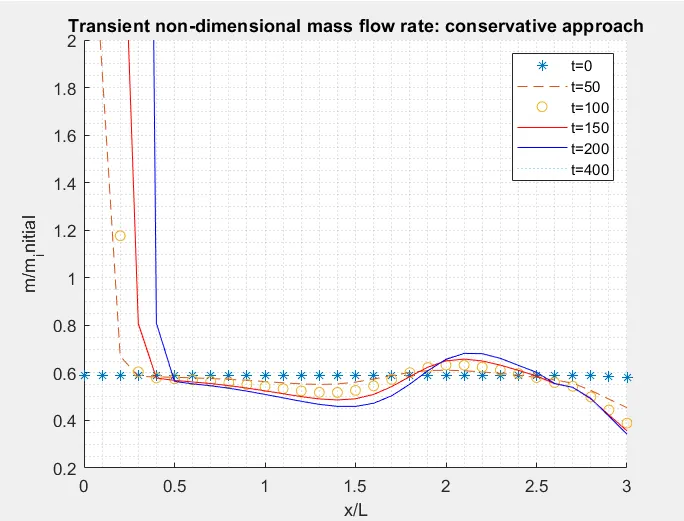

title('Transient non-dimensional mass flow rate: conservative approach')

xlabel('x/L');

ylabel('m/m_initial')

legend('t=0','t=50','t=100','t=150','t=200','t=400','t=700')

axis([0 x(n) 0.2 2]);

grid minor;

end

non conservative form

function [rho,t,v,m,M,p_throat,rho_throat,v_throat,t_throat,M_throat,e] = non_conservative_nozzle(n,x,dx,gamma,a,R,n_throat)

% Initial Profiles

% Density,Temperature,Velocity

rho = 1 - 0.3146*x;

t = 1 - 0.2314*x;

v = (0.1 + 1.09*x).*t.^0.5;

m = rho.*a.*v;

s = sqrt(rho.*R.*t)

% courant number limiting value

C = 0.5;

nt = 500;

% error

error = 9e9;

tol = 1e-4;

e = 0

while error > tol

e = e + 1;

rho_old = rho;

v_old = v;

t_old = t;

m_old = rho_old.*a.*v_old;

s_old = sqrt(t_old.*R.*gamma)

% time step

dt = min(C*dx./(s_old + v_old));

% Predictor method

for j =2:n-1

drhodx = (rho(j+1)-rho(j))/dx;

dvdx = (v(j+1)-v(j))/dx;

dtdx = (t(j+1)-t(j))/dx;

dlogadx = (log(a(j+1))-log(a(j)))/dx;

% continuty equation

drhodt_p(j) = -rho(j)*dvdx - rho(j)*v(j)*dlogadx - v(j)*drhodx;

% momentum equation

dvdt_p(j) = -v(j)*dvdx - (1/gamma)*(dtdx +(t(j)/rho(j))*drhodx);

% energy equation

dtdt_p(j) = -v(j)*dtdx - (gamma-1)*t(j)*(dvdx + v(j)*dlogadx);

% solution update

rho(j) = rho(j) + drhodt_p(j)*dt;

v(j) = v(j) + dvdt_p(j)*dt;

t(j) = t(j) + dtdt_p(j)*dt;

end

% corrector method

for j =2:n-1

drhodx = (rho(j)-rho(j-1))/dx;

dvdx = (v(j)-v(j-1))/dx;

dtdx = (t(j)-t(j-1))/dx;

dlogadx = (log(a(j))-log(a(j-1)))/dx;

% continuty equation

drhodt_c(j) = -rho(j)*dvdx - rho(j)*v(j)*dlogadx - v(j)*drhodx;

% momentum equation

dvdt_c(j) = -v(j)*dvdx - (1/gamma)*(dtdx +(t(j)/rho(j))*drhodx);

% energy equation

dtdt_c(j) = -v(j)*dtdx - (gamma-1)*t(j)*(dvdx + v(j)*dlogadx);

end

% compute the average time derivative

drhodt = 0.5*(drhodt_p + drhodt_c);

dvdt = 0.5*(dvdt_p + dvdt_c);

dtdt = 0.5*(dtdt_p + dtdt_c);

% final solution update

for i = 2:n-1

rho(i) = rho_old(i) + drhodt(i)*dt;

v(i) = v_old(i) + dvdt(i)*dt;

t(i) = t_old(i) + dtdt(i)*dt;

end

% Boundary conditions

% inlet

v(1) = 2*v(2) - v(3);

% outlet

rho(n) = 2*rho(n-1) - rho(n-2);

t(n) = 2*t(n-1) - t(n-2);

v(n) = 2*v(n-1) - v(n-2);

% Parameters

% Mach number

M = v./s;

% Mass flow rate

m = rho.*a.*v;

% Pressure

p = rho.*t

% throat values

rho_throat(e) = rho(n_throat)

t_throat(e) = t(n_throat);

M_throat(e) = M(n_throat);

v_throat(e) = v(n_throat);

p_throat(e) = p(n_throat);

% time-loop error criteria for convergence

% mass-flow is used as the com[aring criteria, when mass-flow becomes

% constant, it can be said that solution has converged

error = max(abs(m - m_old));

% capturing change in mass-flow before steady state is reached

figure(1);

hold on;

if e == 1

plot (x,m,'*');

elseif e == 50

plot(x,m,'--');

elseif e == 100

plot(x,m,'o');

elseif e == 150

plot(x,m,'r');

elseif e == 200

plot(x,m,'b');

elseif e == 400

plot(x,m,':');

elseif e == 700

plot(x,m,'g');

end

end

title('Transient nondimensional mass flow rate: non-conservative approach')

xlabel('x/L')

ylabel('m/m_initial')

legend('t = 0','t = 50','t = 100','t = 150','t =200','t = 400','t = 700')

axis([0 x(n) 0.2 2]);

grid minor;

end
