Week 7 - Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

Aim : Simulation of a 1D Super-sonic nozzle flow using Macormack Method for conservative form as well as for non-conservative form.

Objectives :

• To simulate the isentropic flow through a quasi 1D subsonic-supersonic nozzle.
• To derive the conservation and non-conservation forms of the governing equations and sovle them using the MacCormack's technique.
• To plot the distribution of primitive variables, mass flow rate through the nozzle and time-wise variations of primitive variables at throat for both of the forms.
• To investigate the difference between the two forms of governing equations by comparing their solutions.

Assumption : Flow property varies only in x-direction and keeping y-direction as a constant.

Theory :

The main aim of this project is to solve 1D Super-sonic nozzle flow using numerical method.The numerical method which is used is Macormack Method which is an explicit finite difference technique which provide second order accuracy solution.

Now,in order to get simulation of 1D supersonic nozzle flow,we will be solving two forms of equation which as follows by using Macormack method :

• Conservation form
• Non-conservation form

Subsonic-supersonic nozzle

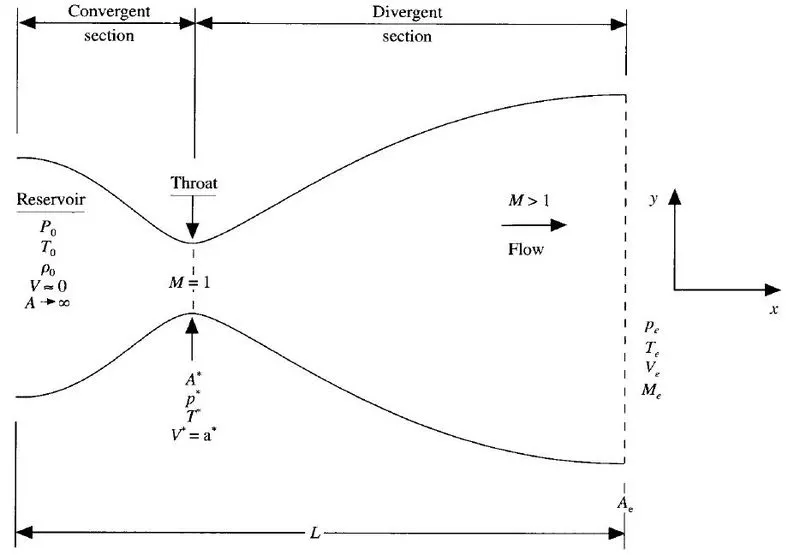

Source : Computational fluid dynamics, The basics with applications, J.D Anderson (Book pg. no 285)

The subsonic-supersonic nozzle of length L consists of two sections namely convergent and divergent sections seperated by a throat region.

Setup

• The governing equations will be expressed in terms of PDE suitable for time marching solution of quasi 1D flow.
• The finite difference expressions pertaining to MacCormack's technique will be set up.
• Calcuation of time steps and treatment of initial and boundary conditions will be formulated.

For fluid flow through nozzle, the flow field variables are expressed in non dimensional form. By doing so, the numerical values of these variables becomes easier to present and compare the results.

Non-Conservation form :

Non-Conservation form refers to an arrangement of an equation or system of equations, usually representing a hyperbolic, that emphasizes that a property represented is non-conserved.

Governing equation for Non-Conservation form :

Continuity equation :

`(delrho')/(delt')=-rho'(delV')/(delx')-rho'V'(del(lnA)')/(delx')-V'(delrho')/(delx')`

Momentum equation :

`(delV')/(delt')=-V'(delV')/(delx')-1/gamma((delT')/(delx')+(T')/(rho')(delrho')/(delx'))`

Energy equation :

`(delT')/(delt')=-V(delT')/(delx')-(gamma-1)T'[(delV')/(delx')+V'(del(lnA'))/(delx')]`

MATLAB CODE :

Above govering equation is solve by using Macormack method in matlab by following below steps and then this code is called in the main code.

Mesh Formation : In this steps the mesh is generated by forming grids along x-direction of nozzle as shown in the figure

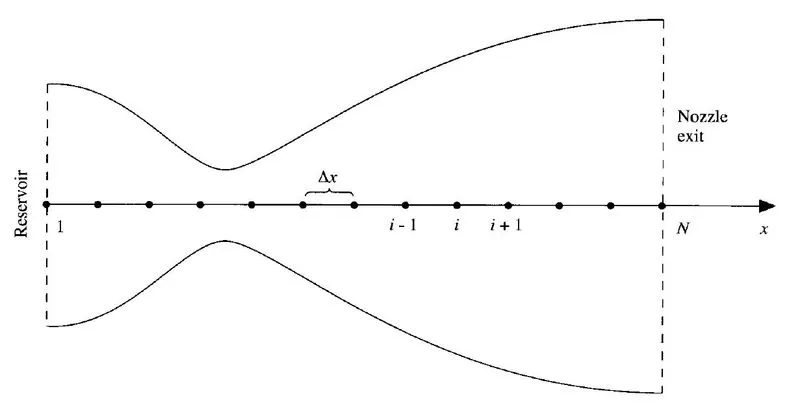

Grid point distribution along the nozzle

Source : Computational fluid dynamics, The basics with applications, J.D Anderson (Book pg. no 299)

Initial profile : In this step we assign initial profile for different parameters

• `rho=1-0.3146*x`
• `v=(0.1+1.09*x)*t^0.5`
• `a=1+2.2*(x-1.5)^2`
• `t=1-0.2314*x`

Discretization : The process of converting PDE equation into algebric equation is bascially descretization.Now,here in this step we will use Mccormack method to solve it.

Macormack method : This method consist of six steps which explain below

• Predicator step:-In this step we discretize the above govering equation by applying first order forward differencing scheme to R.HS.
• Solution update:-In this step we update the solution which got from predictorstep.
• Corrector step:-In this step we discretize the above govering equation by applying first order backward differencing scheme to R.HS.
• Average time step:-In this step we average the solution which we got from predicator step & corrector step.
• Final solution update:- In this,step we get required solution

Boundary conditions :

Inlet:-

v(1)=2*v(2)-v(3);
t(1)=2*t(2)-t(3);
ρ(1)=2*ρ(2)-ρ(3);

Outlet:-

v(n)=2*v(n-1)-v(n-2);
t(n)=2*t(n-1)-t(n-2);
ρ(n)=2*ρ(n-1)-ρ(n-2);

Function Code :

function [t,rho,p,v,mach_no,mass_flow_rate,rho_throat,v_throat,p_throat,t_throat,mach_throat]=non_conservative_form(n,x,dx)

%Initial profiles
rho=1-0.3146*x;
t=1-0.2314*x;
v=(0.1+1.09*x).*(t).^0.5;

gamma=1.4;

%area
a=1+2.2*(x-1.5).^2;

%time steps
nt=1400;

dt=min(0.5*dx./(v+sqrt(t)));

 %Outer time step
 for k=1:nt

    % Copy of variables
    rho_old=rho;
    v_old=v;
    t_old=t;

    %Predictor method
    for j=2:n-1
        dvdx=(v(j+1)-v(j))/dx;
        drhodx=(rho(j+1)-rho(j))/dx;
        dtdx=(t(j+1)-t(j))/dx;
        dlogadx=(log(a(j+1))-log(a(j)))/dx;

        %Contuinity equation
        drhodt_p(j)=-rho(j)*dvdx-rho(j)*v(j)*dlogadx-v(j)*drhodx;

        %Momentum equation
        dvdt_p(j)=-v(j)*dvdx-(1/gamma)*(dtdx+(t(j)/rho(j))*drhodx);

        %Energy equation
        dtdt_p(j)=-v(j)*dtdx-(gamma-1)*t(j)*((dvdx+v(j)*dlogadx));

        %Solution update
        rho(j)=rho(j)+drhodt_p(j)*dt;
        v(j)=v(j)+dvdt_p(j)*dt;
        t(j)=t(j)+dtdt_p(j)*dt;
    end

    %Corrector method
    for j=2:n-1
        dvdx=(v(j)-v(j-1))/dx;
        drhodx=(rho(j)-rho(j-1))/dx;
        dtdx=(t(j)-t(j-1))/dx;
        dlogadx=(log(a(j))-log(a(j-1)))/dx;

        %Contuinity equation
        drhodt_c(j)=-rho(j)*dvdx-rho(j)*v(j)*dlogadx-v(j)*drhodx;

        %Momentum equation
        dvdt_c(j)=-v(j)*dvdx-(1/gamma)*(dtdx+(t(j)/rho(j))*drhodx);

        %Energy equation
        dtdt_c(j)=-v(j)*dtdx-(gamma-1)*t(j)*((dvdx+v(j)*dlogadx));
    end
        %Average time derivative
        drhodt=0.5*(drhodt_p+drhodt_c);
        dvdt=0.5*(dvdt_p+dvdt_c);
        dtdt=0.5*(dtdt_p+dtdt_c);

        % Final Solution update
        for i=2:n-1
        rho(i)=rho_old(i)+drhodt(i)*dt;
        v(i)=v_old(i)+dvdt(i)*dt;
        t(i)=t_old(i)+dtdt(i)*dt;
        end

        %Boundary conditions
        %Inlet
        v(1)=2*v(2)-v(3);

        %Outlet
        v(n)=2*v(n-1)-v(n-2);
        rho(n)=2*rho(n-1)-rho(n-2);
        t(n)=2*t(n-1)-t(n-2);

        %Calculation of pressure, mach number and mass flow rate
        p=rho.*t;
        mach_no=v./sqrt(t);
        mass_flow_rate=rho.*a.*v;

        %Calculation of pressure, mach number and mass flow rate at throat

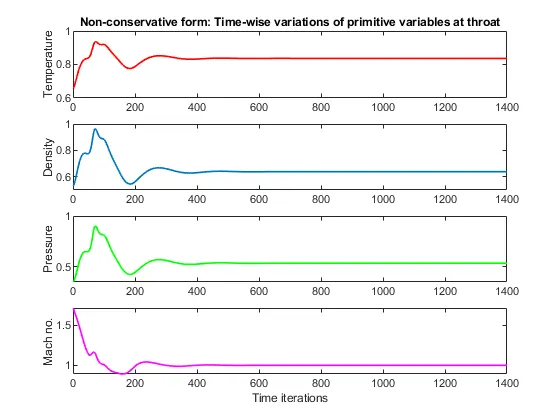

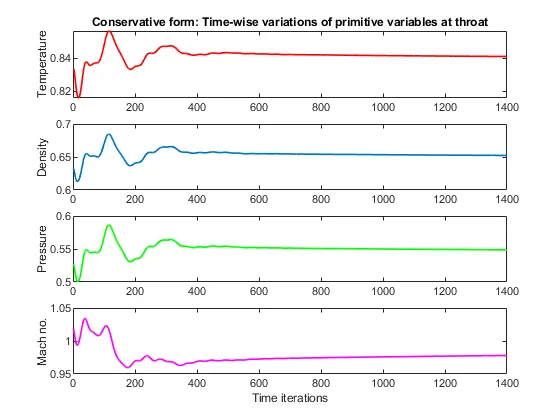

        p_throat(k) = p(16);
        v_throat(k) = v(16);
        mach_throat(k) = mach_no(16);
        t_throat(k) = t(16);
        rho_throat(k) = rho(16);

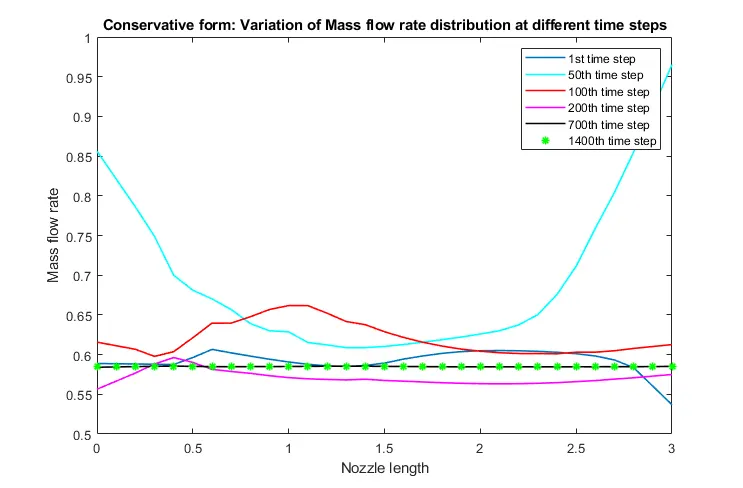

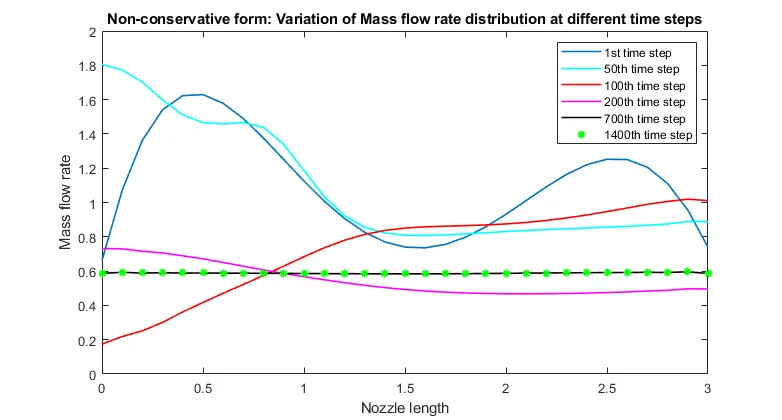

        %Variation of Mass flow rate distribution inside the nozzle at different time steps
        figure(2)
        if k==1
            plot(x,mass_flow_rate,'linewidth',1.2)
            hold on
        elseif k==50
            plot(x,mass_flow_rate,'cyan','linewidth',1.2)
            hold on
        elseif k==100
            plot(x,mass_flow_rate,'r','linewidth',1.2)
            hold on
        elseif k==200
            plot(x,mass_flow_rate,'m','linewidth',1.2)
            hold on
        elseif k==700
            plot(x,mass_flow_rate,'k','linewidth',1.2)
            hold on
        elseif k==1400
            plot(x,mass_flow_rate,'*g','linewidth',1.2)
            hold on
        end

 end
end

Conservation form :

Conservation form refers to an arrangement of an equation or system of equations, usually representing a hyperbolic, that emphasizes that a property represented is conserved.

Governing equation for Conservation form :

Continuity equation :

`(delU_1)/(delt')=-(delF_1)/(delx')`

Momentum equation :

`(delU_2)/(delt')=-(delF_2)/(delx')+J_2`

Energy equation :

`(delU_3)/(delt')=-(delF_3)/(delx')`

Where,

Flux term :

`F_1=rho'A'V'`

`F_2=rho'A'V'^2+1/gamma*p'A'`

`F_3=rho'((T')/(gamma-1)+gamma/2*V'^2)V'A'+p'A'V'`

Solution vector :

`U_1 =rho'A'`

`U_2=rho'A'V'`

`U_3=rho'((T')/(gamma-1)+gamma/2*V'^2)A'`

Source term :

`J_2 = 1/gamma*rho'T'*(delA')/(delx')`

MATLAB CODE :

Above govering equation is solve by using Macormack method in matlab by following below steps and then this code is called in the main code.

Mesh Formation : In this steps the mesh is generated by forming grids along x-direction of nozzle as shown in the figure

Grid point distribution along the nozzle

Source : Computational fluid dynamics, The basics with applications, J.D Anderson (Book pg. no 299)

Calculation of Timesteps :

`Deltat_i=C*(Deltax)/(a_i+V_i)`

Local speed of sound, `a = sqrtT`

Courant number, `C = 0.5`

`Deltat = min(Deltat_1 ,Deltat_2,....,Deltat_n)`

Initial profile : In this step we assign initial profile for different parameters

Discretization : The process of converting PDE equation into algebric equation is bascially descretization.Now,here in this step we will use Mccormack method to solve it.

Macormack method : This method consist of six steps which explain below

• Predicator step:-In this step we discretize the above govering equation by applying first order forward differencing scheme to R.HS.
• Solution update:-In this step we update the solution which got from predictorstep.
• Calculating Primitive variable:-The solution which we got from above step is for source term,solution vector & flux term so,in this step we calculate useful parameters.
• Corrector step:-In this step we discretize the above govering equation by applying first order backward differencing scheme to R.HS.
• Average time step:-In this step we average the solution which we got from predicator step & corrector step.
• Final solution update:- In this,step we get required solution

Boundary conditions :

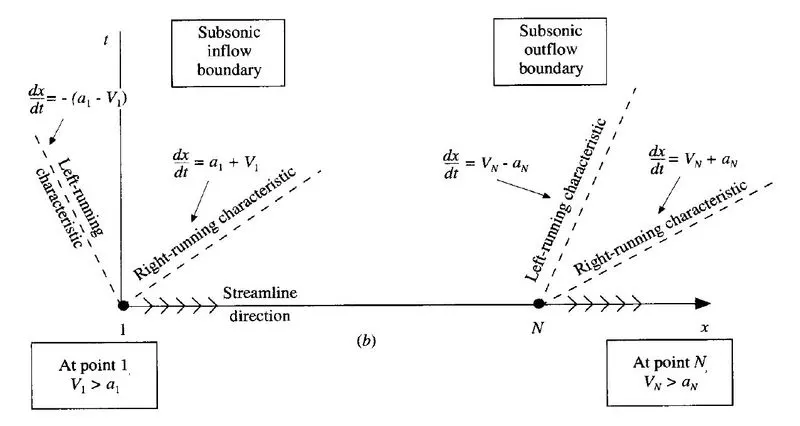

Study of boundary conditions : Subsonic inflow and supersonic outflow

Source : Computational fluid dynamics, The basics with applications, J.D Anderson (Book pg. no 304)

Flow is unsteady, inviscid which is governed by hyperbolic equations. For 1D unsteady flow, there exists 2 real characteristic lines for a point in a plane.

Boundary condition is provided at the domain of dependence.

• If characteristic lines flow from left to right, Dirichlet boundary condition is provided which helps to calculate values in domain of influence. Boundary conditions need to be specified.
• If characteristic lines flow from right to left, Neumann boundary condition is provided which helps to calculate values at the boundary by using values at the inner nodes. Boundary conditions need to be floated.

The appropriate initial and boundary conditions for both non-conservative and conservative forms are taken from the Computational fluid dynamics, The basics with applications, J.D Anderson, textbook.

Inlet:-

u1(1)=ρ(1)*a(1);
u2(1)=2*u2(2)-u2(3);
u3(1)=u1(1)*((t(1)/(γ-1))+((γ/2)*v(1)^2));
v(1)=u2(1)/u1(1);

Outlet:-

u1(n)=2*u1(n-1)-u1(n-2);
u2(n)=2*u2(n-1)-u2(n-2);
u3(n)=2*u3(n-1)-u3(n-2);

Some important formulae :

Nozzle area , `A =1+2.2(x-1.5)^2` where `0<=x<=3`

Pressure , `p =rho*T`

Mach number`= V/sqrtT`

Mass flow rate`=rho*A*V`

Function code :

function[t_c,rho_c,p_c,v_c,mach_no_c,mass_flow_rate_c,rho_throat_c,v_throat_c,p_throat_c,t_throat_c,mach_throat_c,dt]=conservative_form(n,x,dx)

% Initial profiles
 for i=1:n
  if (0<=x(i) && x(i)<=0.5)
    rho_c(i)=1;
    t_c(i)=1;
  elseif (0.5<=x(i) && x(i)<=1.5)
    rho_c(i)=1-0.366*(x(i)-0.5);
    t_c(i)=1-0.167*(x(i)-0.5);
  elseif (1.5<=x(i) && x(i)<=3.5)
    rho_c(i)=0.634-0.3879*(x(i)-1.5);
    t_c(i)=0.833-0.3507*(x(i)-1.5);
  end
 end

%area
a=1+2.2*(x-1.5).^2;
gamma=1.4;

v_c=0.59./(rho_c.*a);

% Solutions vectors
u1=rho_c.*a;
u2=rho_c.*a.*v_c;
u3=rho_c.*(t_c/(gamma-1)+(gamma/2)*v_c.^2).*a;

%time steps
nt=1400;
dt=min(0.5*dx./(v_c+sqrt(t_c)));

 %Outer time step
 for k=1:nt

    % Copy of values of u1,u2,u3
    u1_old=u1;
    u2_old=u2;
    u3_old=u3;

    %Flux vectors
    f1=u2;
    f2=(u2).^2./u1+((gamma-1)/gamma)*(u3-(gamma/2)*((u2).^2./u1));
    f3=(gamma*u2.*u3)./u1-((gamma*(gamma-1)))/2*((u2).^3./(u1).^2);

    %Predictor method
    for j=2:n-1

        j2=(1/gamma)*rho_c(j)*t_c(j)*((a(j+1)-a(j))/dx);

        %Contuinity equation
        du1dt_p(j)=-(f1(j+1)-f1(j))/dx;

        %Momentum equation
        du2dt_p(j)=(-(f2(j+1)-f2(j))/dx)+j2;

        %Energy equation
        du3dt_p(j)=-(f3(j+1)-f3(j))/dx;

        %Solution update
        u1(j)=u1(j)+du1dt_p(j)*dt;
        u2(j)=u2(j)+du2dt_p(j)*dt;
        u3(j)=u3(j)+du3dt_p(j)*dt;

    end

    %Updating primitive variables
    rho_c=u1./a;
    t_c=(gamma-1)*((u3)./(u1)-(gamma/2)*((u2)./(u1)).^2);

    %Updating Flux vectors
    f1=u2;
    f2=(u2).^2./u1+((gamma-1)/gamma)*(u3-(gamma/2)*((u2).^2./u1));
    f3=(gamma*u2.*u3)./u1-(gamma*(gamma-1))/2*((u2).^3./(u1).^2);

    %Corrector method
    for j=2:n-1

        j2=(1/gamma)*rho_c(j)*t_c(j)*((a(j)-a(j-1))/dx);

        %Contuinity equation
        du1dt_c(j)=-(f1(j)-f1(j-1))/dx;

        %Momentum equation
        du2dt_c(j)=-((f2(j)-f2(j-1))/dx)+j2;

        %Energy equation
        du3dt_c(j)=-(f3(j)-f3(j-1))/dx;
    end

        %Average time derivative
        du1dt=0.5*(du1dt_p+du1dt_c);
        du2dt=0.5*(du2dt_p+du2dt_c);
        du3dt=0.5*(du3dt_p+du3dt_c);

        % Final Solution update
        for m=2:n-1
        u1(m)=u1_old(m)+du1dt(m)*dt;
        u2(m)=u2_old(m)+du2dt(m)*dt;
        u3(m)=u3_old(m)+du3dt(m)*dt;
        end

        %Boundary conditions
        %Inlet
        u1(1)=a(1);
        u2(1)=2*u2(2)-u2(3);
        u3(1)=u1(1)*(t_c(1)/(gamma-1)+(gamma/2)*(v_c(1))^2);

        %Outlet
        u1(n)=2*u1(n-1)-u1(n-2);
        u2(n)=2*u2(n-1)-u2(n-2);
        u3(n)=2*u3(n-1)-u3(n-2);

        % Final update of primitive variables
        rho_c=u1./a;
        t_c=(gamma-1)*((u3)./(u1)-(gamma/2)*((u2)./(u1)).^2);
        v_c=(u2)./(u1);

        %Calculation of pressure, mach number and mass flow rate
        p_c=rho_c.*t_c;
        mach_no_c=v_c./sqrt(t_c);
        mass_flow_rate_c=rho_c.*a.*v_c;

        %Calculation of pressure, mach number and mass flow rate at throat
        p_throat_c(k) = p_c(16);
        v_throat_c(k) = v_c(16);
        mach_throat_c(k) = mach_no_c(16);
        t_throat_c(k) = t_c(16);
        rho_throat_c(k) = rho_c(16);

        %Variation of Mass flow rate distribution inside the nozzle at different time steps
        figure(5)
        if k==1
            plot(x,mass_flow_rate_c,'linewidth',1.2)
            hold on
        elseif k==50
            plot(x,mass_flow_rate_c,'cyan','linewidth',1.2)
            hold on
        elseif k==100
            plot(x,mass_flow_rate_c,'r','linewidth',1.2)
            hold on
        elseif k==200
            plot(x,mass_flow_rate_c,'m','linewidth',1.2)
            hold on
        elseif k==700
            plot(x,mass_flow_rate_c,'k','linewidth',1.2)
            hold on
        elseif k==1400
            plot(x,mass_flow_rate_c,'*g','linewidth',1.2)
            hold on
        end

 end
end

Main code :

In this code we have called above two function.And then result is plotted like density,velocity,temperature & velocity versus non-dimensional distance along nozzle for both conservative form as well as for non-conservative form.

clear all
close all
clc

%Inputs
n=31;
x=linspace(0,3,31);
dx=x(2)-x(1);

tic
[t,rho,p,v,mach_no,mass_flow_rate,rho_throat,v_throat,p_throat,t_throat,mach_throat]=non_conservative_form(n,x,dx);
time1=toc;
tic
[t_c,rho_c,p_c,v_c,mach_no_c,mass_flow_rate_c,rho_throat_c,v_throat_c,p_throat_c,t_throat_c,mach_throat_c,dt]=conservative_form(n,x,dx);
time2=toc;

figure(1)
subplot(4,1,1)
plot(x,t,'r','linewidth',1.2)
ylabel('Temperature')
title('Non-conservative form: Distribution of primitive variables along the nozzle length')
subplot(4,1,2)
plot(x,rho,'linewidth',1.2)
ylabel('Density')
subplot(4,1,3)
plot(x,p,'g','linewidth',1.2)
ylabel('Pressure')
subplot(4,1,4)
plot(x,mach_no,'m','linewidth',1.2)
xlabel('Nozzle length')
ylabel('Mach no.')

figure(2)
legend('1st time step','50th time step','100th time step','200th time step','700th time step','1400th time step')
title('Non-conservative form: Variation of Mass flow rate distribution at different time steps')
xlabel('Nozzle length')
ylabel('Mass flow rate')

figure(3)
subplot(4,1,1)
plot(t_throat,'r','linewidth',1.2)
ylabel('Temperature')
title('Non-conservative form: Time-wise variations of primitive variables at throat')
subplot(4,1,2)
plot(rho_throat,'linewidth',1.2)
ylabel('Density')
subplot(4,1,3)
plot(p_throat,'g','linewidth',1.2)
ylabel('Pressure')
subplot(4,1,4)
plot(mach_throat,'m','linewidth',1.2)
xlabel('Time iterations')
ylabel('Mach no.')

figure(4)
subplot(4,1,1)
plot(x,t_c,'r','linewidth',1.2)
ylabel('Temperature')
title('Conservative form: Distribution of primitive variables along the nozzle length')
subplot(4,1,2)
plot(x,rho_c,'linewidth',1.2)
ylabel('Density')
subplot(4,1,3)
plot(x,p_c,'g','linewidth',1.2)
ylabel('Pressure')
subplot(4,1,4)
plot(x,mach_no_c,'m','linewidth',1.2)
xlabel('Nozzle length')
ylabel('Mach no.')

figure(5)
legend('1st time step','50th time step','100th time step','200th time step','700th time step','1400th time step')
title('Conservative form: Variation of Mass flow rate distribution at different time steps')
xlabel('Nozzle length')
ylabel('Mass flow rate')

figure(6)
subplot(4,1,1)
plot(t_throat_c,'r','linewidth',1.2)
ylabel('Temperature')
title('Conservative form: Time-wise variations of primitive variables at throat')
subplot(4,1,2)
plot(rho_throat_c,'linewidth',1.2)
ylabel('Density')
subplot(4,1,3)
plot(p_throat_c,'g','linewidth',1.2)
ylabel('Pressure')
subplot(4,1,4)
plot(mach_throat_c,'m','linewidth',1.2)
xlabel('Time iterations')
ylabel('Mach no.')

figure(7)
plot(x,mass_flow_rate,'linewidth',1.2)
hold on
plot(x,mass_flow_rate_c,'m','linewidth',1.2)
hold on
legend('Non-conservative form','Conservative form')
xlabel('Nozzle length')
ylabel('Mass flow rate')
title(' Comparison of Normalized mass flow rate distributions of both forms')

Explanation :

• Initially the grid size (n), x and dx values are assigned.
• Then the function non-conservation form is executed. Under the function, the initial profiles (rho, T, V), area of nozzle, time step values are assigned.
• Loop for outer time step is initiated under which the copy of variables (rho, T, V) is created and the McCormack’s method is carried out.
• Predictor method followed by solution update is done. Corrector method followed by final solution update is also done.
• The boundary conditions at the inlet and outlet are given. Then pressure, mach no. and mass flow rate are calculated.
• The values of primitive variables at the throat are assigned to variables with size k so that for each timestep, the values at throat are calculated.
• Then the mass flow rates at different time steps are plotted.
• The above process is repeated for 1400-time steps and the function returns the final values of primitive variables to the main program.
• Then the function conservation form is executed. The same process as followed in non-conservation form is repeated except that flux vectors (F1, F2, F3) and solutions vectors (U1, U2, U3) are used in this form.
• In McCormack’s method, the flux vectors and solutions vectors are used and then primitive variables are updated.
• The above process is repeated for 1400-time steps and the function returns the final values of primitive variables to the main program.
• The simulation time for the conservation form and non-conservation form are stored in variables time1, time2 respectively.
• Then finally the respective plots are obtained using figure and subplot commands.

Results :

Non-Coservative Form :

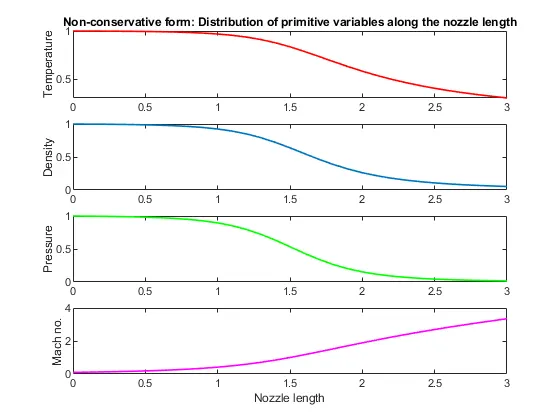

Figure 1

Figure 2

Figure 3

Explanation :

• In figure 1, the temperature, density and pressure values decrease as the nozzle length increases. But mach no increases as nozzle length increases.
• In figure 2, the mass flow rates at time steps are plotted. It can be seen that for 700^th and 1400^th timesteps the mass flow rate does not change as nozzle length increases. So, we can say that it has almost reached steady state around 700^th time step.
• In figure 3, there are some fluctuations in primitive variables at the initial time iterations and then the plots become linear which implies that they attained steady states.

Conservative Form :

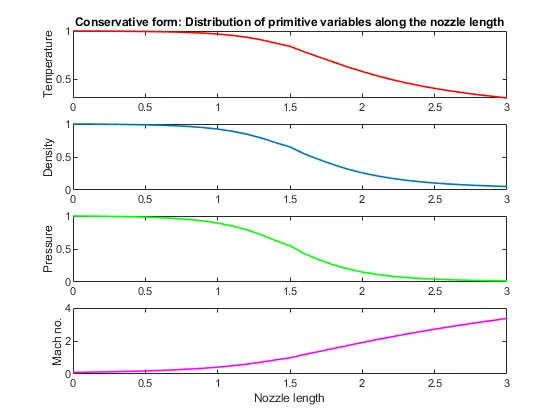

Figure 4

Figure 5

Figure 6

Explanation :

• In figure 4, the temperature, density and pressure values decrease as the nozzle length increases. But mach no. increases as nozzle length increases.
• In figure 5, the mass flow rates at time steps are plotted. It can be seen that for 700^th and 1400^th timesteps the mass flow rate does not change as nozzle length increases. So, we can say that it has almost reached steady state around 700^th time step.
• In figure 6, there are some fluctuations in primitive variables at the initial time iterations and then the plots become linear which implies that they attained steady states.

Comparision of mass flow rates :

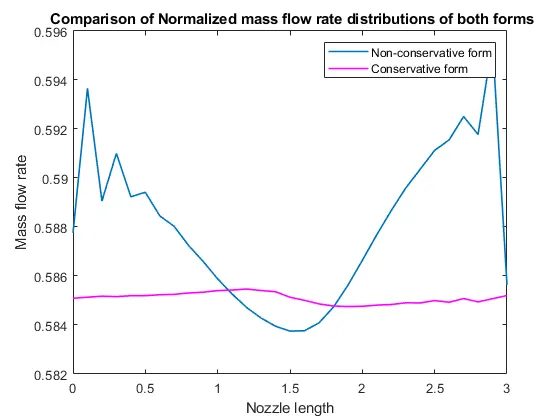

Figure 7

Explanation :

In figure 7, it is seen that conservation form yields the better mass flow distribution than non-conservation form.

Grid dependence test :

• The grid dependence test is necessary for checking the solution whether its dependent or independent on number of grids points.
• For this we have run the simulation for two different number of grids points i.e for n=31 & n=61

For Conservation:-

For Non-Conservation:-

Conclusion :

• Using MATLAB, the isentropic flow through a quasi 1D subsonic-supersonic nozzle was simulated.
• The conservation and non-conservation forms of the governing equations were solved using McCormack’s technique.
• Distribution of primitive variables, mass flow rate through the nozzle and time-wise variations of primitive variables at throat were plotted for both of the forms.
• Both conservation and non-conservation forms were found to be grid independent.
