Week 7: Shock tube simulation project
Aim:
To setup a case study for Shock Tube in converge studio.
Objective:
- Setup a transient shock tube simulation

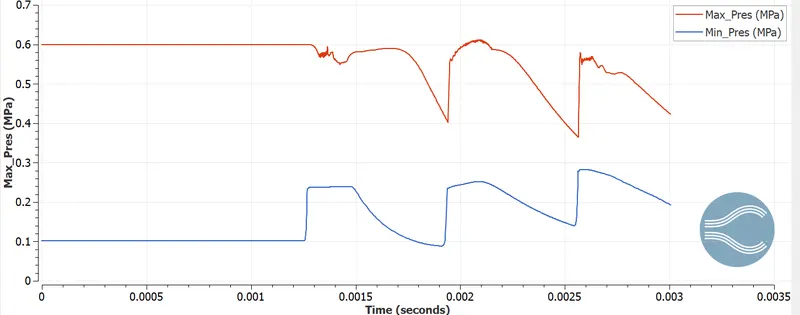

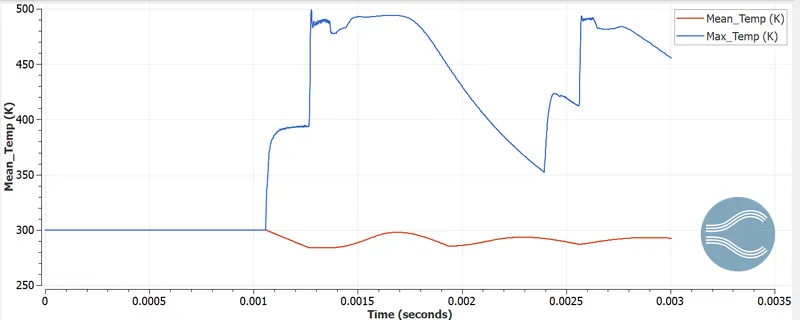

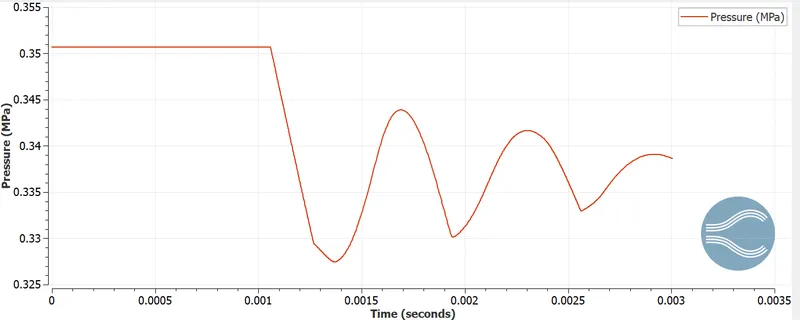

- Plot the pressure and temperature history in the entire domain - Explain the result
- Plot the cell count as a function of time - Explain the result.
Theory:
Introduction:
The shock tube is associate instrument wont to replicate and direct blast waves at a device or a model so as to simulate actual explosions and their effects, sometimes on a smaller scale. Shock tubes (and connected impulse facilities like shock tunnels, growth tubes, and growth tunnels) also can be wont to study mechanics flow underneath a large vary of temperatures and pressures that square measure tough to get in different styles of testing facilities. Shock tubes are wont to investigate compressible flow phenomena and gas section combustion reactions. additional recently, shock tubes are employed in medicine analysis to review however biological specimens square measure tormented by blast waves.
A blast wave within a shock tube could also be generated by atiny low explosion (blast-driven) or by the buildup of high pressures that cause diaphragm(s) to burst and a blast wave to propagate down the shock tube (compressed-gas driven).
Generally, there square measure 2 styles of Shock tubes:
Both compression-driven and blast-driven shock tubes square measure presently used for scientific also as military applications. Compressed-gas driven shock tubes square measure additional simply obtained and maintained in laboratory conditions; but, the form of the pressure wave is totally different from a shock wave in some necessary respects and should not be appropriate for a few applications. Blast-driven shock tubes generate pressure waves that square measure additional realistic to free-field blast waves. However, they need facilities and professional personnel for handling high explosives.
Working:
A simple shock tube could be a tube, rectangular or circular in cross-sectional, sometimes made of metal, within which a gas at depression and a gas at high square measure separated exploitation some style of a diaphragm. The diaphragm suddenly bursts open underneath preset conditions to provide a wave propagating through the depression section. The shock that eventually forms will increase the temperature and pressure of the check gas and induces a flow within the direction of the blast wave. Observations is created within the flow behind the incident front or cash in of the longer testing times and immensely increased pressures and temperatures behind the mirrored wave.
The unaggressive gas, brought up because the driven gas, is subjected to the blast wave. The hard-hitting gas is thought because the driver gas. The corresponding sections of the tube square measure likewise referred to as the motive force and driven sections. the motive force gas is sometimes chosen to own a coffee mass, (e.g., chemical element or hydrogen) for safety reasons, with high speed of sound, however could also be slightly diluted to 'tailor' interface conditions across the shock. to get the strongest shocks the pressure of the driven gas is well below air pressure (a partial vacuum is evoked within the driven section before detonation).
The explosive diaphragm produces a series of pressure waves, every increasing the speed of sound behind them, in order that they compress into a shock propagating through the driven gas. This blast wave will increase the temperature and pressure of the driven gas and induces a flow within the direction of the blast wave however at lower speed than the lead wave. at the same time, a refraction wave, typically brought up because the Prandtl-Meyer wave, travels back in to the motive force gas.
Applications:
Biomedical analysis like inserting of medication · Military applications like missile launching · Mining functions · Blockage removal in an exceedingly waste plant.
Simulation setup:
The following Simulation tools are going to be incorporated:
1.Converge studio:- To pre-process the info that has to simulate the case. It plays vital|a crucial|a vital|a very important} role in generating important 3d input files solely victimization GUI. It doesn't run simulation directly, but it generates inputs files that use to run the simulation.
Cygwin:- Cygwin could be a assortment of antelope and ASCII text file tools that offer practicality the same as UNIX operating system distribution on windows.
Converge msmpi three.0:- To run the simulation victimization these input files in Cygwin serial or in parallel.
Post convert:- To convert all the output files that area unit processed by converge msmpi into the files which can be clear for post-processing in Paraview.
Paraview :- To post-processing to get the contour, plots, etc. it's associate degree ASCII text file, multi-platform knowledge analysis and mental image code.
Case Setup/Simulation Setup:
MATERIAL:
Gas Simulation:
As solely air is our operating medium thus uncheck Reaction Mechanism.
Predefined mixture: air
Enable species(not in mech.dat) as we would like to assign the taking part species of Air like O2 and N2
Global Transport Properties
Turbulent Prandtl number: zero.9
Turbulent Helmut Heinrich Waldemar Schmidt number: zero.78
Species:
Click on Gas species and add O2 and N2
SIMULATION PARAMETER:

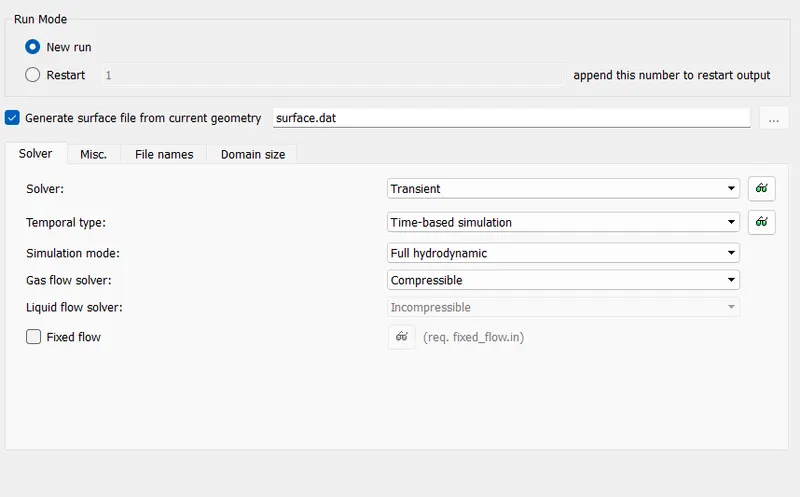

Run Parameter:
Solver: Density-based Transient
Simulation Mode: Full hydraulics
Gas flow Solver: Compressible (as air is functioning medium)

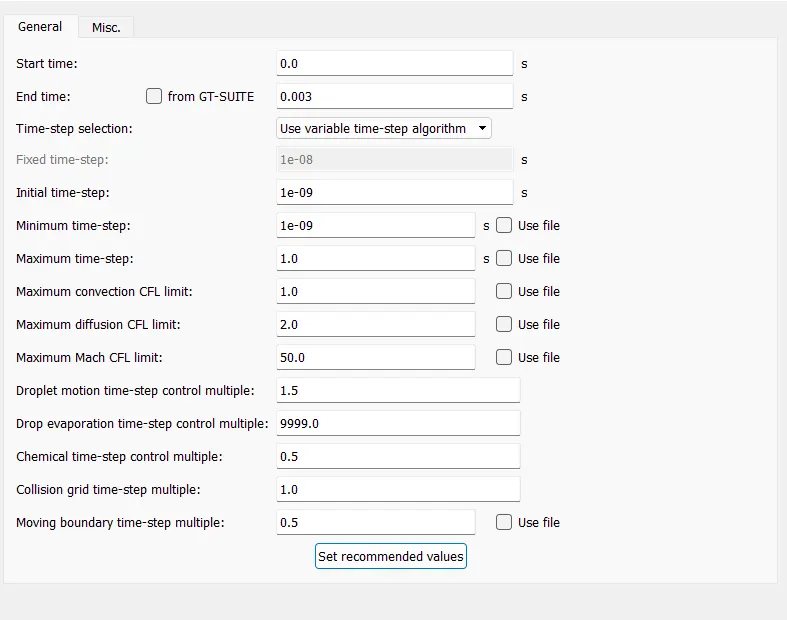

Simulation Time Parameter:
End time: zero.003s
Start time: 0s
Initial time step: 1e-09 s
Minimum time step: 1e-09 s
Maximum time step: one s

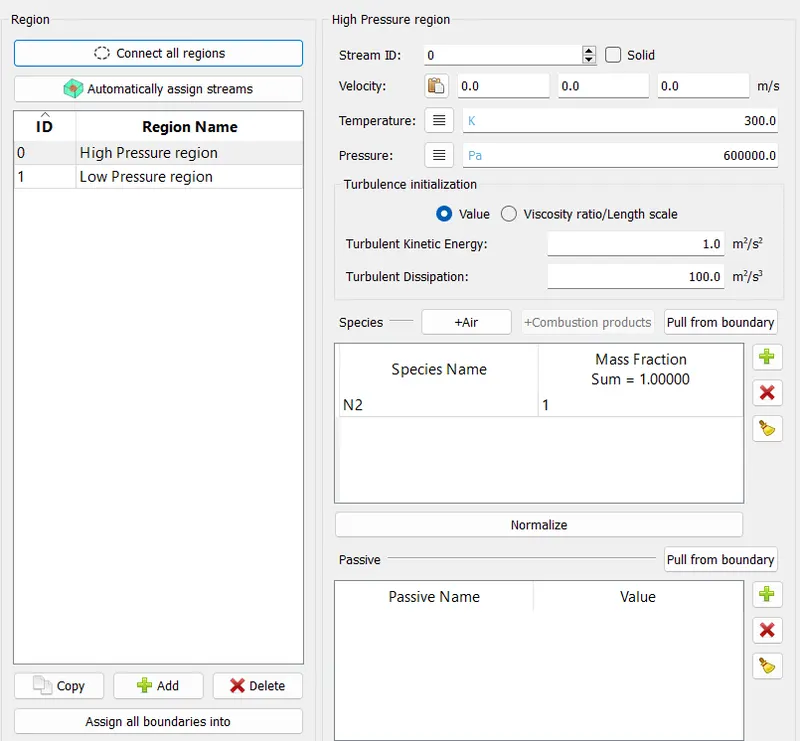

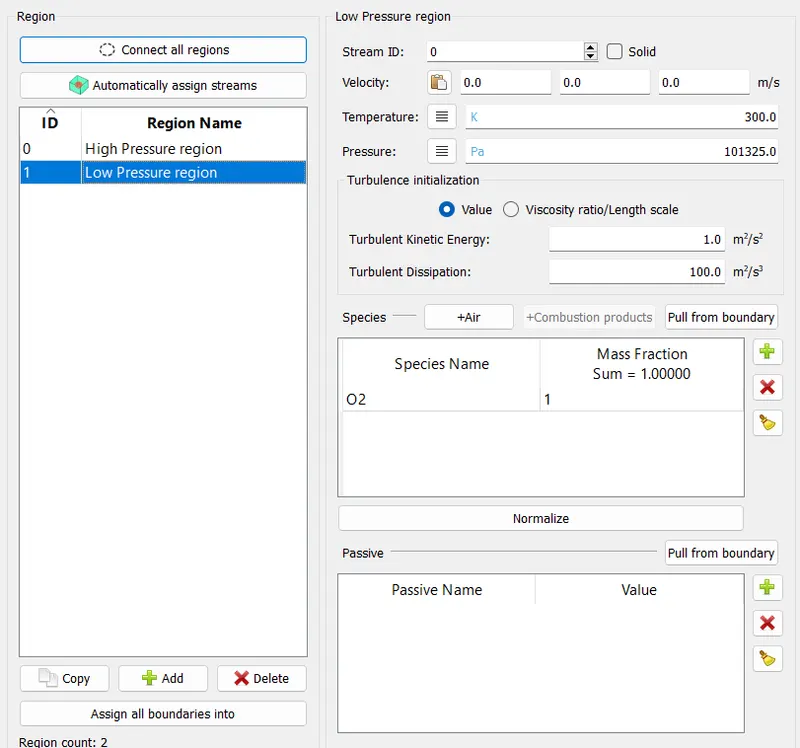

REGION & INITIALIZATION:
Click on Region and initialisation and add two Regions.
Region zero as high region-Stream ID 0: temperature 300k; Pressure 6bar
Species Air
Region one as Low pressure- Stream ID 1:
Species Air.

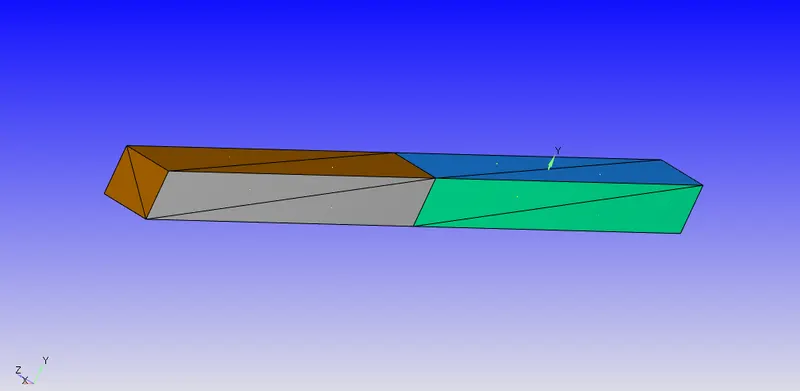

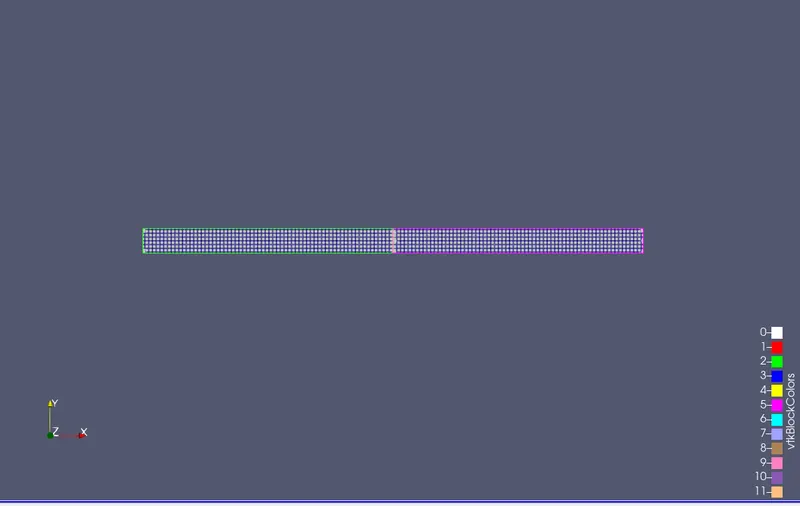

Model in Converge studio:
Link:
Conclusion:

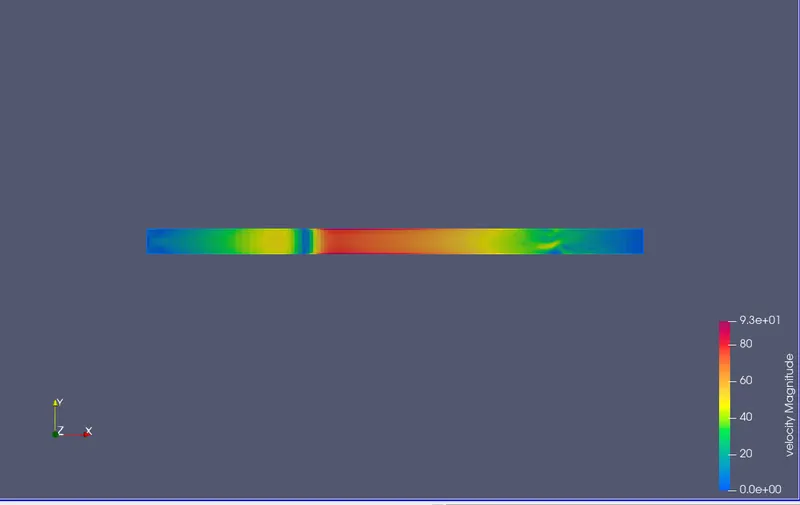

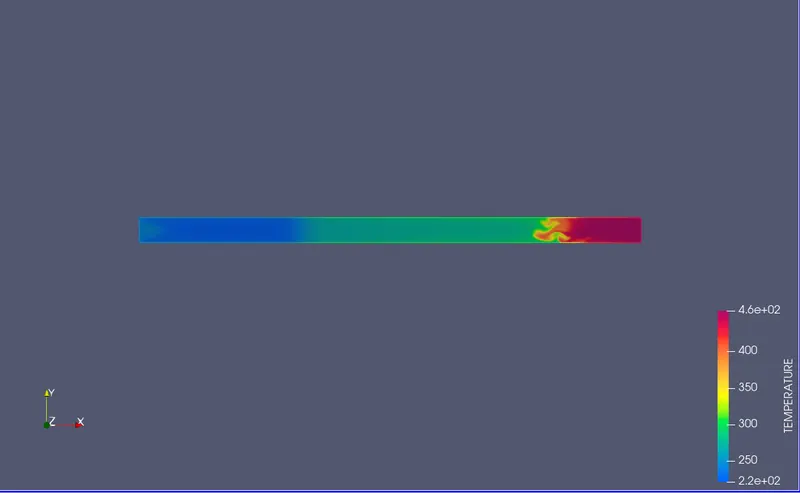

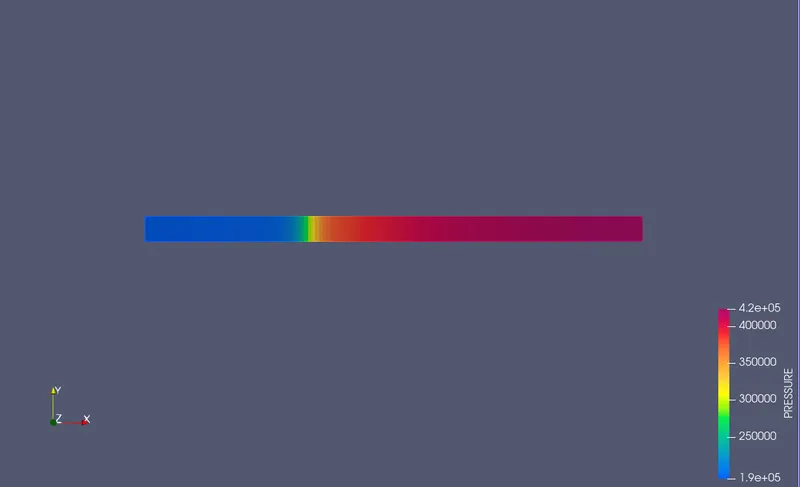

As the pressure in the high-pressure region exceeds maximum diaphragm pressure the diaphragm gets ruptured, and due to this, there is a pressure difference created. The high-pressure regions tend to more towards the low-pressure region which leads to formation of shock waves in that region which increases sudden pressure and Temperature on that low pressure region. On the other side, in the high-pressure region, the expansion waves will be created due to pressure relaxation, where Pressure and Temperature decrease.
Both the Shock and Expansion waves are interacting with each other after reflecting from the wall due to the Slip Boundary condition of the Wall.
