Week 7- Meshing of Backdoor Challenge
Aim
1.Creat midsurface
2.To Mesh the Given component
Procedure:
Midsurface
Step 1

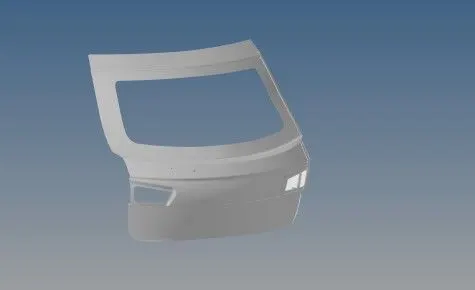

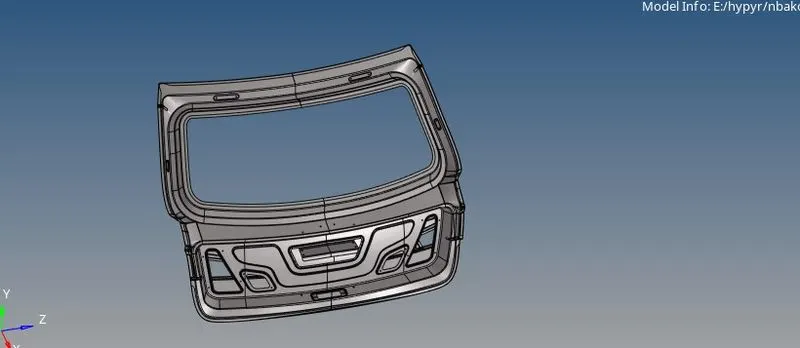

Import geomentry
step 2

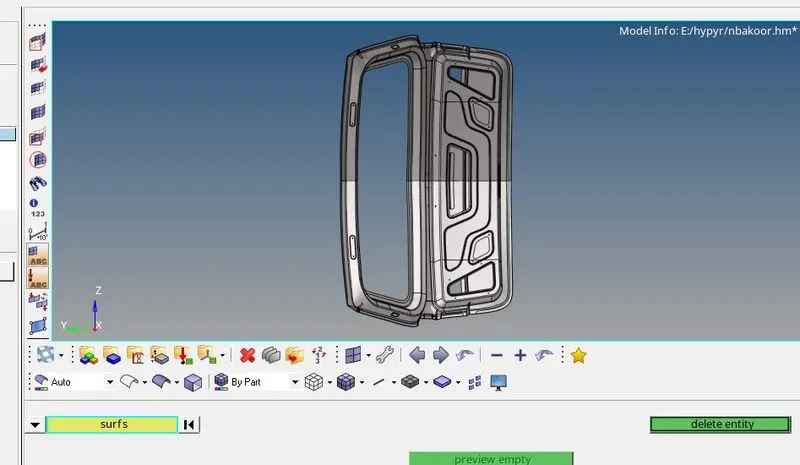

As the comp. symmytrical del. half of componet.
step 3
After deleting the componet are divided into 3 parts i.e. inner,outer,bottom
step 4

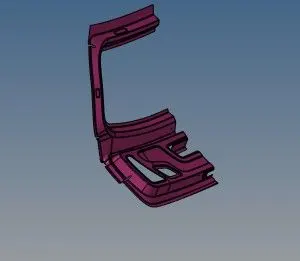

below is bottom part
step 5

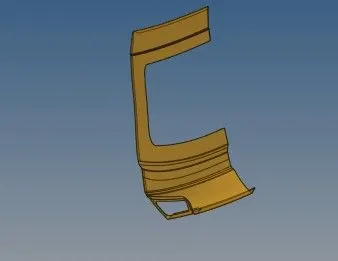

below is outer part
step 6

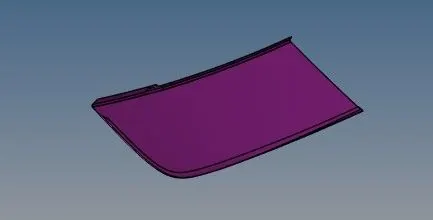

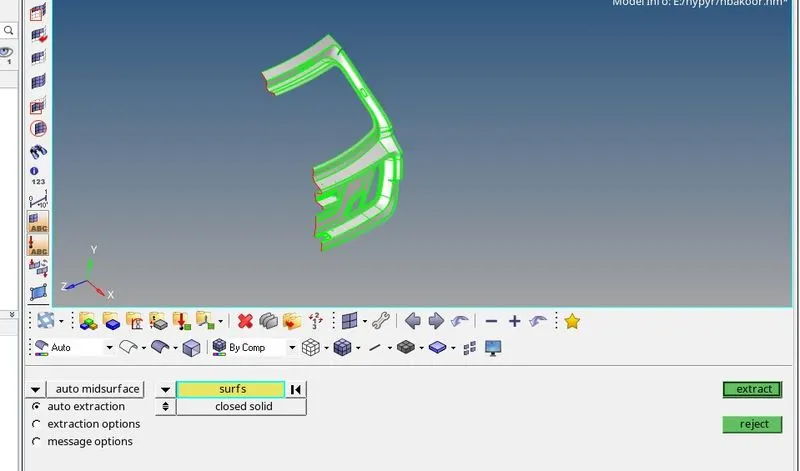

Midsurface of inner part using auto midsurface
step 7

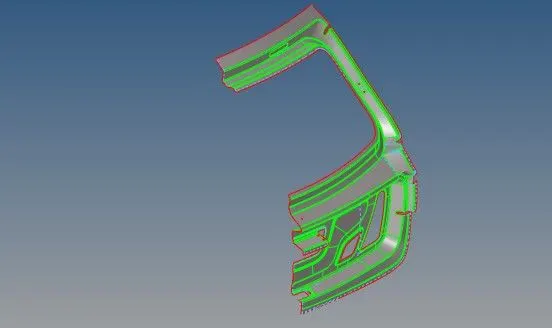

midsurfacebof outer part,as below simillarly other part midsurface taken out.
Meshing
step 1

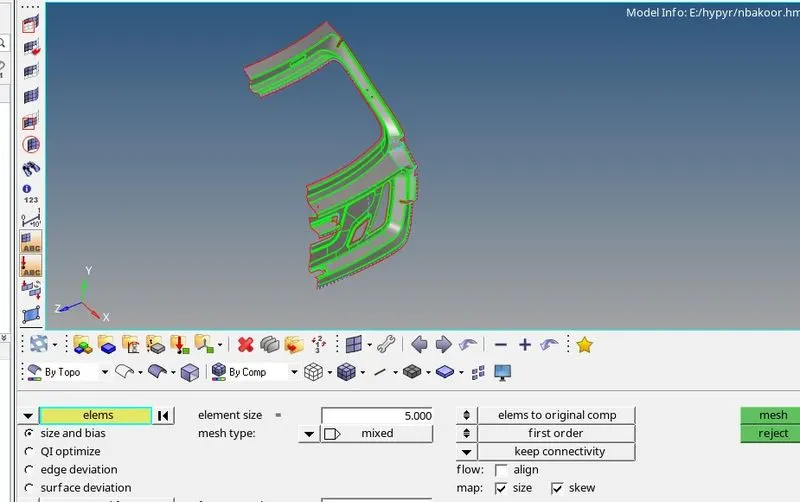

Creating automesh on inner midsurface
step 2

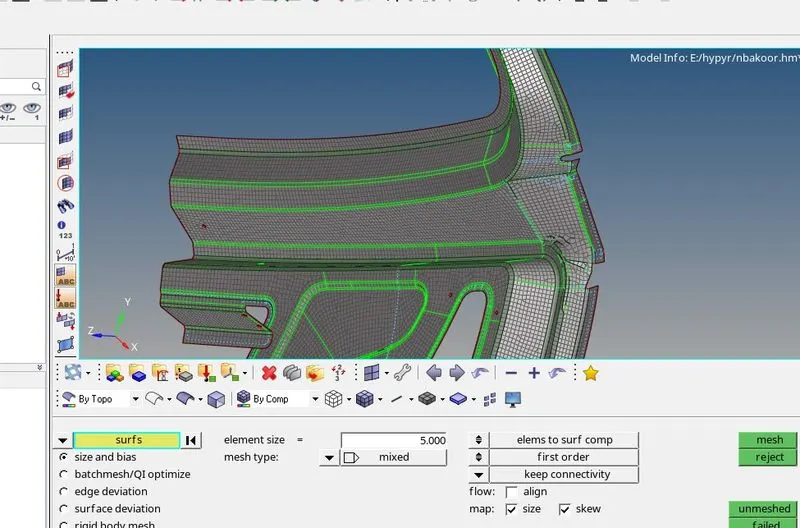

mesh on innr part as below
Step 3

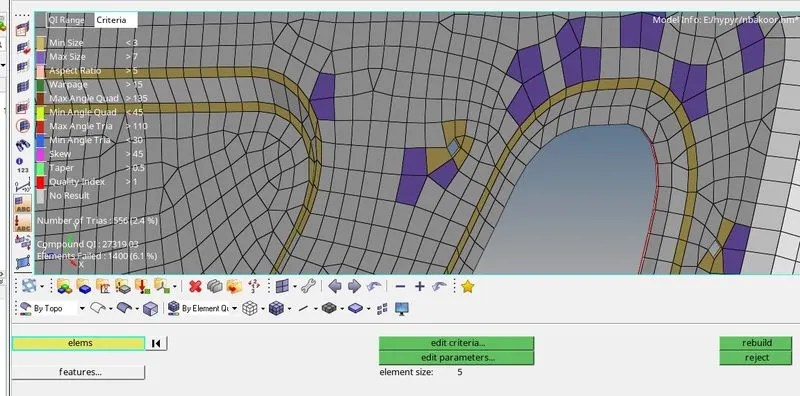

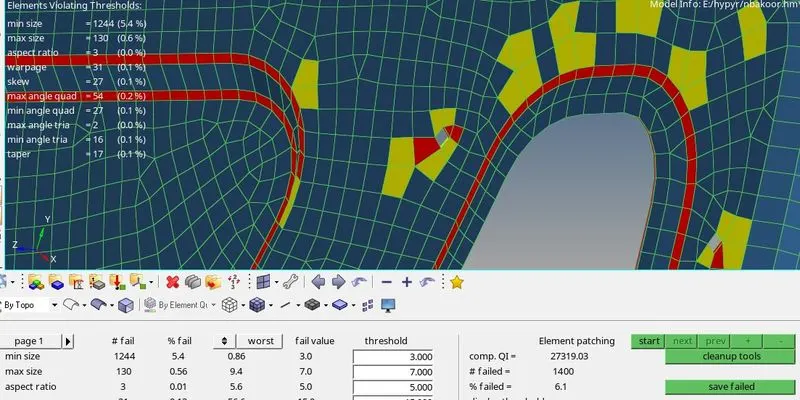

For for quality critria failure rebuild option used to mesh flow smooth
step 4
step 5

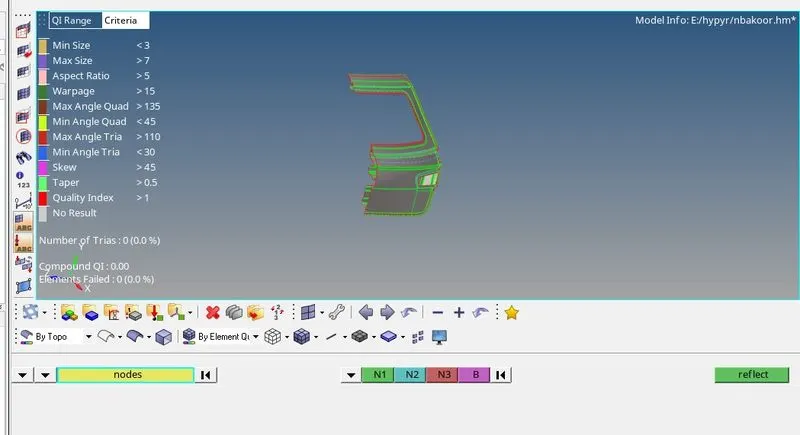

After removing tria and failure all parts elements are reflect in order to get whole comp. element.
step 6
The final mesh of the car back door as below.
