Week 7- Meshing of Backdoor Challenge

AIM:to mesh the given component with the given quality parametres

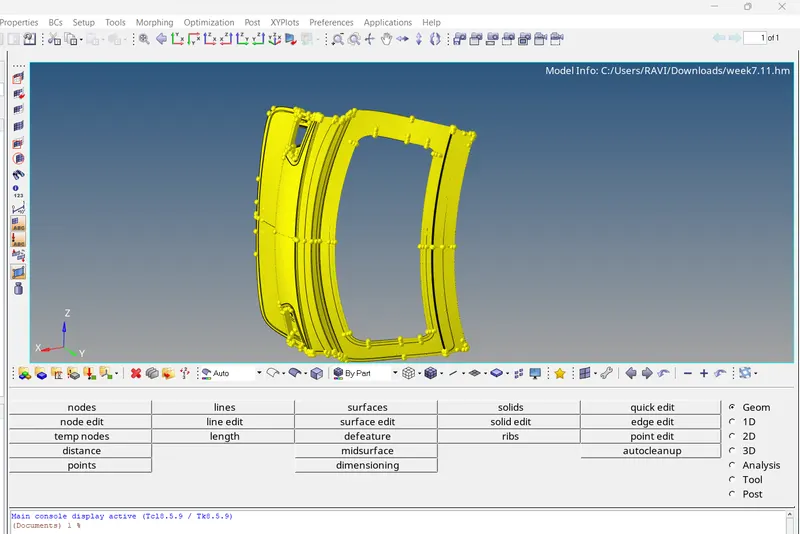

procedure:download the component and open it in HYPERMESH software.

give a auto cleanup by selecting all the surfaces.

extract amidsurface for th given component.

give the quality parametres as mentioned .

select the element check and check the quality paramtres.

assign thickness and prorperty, material for the midsurface component.

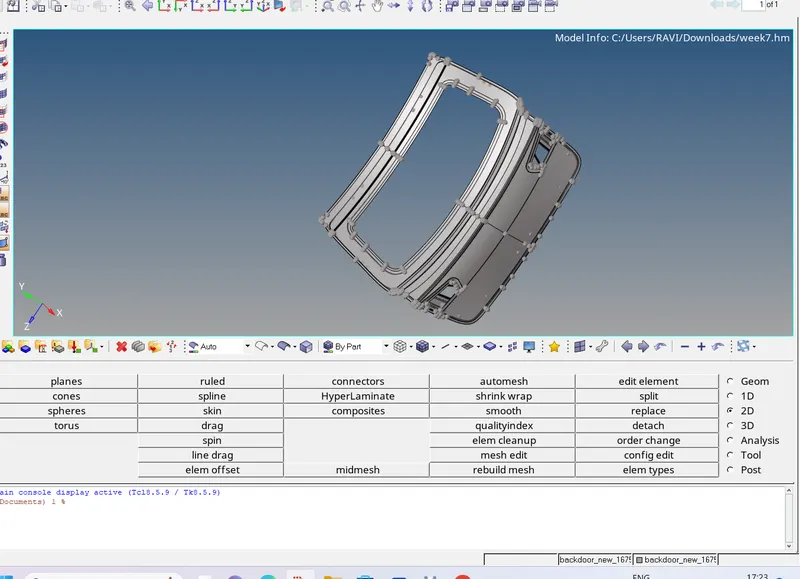

result: meshing is done for the component with the given quality parametres.
