Week 7 - Creating connection for Rear door

Creating connections for rear door



Aim

To connect the part by using rigid body element 2 and spotweld, seam line and c-bush ,bolt etc.

Procedure

·       They are two types of fasteners namely,

1.  Permanent fasteners

2.  Temporary fasteners

·       Permanent fastener classified in to several types they are,

A. Welding

B. Rivets

C.Adhesive etc.

·       Temporary fasteners

A. Bolt and nuts

B. Screw

C.Self-clinching etc.

·       Permanent joints are used for never separate the two joint parts, if break the joints the result will be failure like crack.

·       Spot weld is used for sheet metal components weld the less than 3mm thickness.

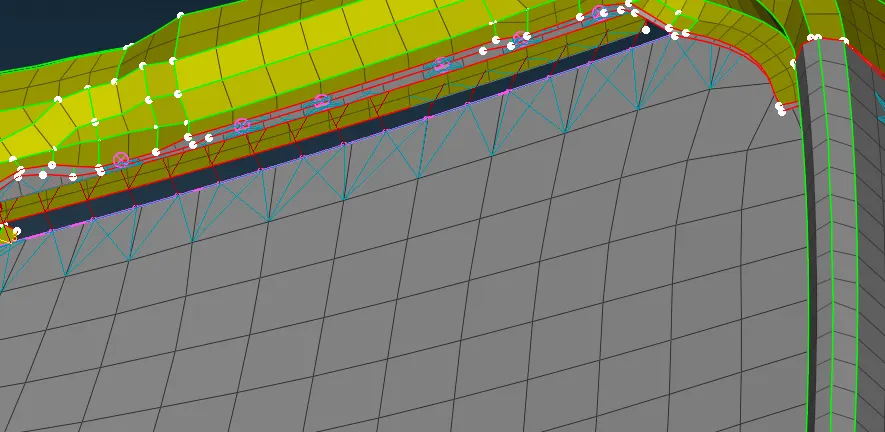

·       Seam joint used for overlap places and uniform lengths and curves area.

·       Adhesive is used for metal to non-metal joints.

·       Heat stakes process is used for nonmetal to non-metal joints and metal to non-metal joints.

·       Temporary fasteners are used for disassembly or replace the parts without any damage.

·       Bolts and nuts are using for above statement.



Result

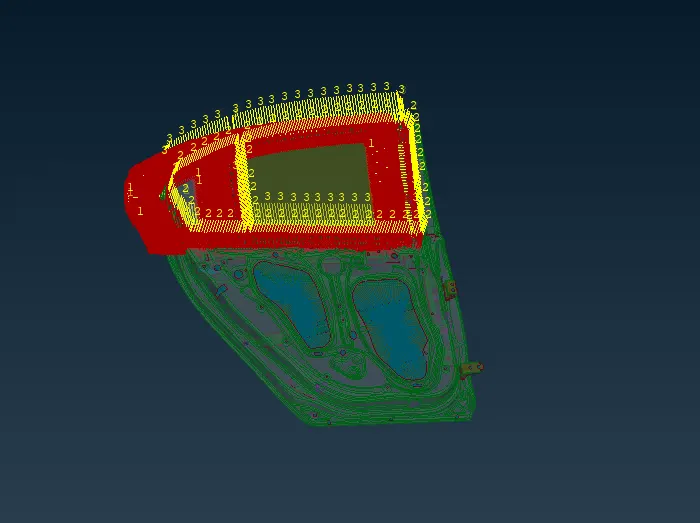

The given rear door has connections are completed successfully.
