Week- 6 - Solid meshing

Solid meshing on rear view mirror component

Aim

To mesh the component with solid meshing and volume mesh using ortho tetra and tetra FEM.

Procedure

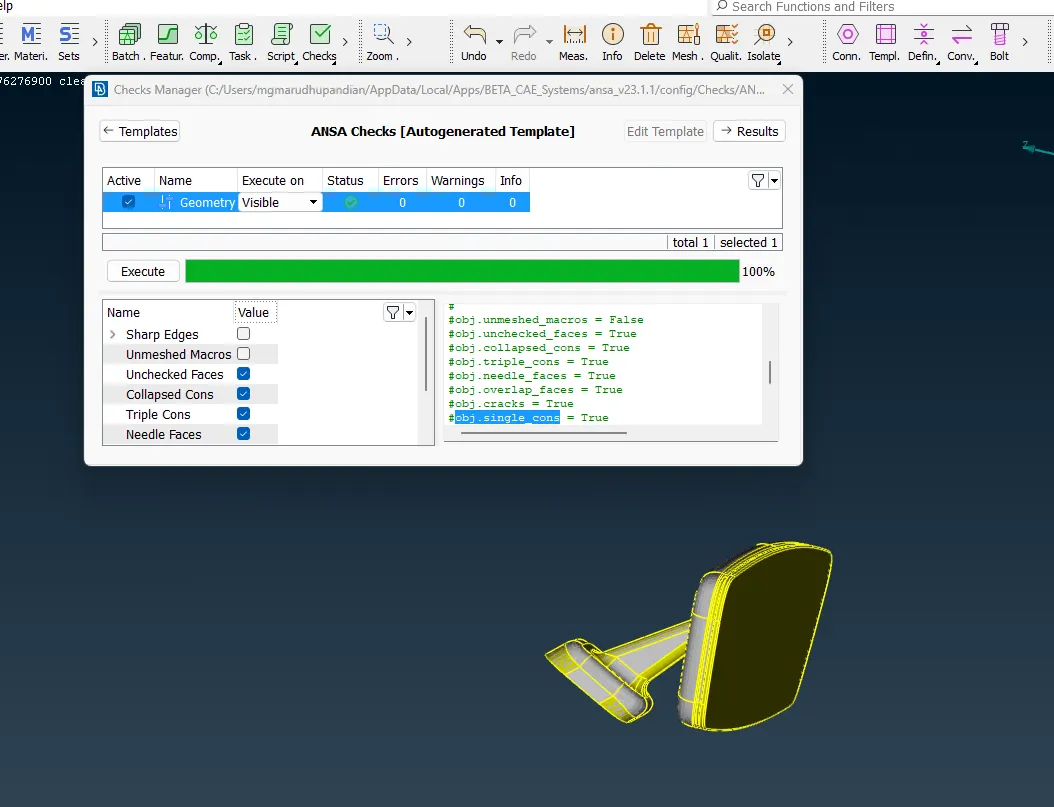

·       The primary step was to clean up the geometry errors.

·       Here mesh the quality criteria has minimum and maximum length and tet collapse.

·       Using spot mesh option to mesh on curved boundaries with ortho tetra element.

·       And other flat areas are mesh with tria elements.

·       First mesh on the shell surface and go to volume.

·       In the component inside hallow empty space so, here to create the volume.

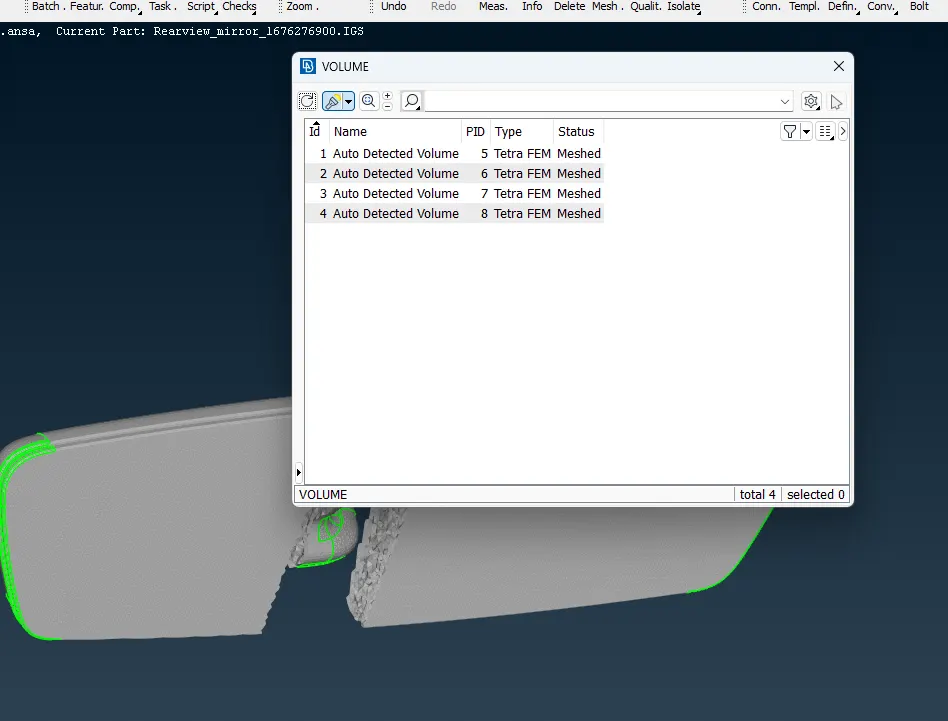

·       To create property by using volume mesh define the component and it will added in list.

·       In list option to mesh with either tetra RPM or tetra FEM.

·       After creating the volume mesh to solve the off elements. avoid rise elements and kinks.

·       Also concentrate on tet collapse criteria.

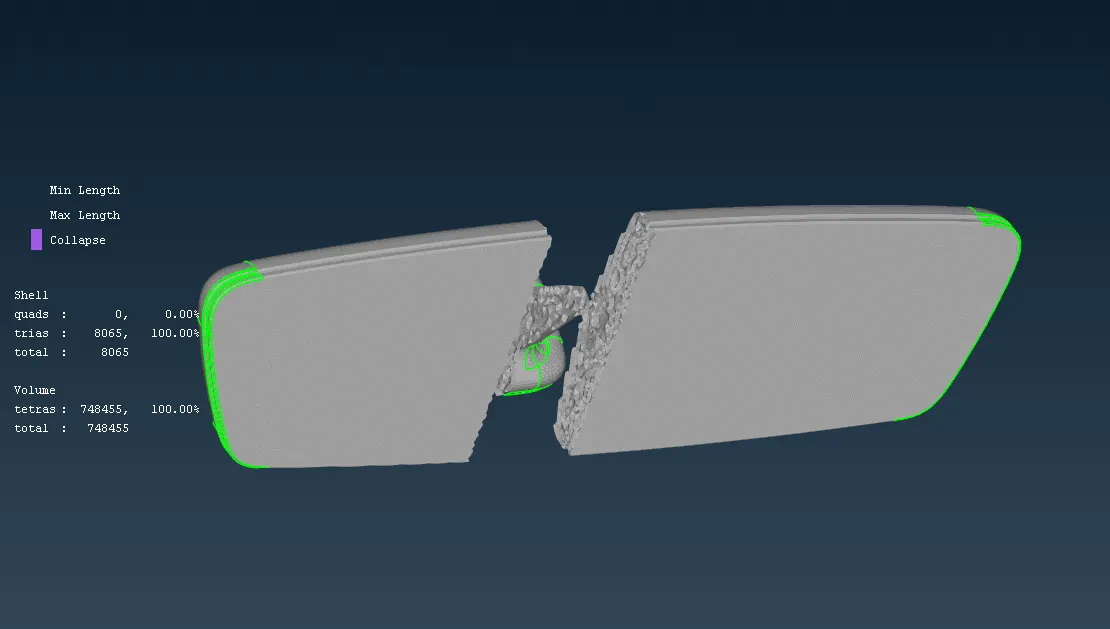

·       In volume mesh use reconstruct and fix quality to solve the off elements.

Result

Here, the given rear mirror component for solid meshing has meshed and completed successfully.
