Week 7 Challenge - Assembly Workbench
AIM :-
To create assemblies of Quick return mechanism and CV joint and to also create 2D drawing of the given assemblies in CATIA.
Procedure :-

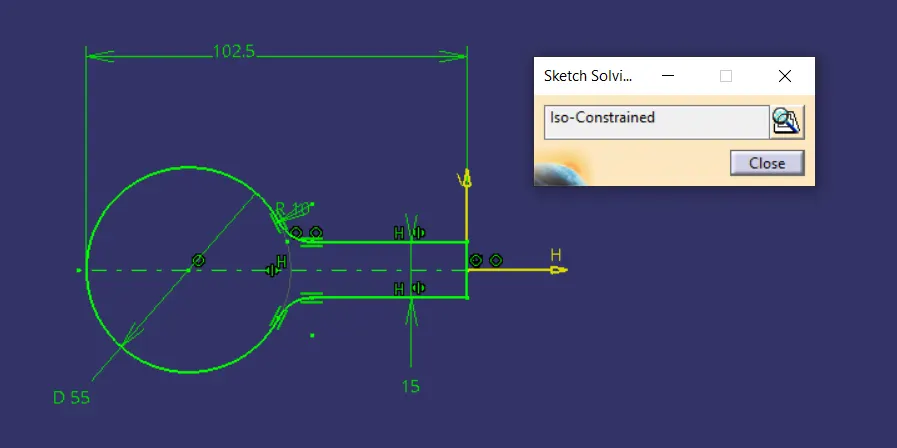

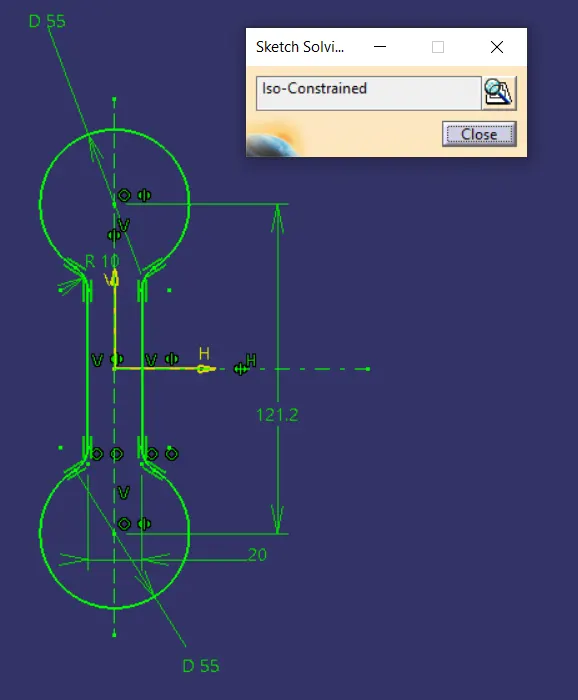

1) Create a all sketch by using positioned sketch command

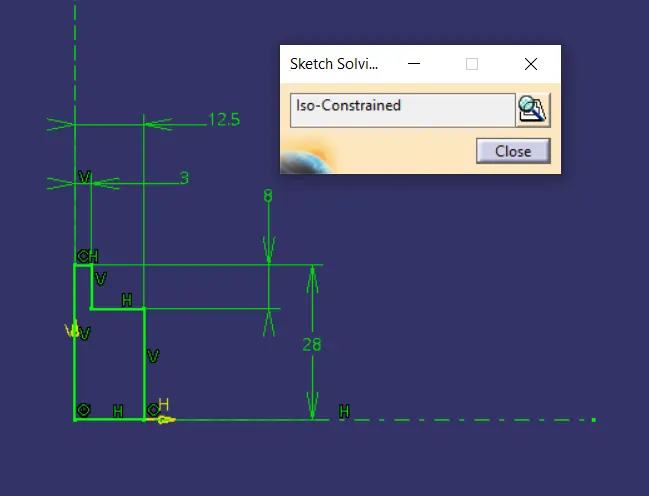

2) Ensure that all the sketches in iso- constrained.
Model-1: Quick return mechanism:

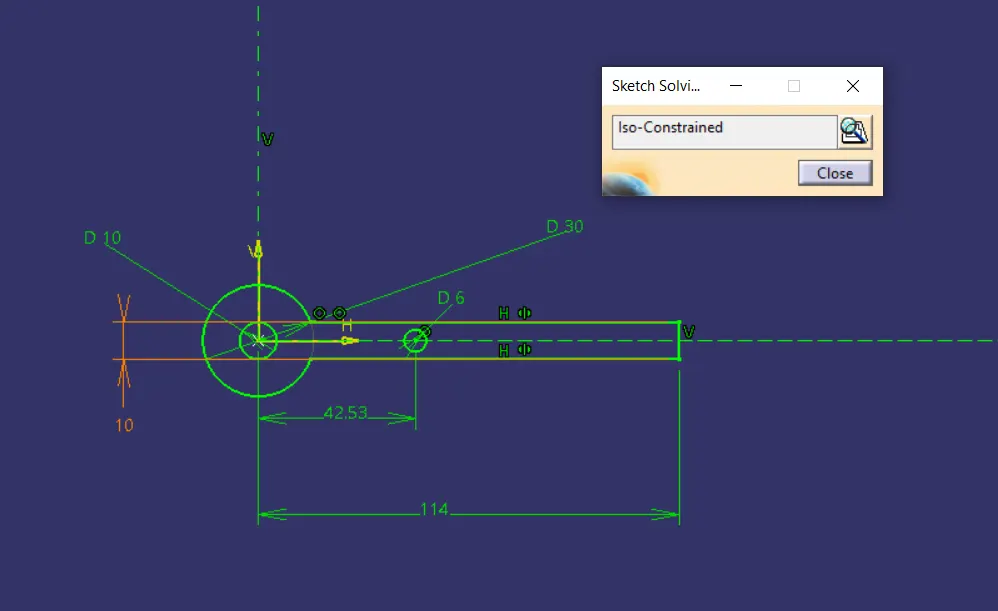

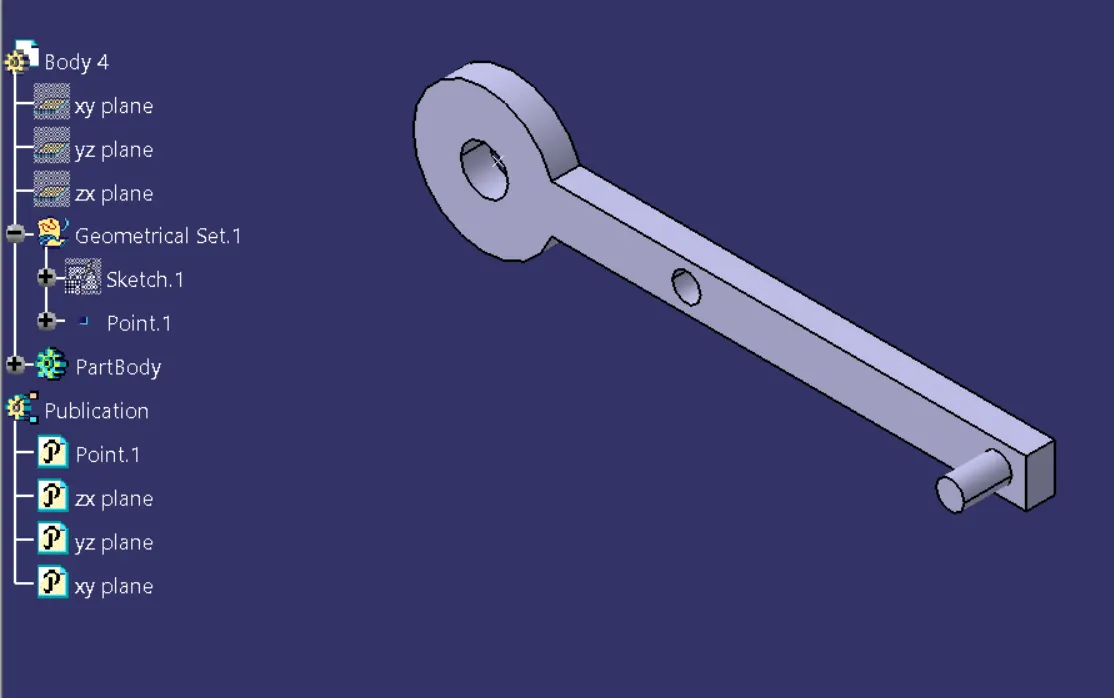

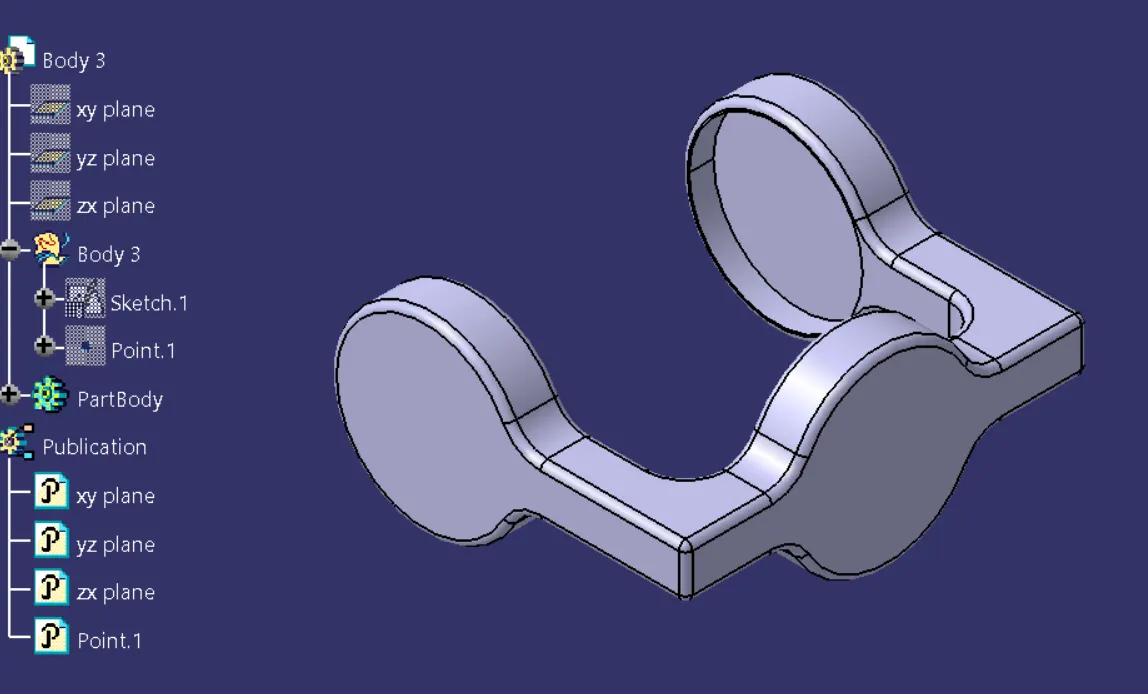

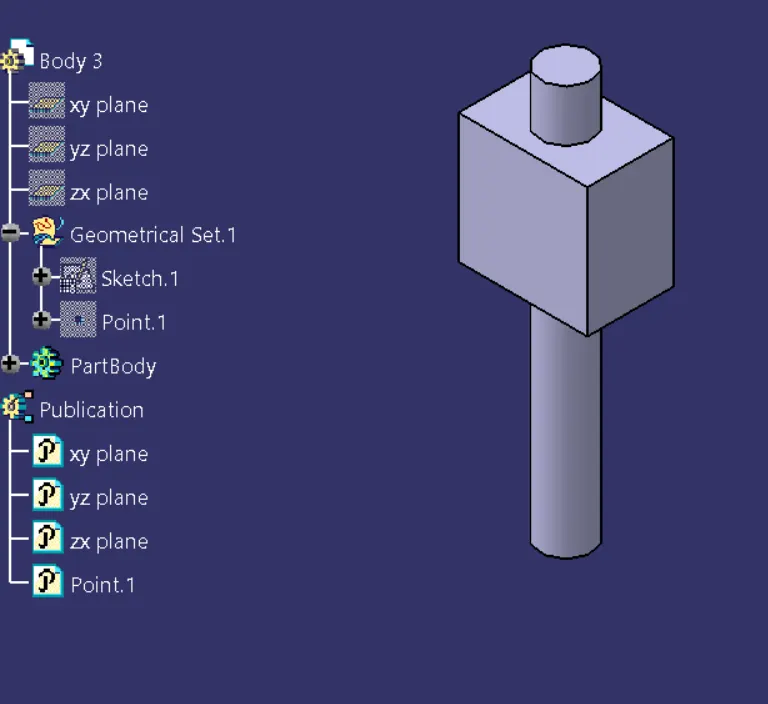

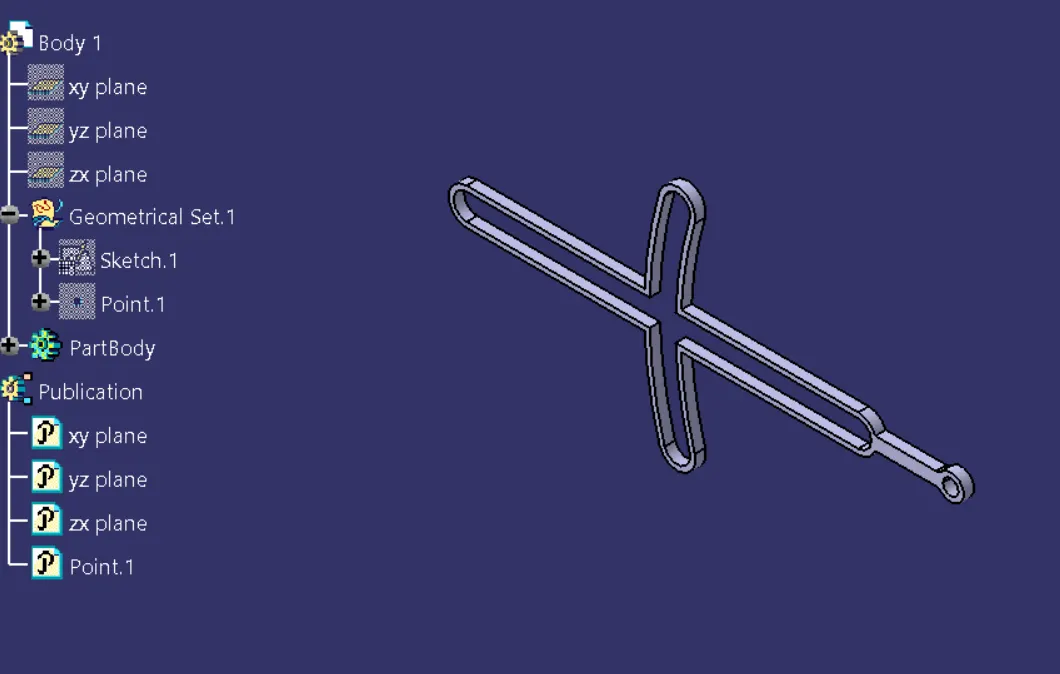

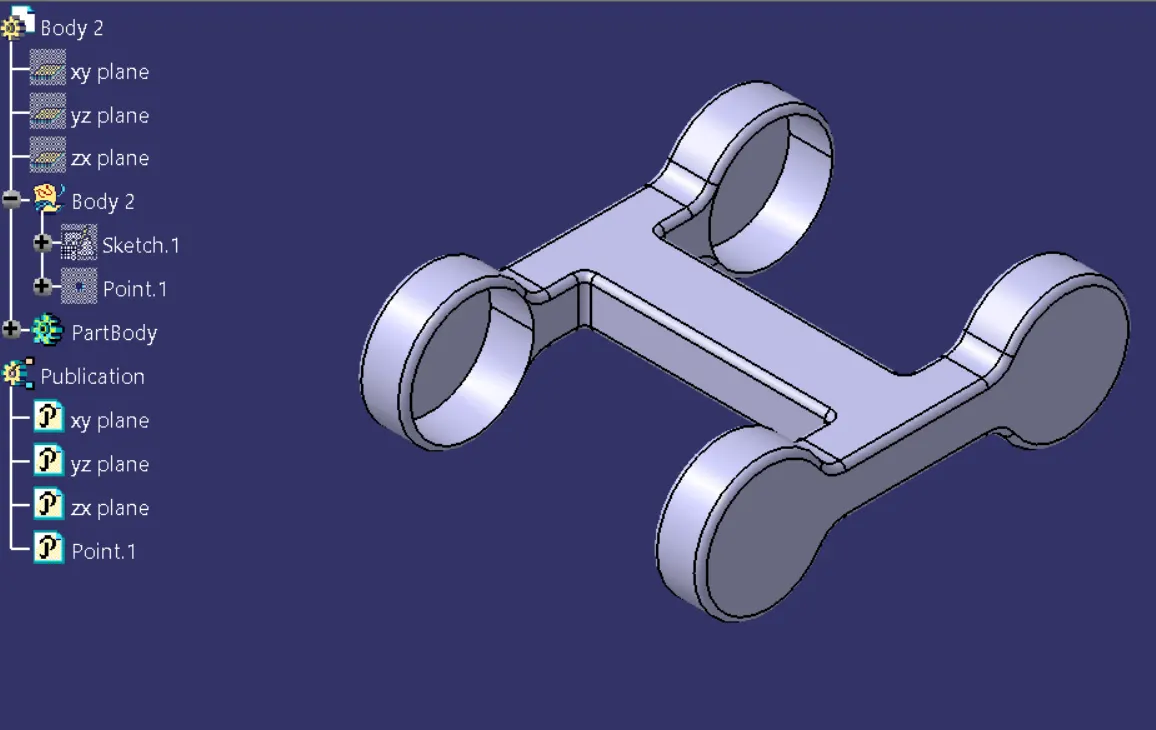

Parts designed in CATIA:

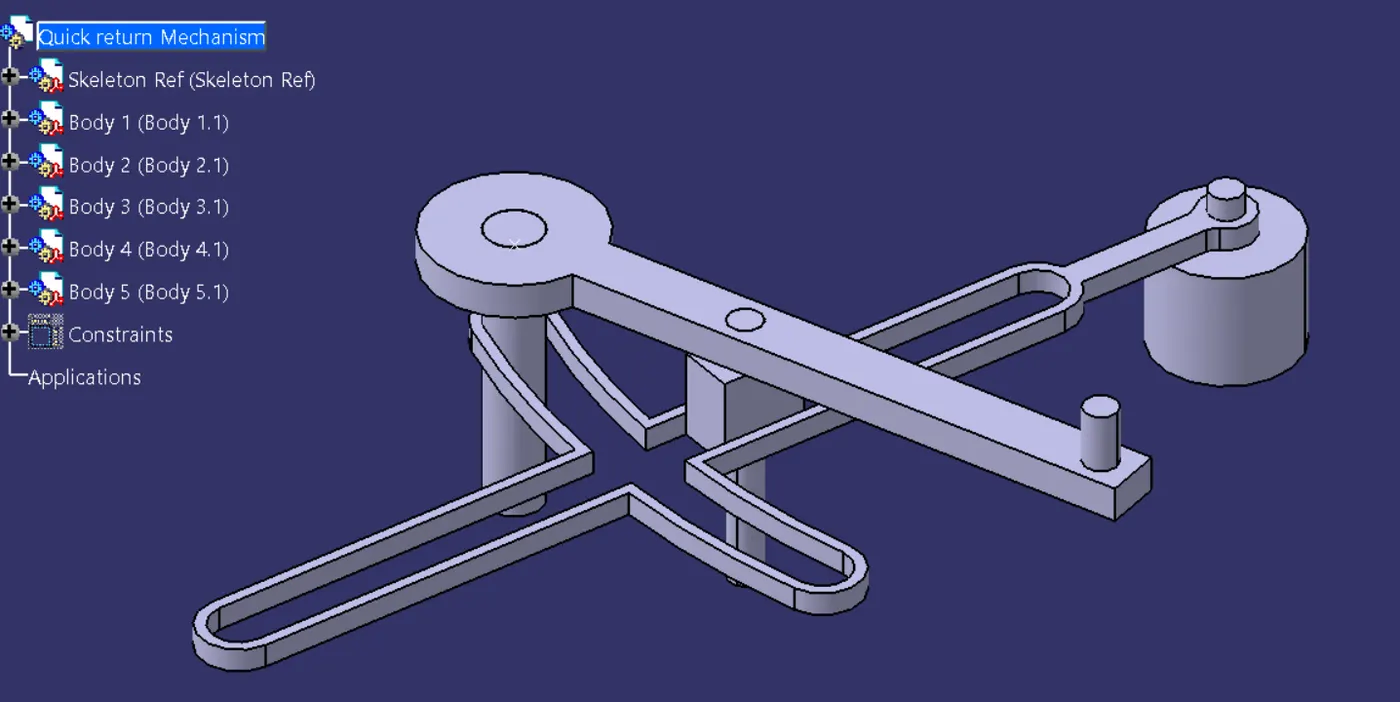

ASSEMBLE ALL CAT PART:
1) Create a new CATproduct and insert all the above separate CATPART by using existing component command.
2) Create a reference elements for all catparts.
3) Add Reference elements like axis, points wherever we need

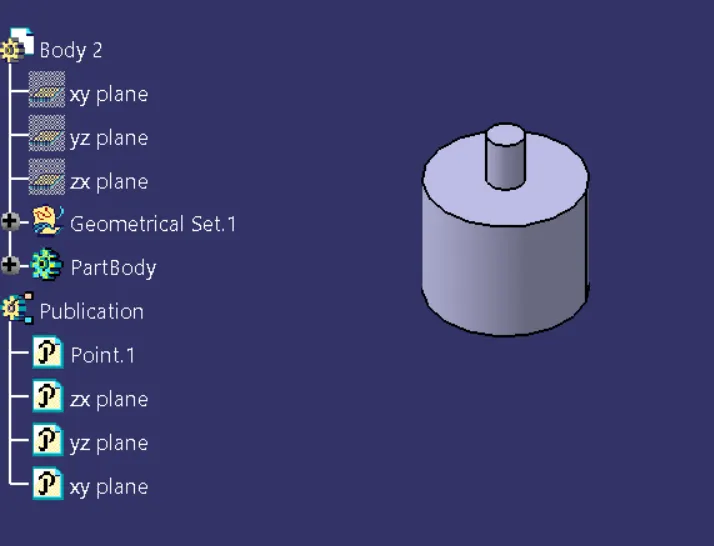

4) Use publication tool to make all the necessary elements like planes,points,axis to make visible.
5) Make the reference part fixed.
6) Now using Constrain, Offset tools assemble the each parts to one another.

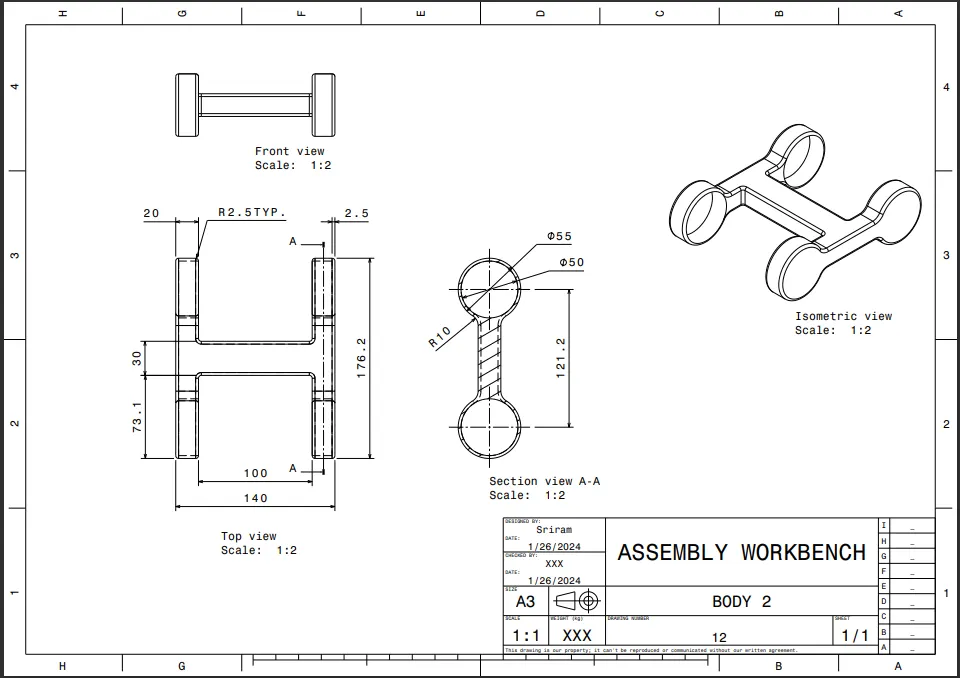

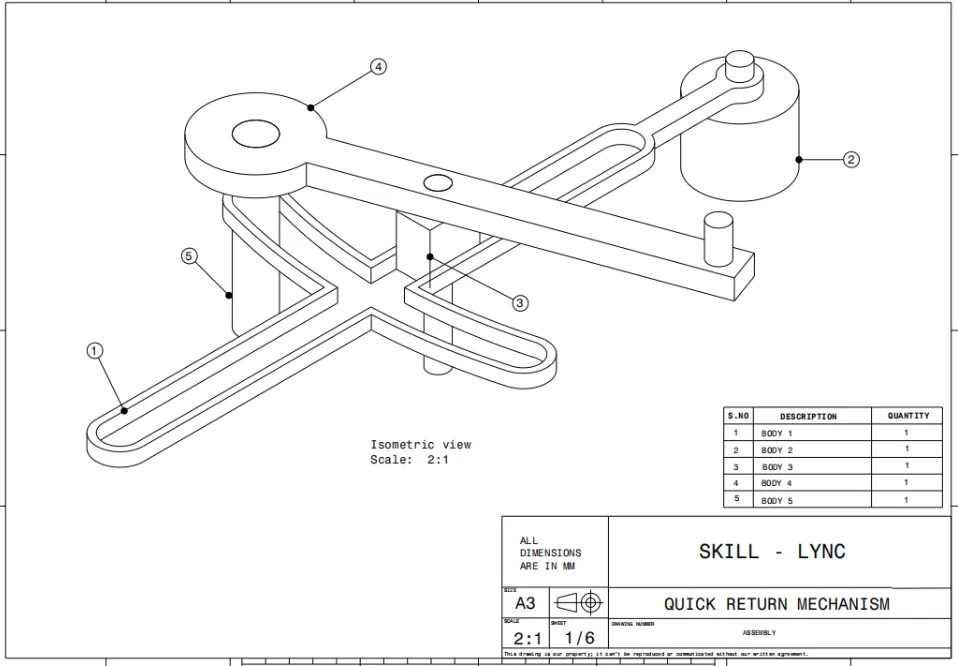

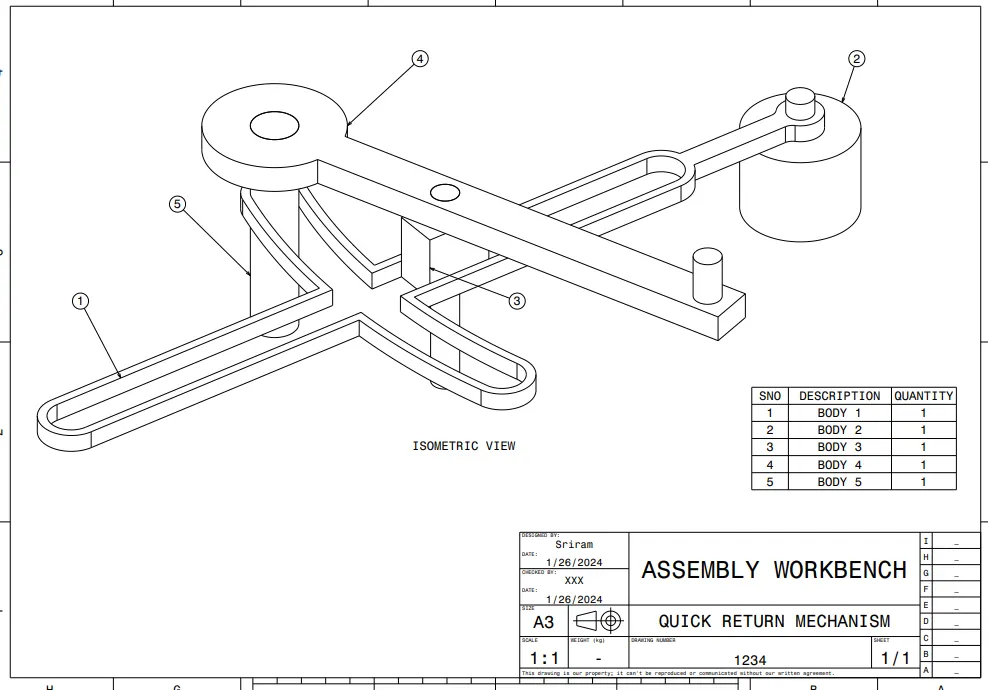

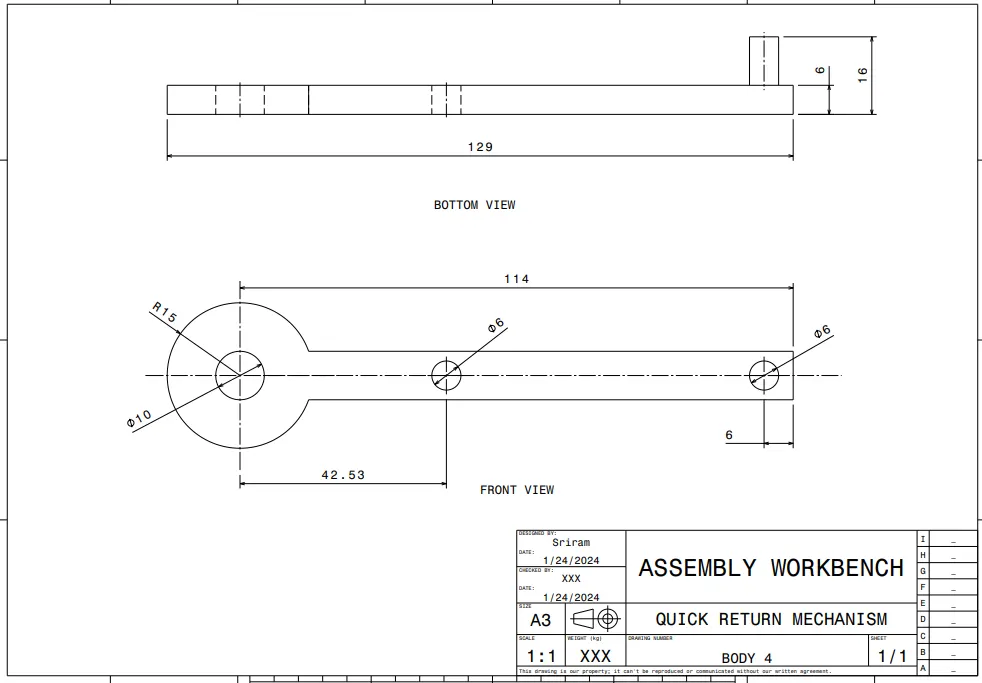

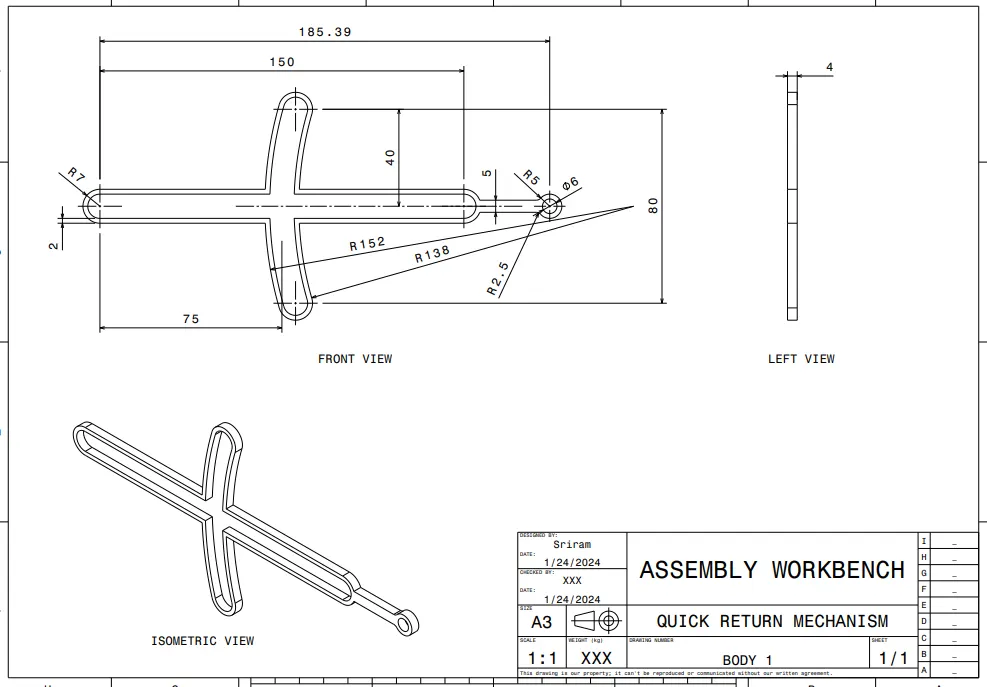

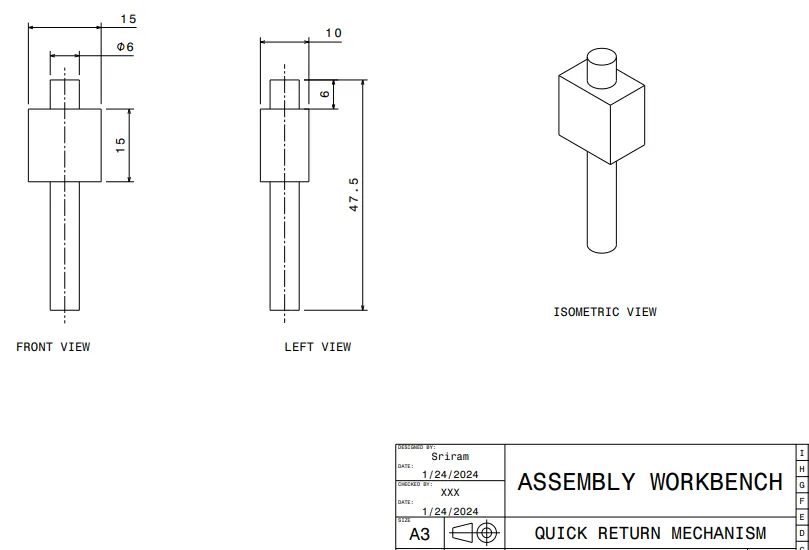

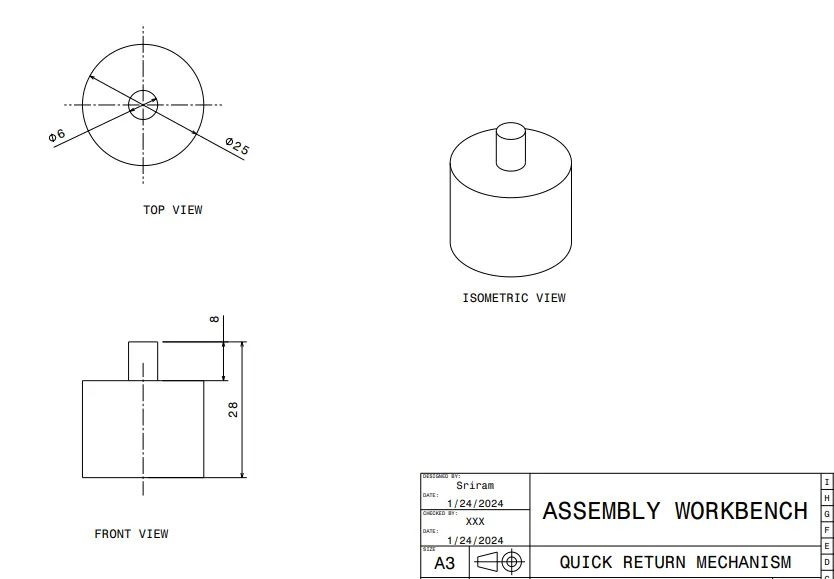

DRAFTED DRAWINGS :-
CV JOINT ASSEMBLY :-

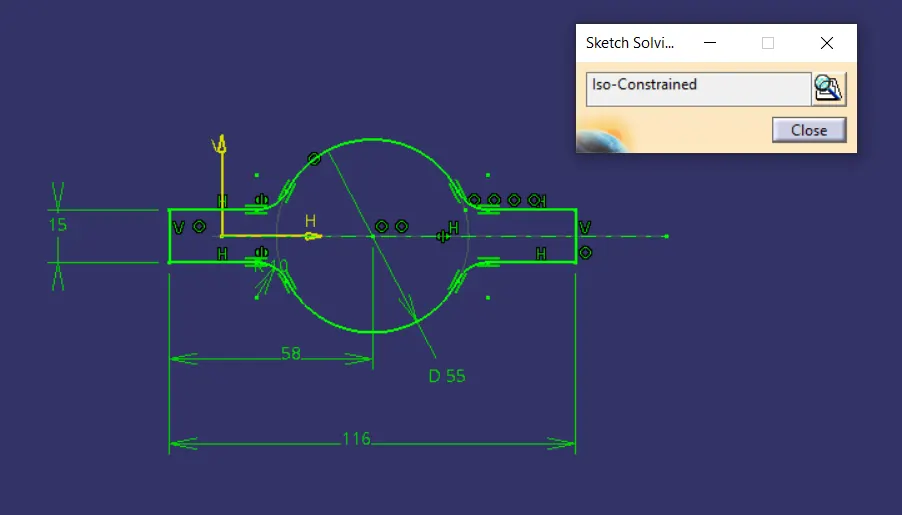

1) Create a all sketch by using positioned sketch command
2) Ensure that all the sketches in iso- constrained.

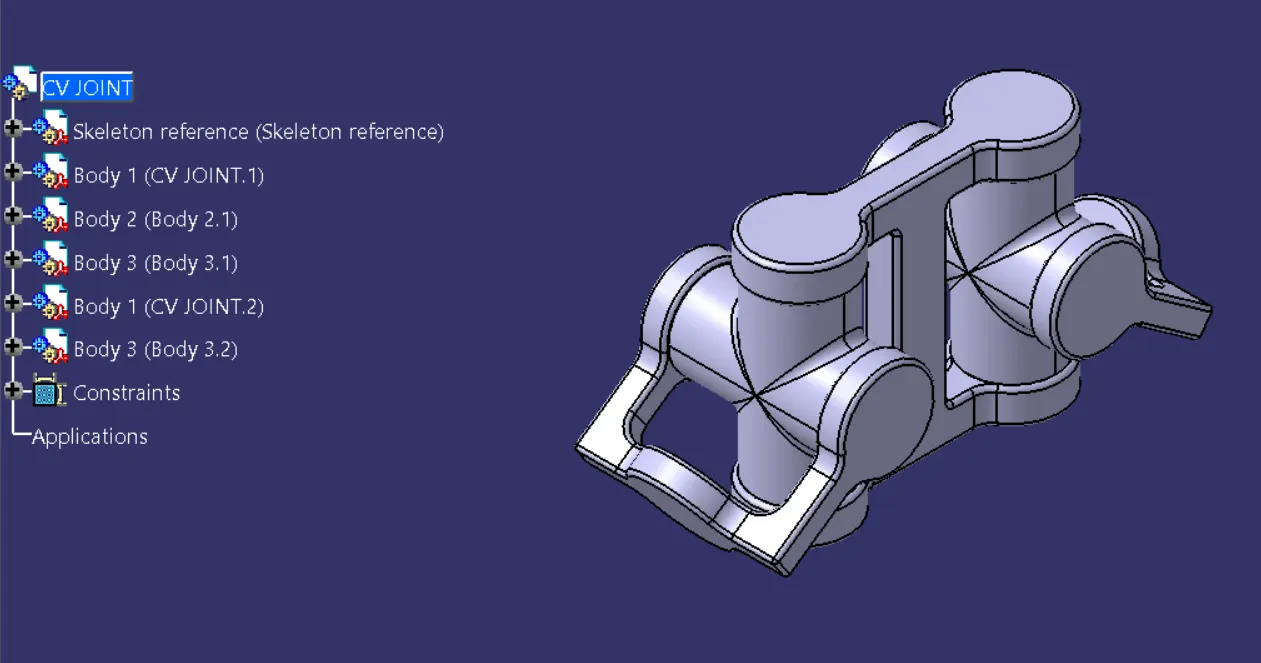

ASSEMBLE ALL CAT PART:
1) Create a new CATproduct and insert all the above separate CATPART by using existing component command.
2) Create a reference elements for all catparts.
3) Add Reference elements like axis, points wherever we need

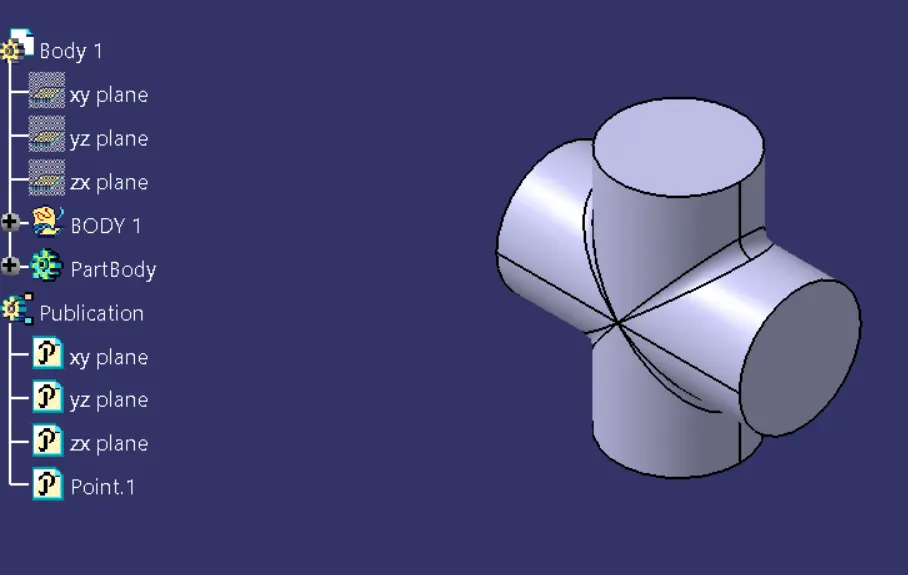

4) Use publication tool to make all the necessary elements like planes,points,axis to make visible.
5) Make the reference part fixed.
6) Now using Constrain, Offset tools assemble the each parts to one another.

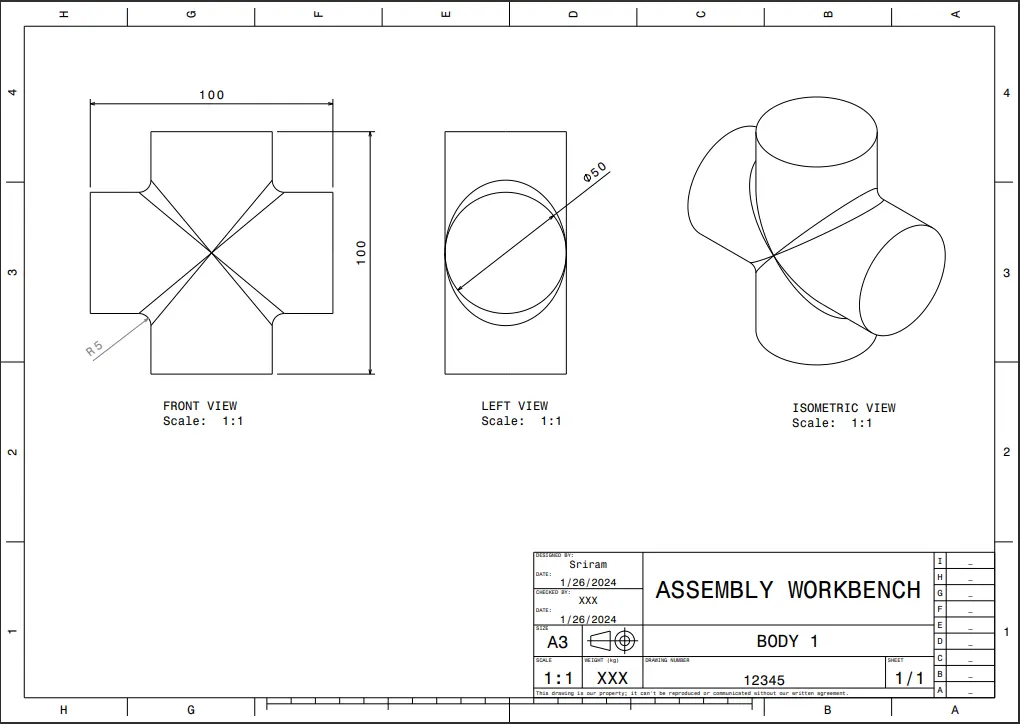

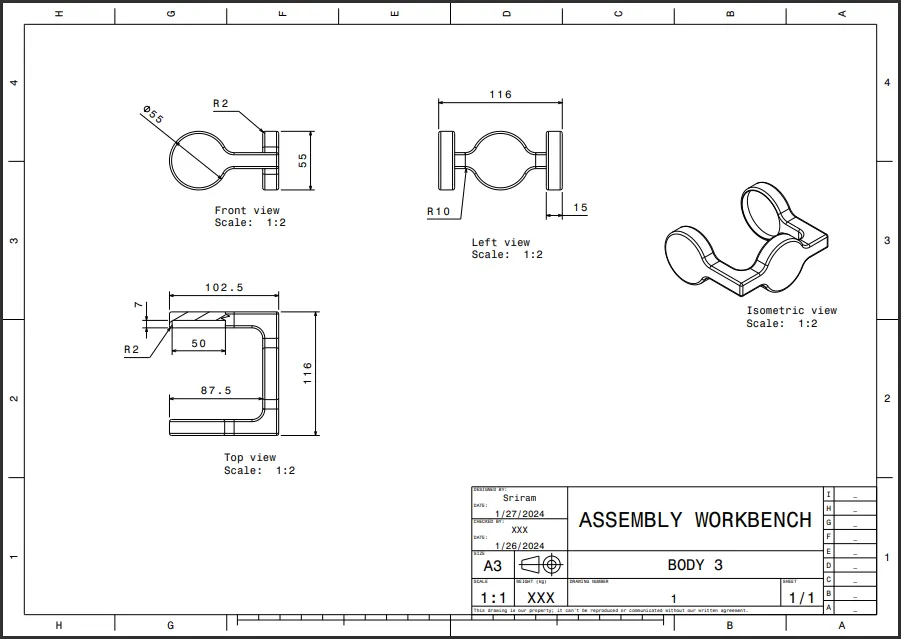

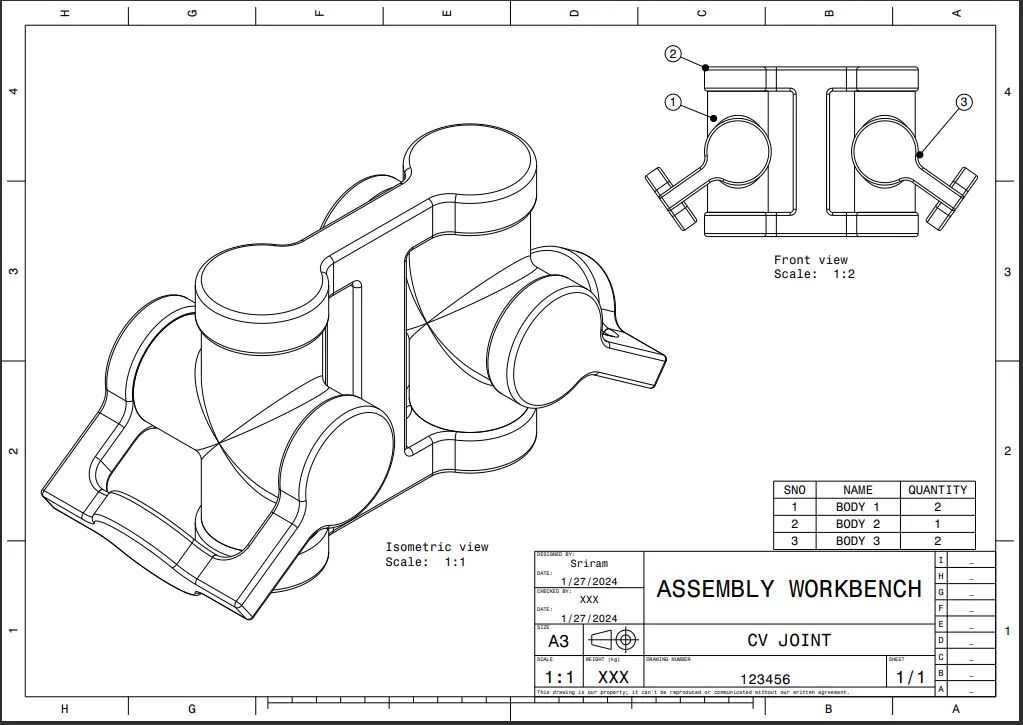

Drafted Drawings:
