Week 7 Challenge - Assembly Workbench
AIM:-
To creat assemblies of Quick return mechanism and CV jointand to also creat 2D drawing of the given
assemblies in CATIA.
ASSEMBLY:-
Assembly modeling is a technology and method used by computer-aided design and product visualization
computer software systems to handle multiple files that represent components within a product. The
components within an assembly are represented as solid or surface models.

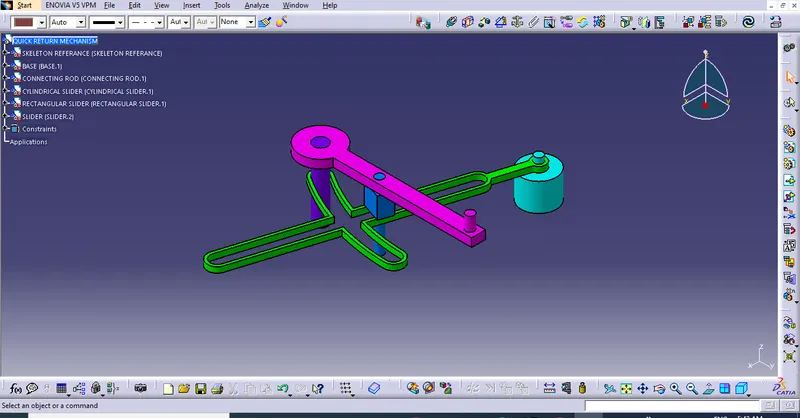

QUICK RETURN MECHANISM:
1) A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken
for travel in return stroke is less than forword stroke. It is driven by a circuler motion source (typically
a motor of some sort) and uses a system of link with three turning pairs and a sliding pair. A quick
return mechanism is a subclass of a slider crank linkage, with an offset crank.
2) Quick return is an common feature of tools in which the action is performedin only one direction
of the stroke, such as shapes and powered saws because it allows less time to be spent on returning
tool to its initial position .

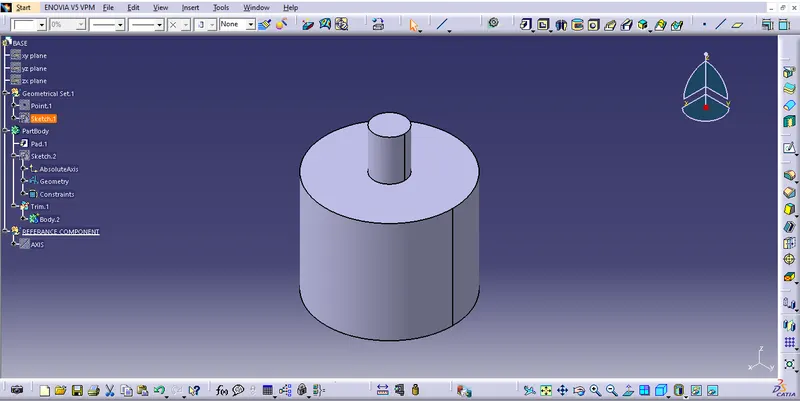

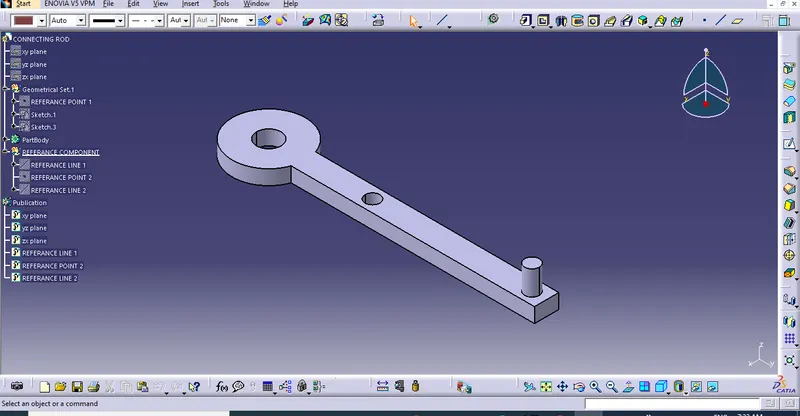

Procedure:-

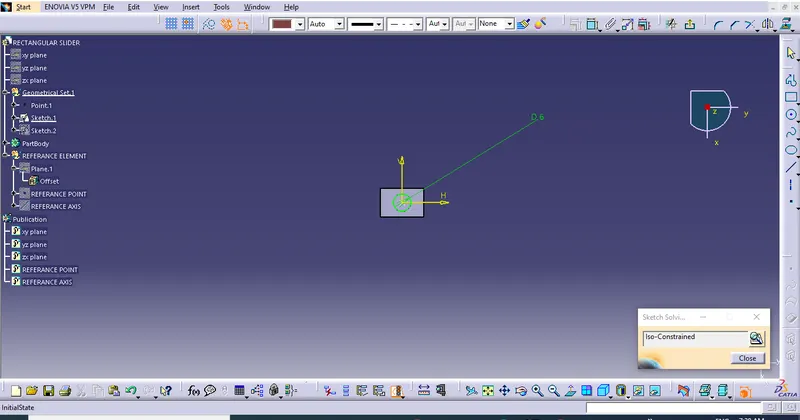

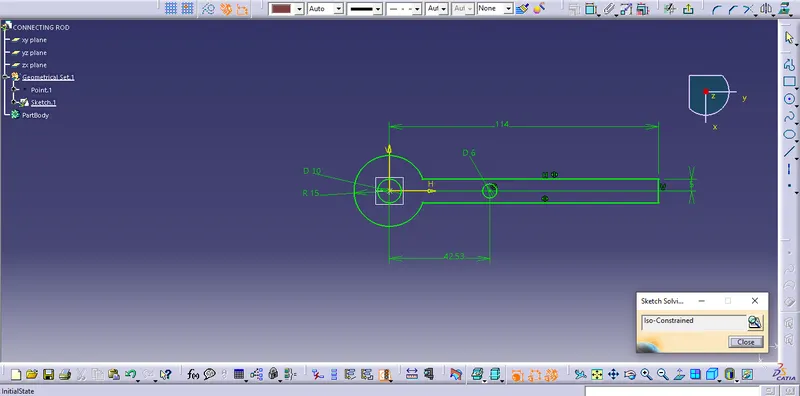

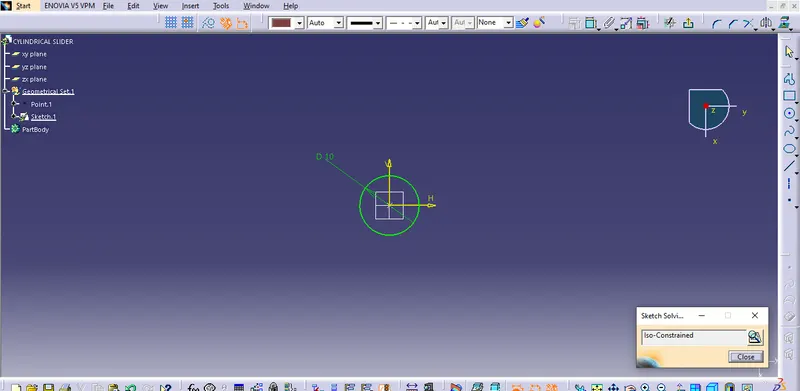

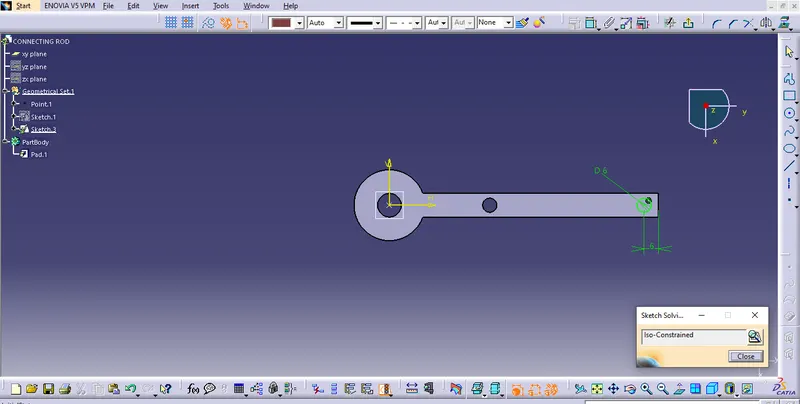

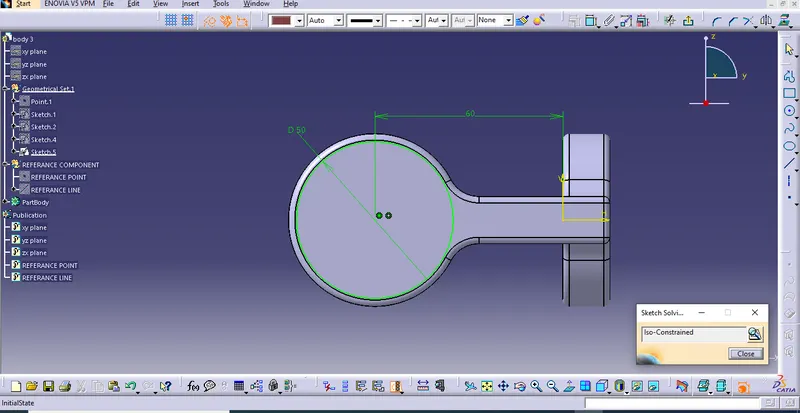

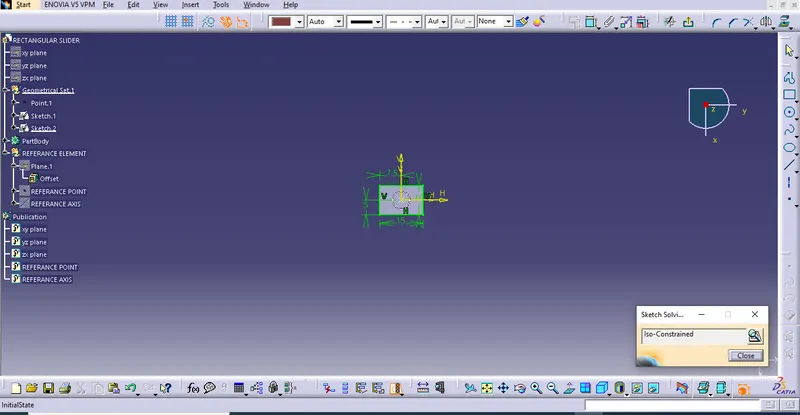

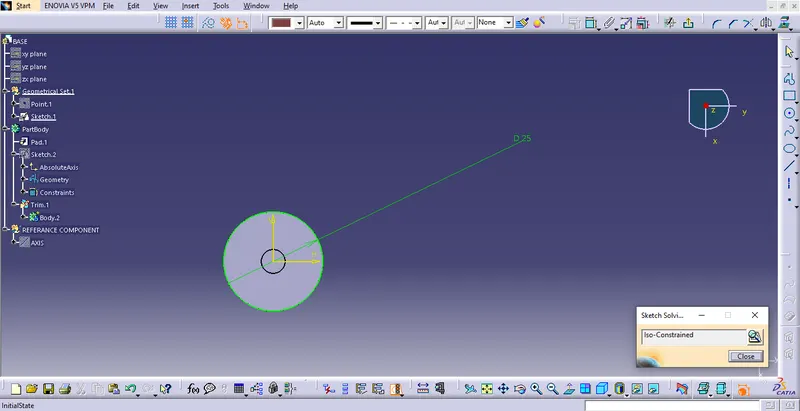

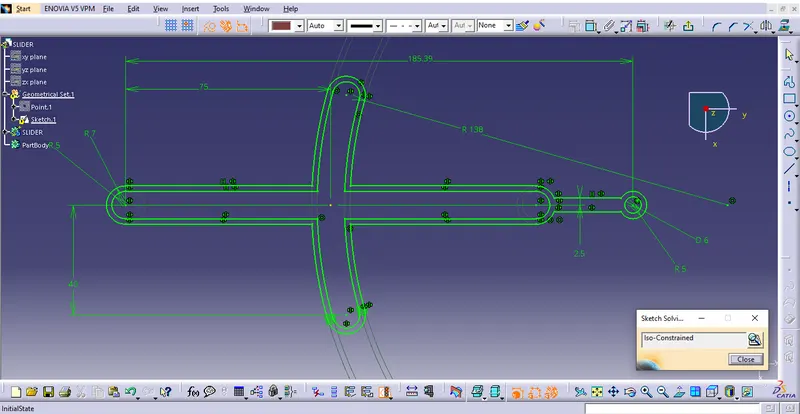

1)Creat a all sketch by using positioned sketch commond

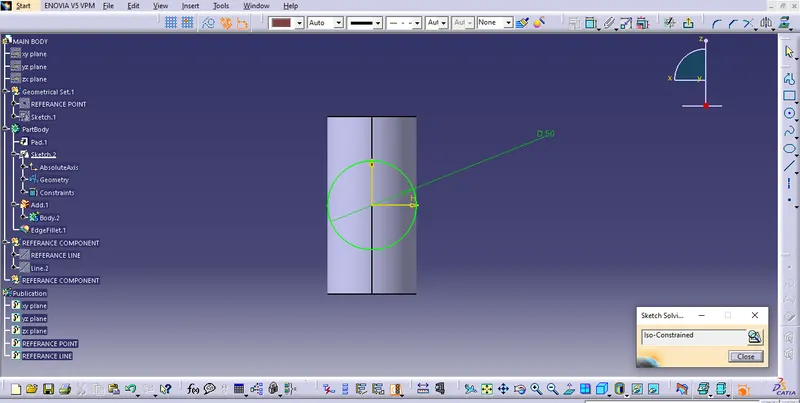

2)Ensure that all the sketcher in iso-constrained

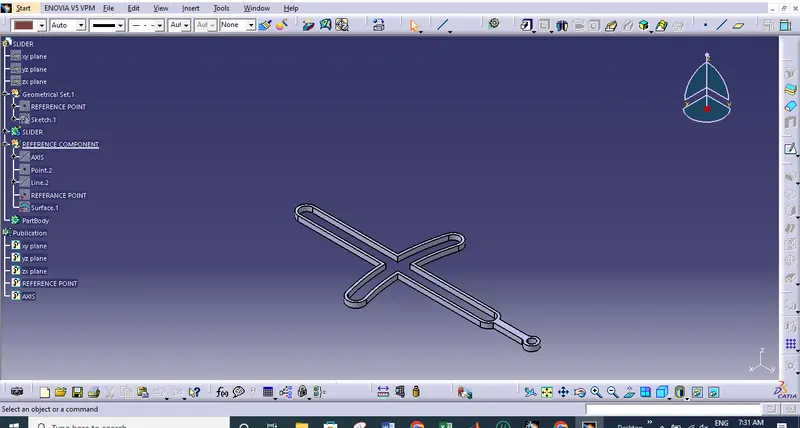

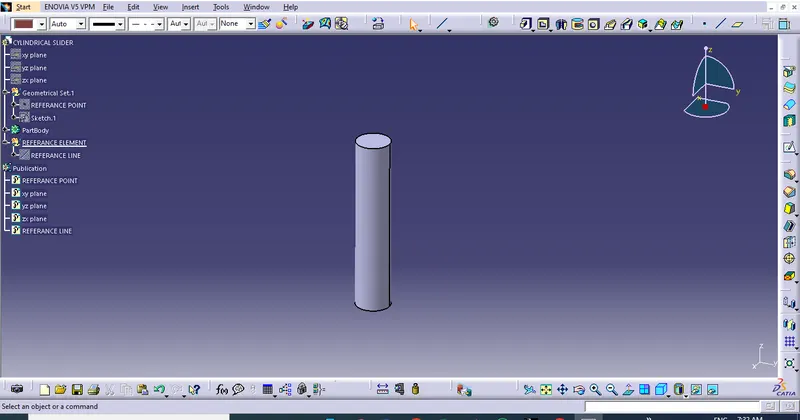

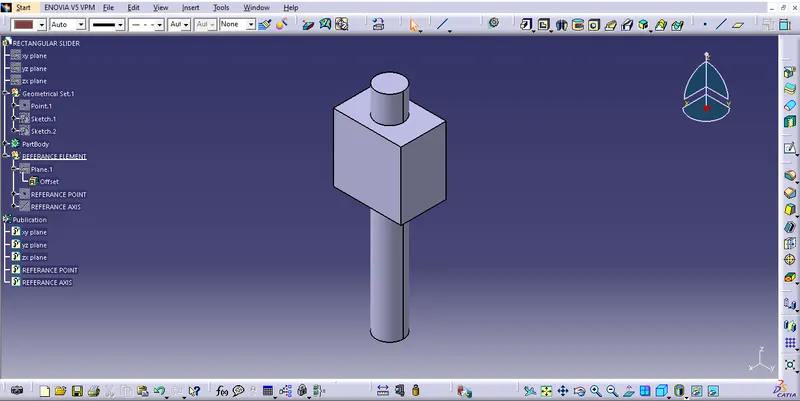

3)Used pad commond for thicken solid for all the above sketch





ASSEMBLE ALL CATPART
1)Creat a new CATproduct and insert all the above separate CATPART by using existing component
command.
2)Creat a reference elements for all catoarts.
3)Add Reference elements like axis, points wherever we need
4)Use publication tool to make all the necessary elements like planes, points, axis to make visible.
5)Make the reference part fixed.
6)Now using Constrain, Offset tools assemble the each parts to one another.

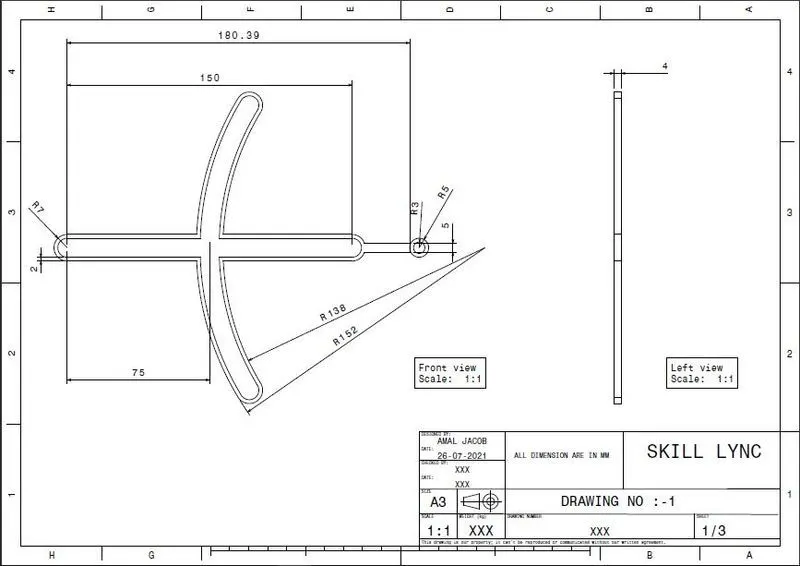

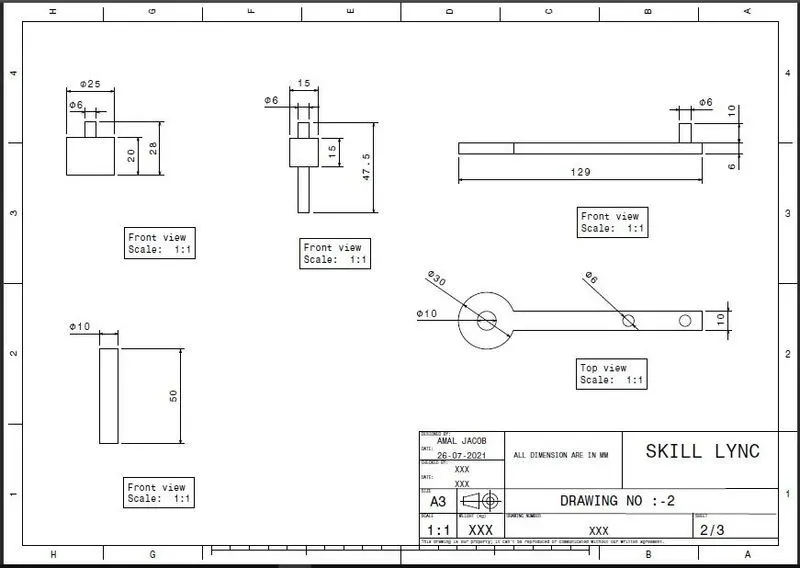

DRAFTED DRAWING:-

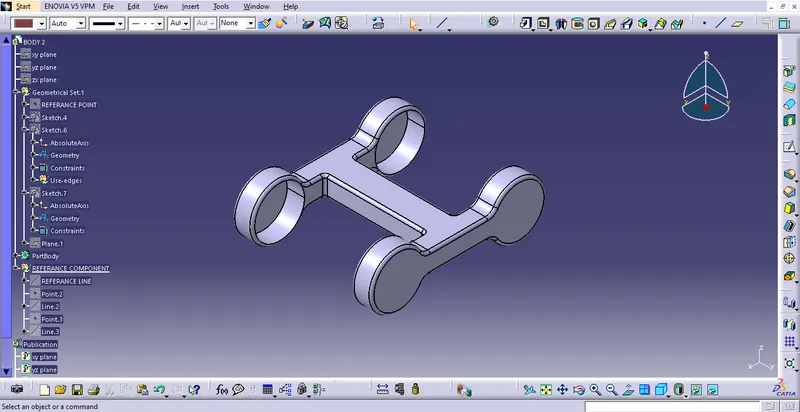

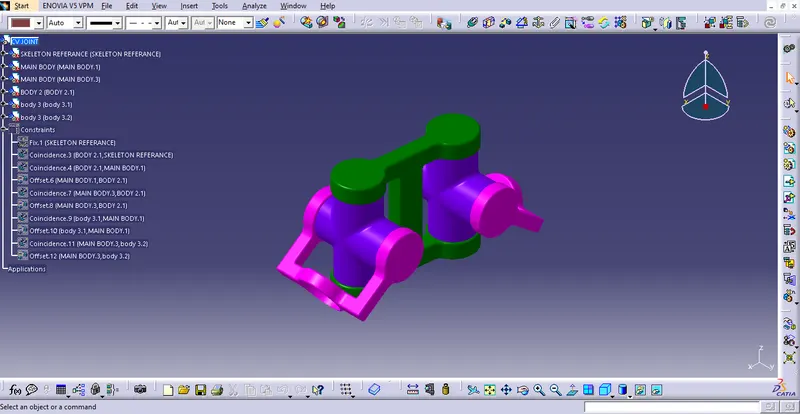

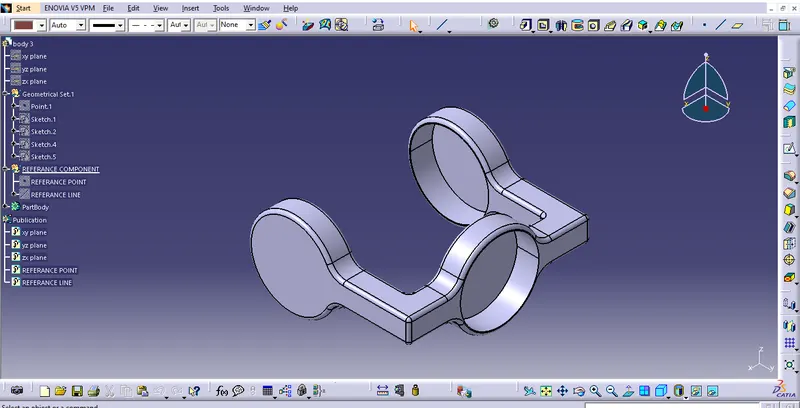

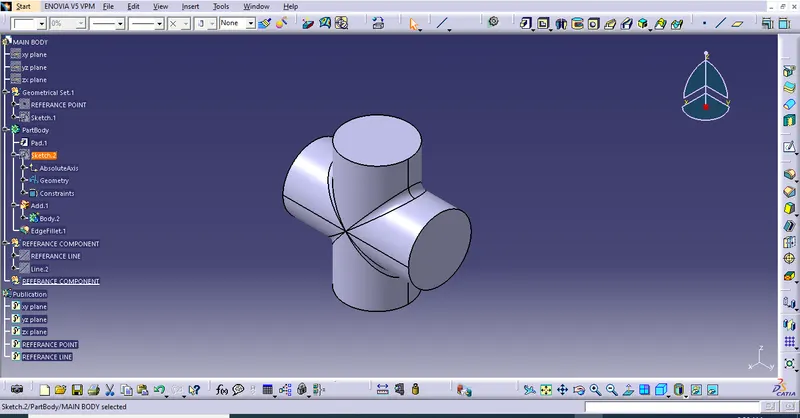

CV JOINT ASSEMBLY:-

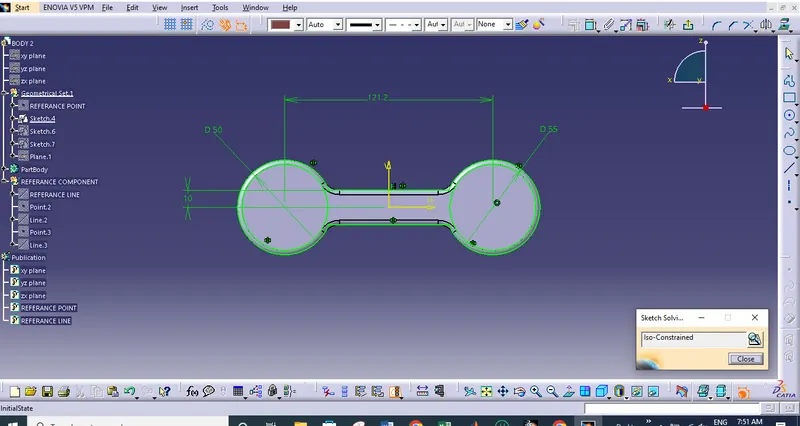

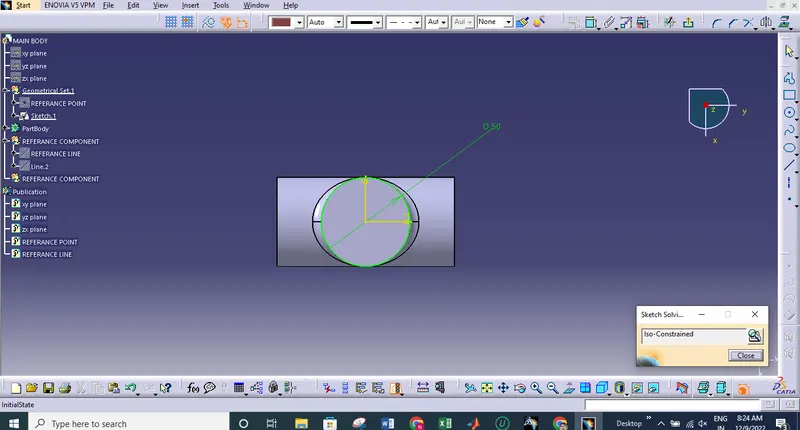

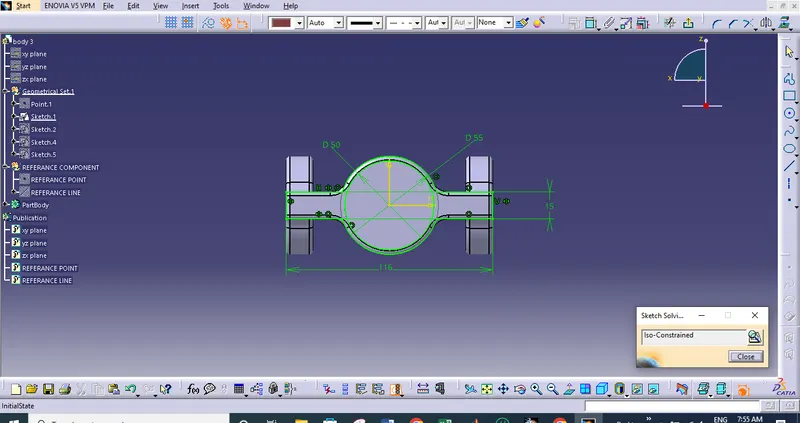

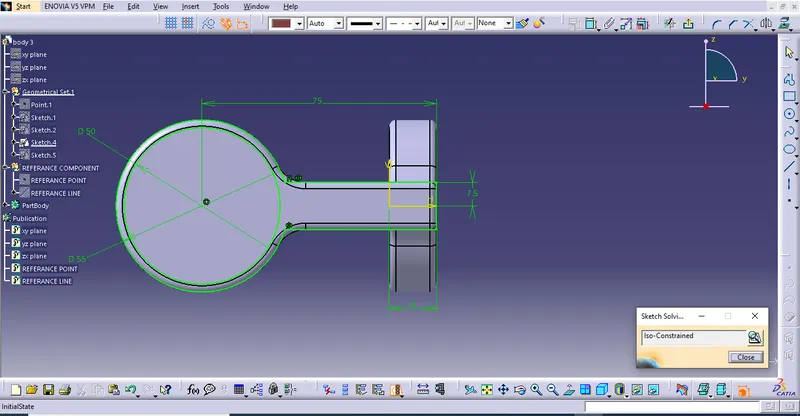

1)Creat a all sketch by using positioned sketch command

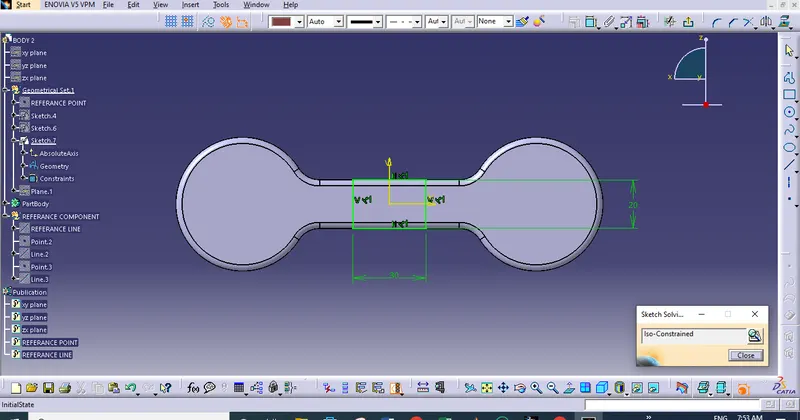

2)Ensure that all the sketches in iso-constrained





ASSEMBLE ALL CATPART
1)Create a new CATproduct and insert all the above separate CATPART by using existing component
command.
2)Create a reference elements for all catparts.
3)Add reference elements like axis, points wherever we need
4)Use publication tool to make all the necessary elements like planes, points, axis to make visible.
5)Make the reference part fixed.
6) Now using Constrain, offset tools assemble the each parts to one another.

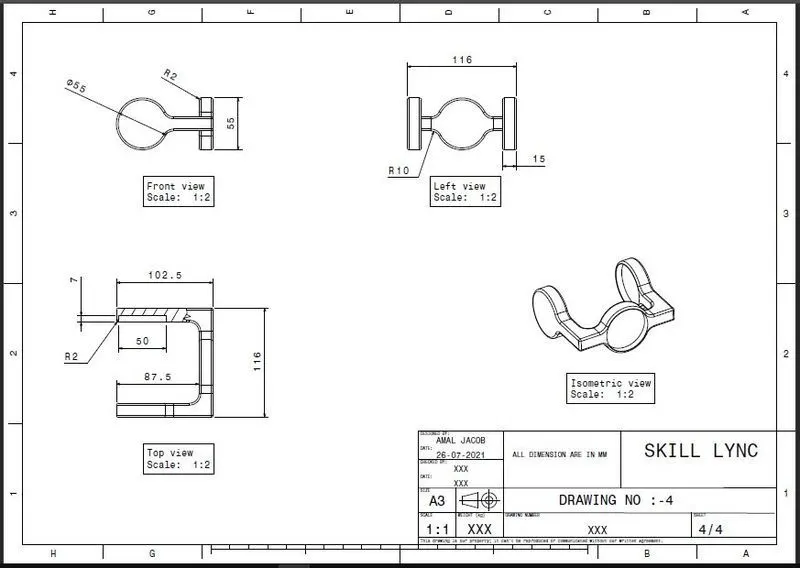

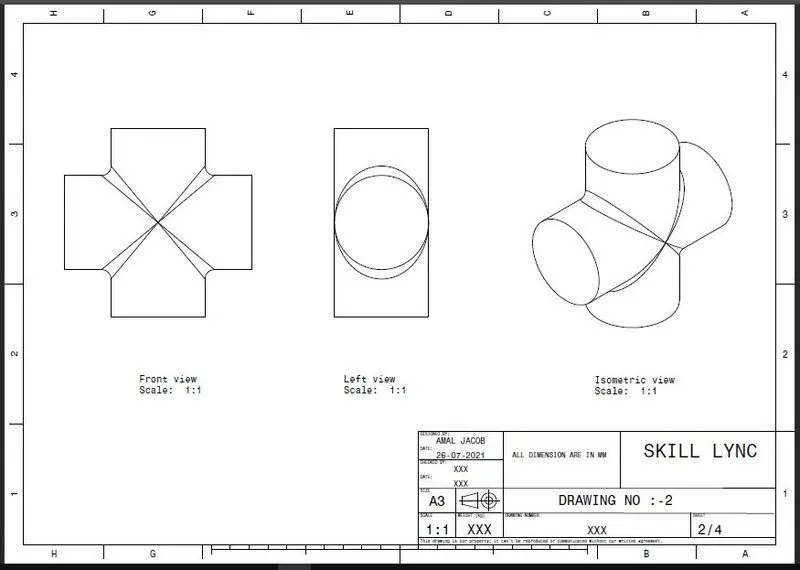

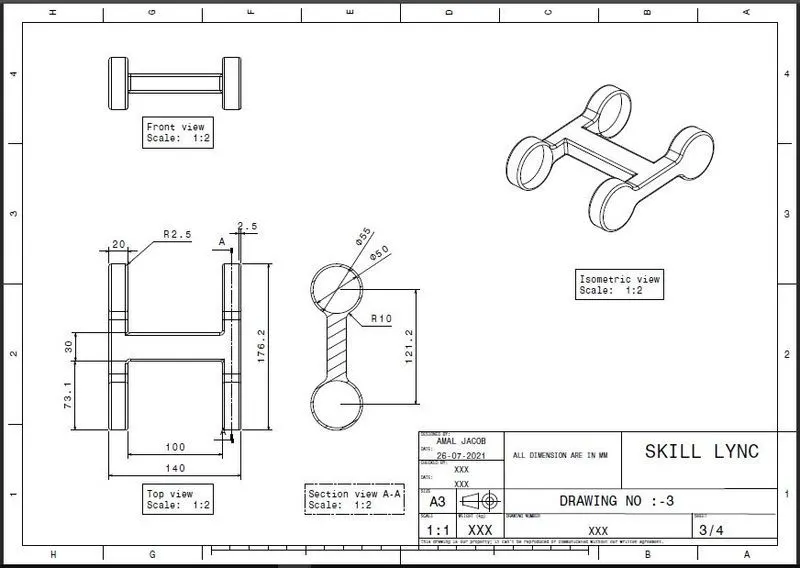

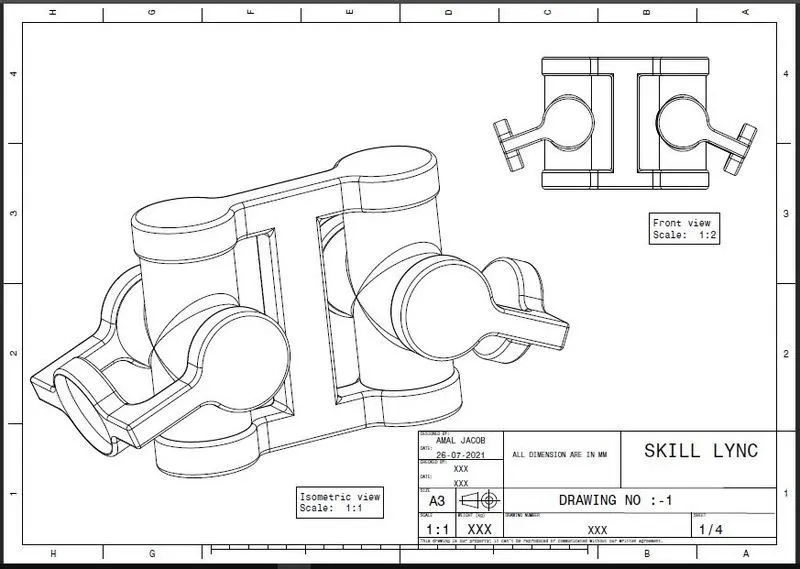

DRAFTED DRAWING:-
