Week 7 Challenge - Assembly Workbench

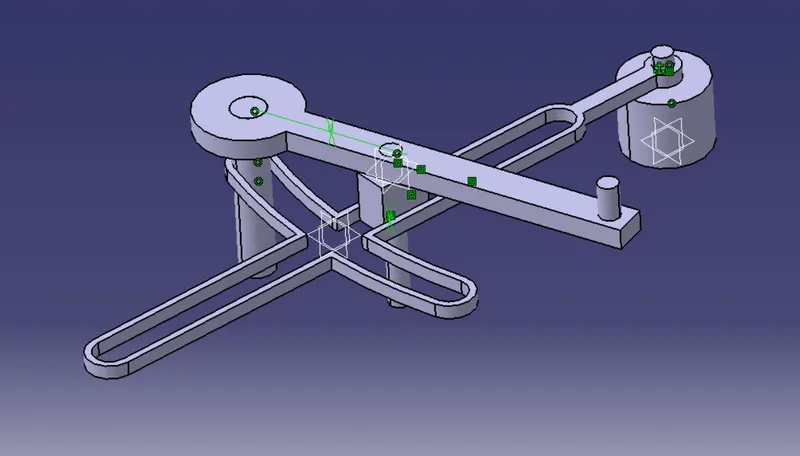

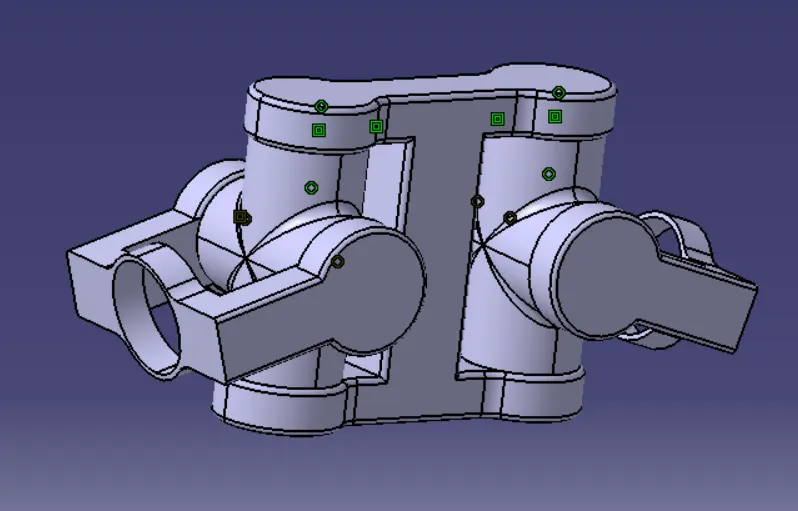

ANS 1

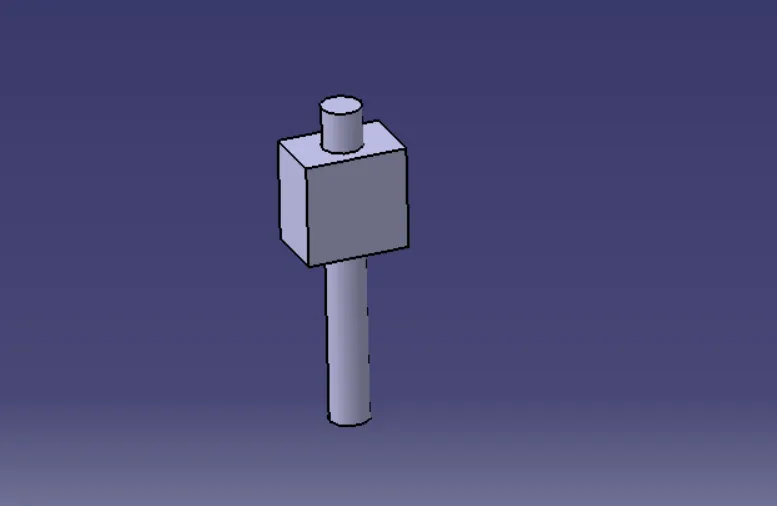

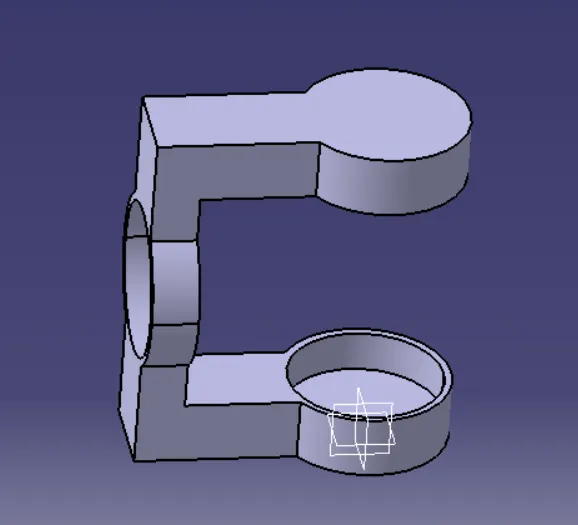

PART 1

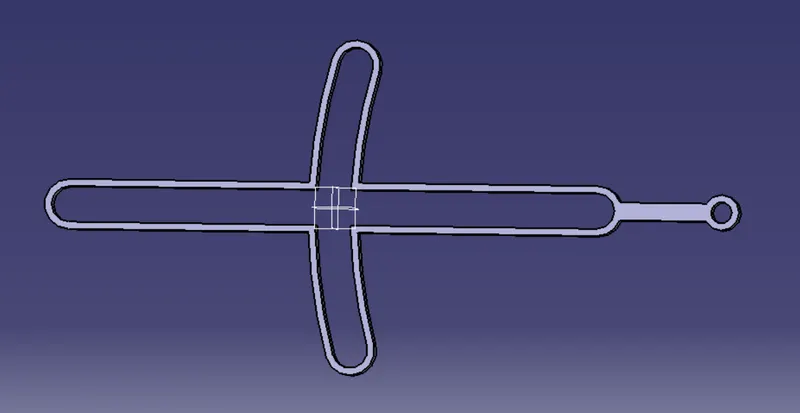

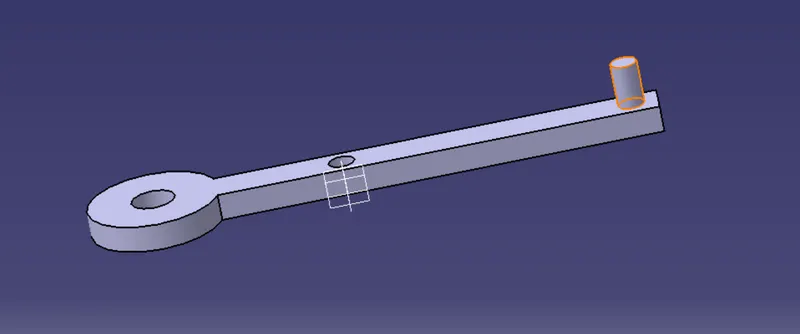

PART 2

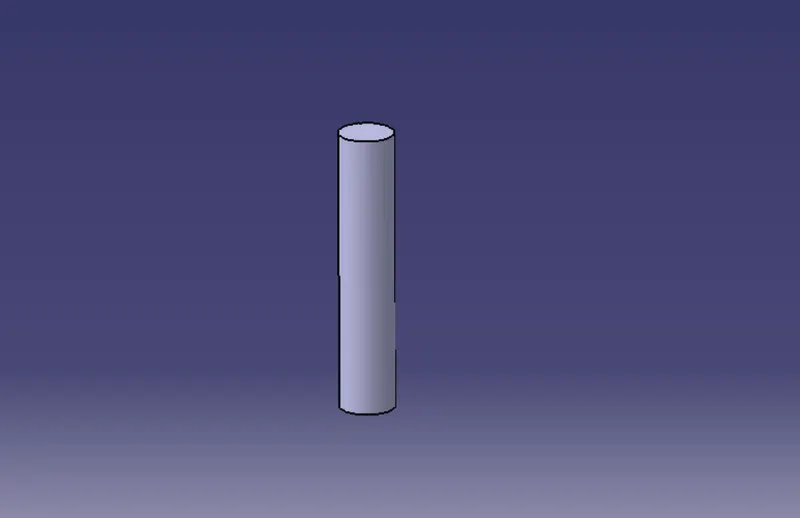

PART 3

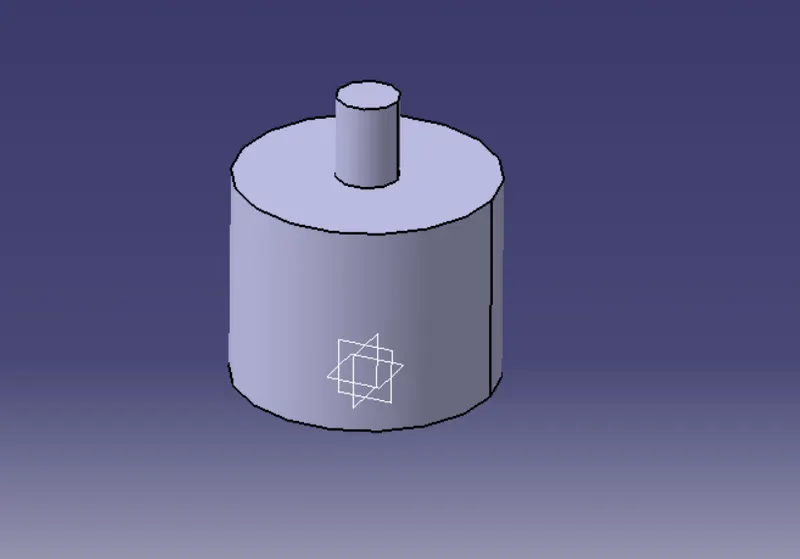

PART 4

PART 5

PROCEDURE

• Create new part file ande draw each diagram as shown in the question seperately.
• Now create new Prodect file ande inport all created 5 parts to it
• By anlysing the questions assamble each part to its correct position by creating axis.

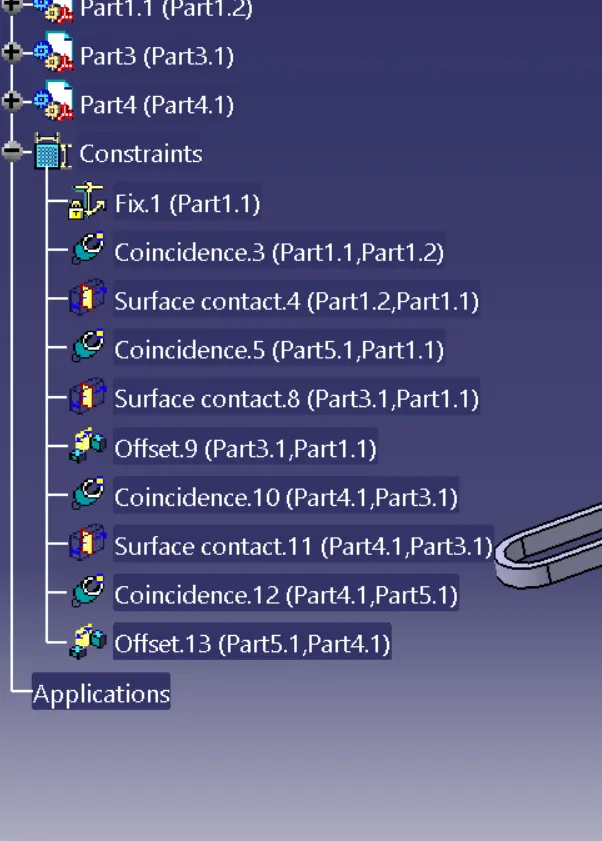

• By creating constrines fix the part to requred position
• Fix the main body by using Fix components constrain.
• By creating Coincidence Contraints fix the part by its Axis.
• By using the tool Surface Contact specify the correct position in the axis.
• And save the file using save management.

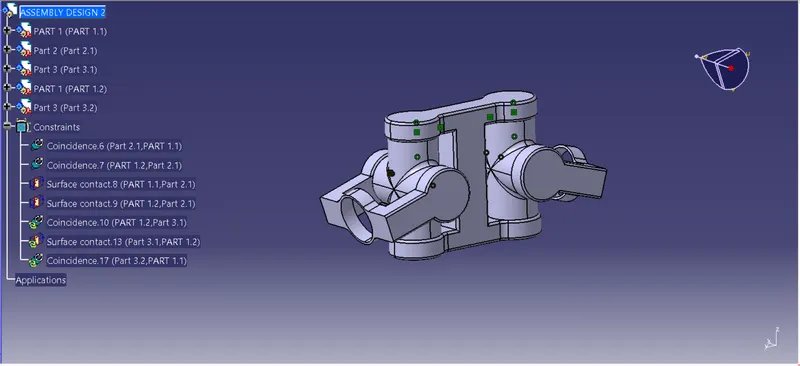

ANS 2

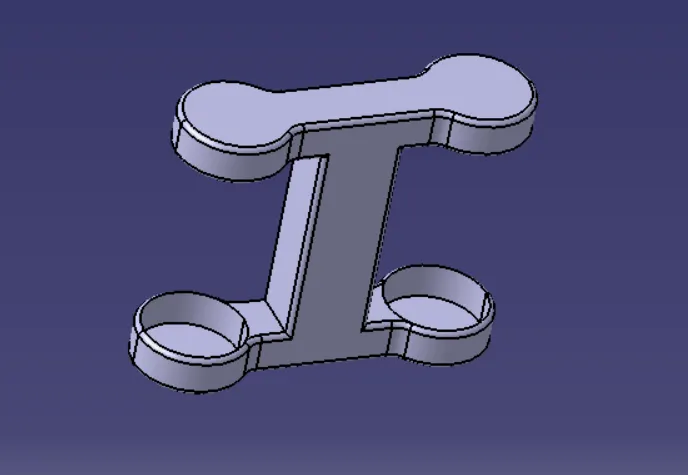

PART 1

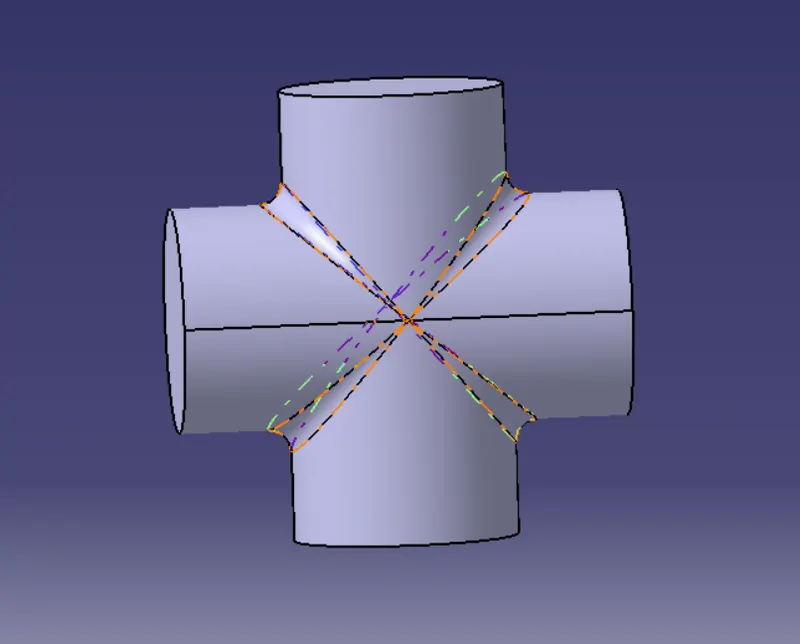

PART 2

PART 3

PROCEDURE

• Create new part file ande draw each diagram as shown in the question seperately.
• Now create new Prodect file ande inport all created 5 parts to it
• By anlysing the questions assamble each part to its correct position by creating axis.
• By creating constrines fix the part to requred position
• Fix the main body by using Fix components constrain.
• By creating Coincidence Contraints fix the part by its Axis.
• By using the tool Surface Contact specify the correct position in the axis.
• And save the file using save management.
