Week 7 Challenge

AIM AND INTRODUCTION:

To calculate the water current forces for the bridge structure and apply the calculated loads in the Staad pro.

Given Data:

HFL =2m from ground level

Span =45m

Mean velocity =3m/s

Water Current Forces:

Ocean currents can be caused by wind, density differences in water masses caused by temperature and salinity variations, gravity, and events such as earthquakes or storms

Procedure:

Max. Velocity = √2*Vmean(Mean velocity=3m/s)

= √2*3

=4.24 m/s

Water Current,P=52*K*V²

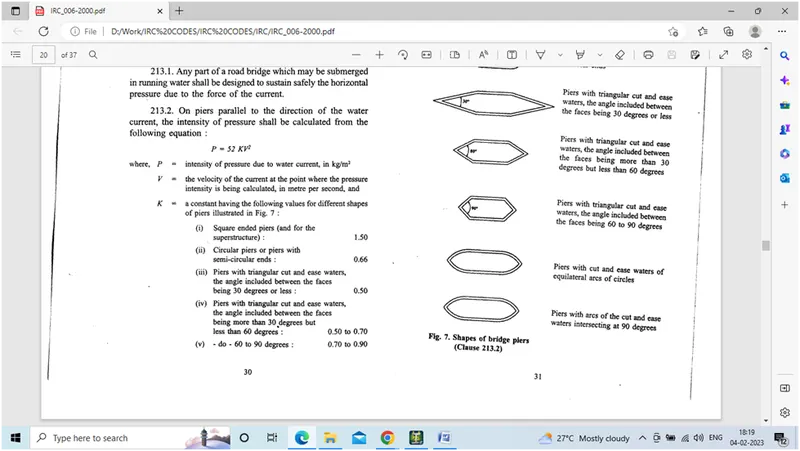

According to IS Code 78-2000 Section VII table No 4 Page No 21 is value of K is 0.66 for Circular Piers

k = 0.66 for circular (Circular piers /piers ends with semi circular)

Therefore Water Current, P =52*.66*4.24²

=616.9912 Kn/m²

Modeling:

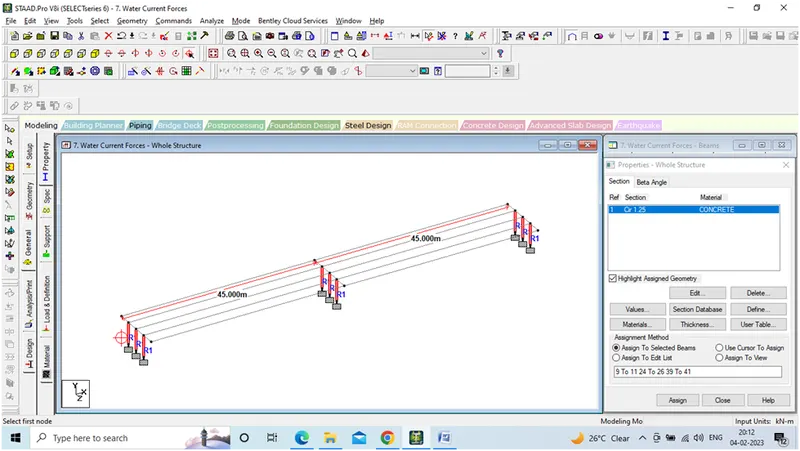

Creating 2 Spans with 45m interval

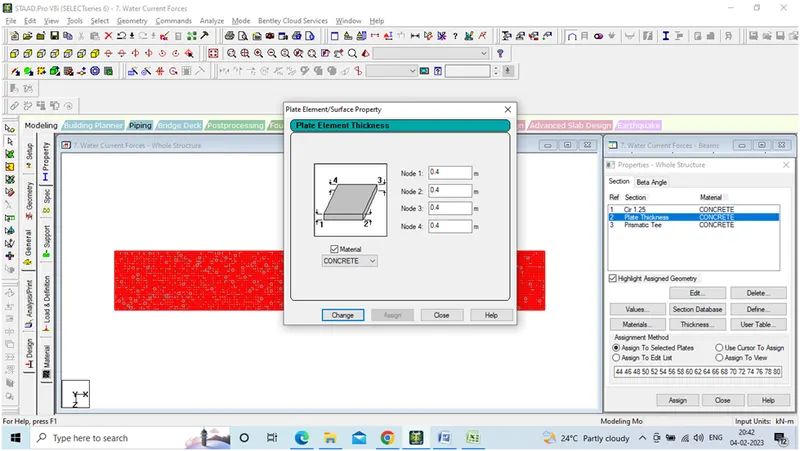

Assigning 0.4m thickness to slab plates

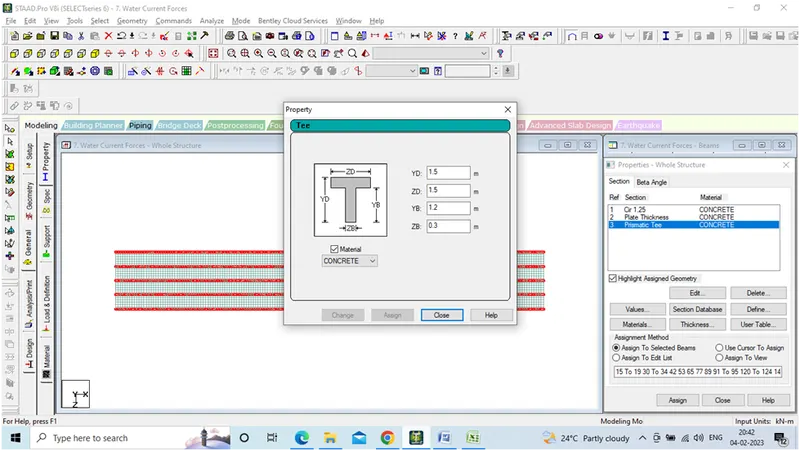

Assigning Main Girder Properties

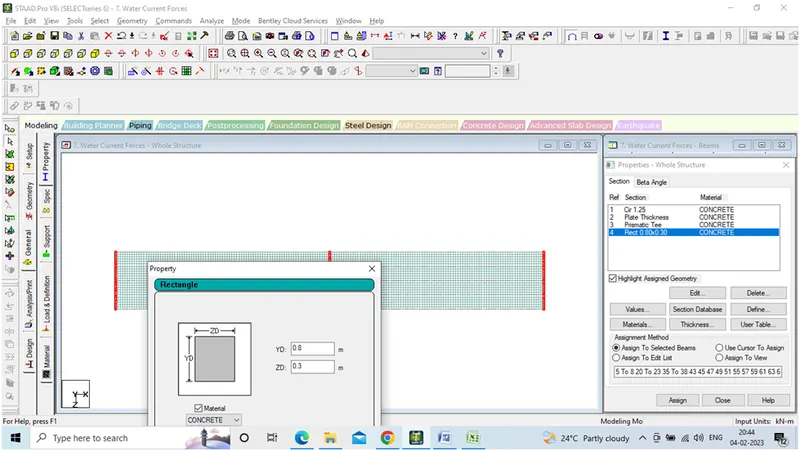

Assigning Cross Girder properties

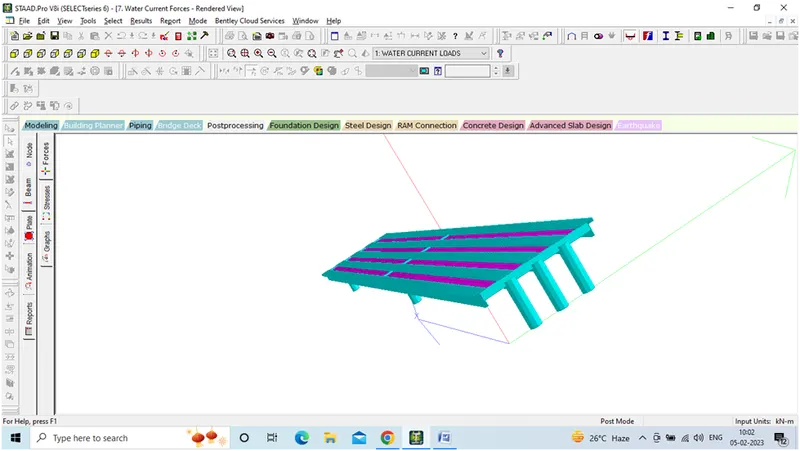

Complete render view of the structure

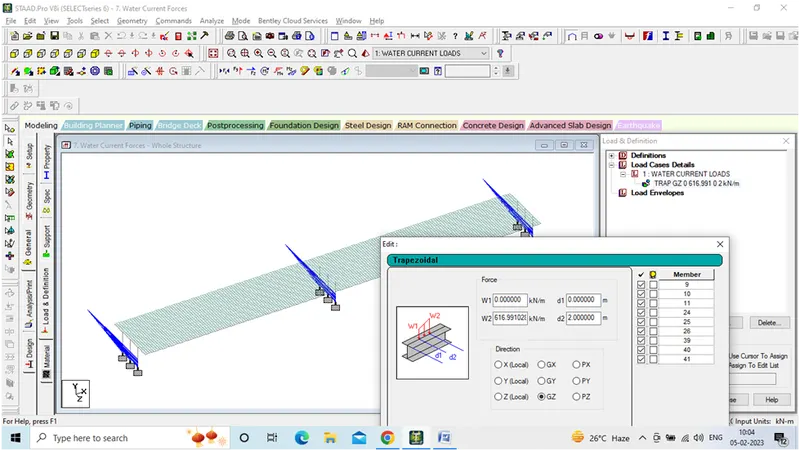

Appling Water current loads

Displaying results

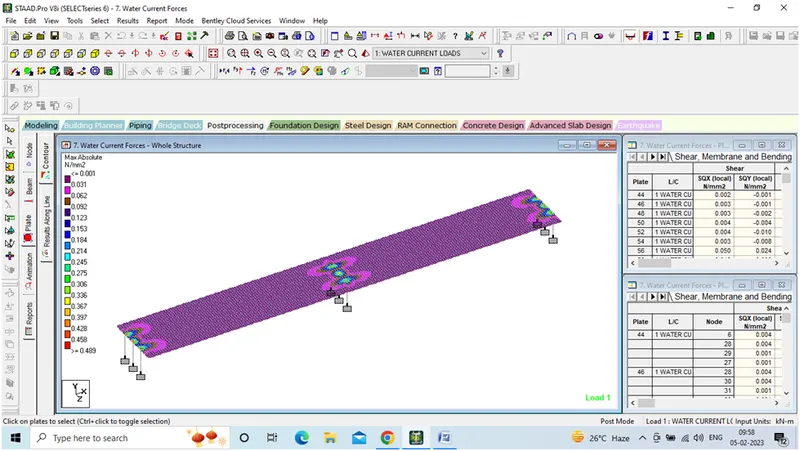

Displaying slab plate results

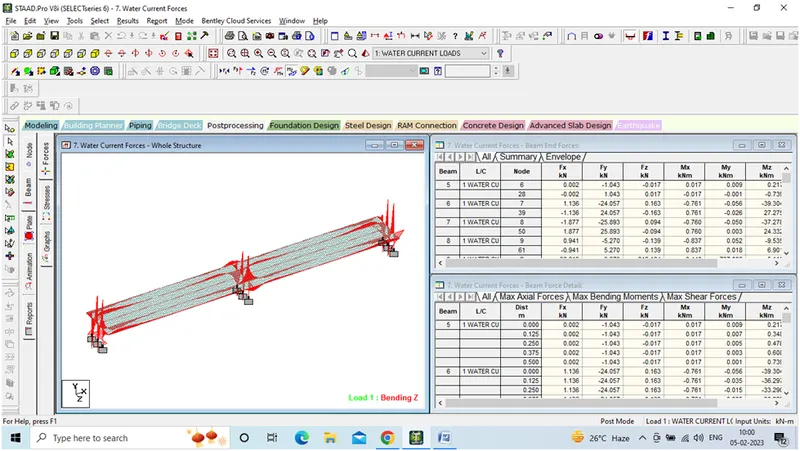

Displaying Beams bending moment in z direction

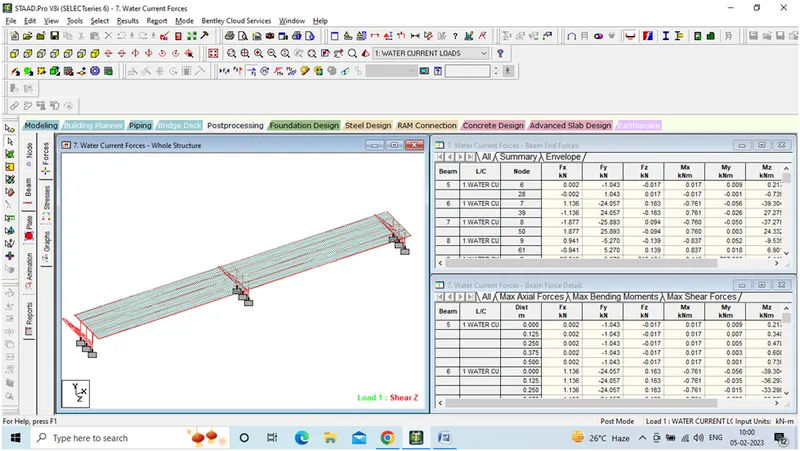

Displaying Shear force in z direction(beams)
