Week 1 Challenge

Given that:

Width of Deck slab=10.2m

Span of the bridge=12m

Pier size=2.5m Diameter

Seismic Zone=IV

Wind speed =47 km/hr

The site is away from Bay of Bengal=60km radius

Unit Weight of Soil=19 KN/m3

Dead Load of Super Structure:

Deck slab =10.2 X 0.225 X25 =57.375 KN/m

Box girder:

Bottom portion =4.02 X 0.225 X25 = 20.1KN/m

Side walls =2.127 X 0.25 X 25 X2 =26.5875KN/m

Total load (Excluding Slab) = 46.6875 KN/m

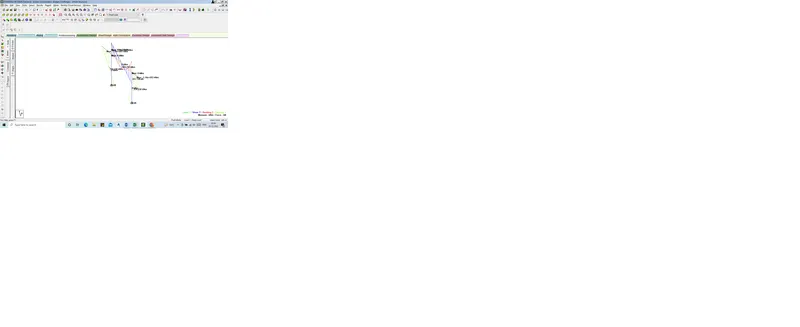

Staad Editor Report:

STAAD SPACE

START JOB INFORMATION

ENGINEER DATE 19-Dec-22

END JOB INFORMATION

INPUT WIDTH 79

UNIT METER KN

JOINT COORDINATES

1 0 0 0; 2 0 0 12; 3 0 -10 0; 4 0 -10 12;

MEMBER INCIDENCES

1 1 2; 2 1 3; 3 2 4;

DEFINE MATERIAL START

ISOTROPIC CONCRETE

E 2.17185e+007

POISSON 0.17

DENSITY 23.5616

ALPHA 1e-005

DAMP 0.05

TYPE CONCRETE

STRENGTH FCU 27579

END DEFINE MATERIAL

MEMBER PROPERTY

1 PRIS YD 0.22 ZD 10

2 3 PRIS YD 2.5

CONSTANTS

MATERIAL CONCRETE MEMB 1 TO 3

SUPPORTS

3 4 FIXED

LOAD 1 LOADTYPE Dead TITLE Dead Load

SELFWEIGHT Y -1 LIST ALL

MEMBER LOAD

1 UNI GY -46.6875

PERFORM ANALYSIS PRINT ALL

PERFORM ANALYSIS PRINT ALL

FINISH
